AES
€ 9,950,000
About
Specifications
Technical Details
Propulsion & Auxiliary Machinery
Electrical Systems
Deck Equipment & Coating
Safety Systems
Navigation & Electronic Equipment
About

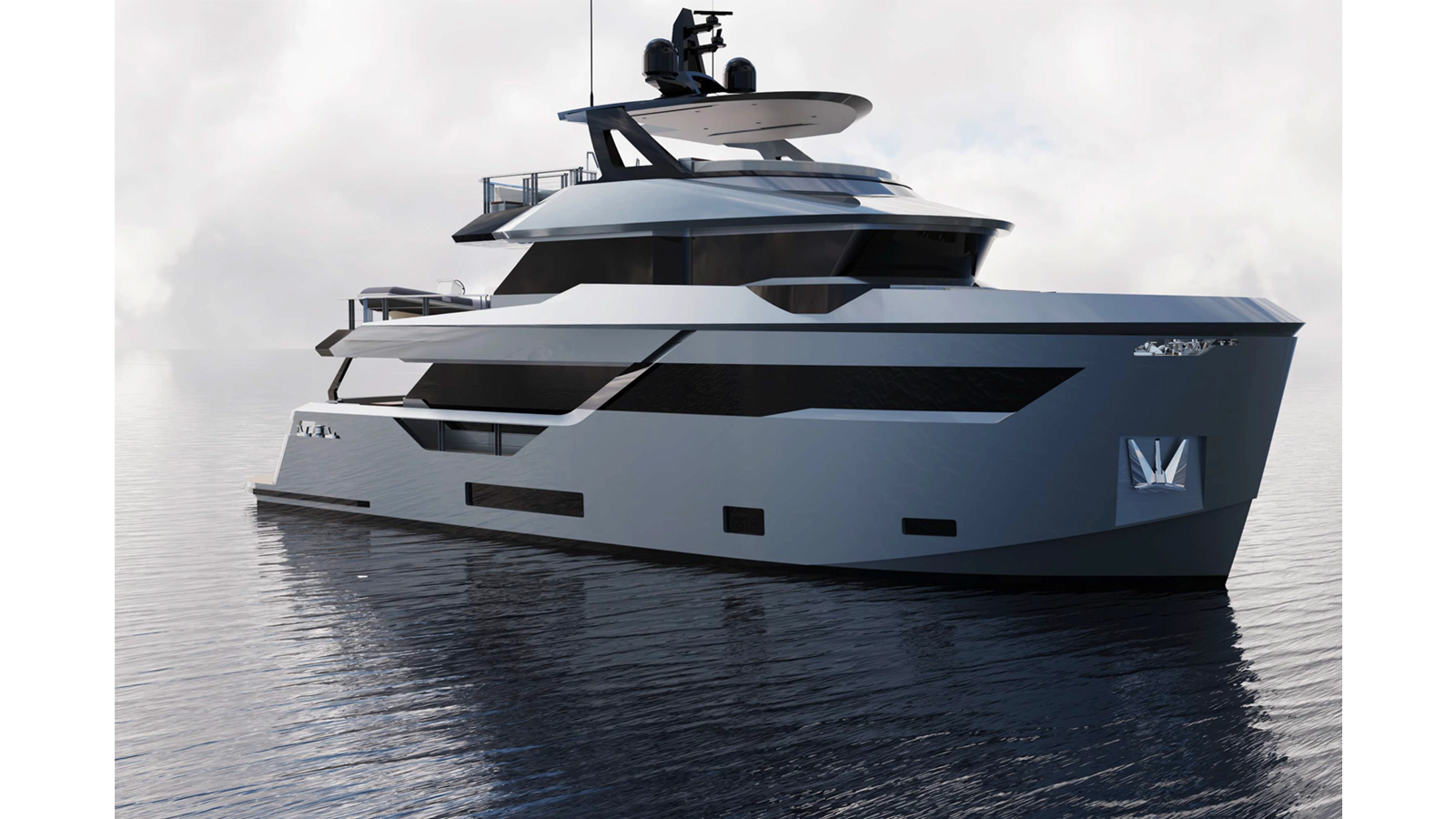

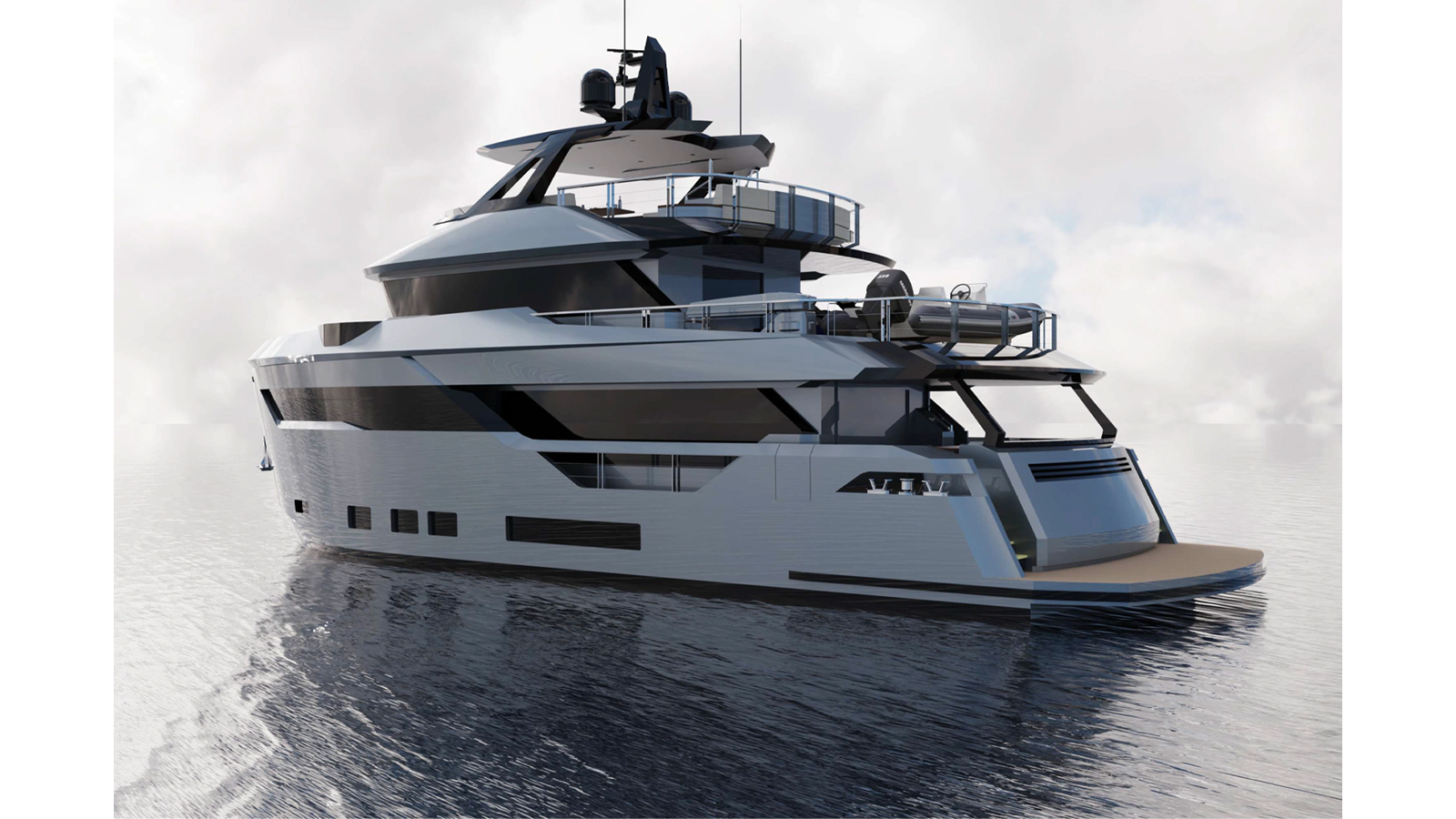

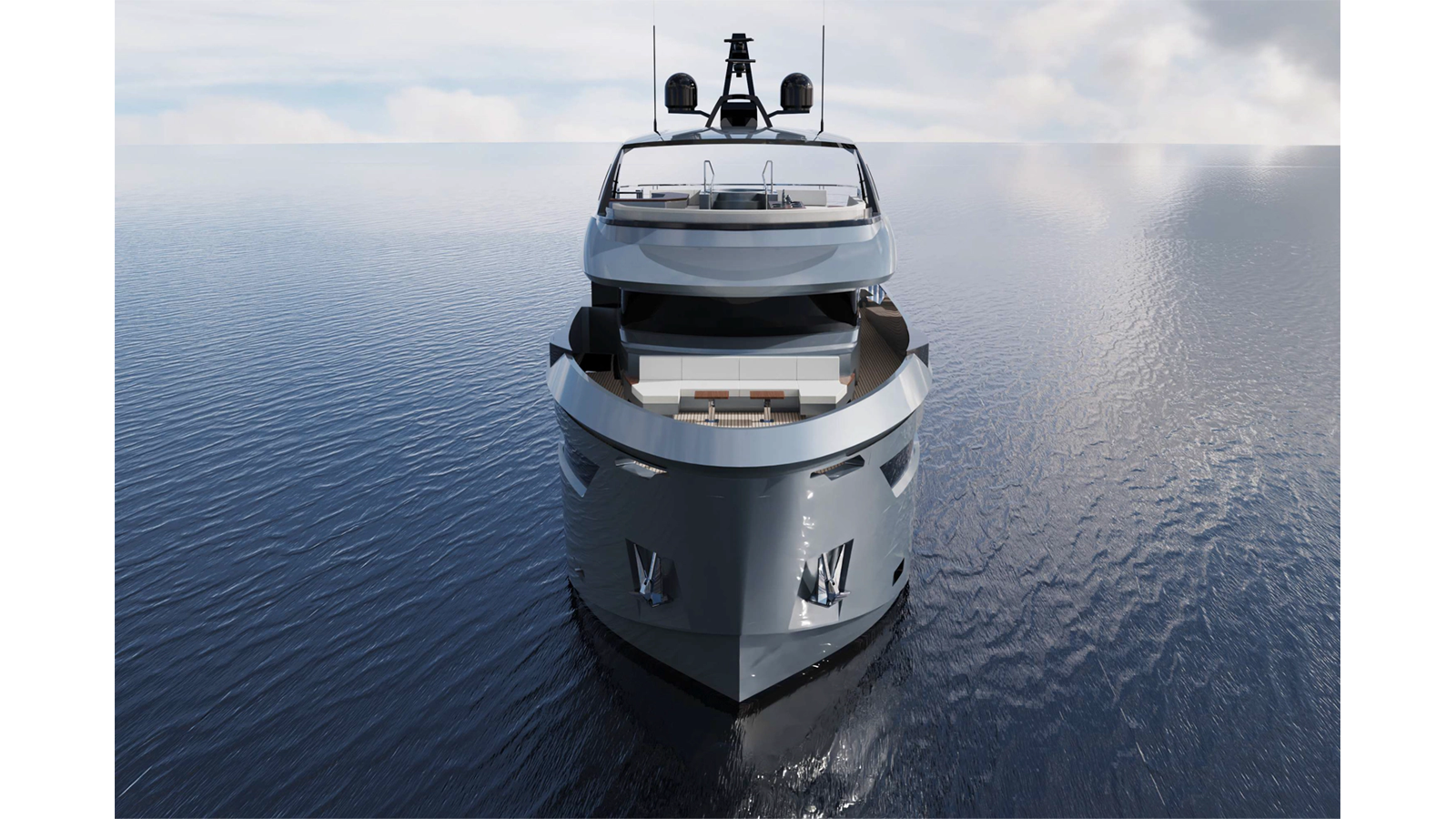

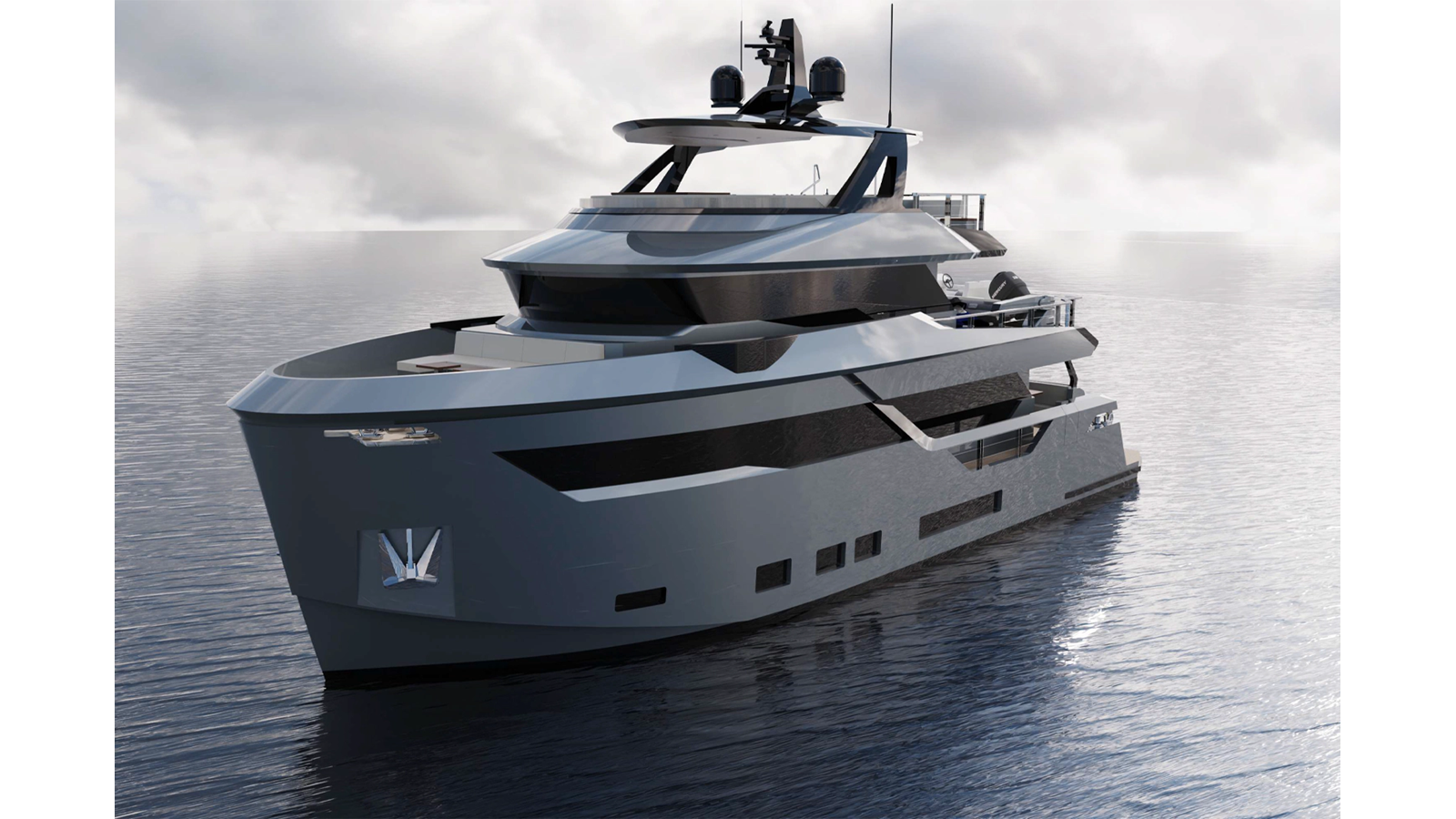

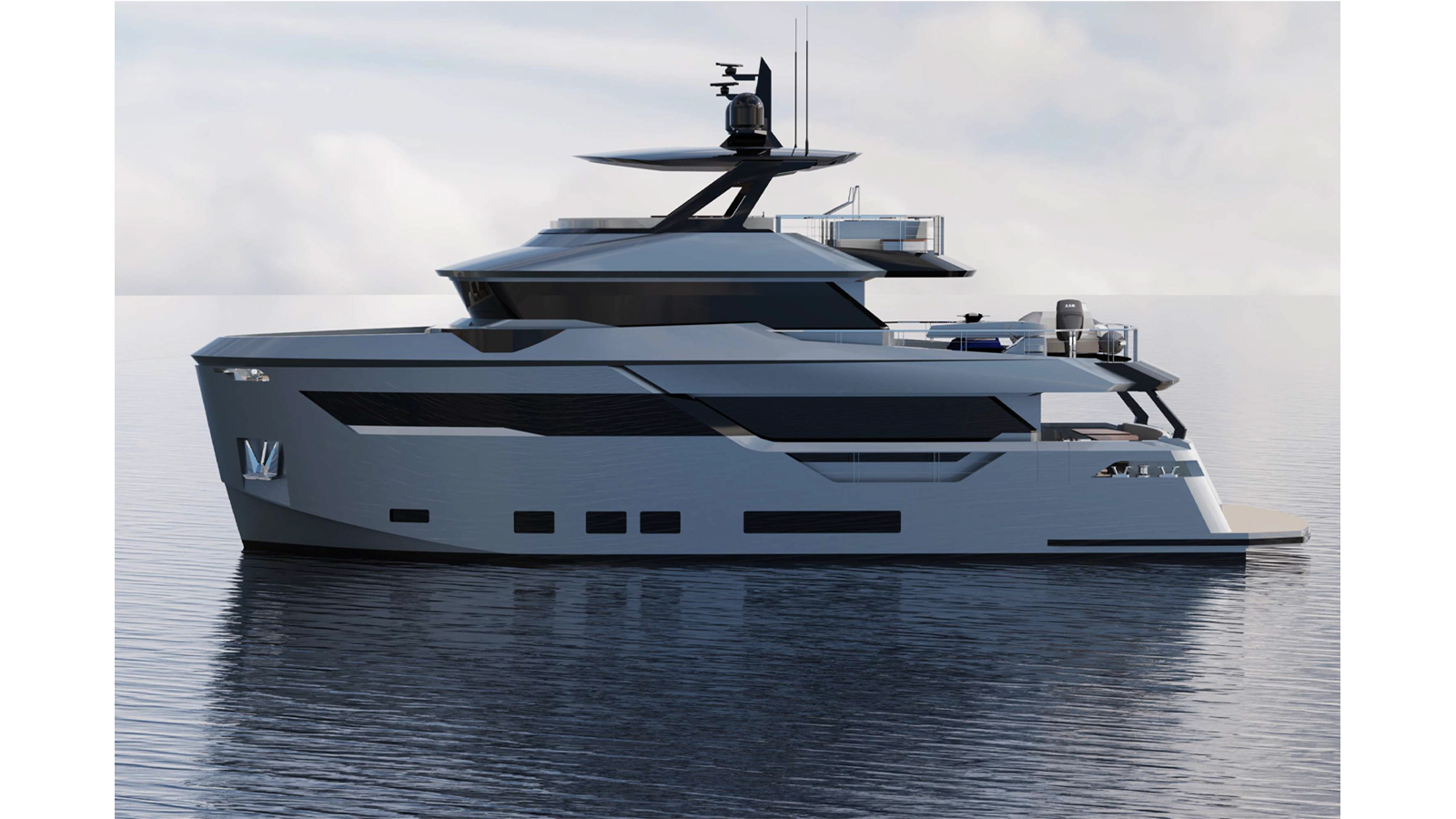

The AES 85 is a substantial pocket explorer which features a full displacement steel hull and aluminum superstructure. Twin Cummins give her a trans-Atlantic range while zero speed stabilizers assure comfort both underway and at anchor. A fully bespoke interior by Milan based Hot Lab sleeps 8 guests in 4 cabins including a full beam Master cabin on the main deck, 2x VIP cabin and 1x twin cabins on the lower deck plus accommodations for 4 crew in 2 cabins. Currently under construction by AES Yacht and nearing completion, this 26m (85'3") is designed for adventure on the high seas. She is built to RINA Unrestricted Navigation & CE Cat A for registration below 24 meters, she boasts a remarkable range of 6,000nm and is equipped with zero-speed stabilisers, ensuring smooth cruising. Excellent opportunity with a fast delivery date. Full presentation available upon request.
Specifications
Builder
AES YACHT (TURKEY)
YEAR
2027
LENGTH
85' (25.91m)
Beam
8m
Cabins
4
CRUISING SPEED
8 Knots Knots
Max speed
11 Knots Knots
Engines
Cummins QSM 11 455hp, Cummins QSM 11 455hp
Exterior Designer
AES Yacht
HULL MATERIAL
Steel
Guests
8
Crew
4
Technical Details
- Builder: AES Yachts
- Year: 2027
- Exterior Design: AES Yacht
- Interior Design: Hot Lab
- Naval Architecture & Engineering: AES Yacht/Endaze Engineering
- Length Overall: 26.13 m/85 ft 8 in
- Length at Waterline: 22.74 m/74 ft 7 in
- Beam: 7.86 m/25 ft 9 in
- Max Beam: 8.00 m/26 ft 2 in
- Depth: 3.75 m/12 ft 3 in
- Gross Tonnage: 235 gt
- Hull Material: Steel
- Superstructure Material: Aluminum
- Class: RINA C ✠ HULL ● MACH Y, Unrestricted and CE Cat A
- Flag: Malta
- Engines: (2) Cummins QSM 11 455 hp
- Max Speed: 11 knots
- Cruising Speed: 8 knots
- Range at Cruising Speed: 6,000 nm
- Generators: (2) Kohler 35 kW @1,500 rpm 50 Hz, 400V
- Fuel Tank Capacity: 35,500 liters/9,379 gallons
- Fresh Water Tank Capacity: 3,558 liters/940 gallons
- Sewage Tank Capacity: 3,953 liters/1,044 gallons
- Staterooms: 4; sleeps 8 guests
- Crew Cabins: 2; sleeps 4 crew
Propulsion & Auxiliary Machinery
- ZF Gearbox
- F51 Duplex stainless steel shaft
- (4) Control stations
- Aluminum bronze propeller
- Bow Thruster: (1) Sleipner SH550, hydraulic
- Stern Thruster: (1) Sleipner SH550, hydraulic
- Data hydraulic steering system
- Stabilizers: Sleipner, zero speed, vector fin kit 1.95 sqm
- Danfoss PTO pumps
- Water Makers: 460 liters(121 gallons)/hour total, duplex, Idromar
- Idromar fresh water systems
- Air Conditioning: Mediterranean Climate – Webasto
- Engine Room Inlet & Outlet Fans: (2) Gianneschi
- Fuel Filtration: (1) Alfa Laval
- Sewage Treatment System: Hamann, HL compact 3,000 liters (792 gallons)/day
- Tecma toilet system
- Gianneschi pumps
- (1) Alfa Laval fuel separator and filters
- (1) Atlas Copco compressor
- Kahlenberg air horn
Electrical Systems
- Electrical Supplies: 230/400V – 50hz
- Batteries Starter & Service: Mastervolt or Victron
- Service Generator: (2) Kohler 35 kW with Sound Encloser
- Shore Power: (1) Glendenning Cable Master
- AV & IT Automation System: KNX, ABB
Deck Equipment & Coating
- (2) Data hydraulic anchor winches (windlasses)
- (2) Data hydraulic mooring winches (capstans)
- (2) Data hydraulic anchor & anchor chain
- Tender Crane: (1) Opacmare – Loading capacity 1,000 kg
- Transformer: (1) Opacmare 5 steps – Lifting capacity 420 kg
- Passarelle: (1) Opacmare – Length 5.040 mm
- Electrical Sliding Doors: (2) Besenzoni or Makro Yachts
- (8) Underwater lights or Oceanled
- Awl Grip top coat (topsides & superstucture)
Safety Systems
- Sliding Watertight Doors: Winel or equal
- Fire Fighting: Fire Pro FP 1200
- Fire Detection & Alarm: Tyco T2000 or Consilium
- Security (CCTV): Samsung
Navigation & Electronic Equipment
- Furuno navigation equipment
- Navigation lights
- (1) Intellian TV antennas
- Network IT system
- 4G/WiFi system
