HIDEOUT
€ 4,132,703
About
Specifications
Engine & Gearbox
Fuel Oil & Lubricationg Oil
Electric Power System
Water System
Air Conditioning & Ventilation System
Fire Extinguisher System
Appliances
Entertainment
Electronic --Navigation
Deck Machinery
Tenders / Jet Ski
Recent Upgrades
Others
About

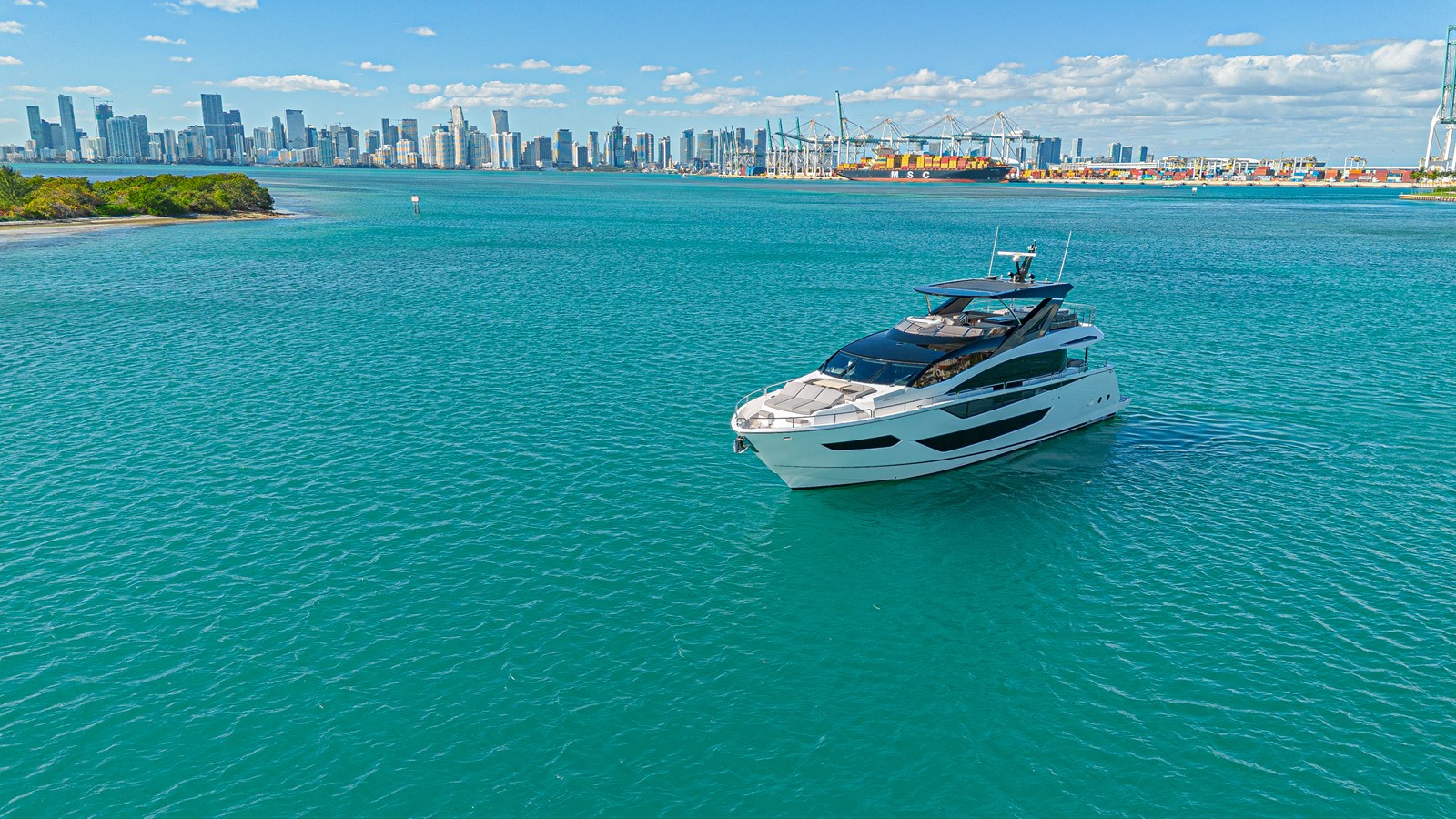

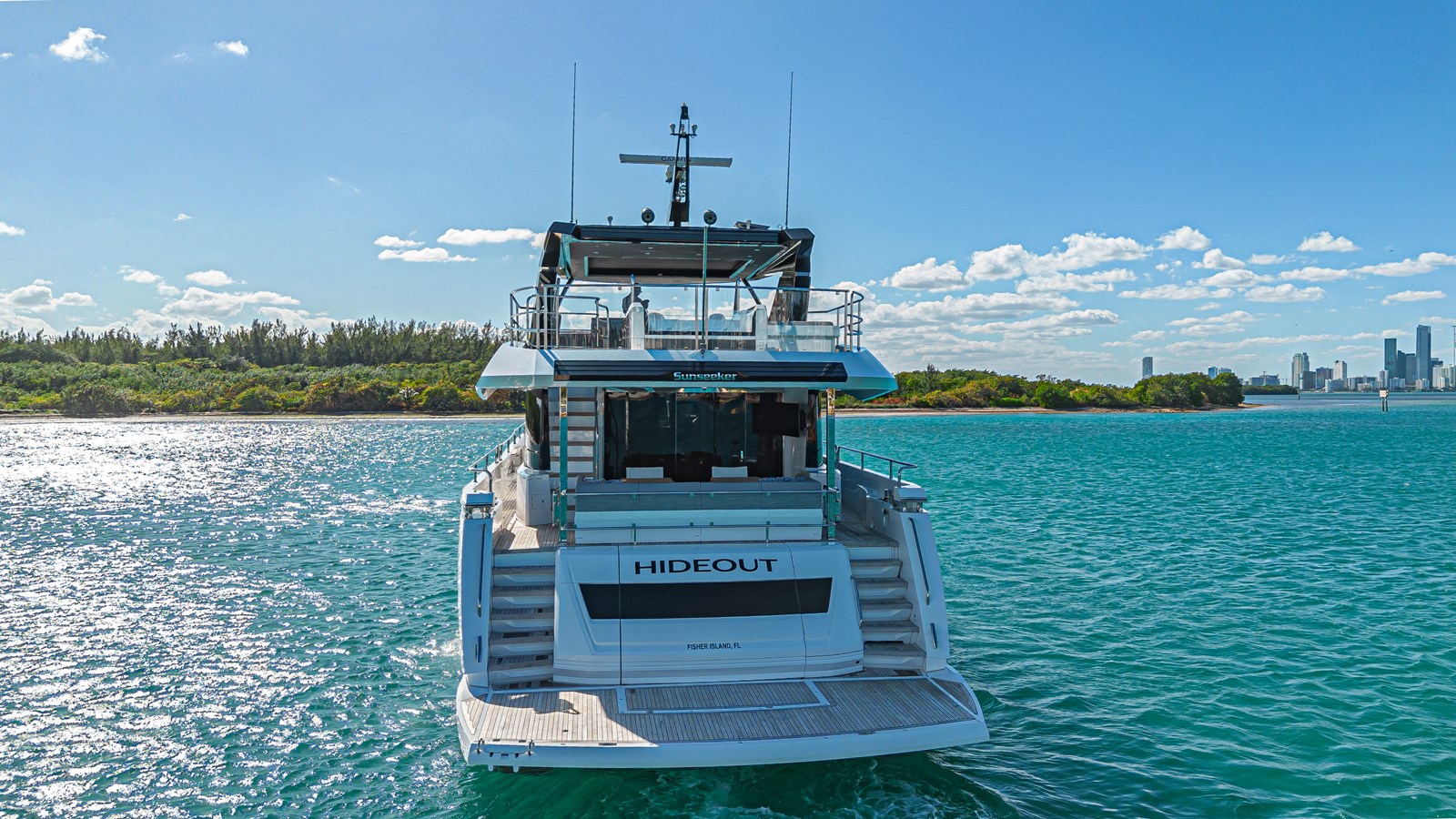

Attention! Presenting a unique opportunity to purchase this essentially new Power Cat PC65. "Hideout" was built for a second-time owner and his wife, for both luxury and performance. She is equipped with Sea Torque enclosed shafts, Veems high performance propellers and Humphree automatic trim tabs. This resulted in achieving one of the fastest most fuel-efficient yachts in the Power Cat fleet. This is a chance to own a truly turn- key yacht to start your adventures wherever that may be.
Specifications
Builder
HORIZON YACHT
YEAR
2022
LENGTH
65' (19.81m)
Beam
7.47m
Cabins
4
Engines
Caterpillar C12-9 1000hp, Caterpillar C12-9 1000hp
HULL MATERIAL
Fiberglass

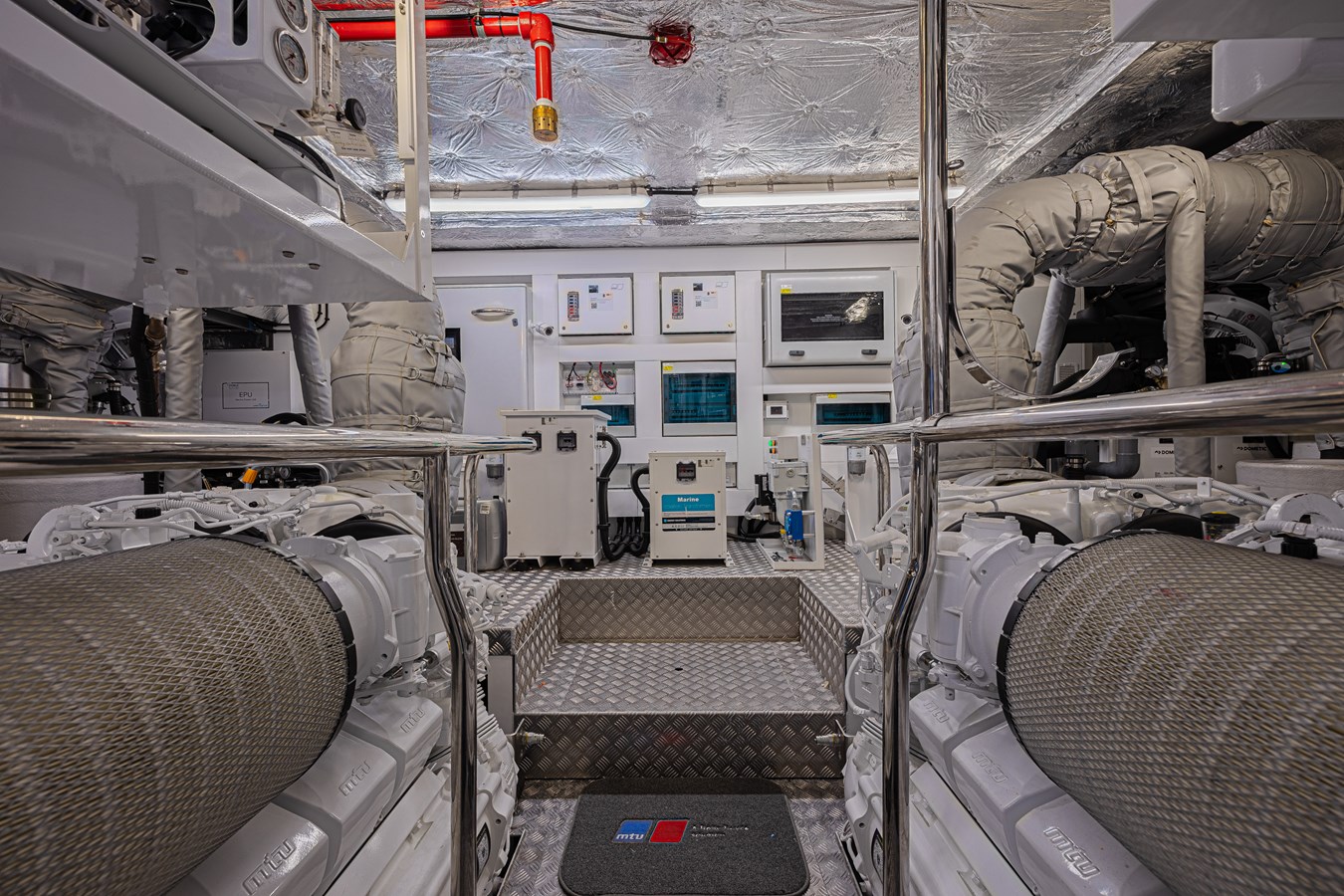

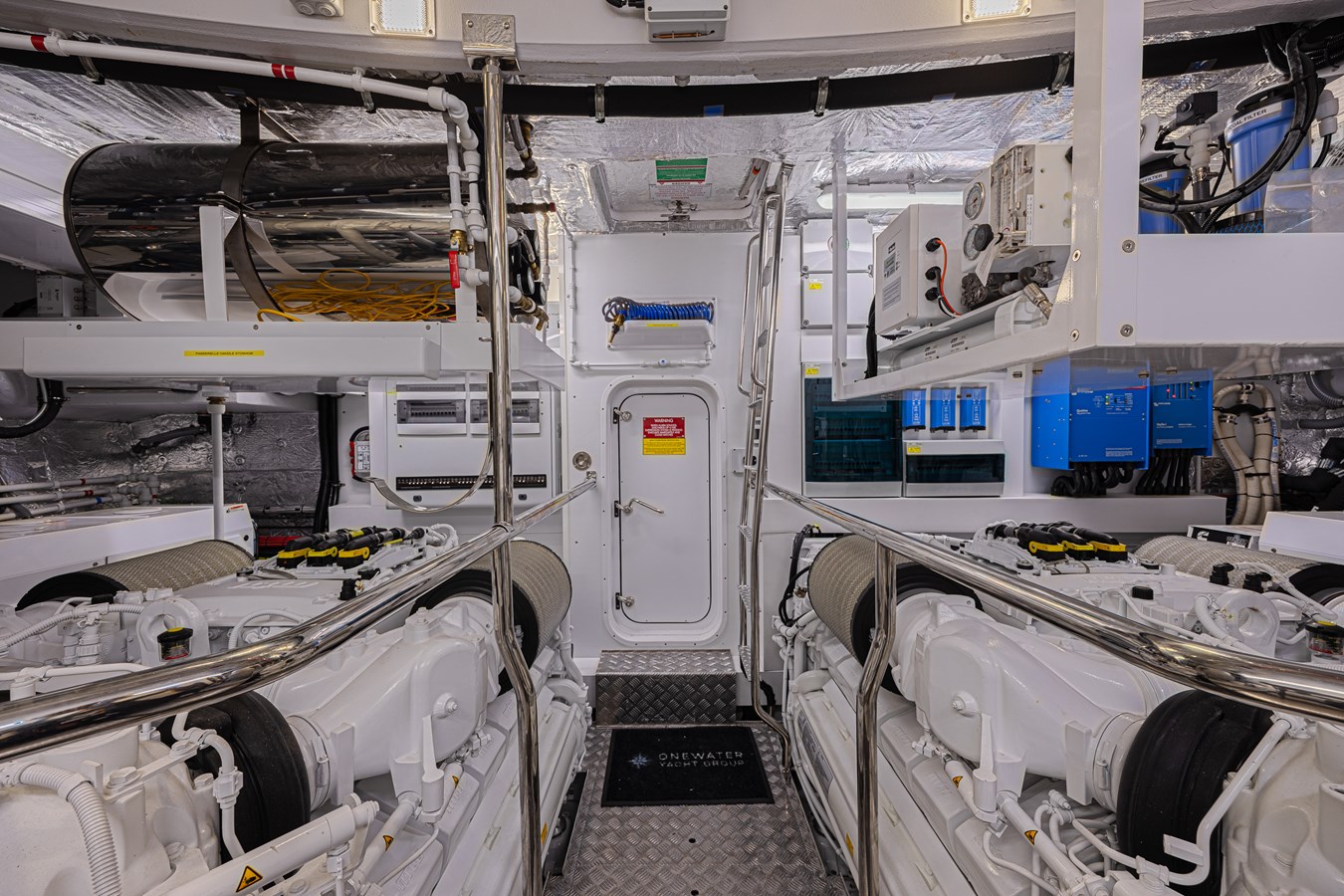

Engine & Gearbox
Engine Caterpillar C-12.9 1000MHP (Each)
Gearbox ZF 500A
Propellers Veems D35″ X P37.2″ X 5B 2
Control Lever MMC 785CE
Chrome Head MMC MMC MC 2000-2 Chrome levers
Bow Thruster SIDE POWER SE250/300TC 250KG/15.5HP/DC24V
Stern Thruster SIDE POWER SE210/250TC 10KW/13.15HP 24V
Engine Shutdown System SEA FIRE 131-450 9-32V 8-CIRCUIT
Engine Shutdown System SEA FIRE 131-450 9-32V 8-CIRCUIT
Trim Tabs System HUMPHREE (CP502/SERVO UNIT SU 501/ACTIVE YACHT)
Fuel Oil & Lubricationg Oil
Engine Fuel Oil Filter RACOR 75/100MA
Generator Fuel Oil Filter RACOR 500MA
Oil Changing System GROCO GHSN-13 24V
Fuel Oil Transfer Pump JABSCO 23870-1300 DC24V
Electric Power System
Twin Generators MDKDR 21.5KW/60HZ 24V,120/240V (264.9 hrs)
Eng. & Gen. Start Battery LIFELINE GPL-8DL AGM 12V/255A
Service Battery LIFELINE GPL-8DL AGM 12V/255A
Battery Charger VICTRON SKI024100002 SKYLLA-I 24/100(3)
Battery Switch BEP 720-MDO 12/24V 500A CONT
Battery Switch BEP 720-MDVSO 12/24V 500A CONT
Generator Control Panel ONAN 541-1130 DIGITAL DISPLAY
Smoke Water Separator ONAN A040A341 2-1/2″
Voltage Stabilizer ANG AB12.5KVA
MDKDR 21.5KW/60HZ 24V,120/240V
Inverter VICTRON PIN243020100 24/3000 120V/60HZ
Dual 50 AMP Service
Water System
Fresh Water System:
AC Fresh Water Pump HEADHUNTER
DC Fresh Water Pump HEADHUNTER
Water Heater RARITAN 172012 20gal / 240V
Water Hot Pump GRUNDFOS #98420210 115V/60HZ
Pressure Regulating Honeywell PR-1000
Water Maker – (Never Used)
Sea Water System:
Engine Sea Water Filter 3″
Generator Sea Water Filter 1″
A/C Sea Water Filter 1-1/2”
Wash Down Pump FLOJET 4325-343A 24V/4.5GPM
Bilge Water / Deck Wash:
Bilge Pump RULE 2000GPH(12#) DC24V
Manual Bilge Pump PAR (JABSCO) 29270-0000 1-1/2″ AMAZON
High Level Switch RULE 40A# W/O FUSE 20A
Grey Water / Black Water:
Sump Pump RULE 98B-24V
Air Conditioning & Ventilation System
Air Conditioning:
MARINE AIR 201-152065 DEU6 230V/60HZ
MARINE AIR 201-152100 DEU10 230V/60HZ
MARINE AIR 201-152186 DEG16 230V/50-60HZ
MARINE AIR 205-600841 DCG18-2371-410A 7MR, GLOBAL UNIT W/SMARTSTART
MARINE AIR 205-600819 DCU18K,230V/60HZ/1PH
MARINE AIR 201-152253 DEU24S 230V/60HZ
MARINE AIR 201-152483 DEU48,230V/60HZ W/SMARTSTART
Marine Air Blower:
MARINE AIR 215-613105 TVE06-230V EMERALD
MARINE AIR 215-613305 TVE10-230V EMERALD
MARINE AIR 215-613405 TVE10-230V EMERALD (2)
MARINE AIR 215-613505 TVE16-230V EMERALD
MARINE AIR 215-400533 EBE24-230V EVAPORAT (2)
Blowers:
Engine Room(Outlet) GIANNESCHI 01LC5034U C503LG DC24V, GIANNESCHI 01LC5024U C503RD DC24V
Engine Room(Inlet) DELTA-T 500-311242IP AXIAL, 11″, 24VDC
Shower Room 120*120*32mm/DC24V/IP57 (6)
GIANNESCHI 01LC2031SP C202LG DC24V 120*120*32mm/DC24V/IP57 2
Fire Extinguisher System
Fire Detector And Alarm: (Quanity 5)
Fire Alarm SEA FIRE 124-873 Combination Smoke and CO Alarm
Fire Extinguish System:
Fire Extinguisher SEA FIRE 212-358 FD800M (2)
Appliances

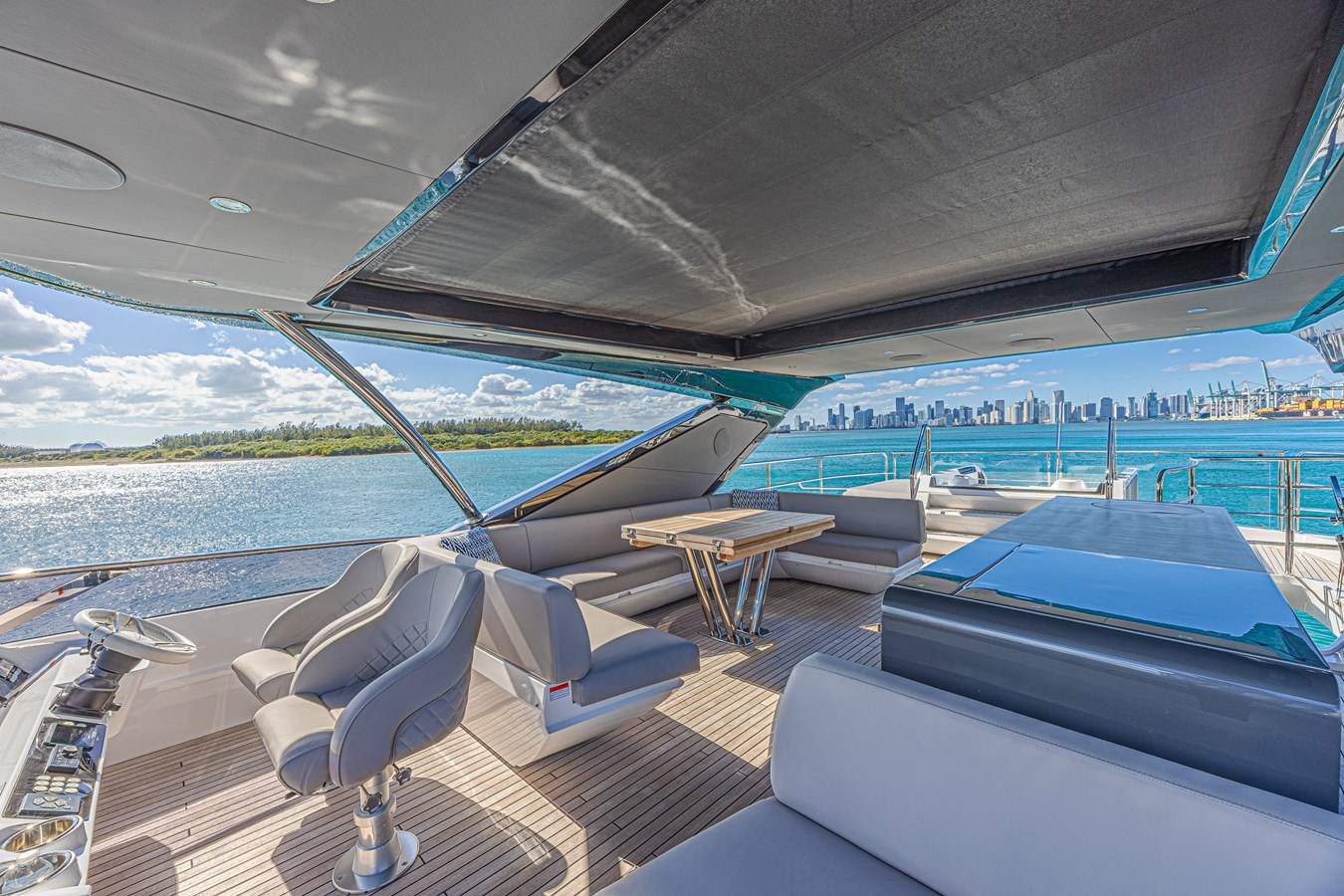

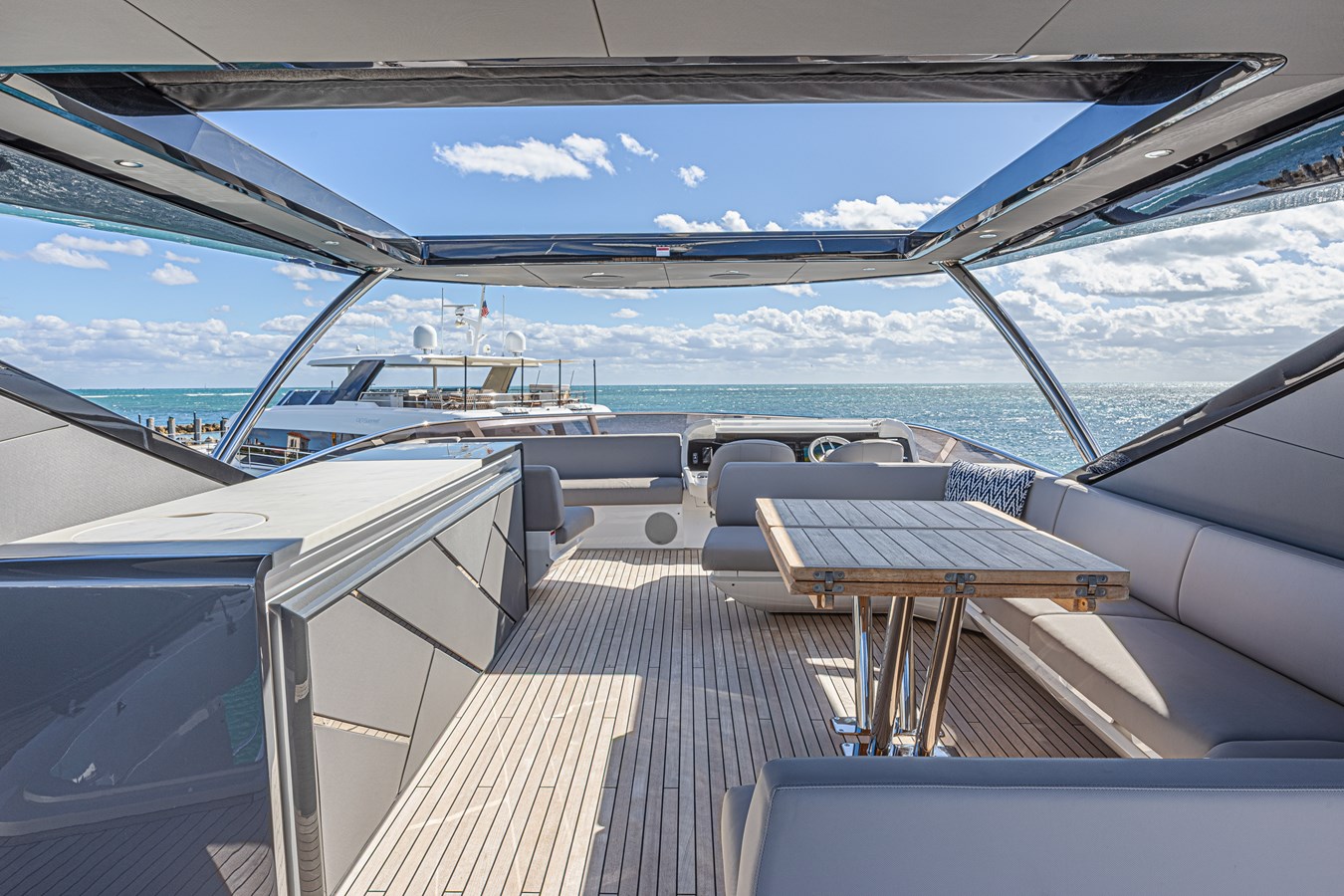

Fly Bridge:
Refrigerator DOMETIC CRX-1110E/F-S 12/24VDC, 110V/220V
BBQ Aritex 30″ (use gas)

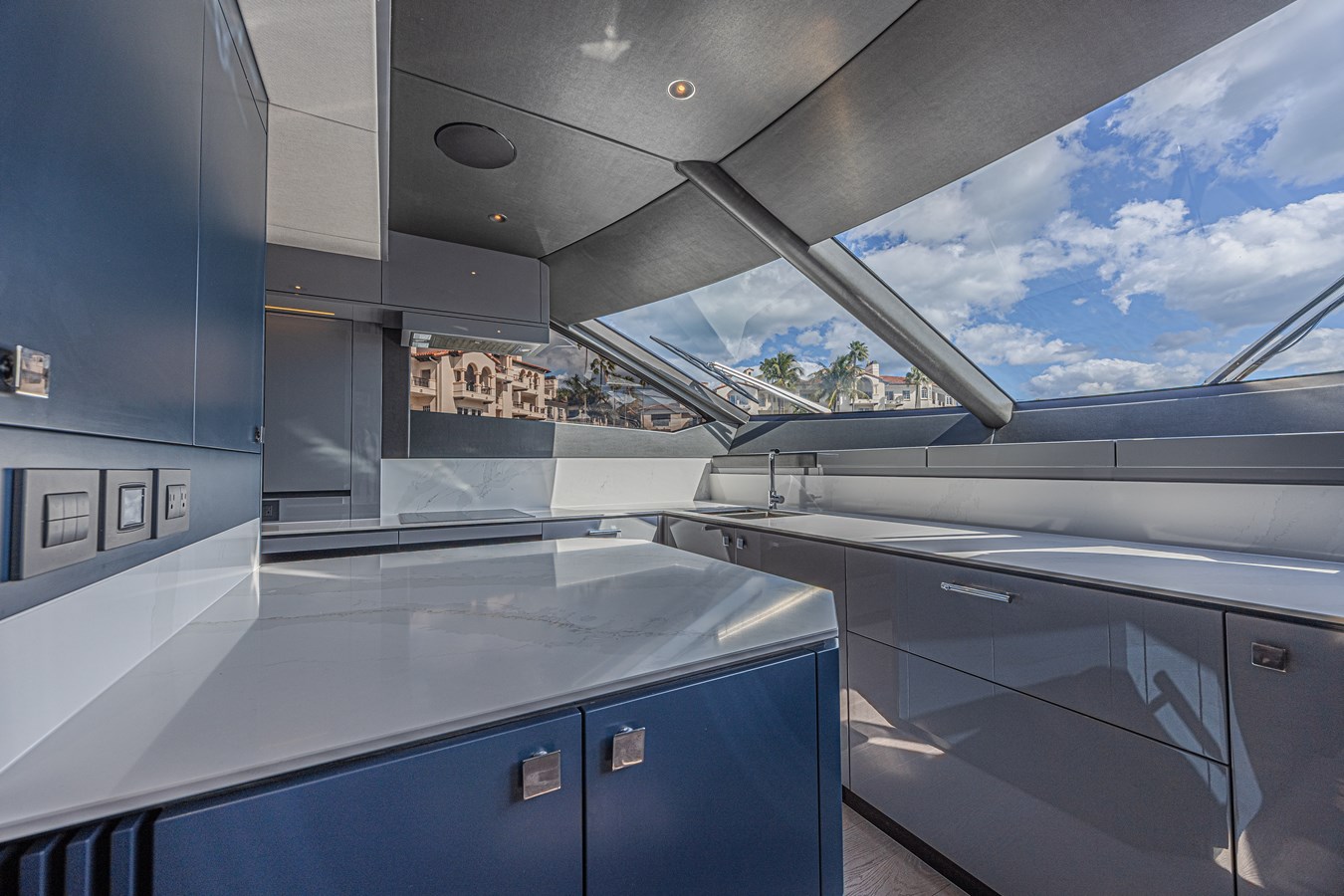

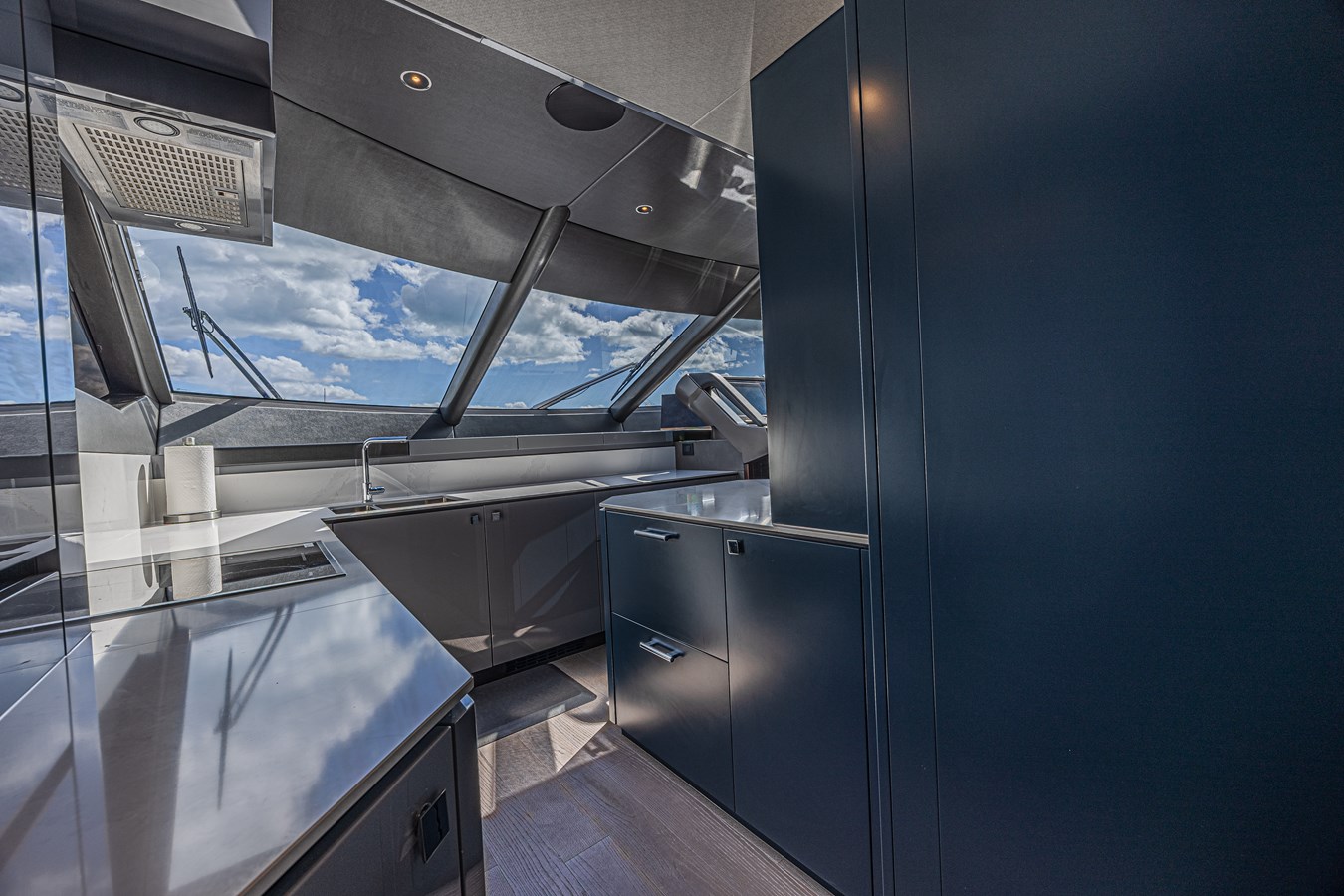

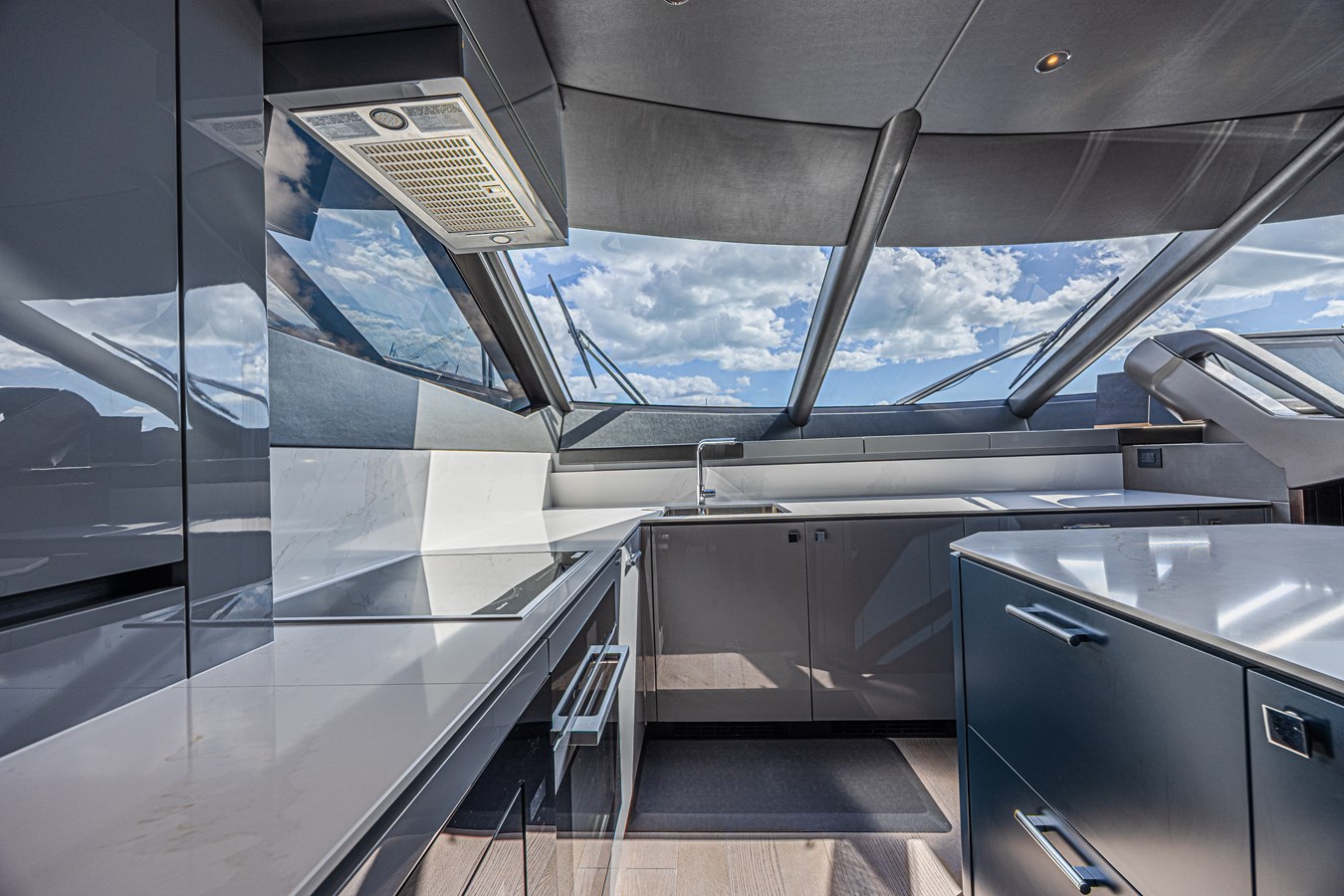

Galley:
Refrigerator MIELE KFNF9955IDE 115V/60HZ
Refrigerator FISHER & PAYKEL RB36S25MKIW1_N 110V
Range Hood ZEPHYR AK8000AS-ES 28” 120V/60HZ
Cook Top MIELE KM6365 30” 208V/60HZ
Wall Oven GE PSB9120SFSS WALL OVEN 120V/60HZ
Dish Washer FISHER & PAYKEL DD24STI9N 120V/60HZ
Wine Cooler SUMMIT SWC530BLBISTADA 24” 115V/60HZ
Garbage Disposal Insinkerator ISE-PRO-CORD PRO 750 110V/60HZ
Walk Way:

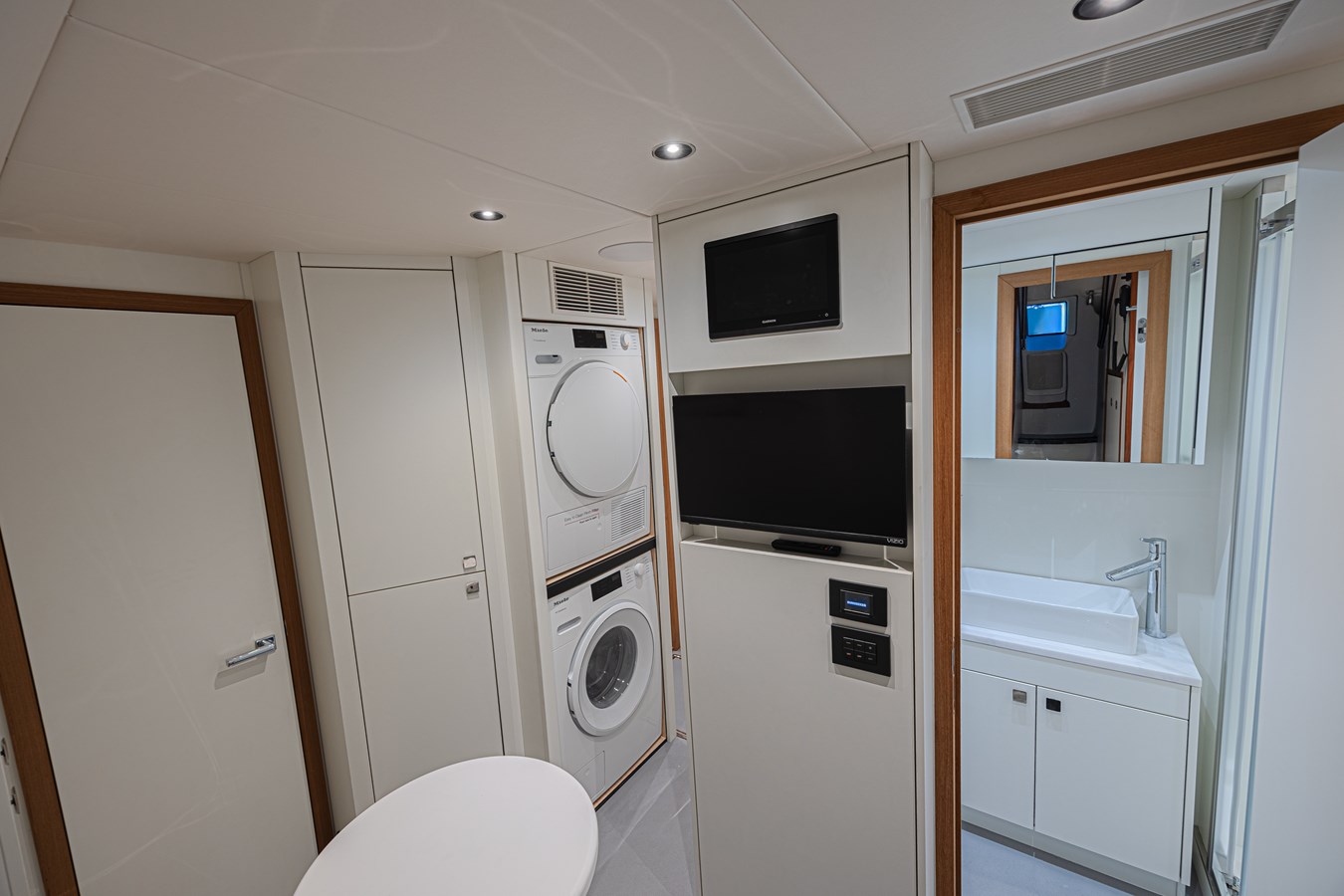

Washer MIELE WWF060WCS
Dryer MIELE TWI180WP 120V/60HZ

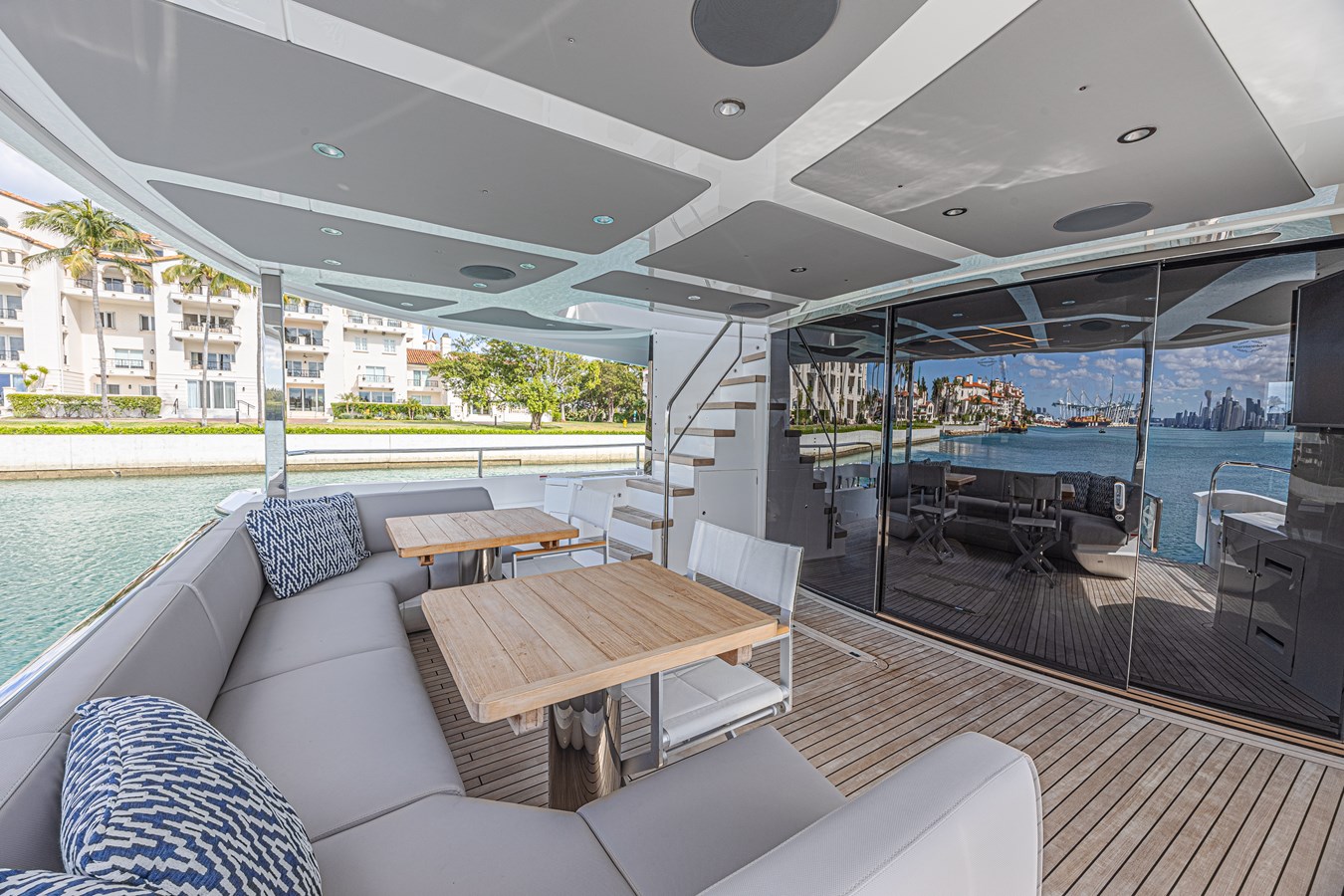

After Deck:
Refrigerator DOMETIC CRX-1110E/F-S 12/24VDC, 110V/220V
Ice Maker SCOTSMAN CU50GA-1B 115V/60HZ

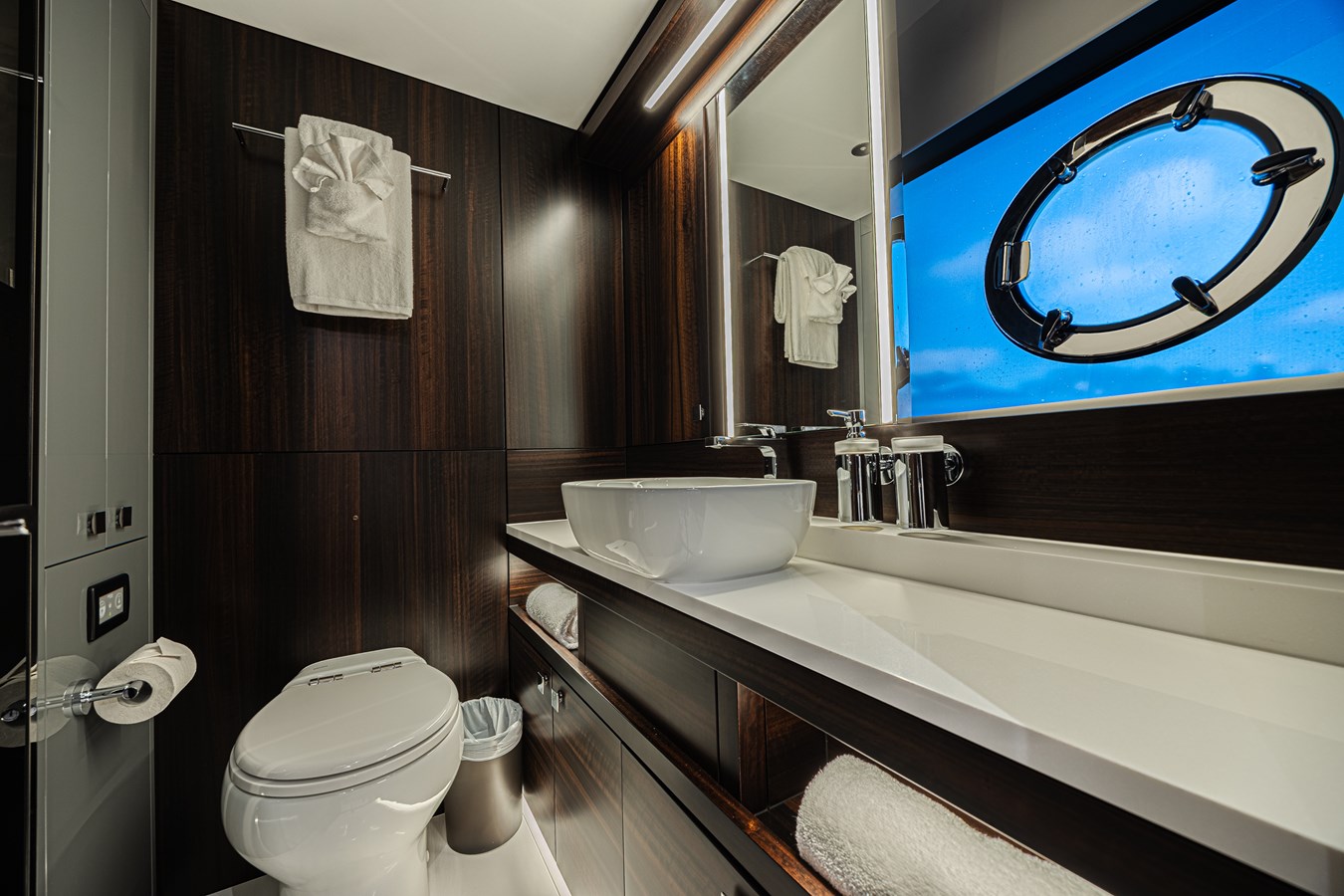

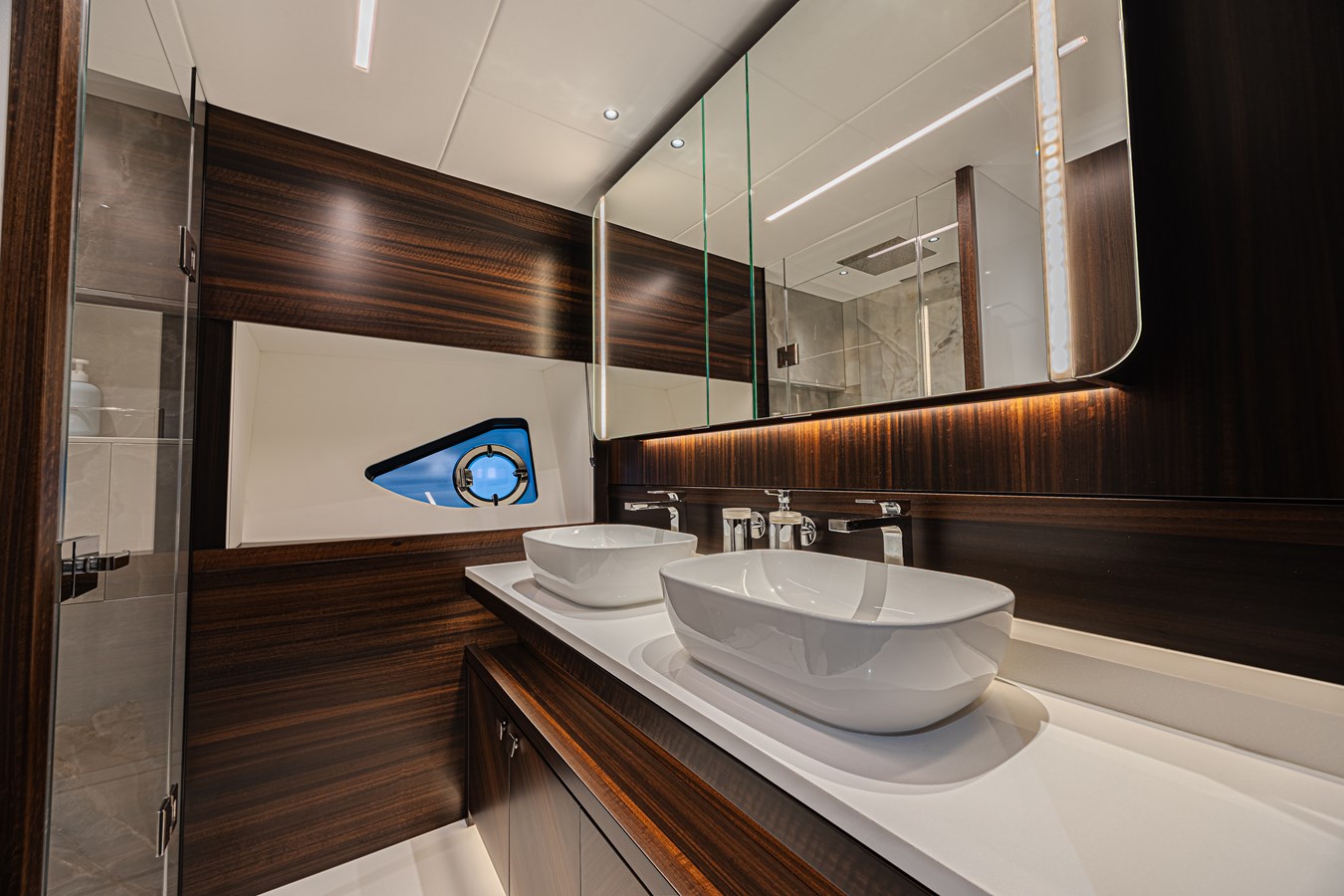

Bathroom Accessories:
Toilet 5 -HEADHUNTER RFME-0
Basin KOHLER K-2298-0 4 G14
Washdown Control Switch GROHE 24055002
Washdown Control Valve GROHE 35600000
Entertainment
Media Center:
Bluetooth Audio Player Fusion Apollo – MS RA670 and Fusion MS- RA60Amplifier Fusion SG-DA61500
Amplifier FUSION SG-DA61500 (010-02161-00)
Audio Control Panel FUSUN MS-NRX300
Speaker JL AUDIO 93519 M3-770X
Speaker JL AUDIO 93527 M3-10IB
Blu-ray Disc player SONY UBP-X700
Playbr Soundbar Sonos ARCG1US1BLK ARC
5 Zone Audio Control
TV:
Master / VIP TV SAMSUNG 32″ LED TV UN32N5300
Salon TV SAMSUNG 55″ LED TV QN55Q60TAFXZA QLED 4K

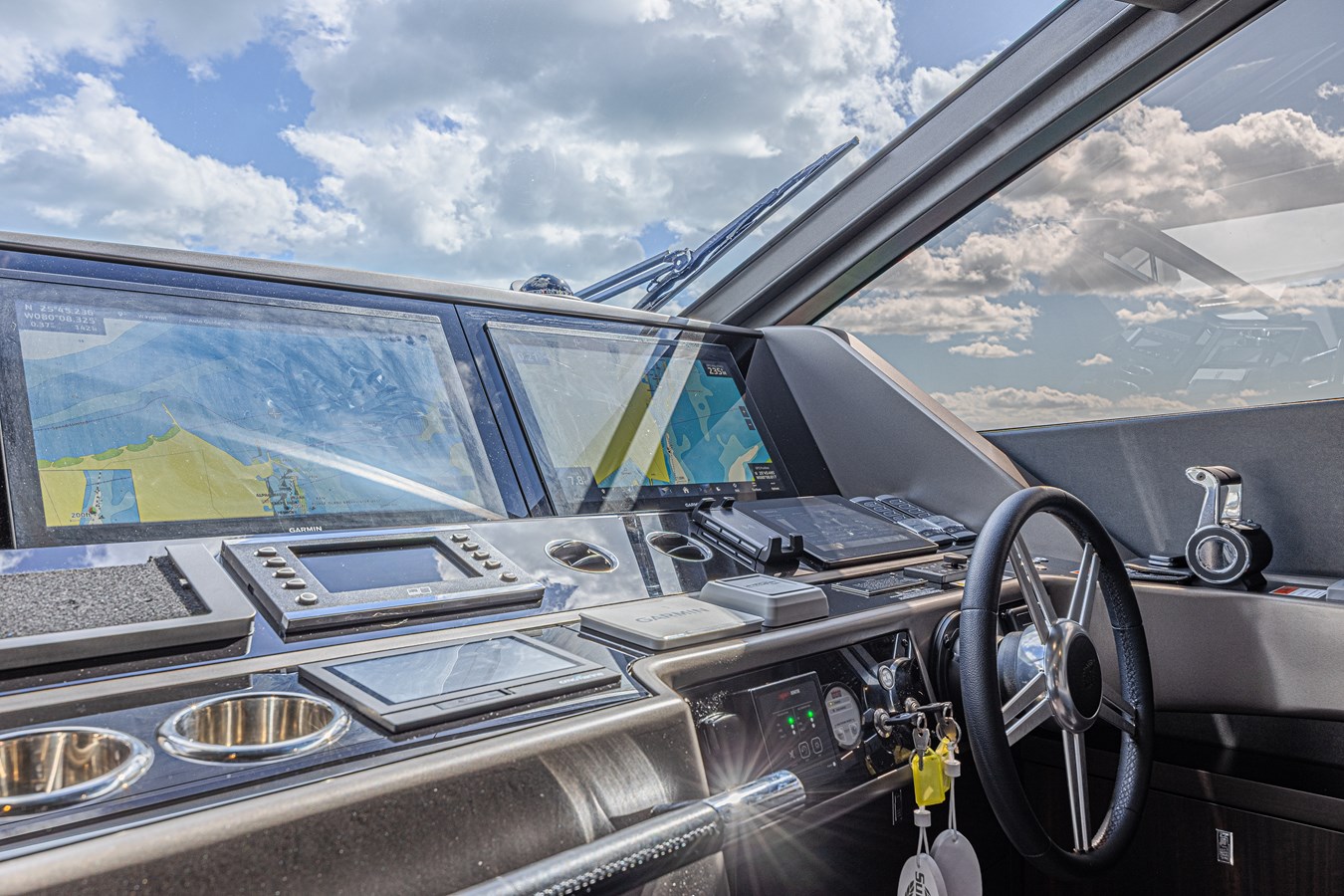

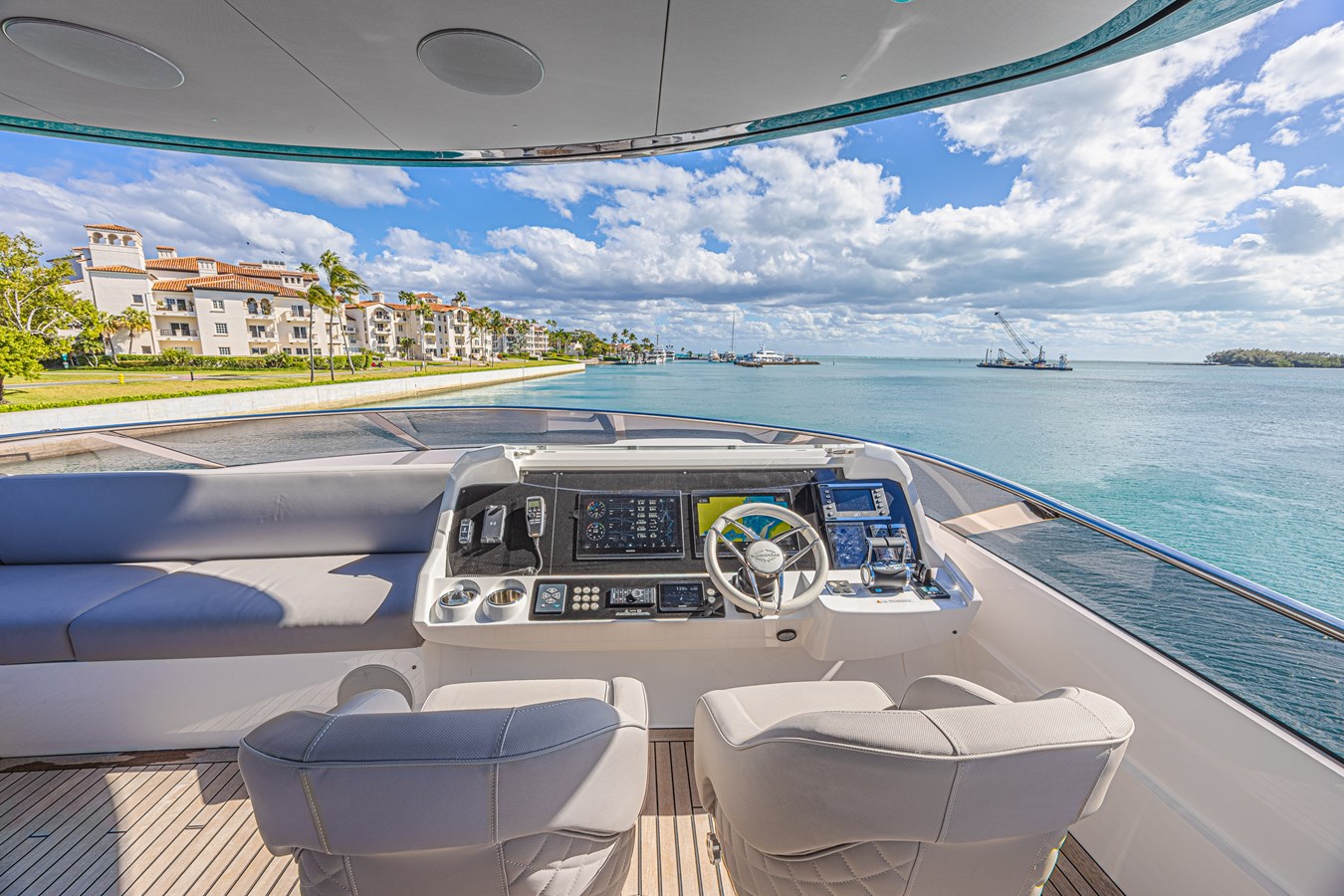

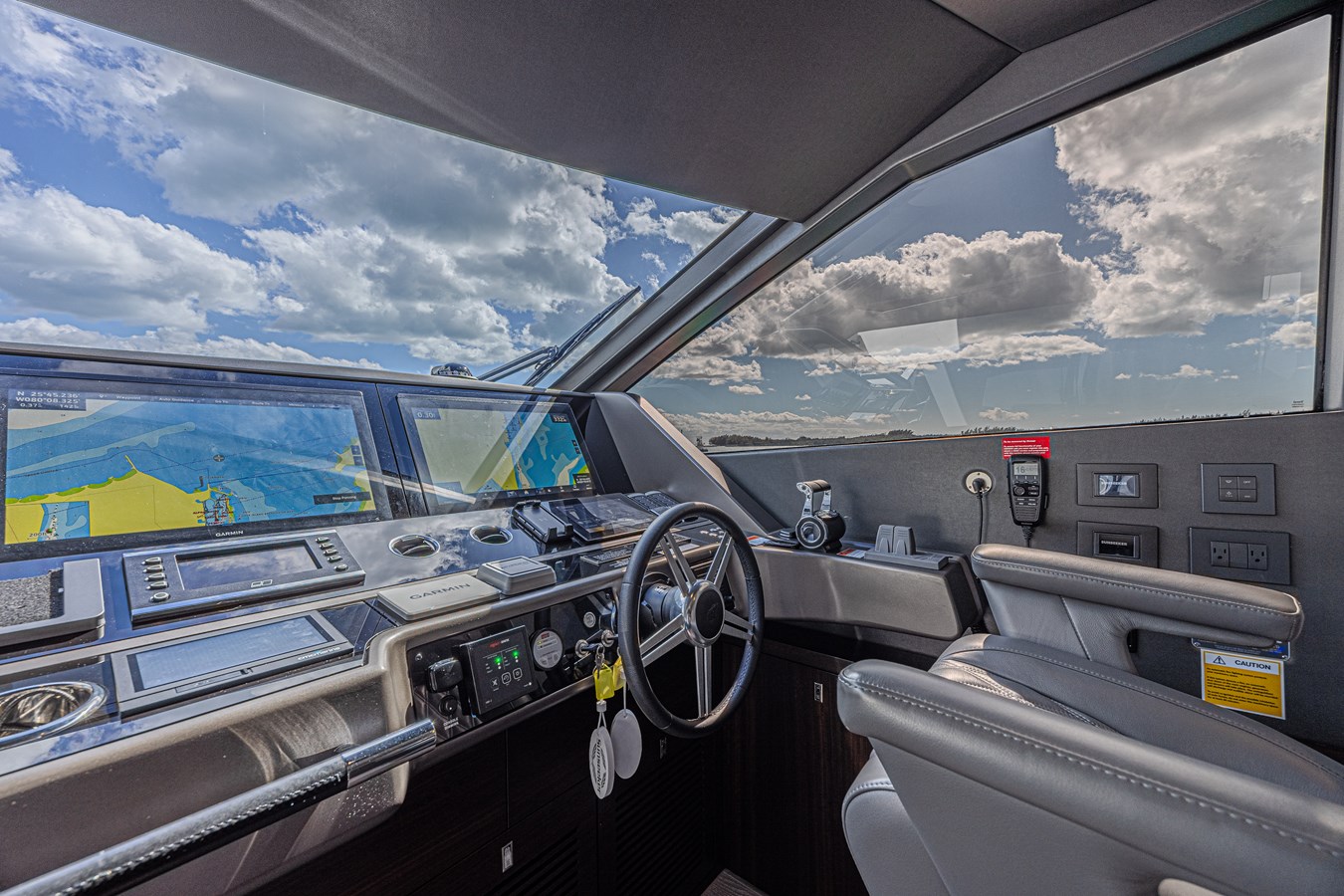

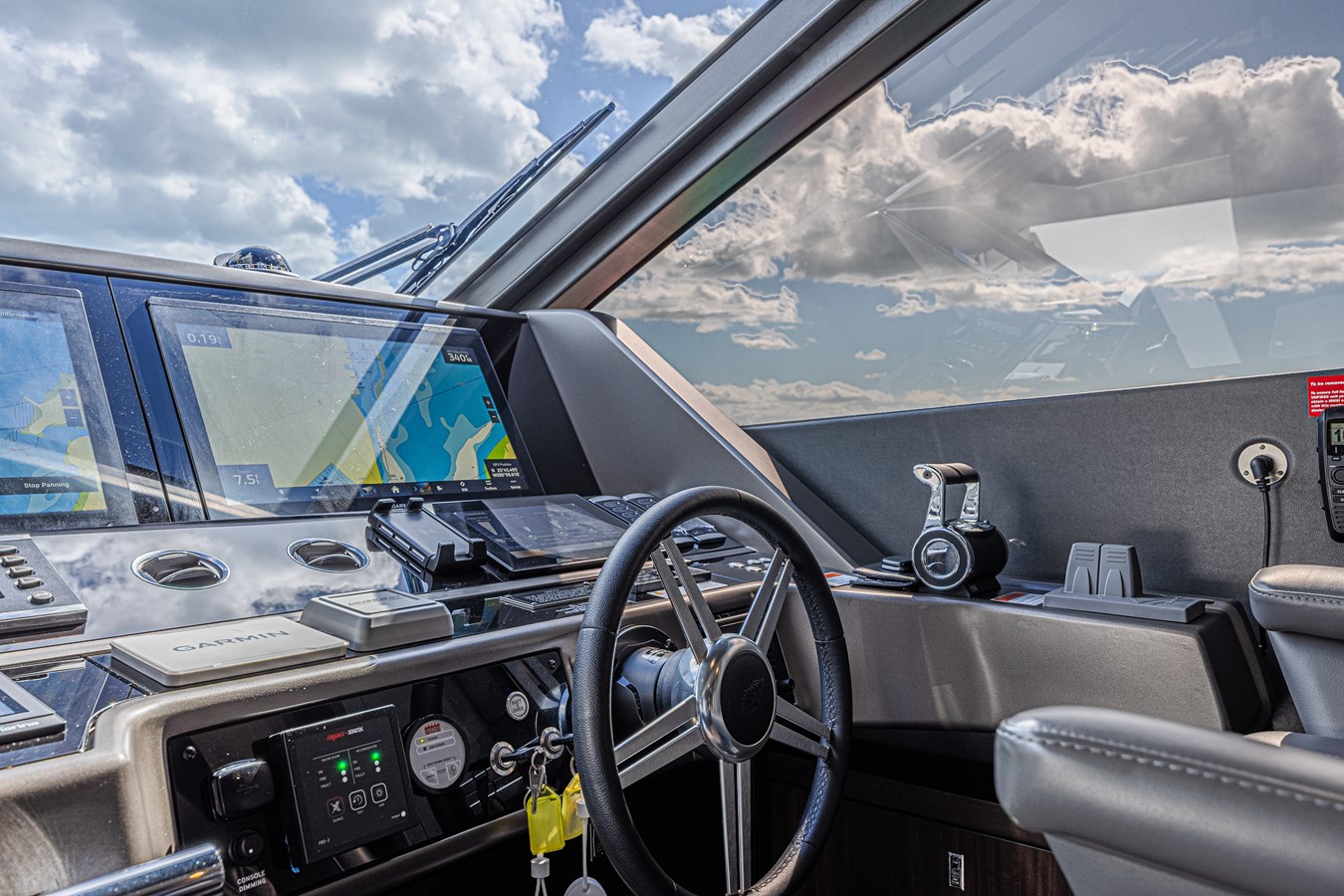

Electronic --Navigation
Radar Screen GARMIN 01511-01 GPSMAP 8622 22″
Radar Scanner and Pedestal GARMIN K-00012-20
Autopolit System GARMIN 00705-79 Reactor 40
Instrument Display GARMIN 0114000 GMI20
Rudder Feedback Sensor GARMIN 11829-00 GRF 10
GPS Scanner GARMIN GPS19X NMEA2000, GARMIN 010-12017-00 GA38
AIS GARMIN 010-02087-00 AIS800
SiriusXM Marine Receiver GARMIN 02277-00 GXM54
Sounding Speed Sensor – GARMIN 010-10640-20 AIRMAR 1kW B260
Wiper Motor EXALTO 212455.65 255BS DC24V
Coaxial Dac Dig To Ana PROZOR DAC001
Sonar Module GARMIN 1159-00 GSD25
Marine Radio VHF – GARMIN M-02047-00 VHF 315
Wind/Depth/Speed/Transducer GARMIN 01248-80 GMI DST810
Compass RITCHIE SS-2000W 4-1/2″ WHITE DC24V
Card Reader – GARMIN 01023-00
Dock Mate Remote Controls Both Engines and Thrusters
Deck Machinery
Electric Capstan QUICK DP3 1524D 1500W, 24VDC
Crane STEELHEAD ES1500 24V w/square base
Chain Controller QUICK CHC1203M chain counter
Tenders / Jet Ski
2017 14ft AB Oceanus with 50hp Yamha motor (Approximately 150 hrs.)
2022 Sea Doo Spark Jet Ski (less than 1 hour of use)
A pair of Seabobs with a custom deck rack
Recent Upgrades
Custom upper deck Palm Beach Sun Shade
Rear fishing riggers
New bottom paint with Prop Speed (March 2024)
Custom bow sun cushion
Star Link System
Highlow Platform with Custom Water Exit Ramp
Others
Driving Seat STIDD 500-200-1X2 Surf SF-79
Shaft System SEA TORQUE M4B-275 BOSS SHAFT SYSTEM
Zinc Plate B-8
Clearline System Model CL-990-X1.5 – 2 systems
Fresh Water Shower On Platform
