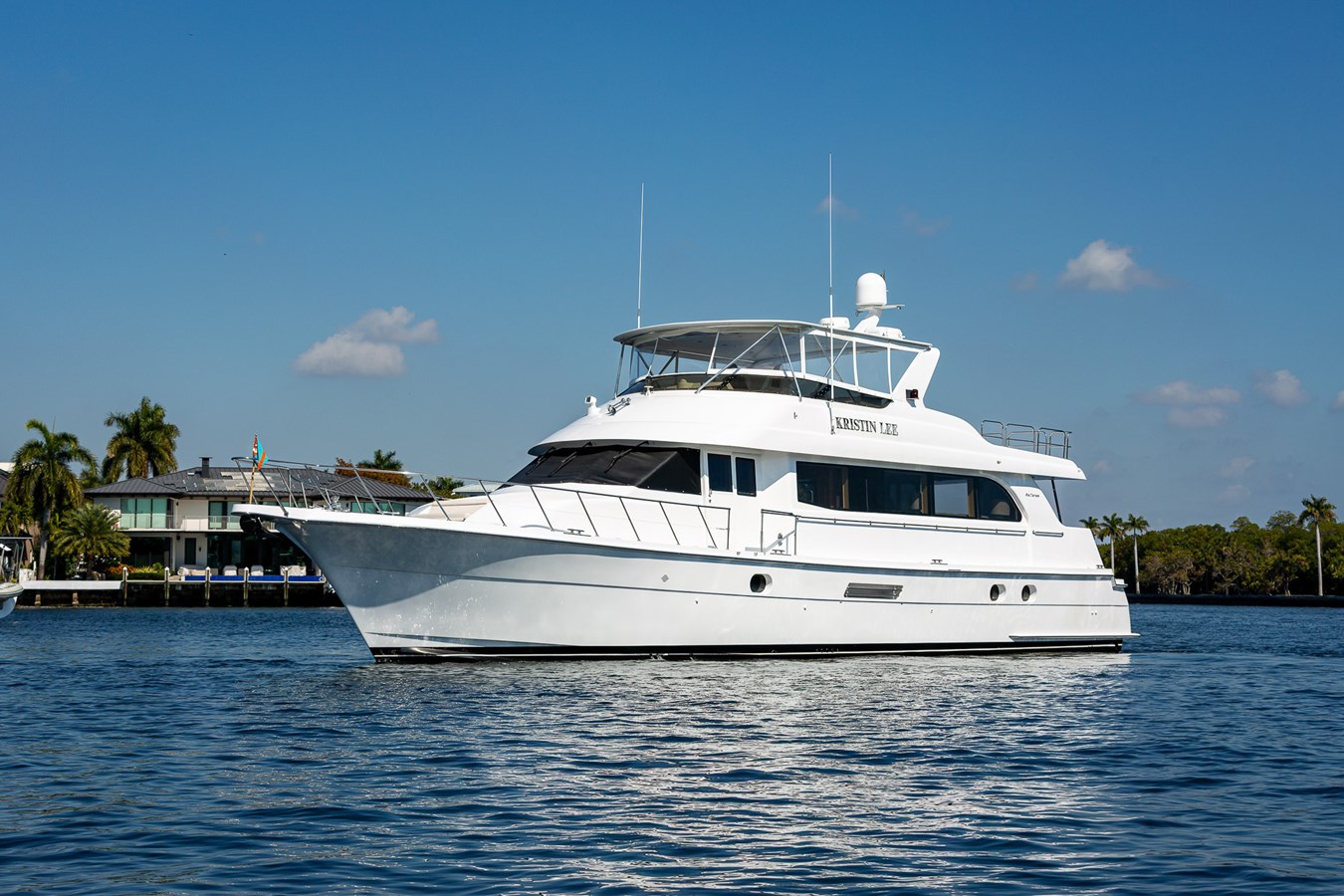

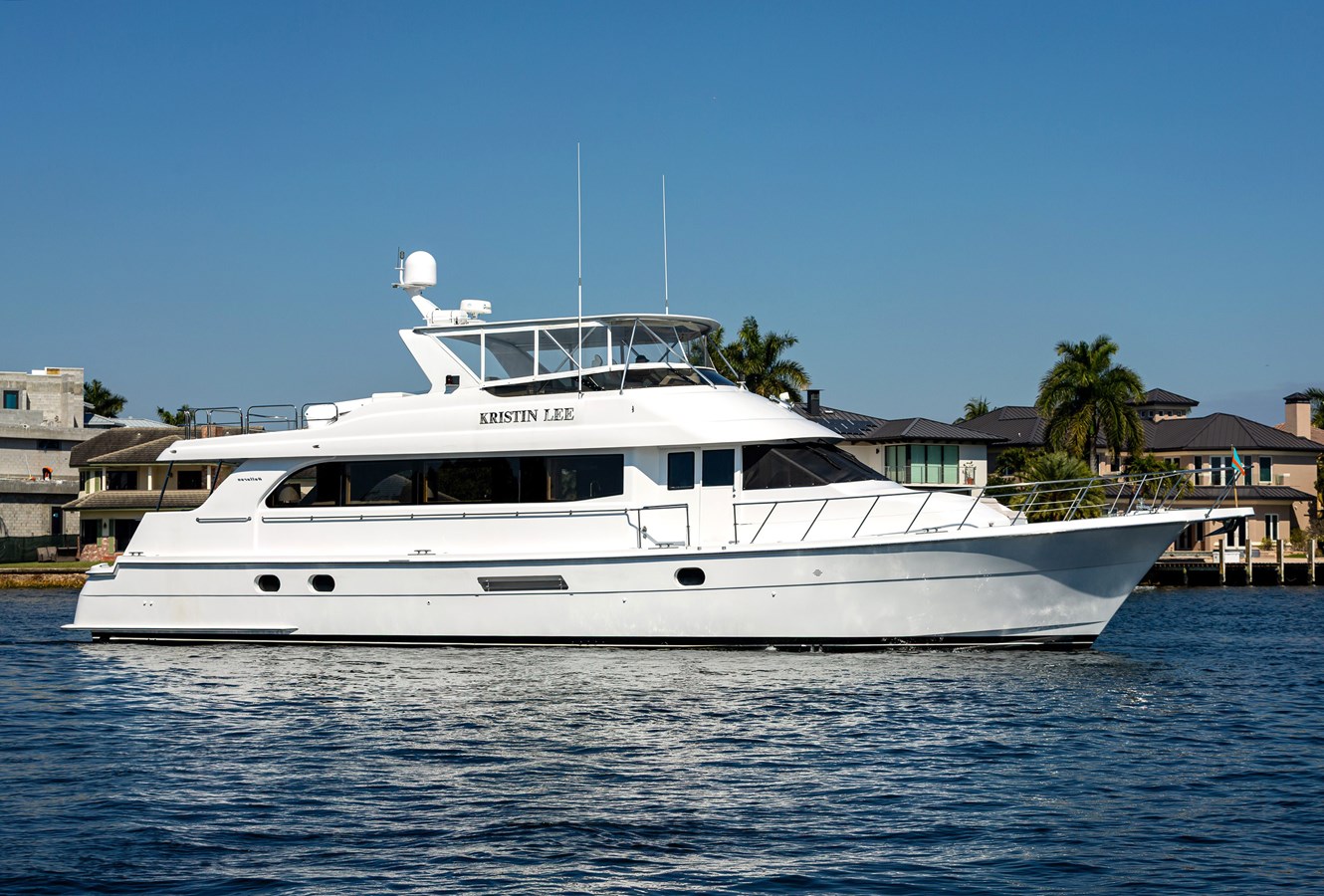

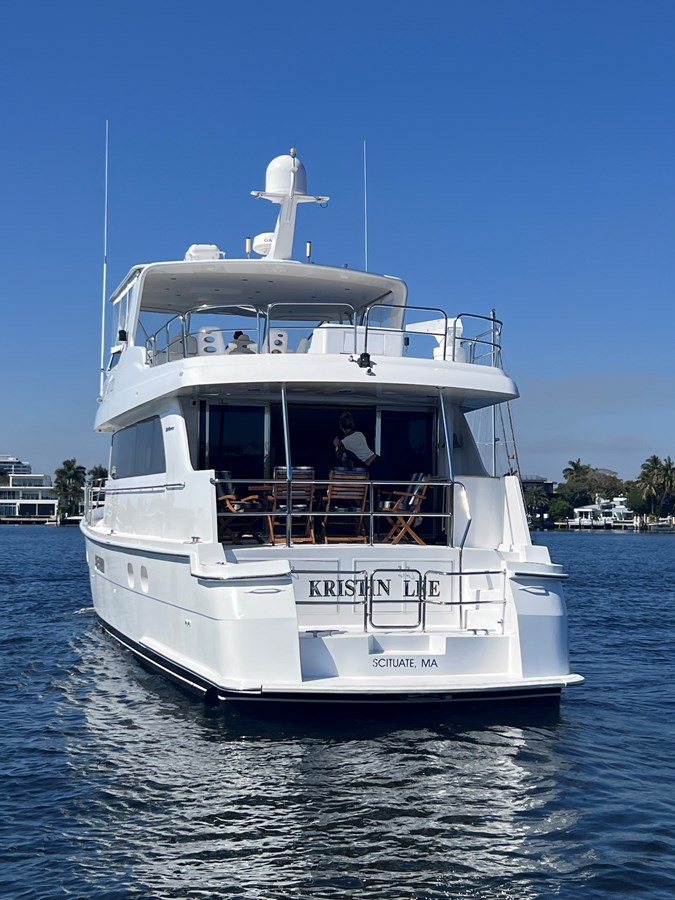

KRISTIN LEE

Main Engines

• Engine Type: (2) Caterpillar 3412E @ 1,400 Hp each
• Stbd. Serial #: 9KS00485
• Stbd. Hours:  2,718 (02/12/2026) – Original
• Port Serial #: 9KS00486
• Port Hours: 675 (02/12/2026) Since rebuilt by Southshore Marine Diesel (December 16, 2016)
• Gearboxes for Main Engines: ZF
• Drive: Direct inboard

Generators & Electricity

• Generators: (2) Onan Generators 23 Kw model 23MDK8V
• Fwd. Generator Serial #: C120319380
• Fwd. Generator Hrs.: 5,294 as of 02/12/2026
• Aft Generator Serial #: C12031976
• Aft Generator Hrs.: 2,892 as of 02/12/2026
• Output: 120/240 Volts
• Generator Fuel Consumption: 3 gallons per hour (11.56 liters per hour)
• Shore Power: 240 Volts AC 60Hz with 2 50 Amp cords
• Batteries: (2) 24VDC Battery panels and switches
• Separators: Racor water separators for each generator

Air Conditioning

• Type: (7) Dometic Cruisair 230 volt, 60Hz
• Controls: SMX digital
• Air hangles: Salon, Galley and Master stateroom – Replace in 2025
• Compressors: Salon, Galley, Bow, Midship, and VIP Guest stateroom – Replaced in 2024

Other Machinery

• Watermakers: (1) By Watermaker Inc. 1,250 GPD (4,732 LPD)
• Trim Tabs/Stabilizers: Yes/Gyro Gale fin stabilizers- ABT tac stabilizer control – Servided in 2023
• Bow Thruster: Hydraulic American bow thruster
• Steering System: Power hydraulic
• Fuel Separator & Filtration: Dual racors fuel water separators for each engine
• Fresh Water System: Headhunter Mach 5 fresh water pump
• Bilge Water Filtration: (7) Bilge Pumps
• (3) Rule 2000, 24-volt Bilge Pumps with float switches

Communication Systems

• VHF: (2) Icom IC-M604

Navigation Systems

• Radar:  (2) New 8616 Garmin radars at Flybridge (2020)
              (2) New 8616 Garmin radars at Helm (2026)
• GPS:    (4) Garmin GPS map 5208 chartplotter
                   (2) New 8616 Garmin – Flybridge (2020)
                   (2) New 8616 Garmin – Helm (2026)
• Magnetic Compass: 4” Ritchie PowerDamp Compass
• Auto Pilot: Simrad AP 25
• Depth Sounder: Furuno RD 30
• Wind/Speed Log: Furuno RD 30 speed
            B & G HS 2000 speed

Entertainment System

a. Video Equipment
• TVs: (5)

b. Audio Equipment
• Stereo’s: Fusion MS-VD 755 stereo – 2020
         Aft deck speakers
         JL Audio speakers – Flybridge

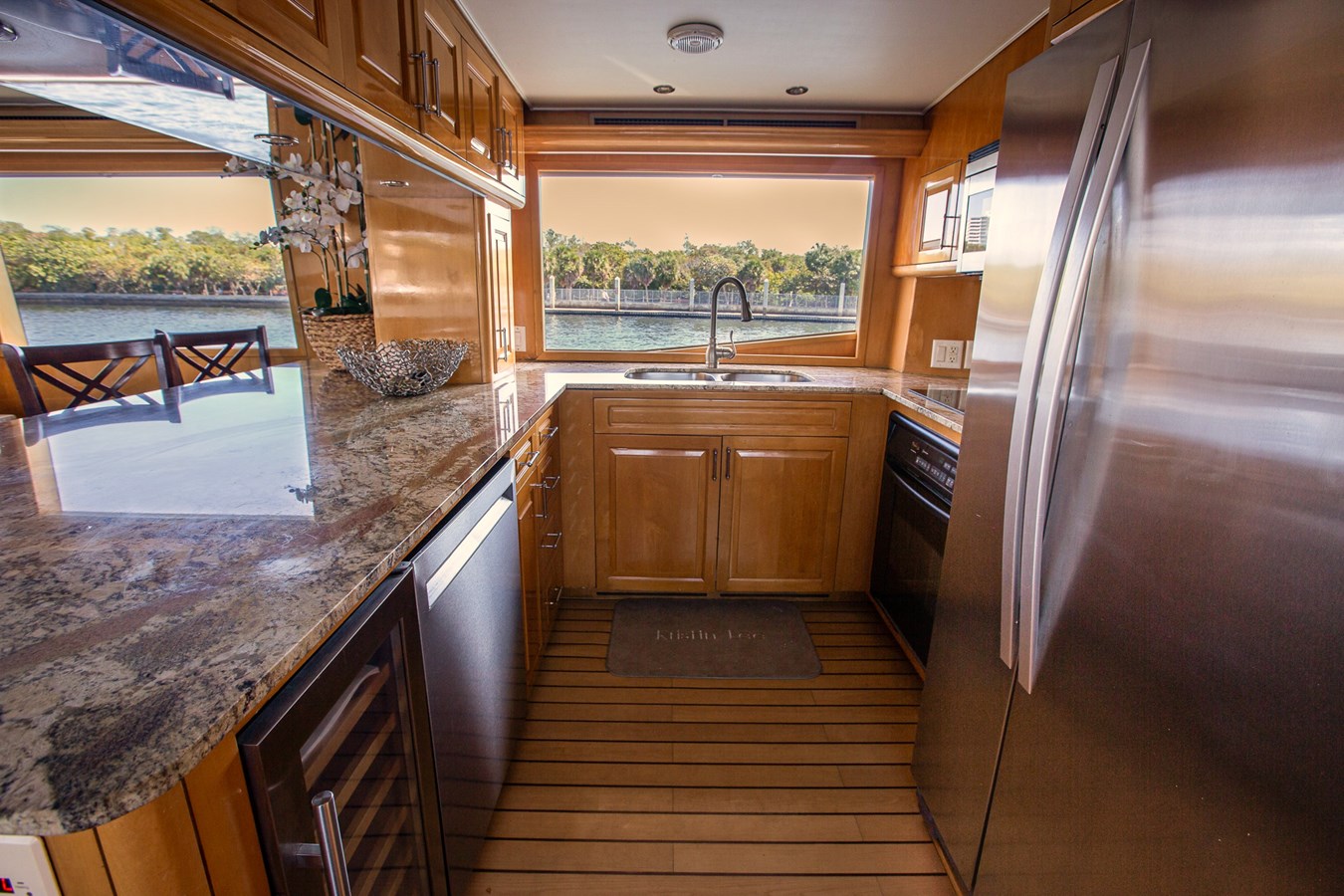

Main Galley Equipment

Cooking Equipment:
• Frigidaire 4-burner stove – New 2020
• Whirlpool gold oven – New 2020
• Sharp carousel microwave / convection oven New 2020

Refrigeration/Freezer:
• Whirlpool / Whirlpool

Dishwasher:
• Kitchen Aid – 2020

Other:
• Garbage disposal
• All new granite countertops – 2020

Additional Galley Equipment

Cooking Equipment:
• Custom Kenyon electric grill – 2020 – Flybridge

Refrigeration/Freezer:
• New refrigerator – 2020 –  Flybridge bar

Other:
• Custom stainless-steel grill installed flush-mounted in fiberglass
• True refrigerator drawers – 20120 – Aft Deck
• Maxx ice machine – 2020 – Aft Deck

Laundry Equipment

• Whirlpool Washer and Dryer

Anchor Windlass System:
• Maxwell 3500 lbs. 24 Volt

Anchors:
• Fortress FX85 on the bow roller

Anchor Chain:
• Bow pulpit with anchor shut
• Galvanized chain and approximately 1” stranded nylon line

Boat Crane and Davits:

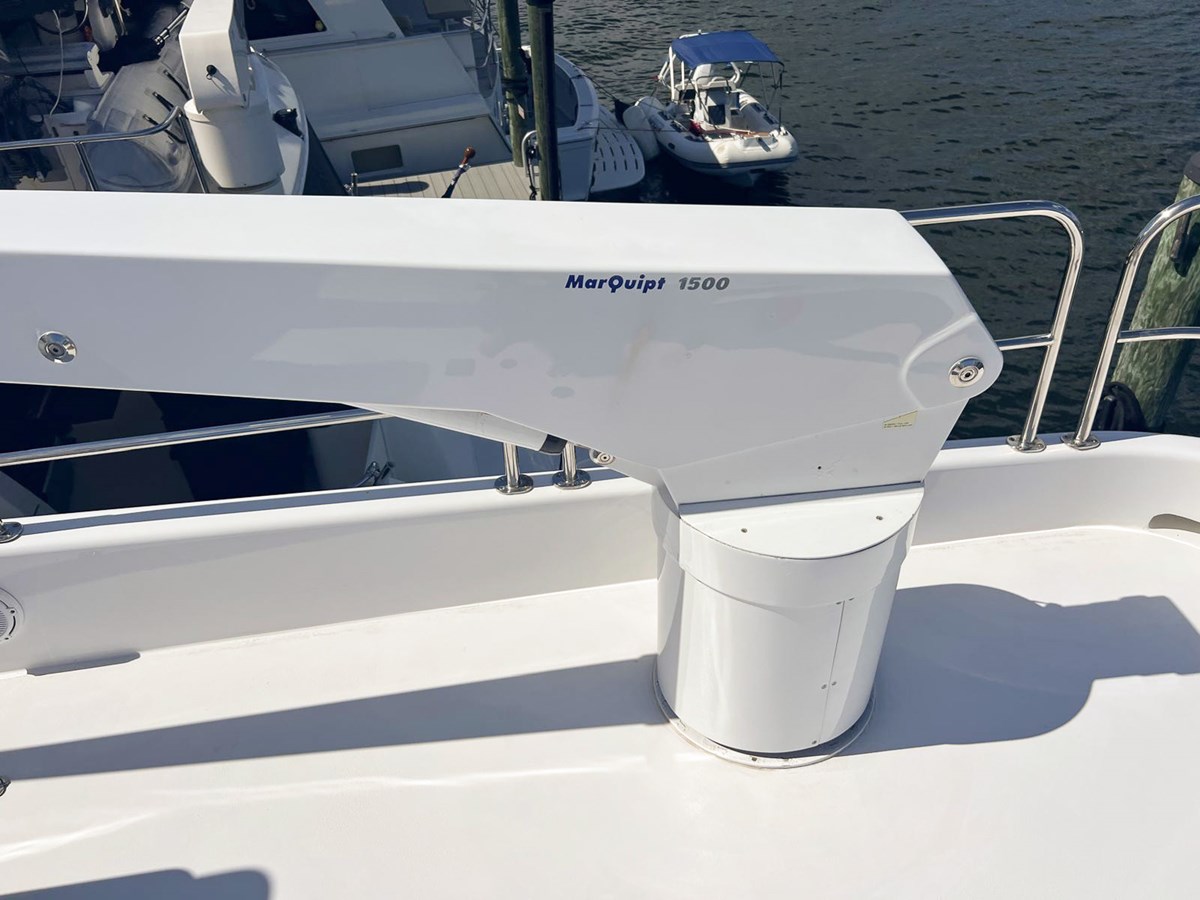

• 1500 lbs. Marquipt davit with hydraulic rotation  – Rebuilt in 2020

Swimming Platform:
• Integrated swim platform with ladder

Other:
• Glendinning cable master (port and starboard) shore cable system
• Boarding 3-step ladder
• Fresh water washdown bow, flybridge and cockpit
• Spray rails
• Dock side water inlet
• Phone / TV dock cable
• (1) 12 Volt DC electric air horn
• Bow rail and handrails stainless steel

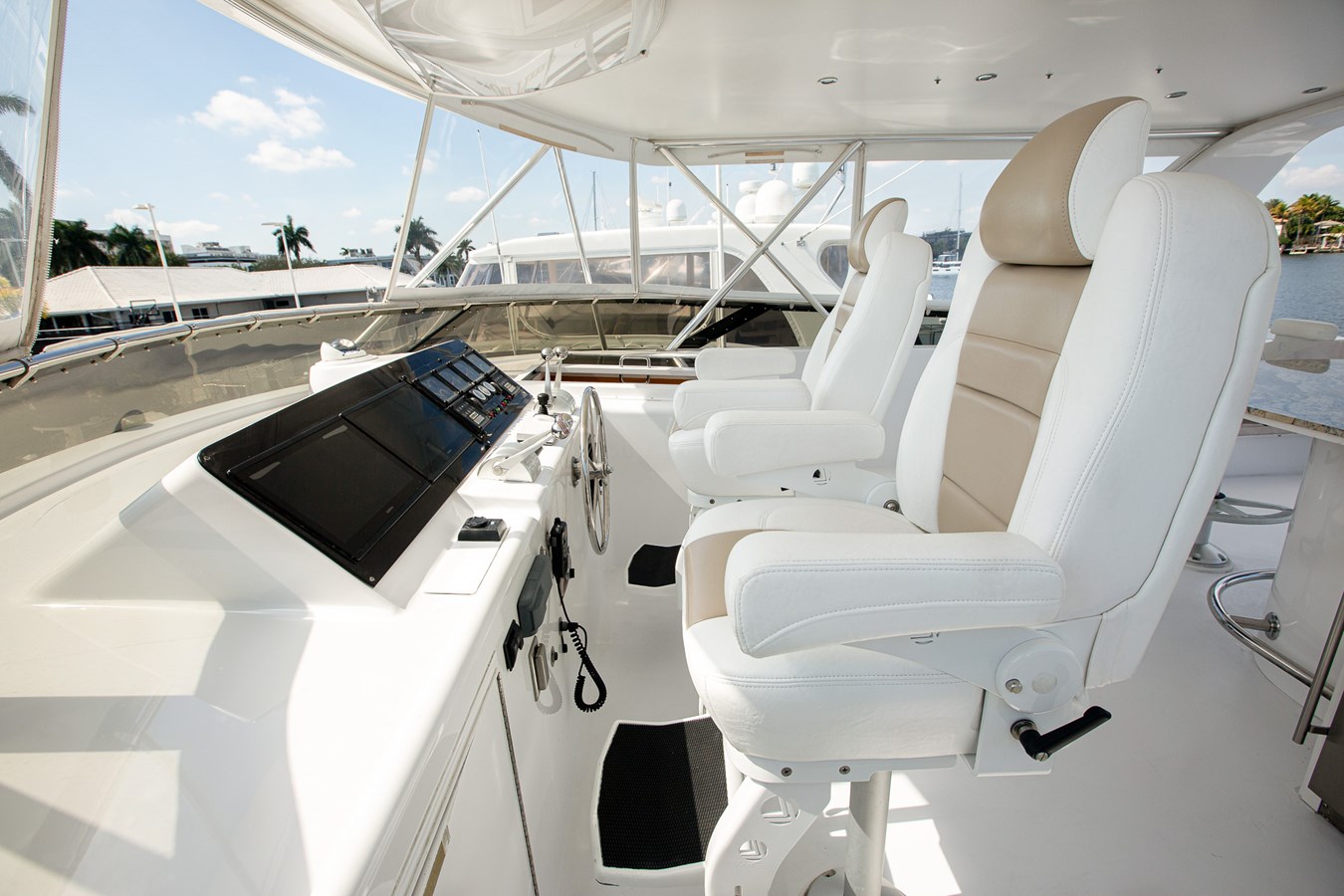

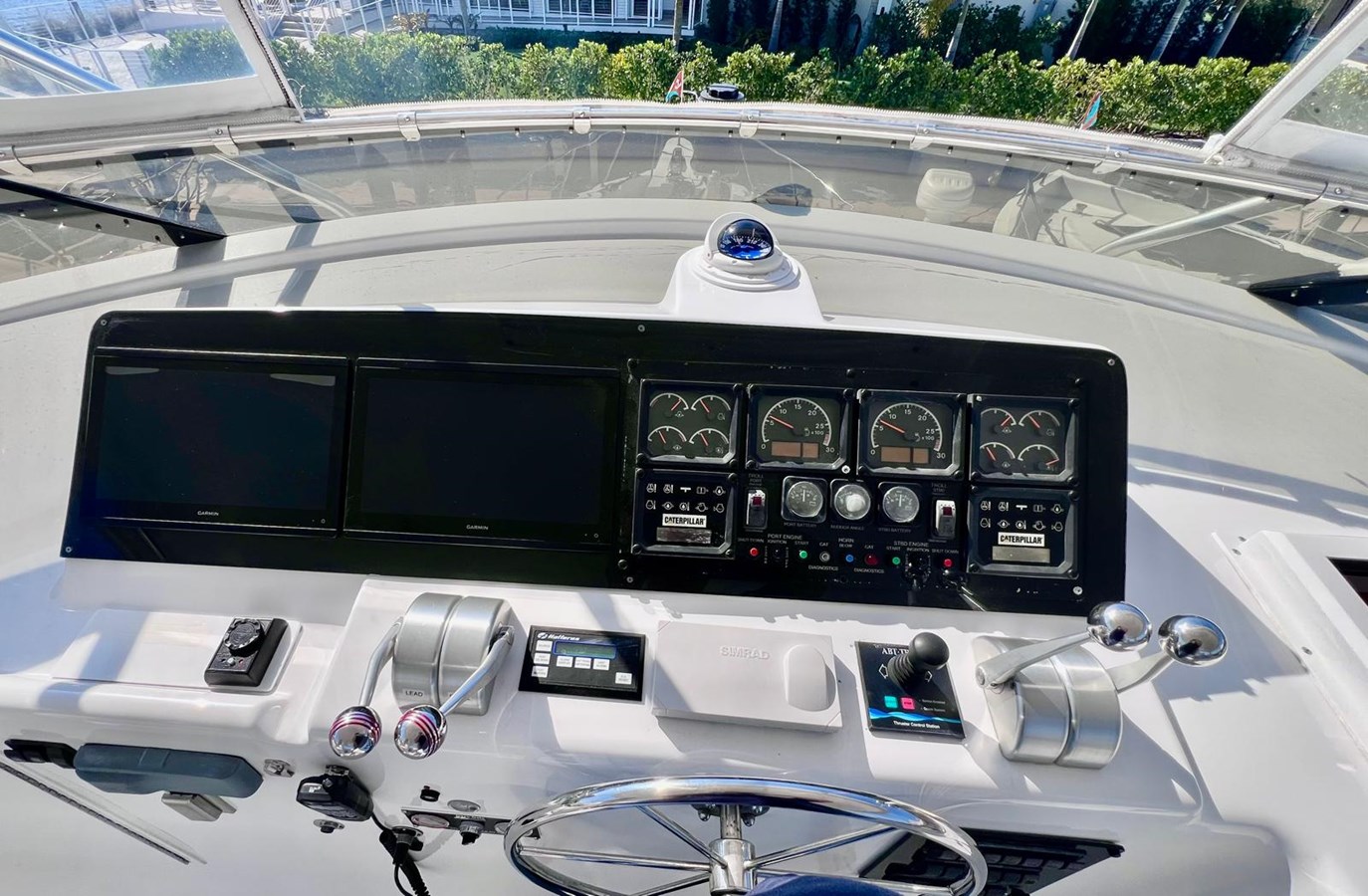

FLRYBRIDGE DECK EQUIPMENT

• Hardtop with Isinglass enclosure
• Complete helm station with switches and electronics
• Navigation lights
• Compass
• Caterpillar displays
• Instrument gauges for Caterpillars
• Electronic engine gauges
• 1500 lbs. Marquip davit with electro-hydraulic rotation
• Radar arch with overhead lights
• Bow thruster control
• Search light: ACR electronic RCL-100 with URP-102 remote controller
• All new seating with Llebroc custom seats:
• 2 Captains (2020)
• 4 Bar (2020)

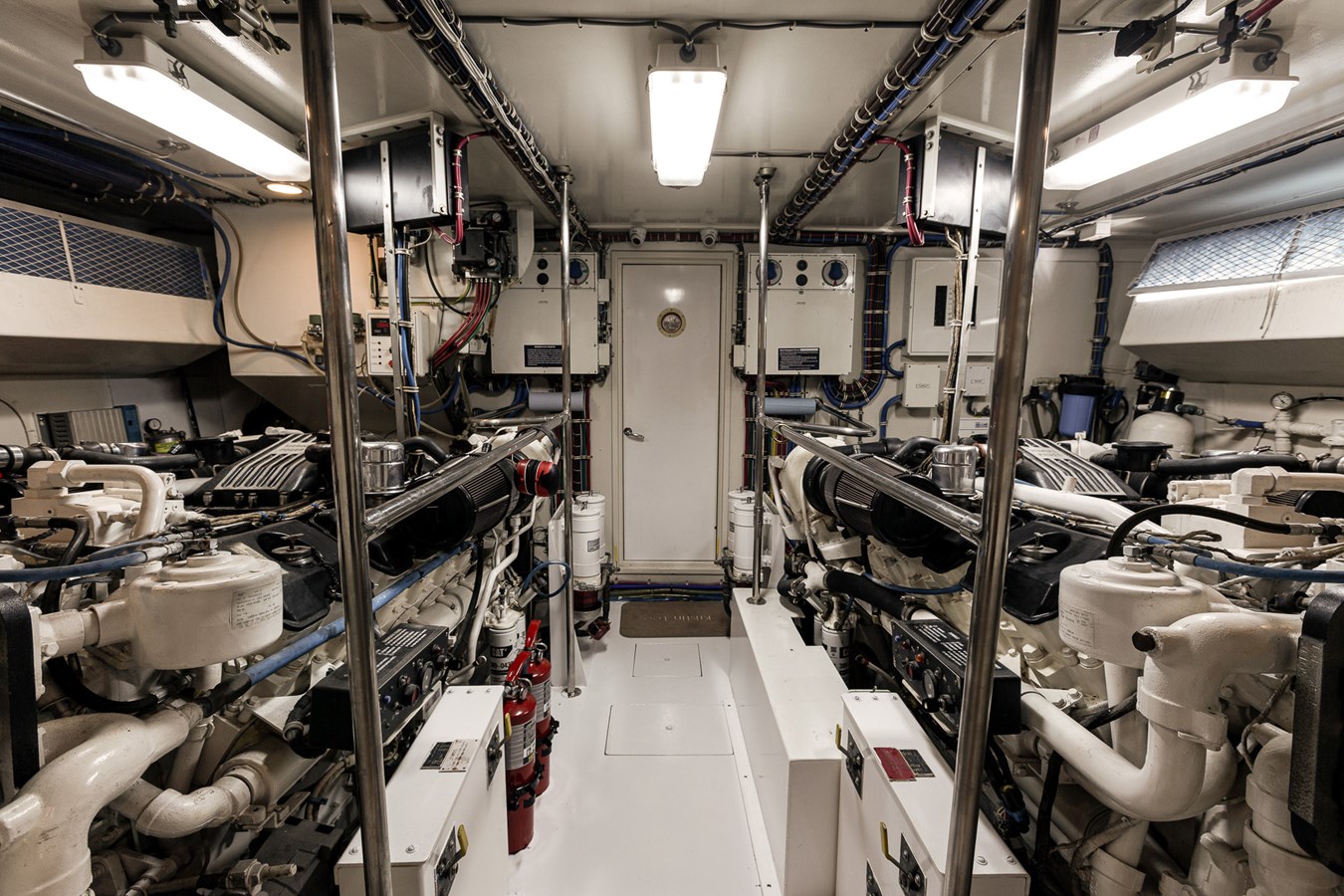

ENGINE ROOM EQUIPMENT

• Engine synchronizer
• Electrical fuel priming pumps
• Fresh water expansion tank
• Raw water pump
• Wash down pump
• Cold water / hot water Manifold
• DC / AC lights
• Water heater
• 120 / 240 AC electrical panels and breakers
• 24VDC electrical panels and breakers
• Large tool box
• GFCI outlets
• (4) Batteries for engines and fire retardant boxes
• Mastervolt battery charger
• Caterpillar analog gauges and panels
• Macerator pump
• Engine room blowers

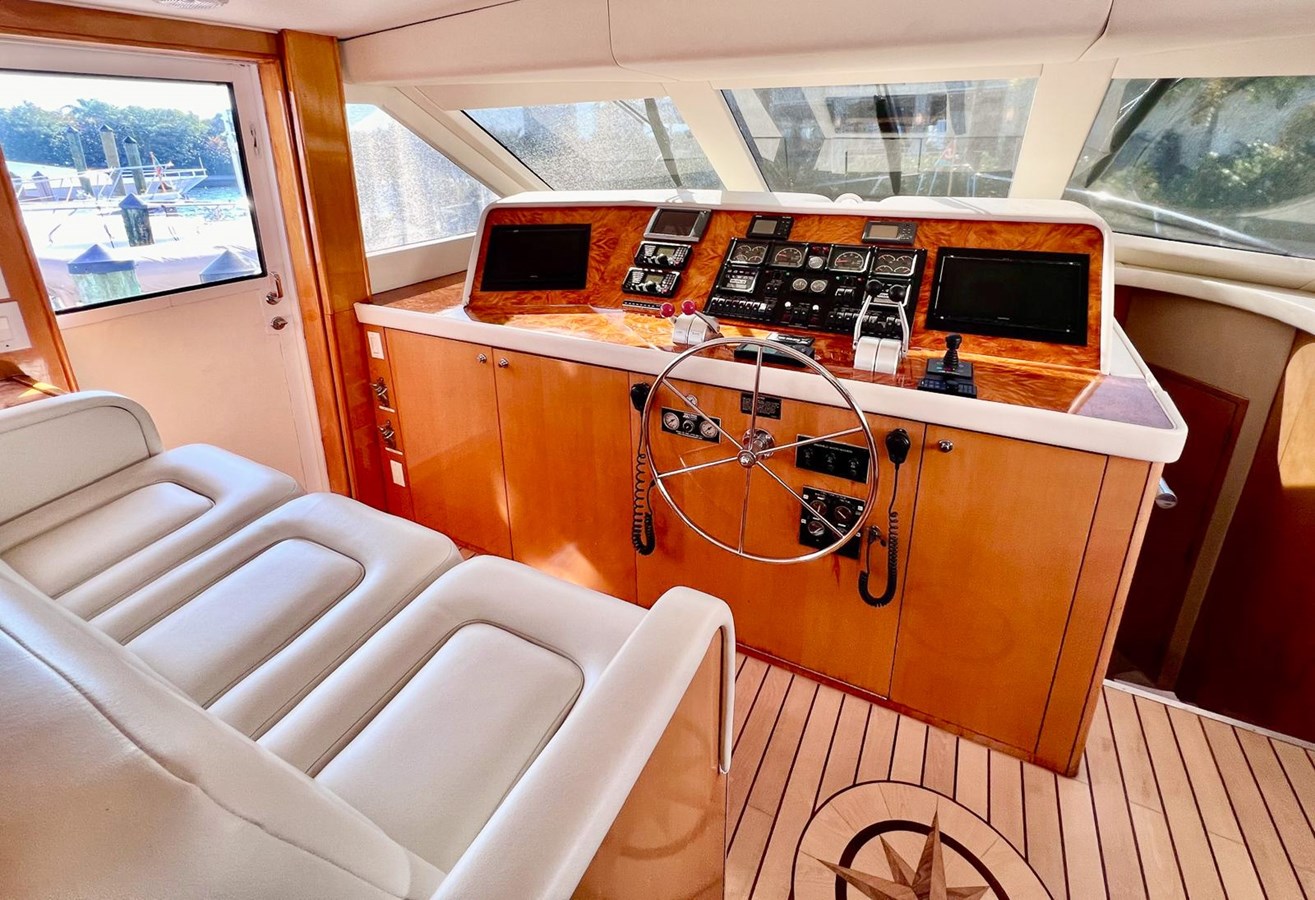

PILOTHOUSE EQUIPMENT

• (2) 8616 Garmin – New 2026
• American bow thruster control
• Hatteras systems monitor
• (4) Fuel gauges
• Electrical switchboard
• SMX air conditioning controls

UTILITY ROOM EQUIPMENT

• Located forward with easy access hatch and collapsible ladder
• Sull air ES – 6 compressor
• Hot / cold water manifold
• Port and starboard shoreline lsoboost transformers
• (7) Cruisair air conditioning compressors
• Fresh water expansion tank
• Fire suppression system
• Hydraulic system connected to aft generator
• Overhead lights

Security Equipment

• CCTV System: Engine room and side deck cameras
• Cameras: (2) Engine room & (2) Helm doors
• Monitors: Thru Garmins


Fire Fighting Equipment

• Fire Control System: Fire suppression system – Engine Room -September 2025
• Fire Extinguishers: (8) Type ABC-1 2.5 lb. Dry Chemical – September 2025
• Alarms: Audible/visual engine alarms at the Helms

Safety Equipment

•    Life Rafts: (1) For 8 people
•    Other Throwable  Flotation Device: (1) Type IV cushion
•    Life Jackets: (12)
•    EPIRBS: Yes
•    Flares:  Yes
•    Medical Equipment: None

GENERAL

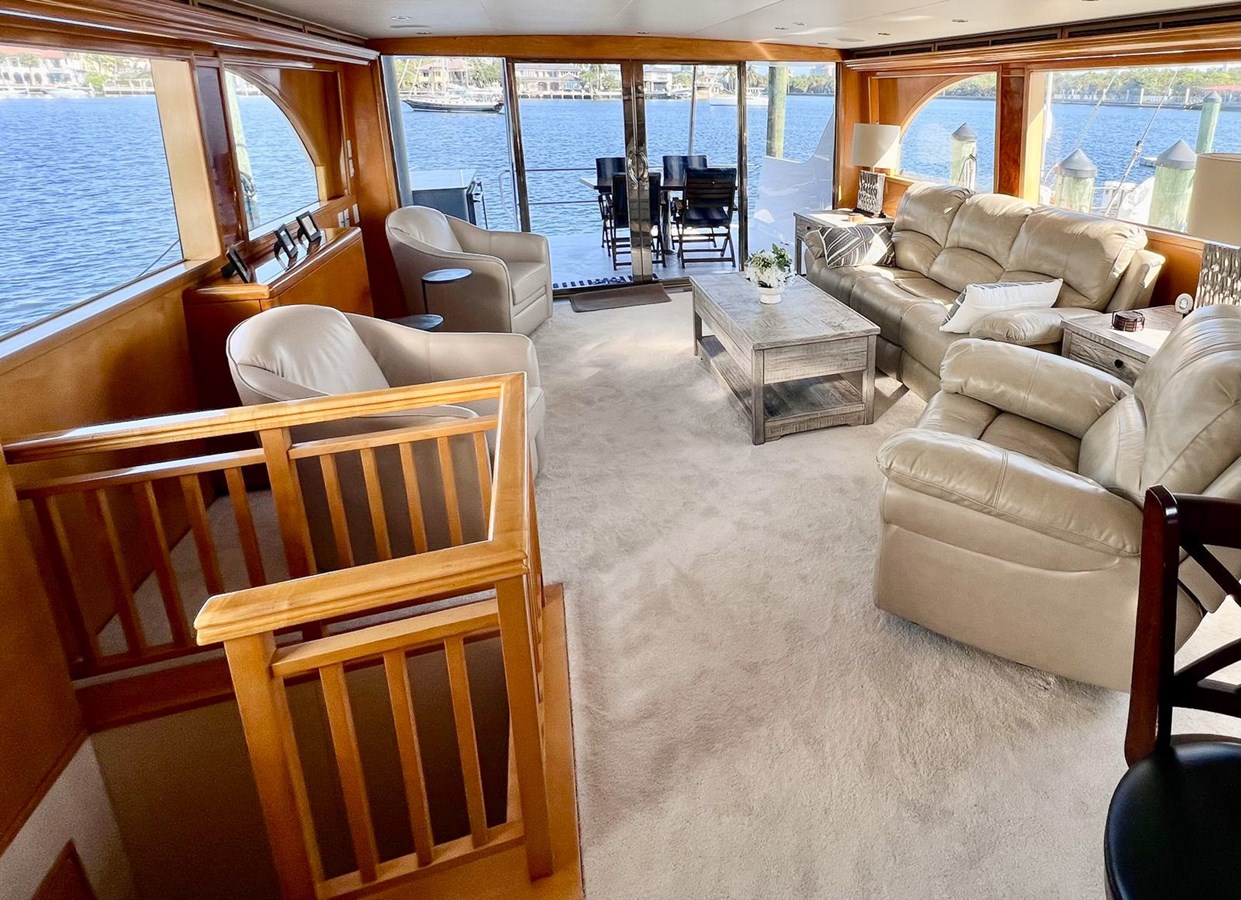

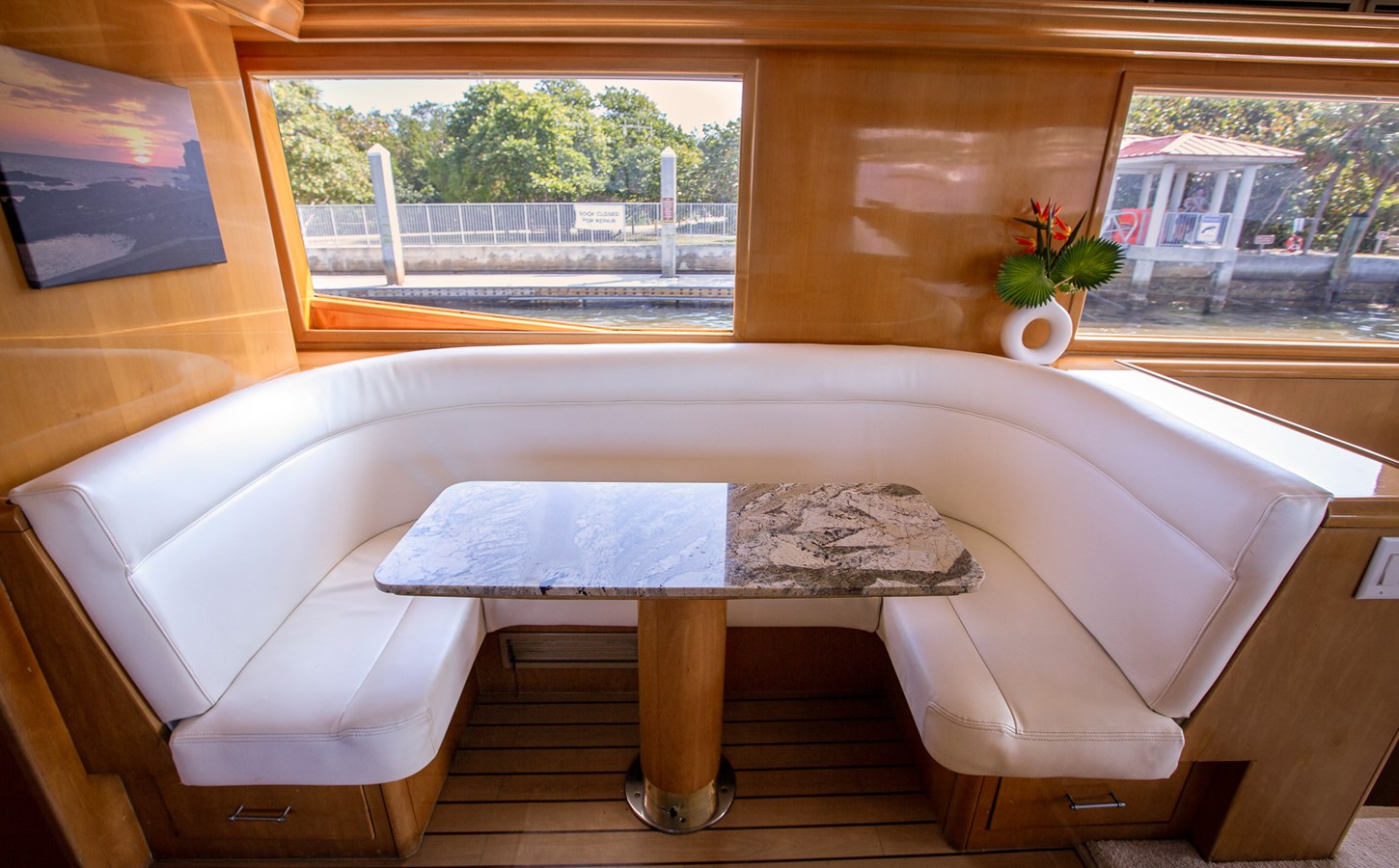

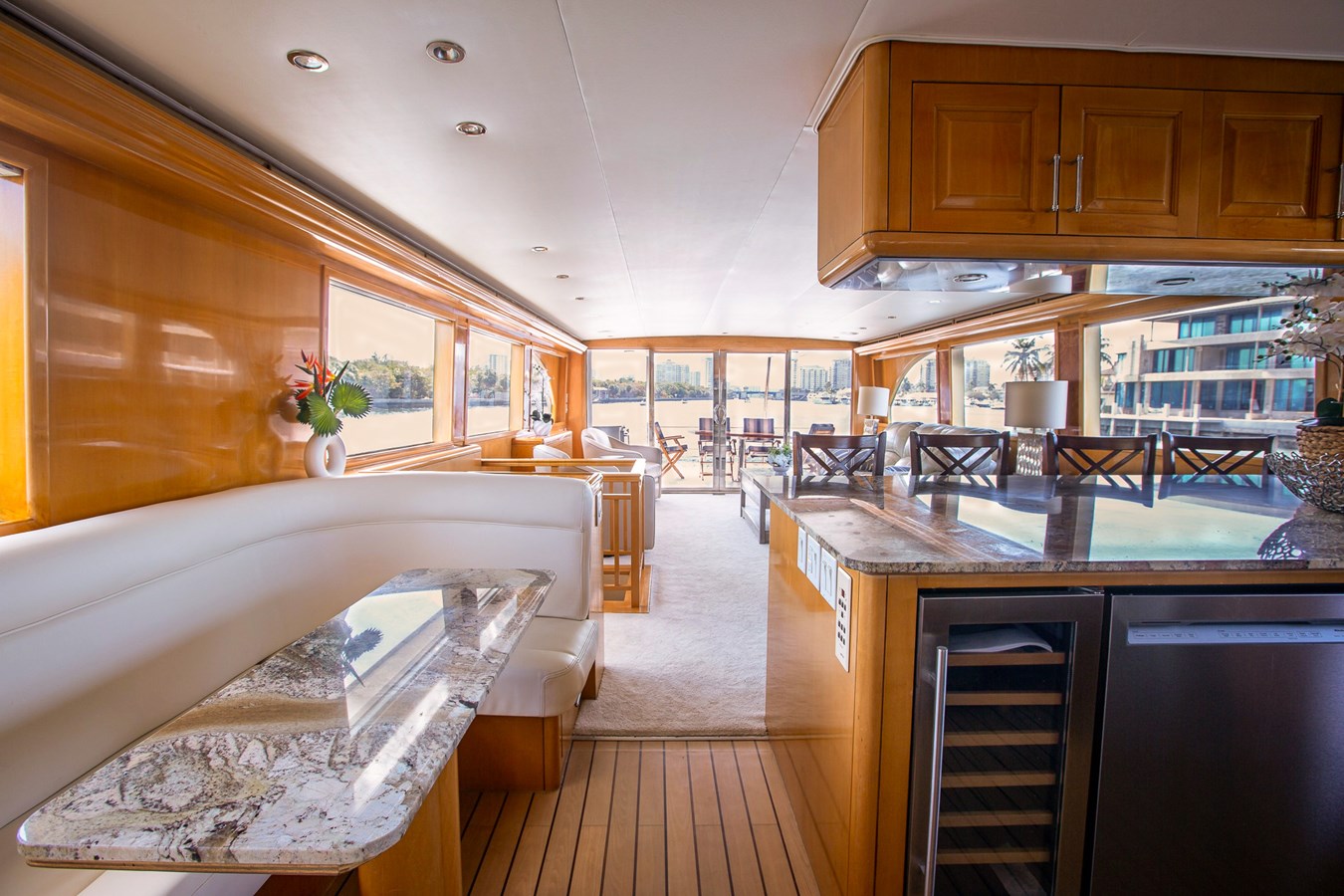

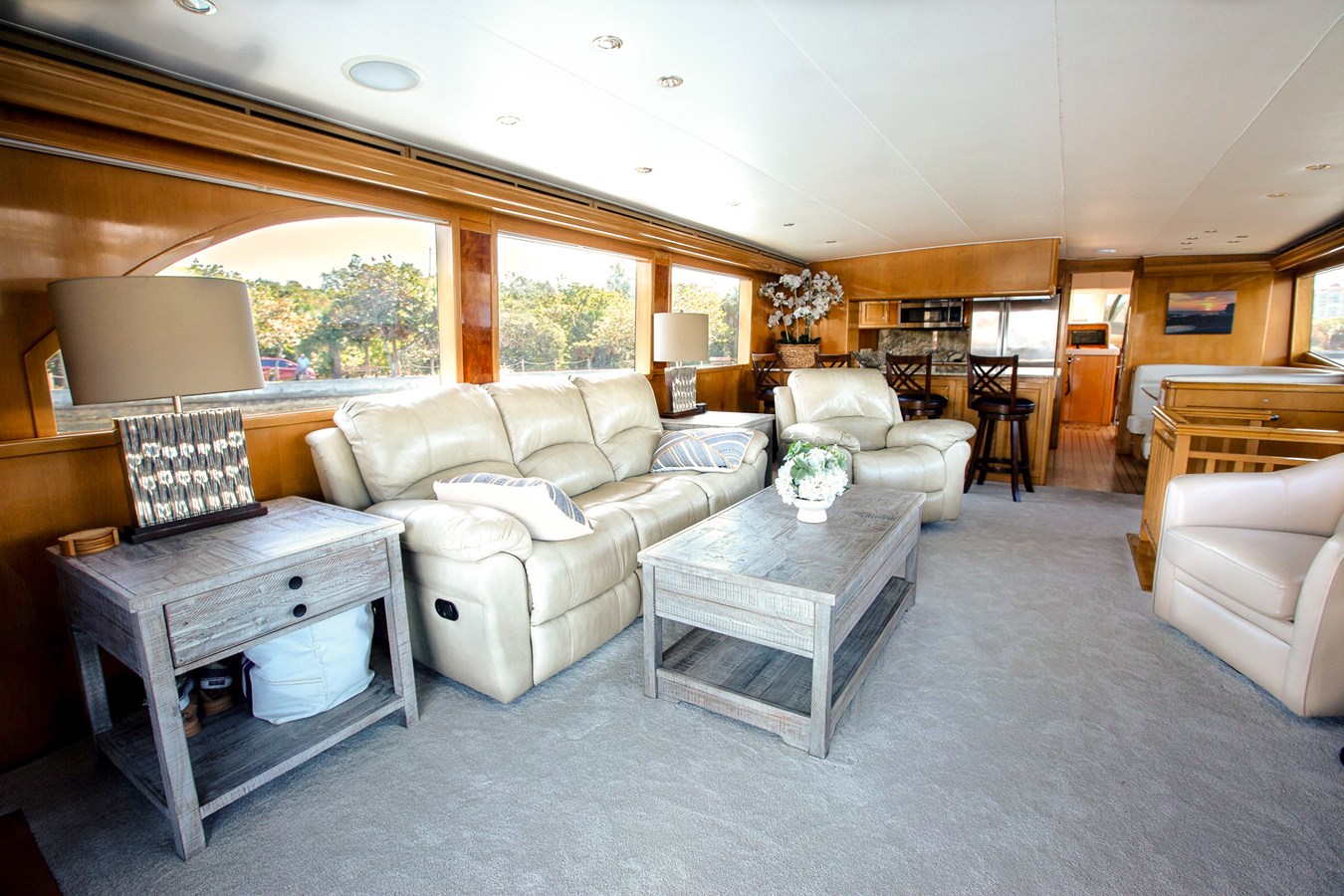

Salon/Dining Area

• Maplewood throughout with dark inlay mullions
• Carpeting
• Sofa
• (2) Occasional chairs
• Entertainment center with pop-up TV system
• Custom shades
• New headline
• LED lights

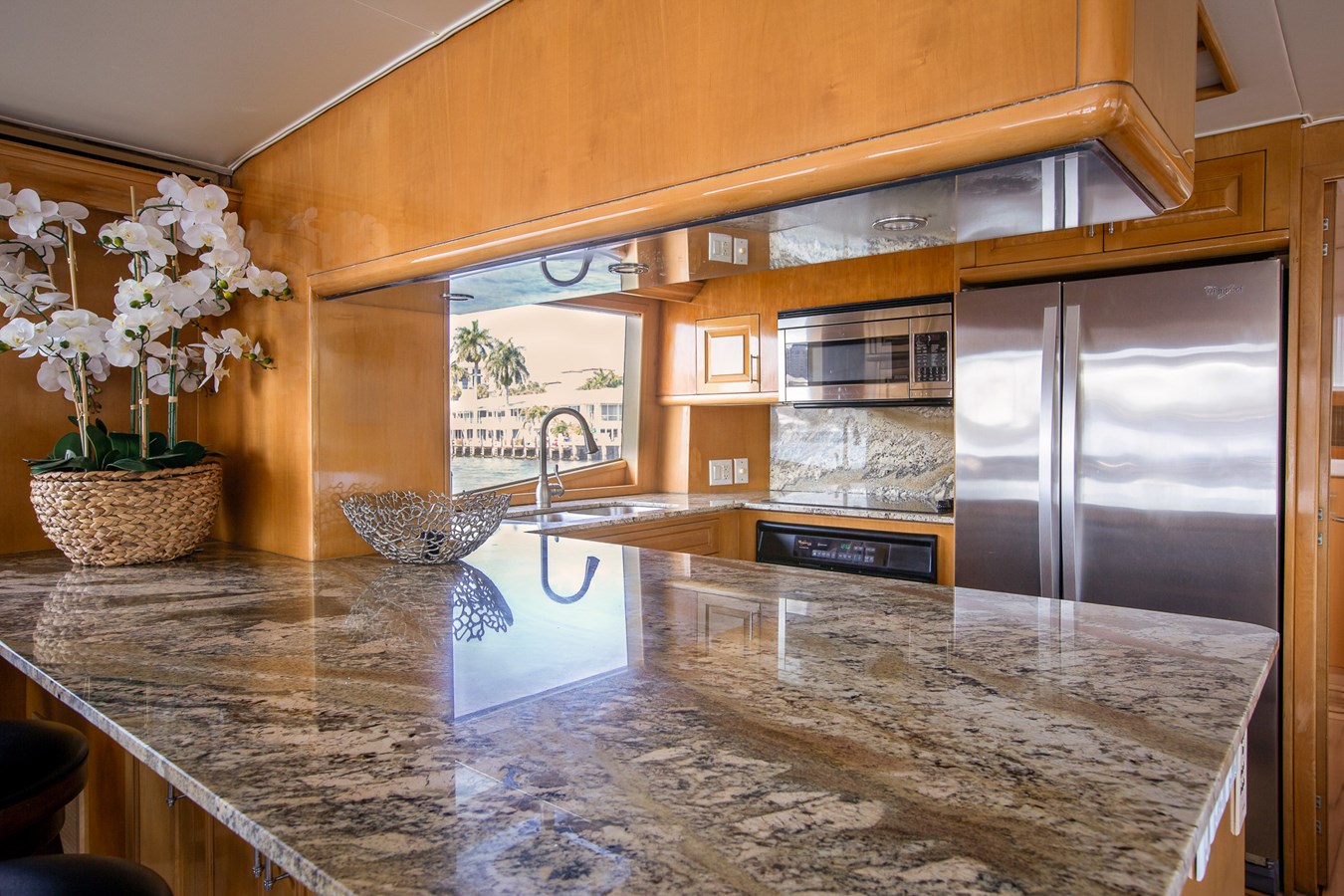

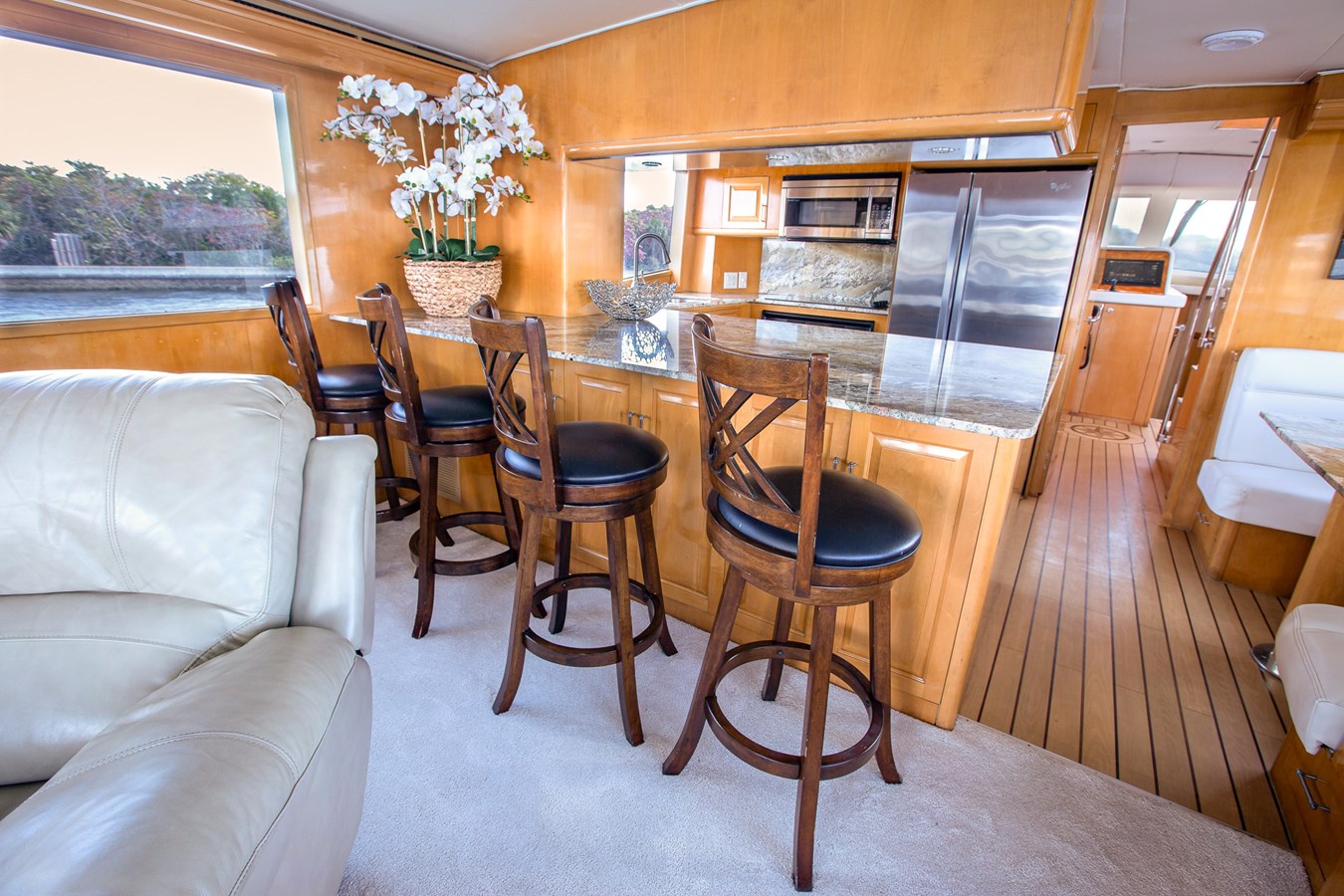

Galley

•    Oversized granite countertop
•    (4) High-back stools at counter

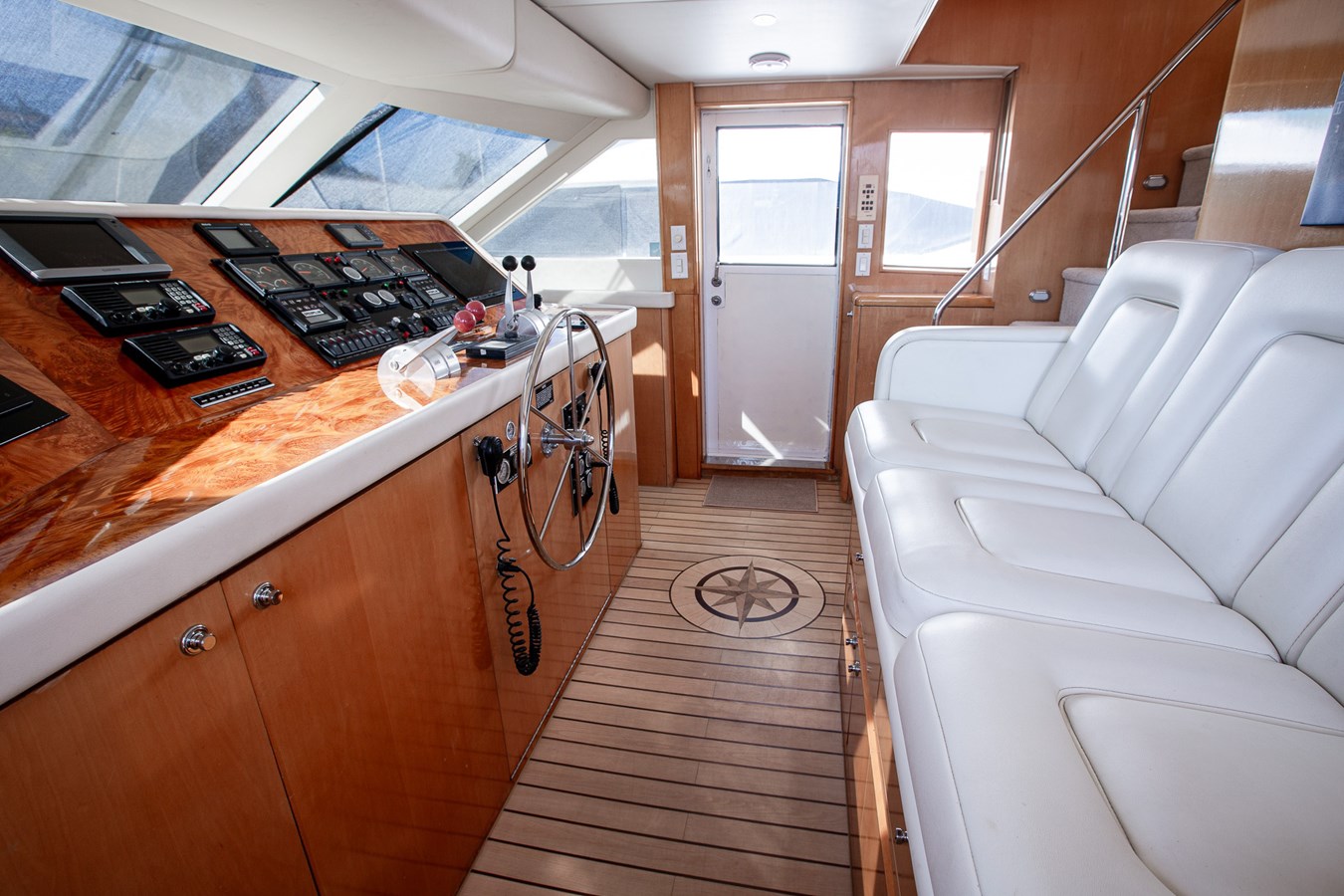

Pilothouse

• Port and starboard sliding doors
• Custom leather seats for two with chart flats storage and drawers
• Staircase to flybridge with storage below

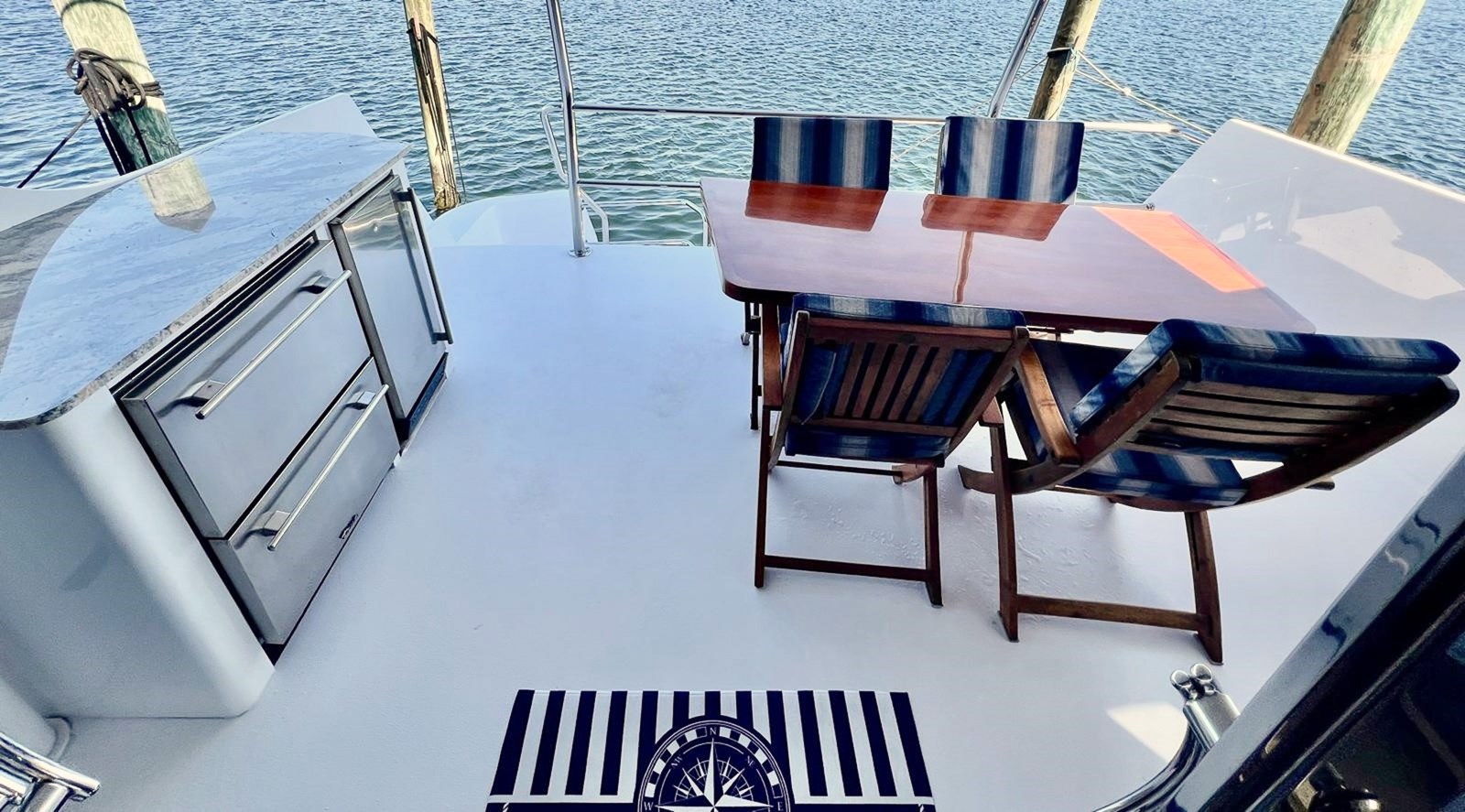

Aft Deck / Cockpit

• Extended att deck with table
• Cockpit storage cabinets
• Spiral staircase down to cockpit
• Courtesy lights
• Integrated swim platform with ladder
• Aft deck teak table seats (4) people – (Refinished 01/2021)
• Aft deck speakers
• Two cockpit large storage for fenders, ropes, and water toys
• Overhead lights
• Hand held shower
• Custom bar with granite top – 2020
• True refrigerator drawers – 2020
• Maxx ice machine – 2020

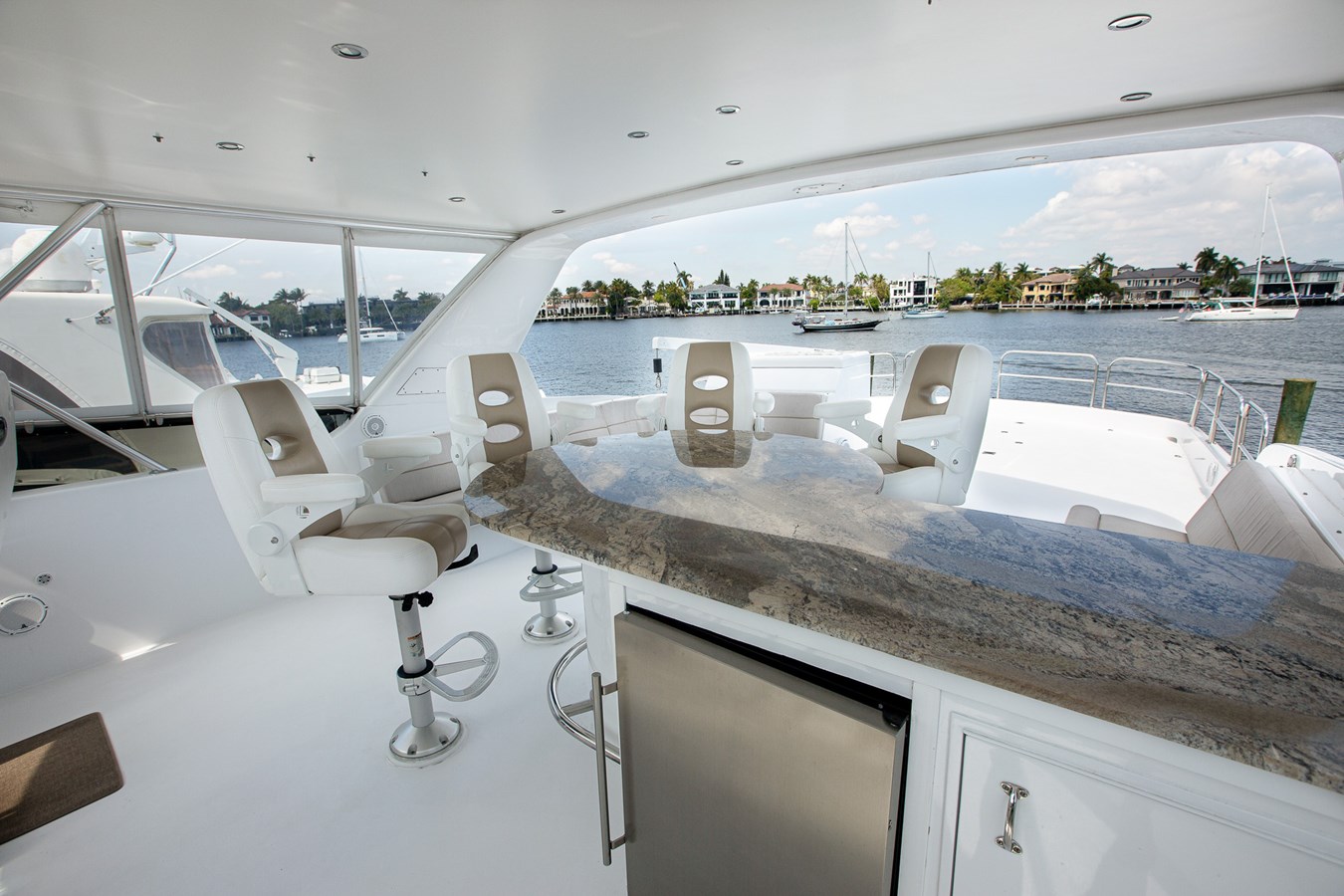

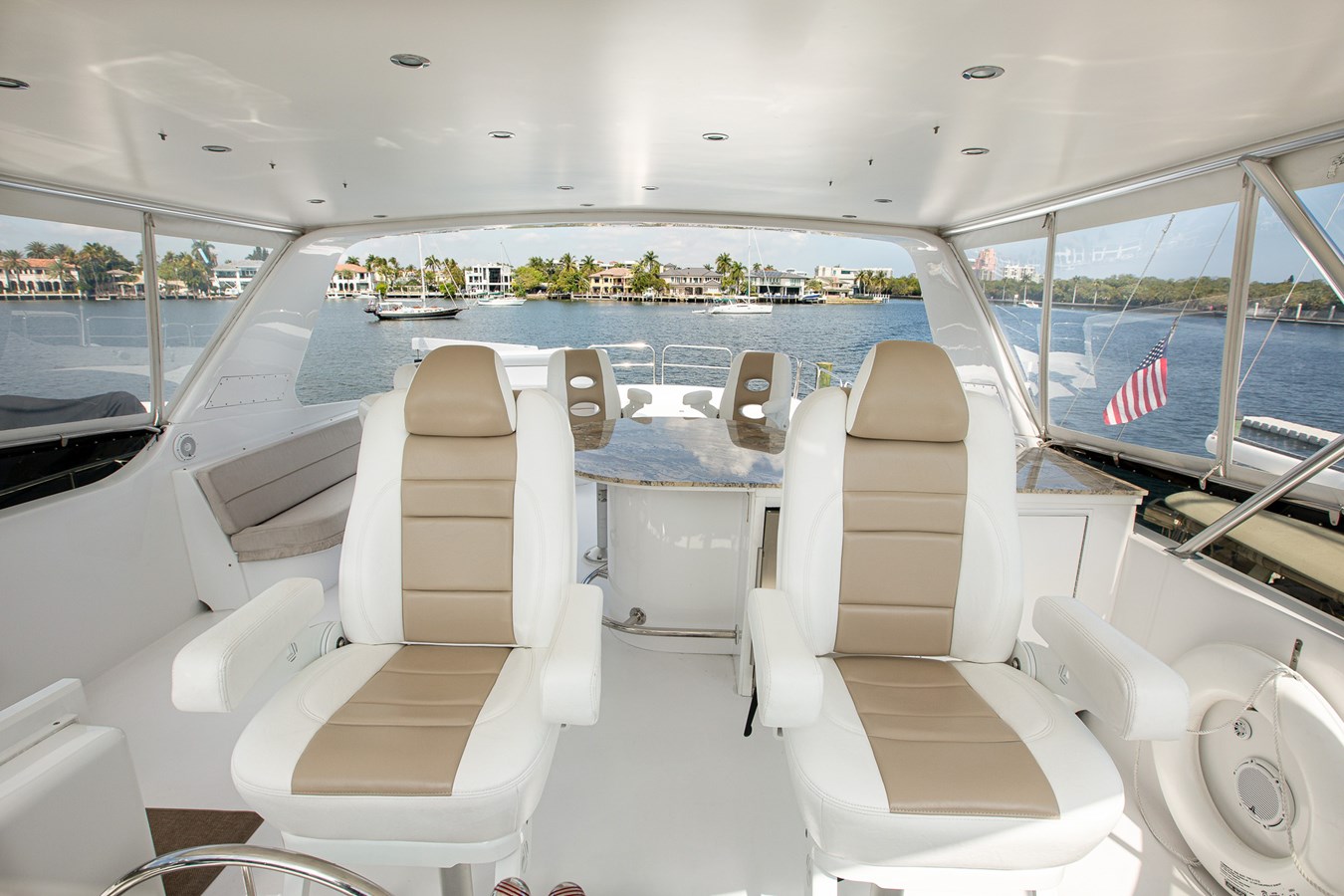

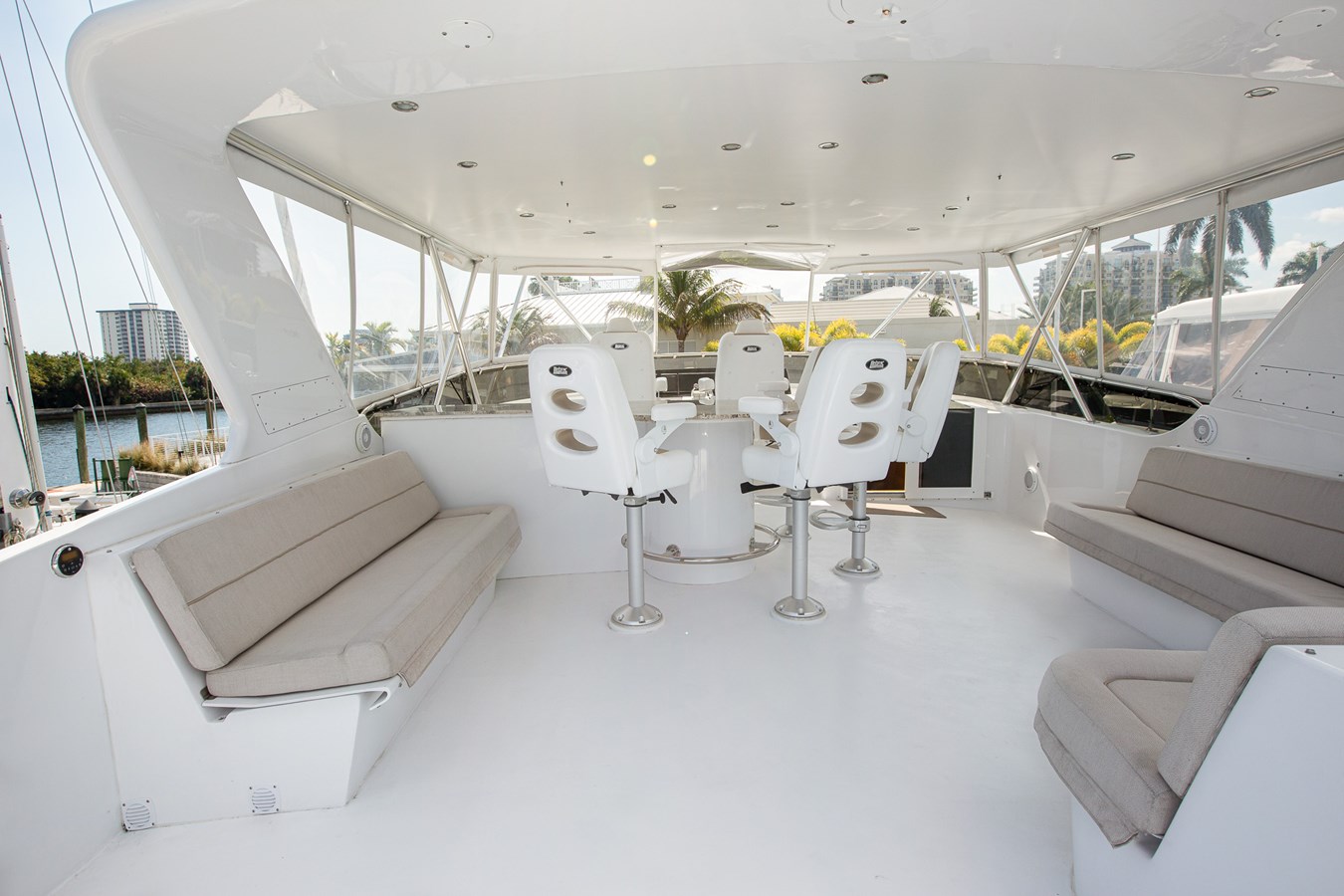

Flybridge

• (4) stools with back, sink, refrigerator, storage cabinets
• Granite countertops
• (2) Custom Llebroc pilot chairs – 2020
• All new cushions – 2020
• (3) Sided EZ to see clear enclosure – 2020
• Hardtop
• Custom jacuzzi to port side
• Huge bar with refrigerator – 2020

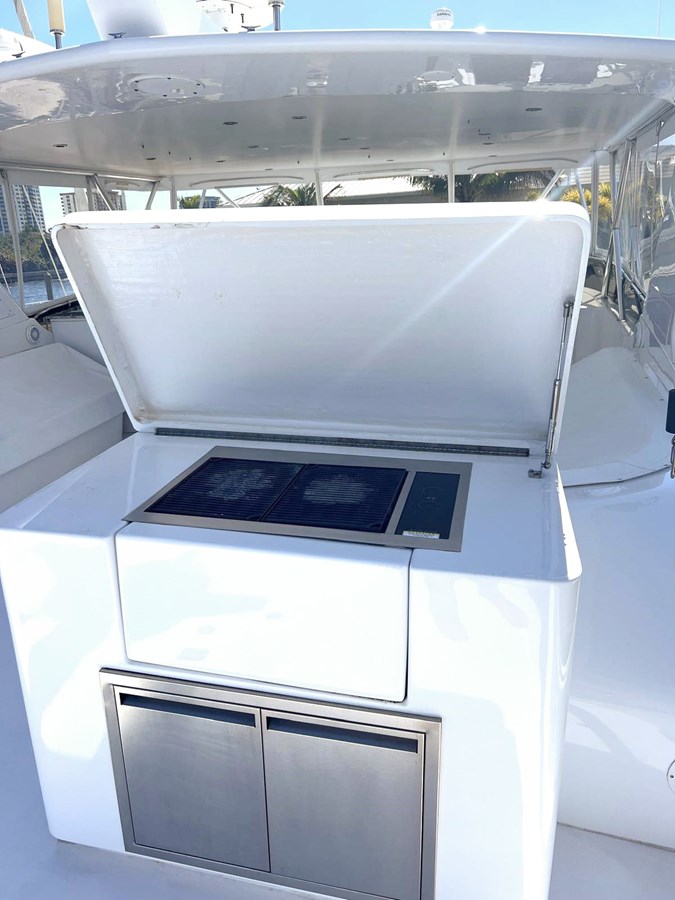

• Custom Kenyon grill – 2020
• Custom stainless steel grill install flush mounted in fiberglass
• JL audio speakers

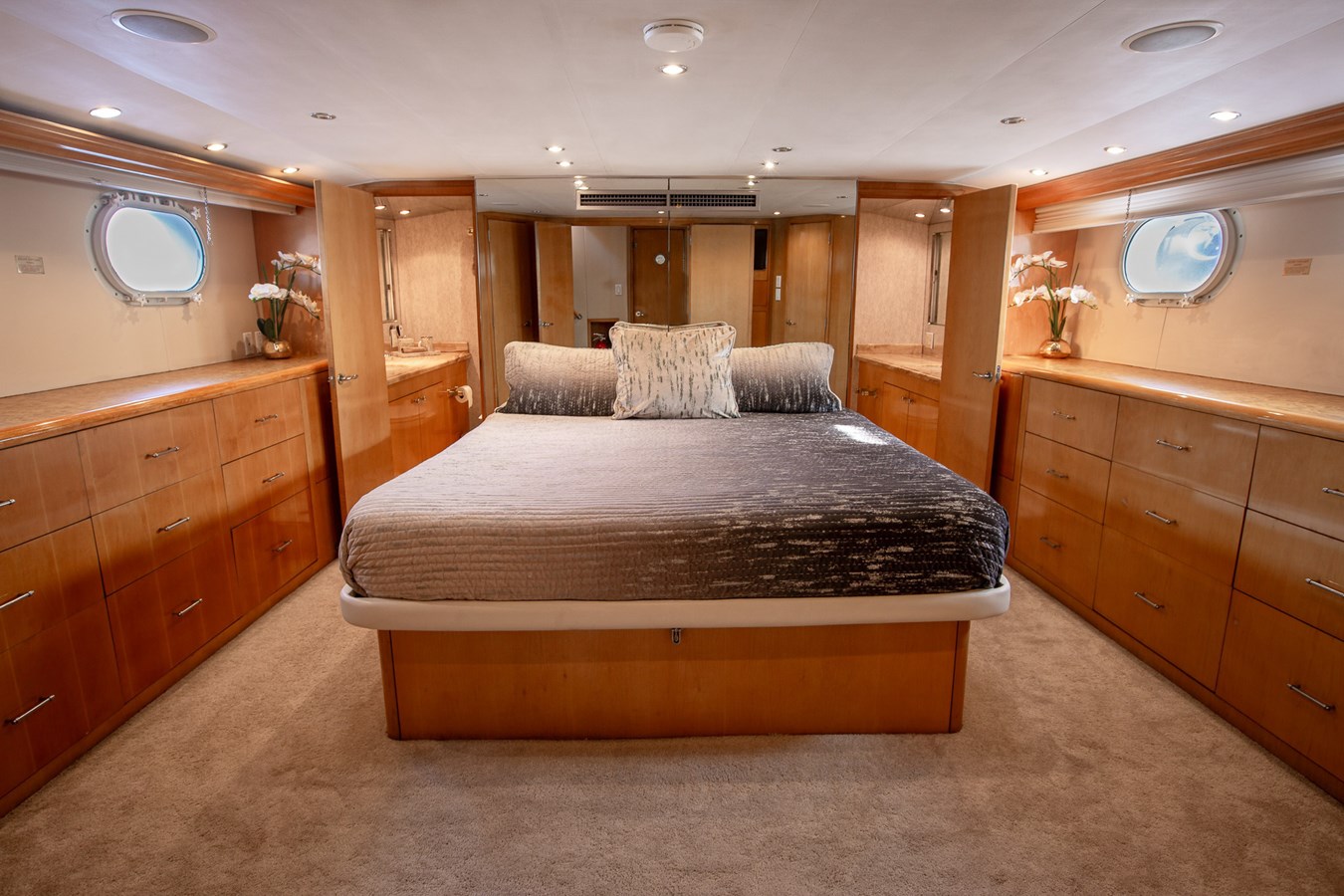

OWNER

• Private access from stairwell in salon
• King size berth
• Walk-in cedar-lined wardrobe with arched door and automatic light – port side
• Hanging cedar-lined closet – starboard side

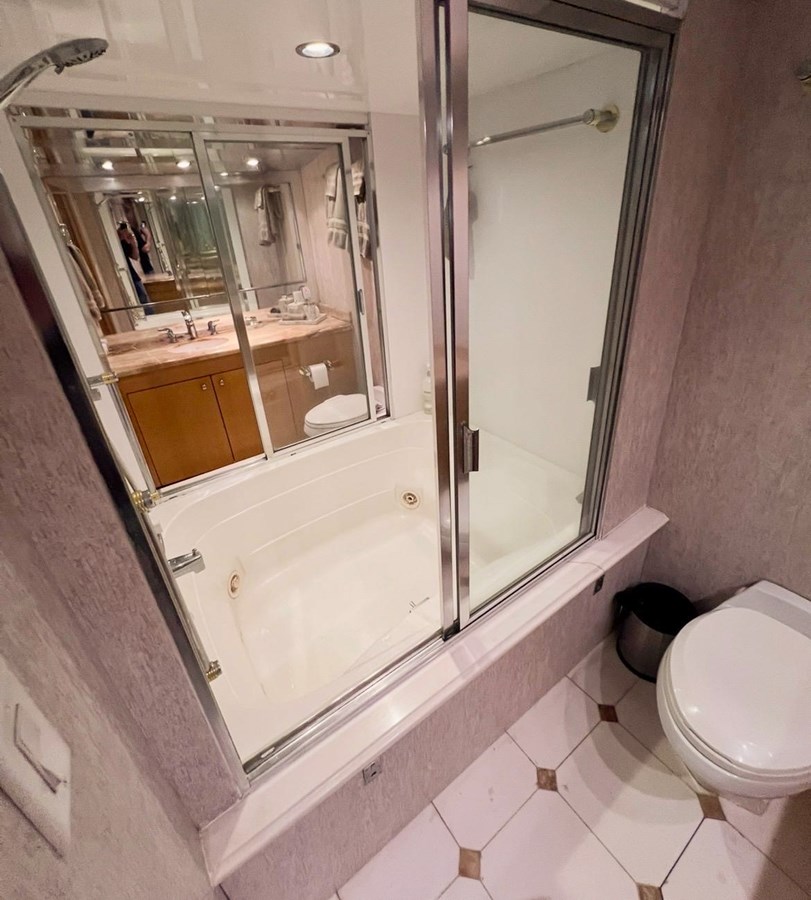

• Private his and hers bath with hot tub, marble countertops
• Tub with shower, sliding doors, whirlpool jets and automatic sump pump

GUESTS

VIP Stateroom:

• Located amidships forward of engine room access
• Queen size berth
• Built in dressers and nightstands
• TV and stereo
• Two cedar-lined hanging closets

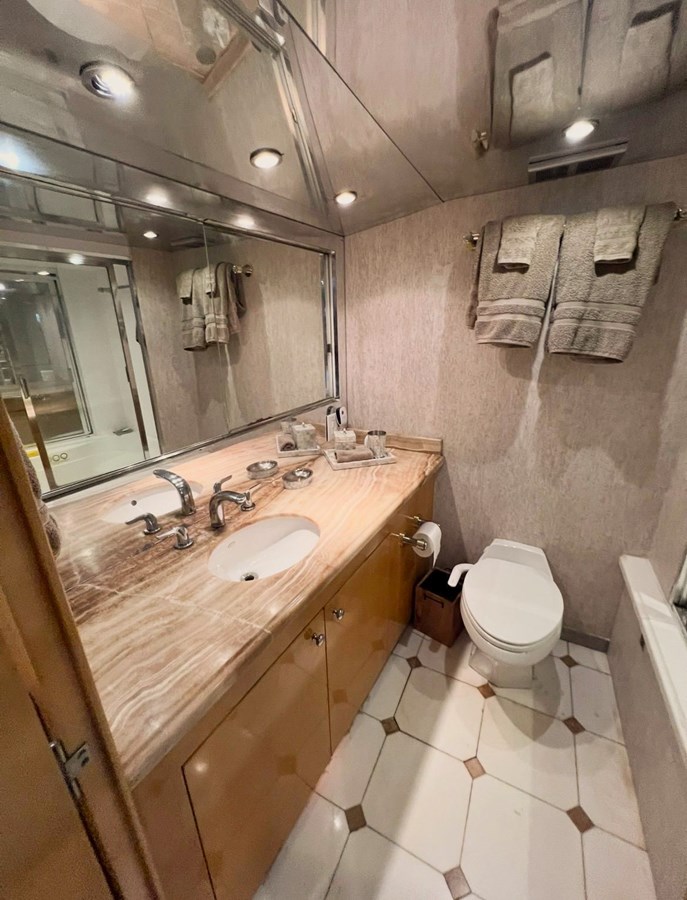

• Private head with shower stall and hot tub with jets, marble countertops

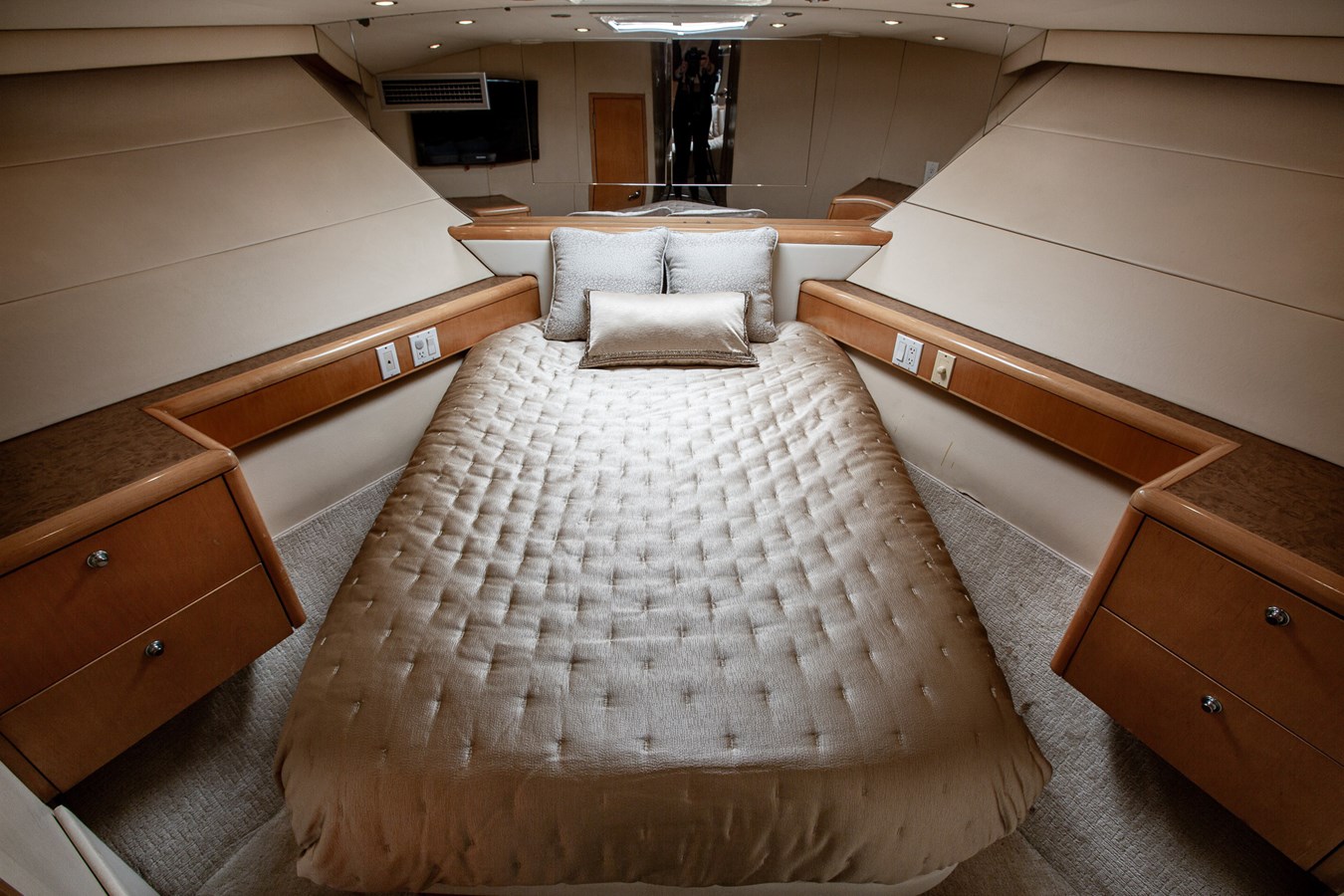

VIP Stateroom Forward:

• Located in the bow
• Queen size berth
• Built in dressers and nightstands
• TV and stereo system
• Cedar-lined hanging locker
• Overhead hatch
• Access to anchor locker
• Private access to head

Twin Guest Stateroom or Crew:

• Located forward to port side
• Twin bunk beds
• Cedar-lined hanging locker
• TV

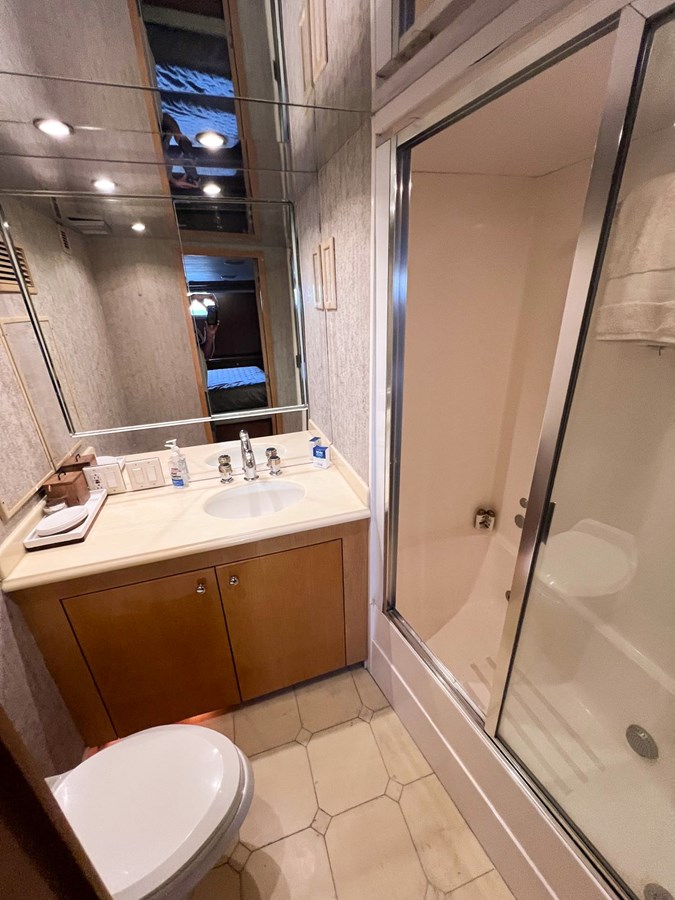

• Private head with shower

2025:

• Bottom Paint / Propspeed – December
• New salon and stairs carpet – December
• Entire vessel waxed
• All new batteries – Early 2025

2020/REFIT:

• Complete exterior paint job
• New oil coilers
• New alternators
• New port starter
• New headliner
• New granite

2019:

• New headliner
• (2) Off-white occasional chairs
• New custom Hi-Lo 50′ Samsung TV
• New blinds
• New LED lighting
