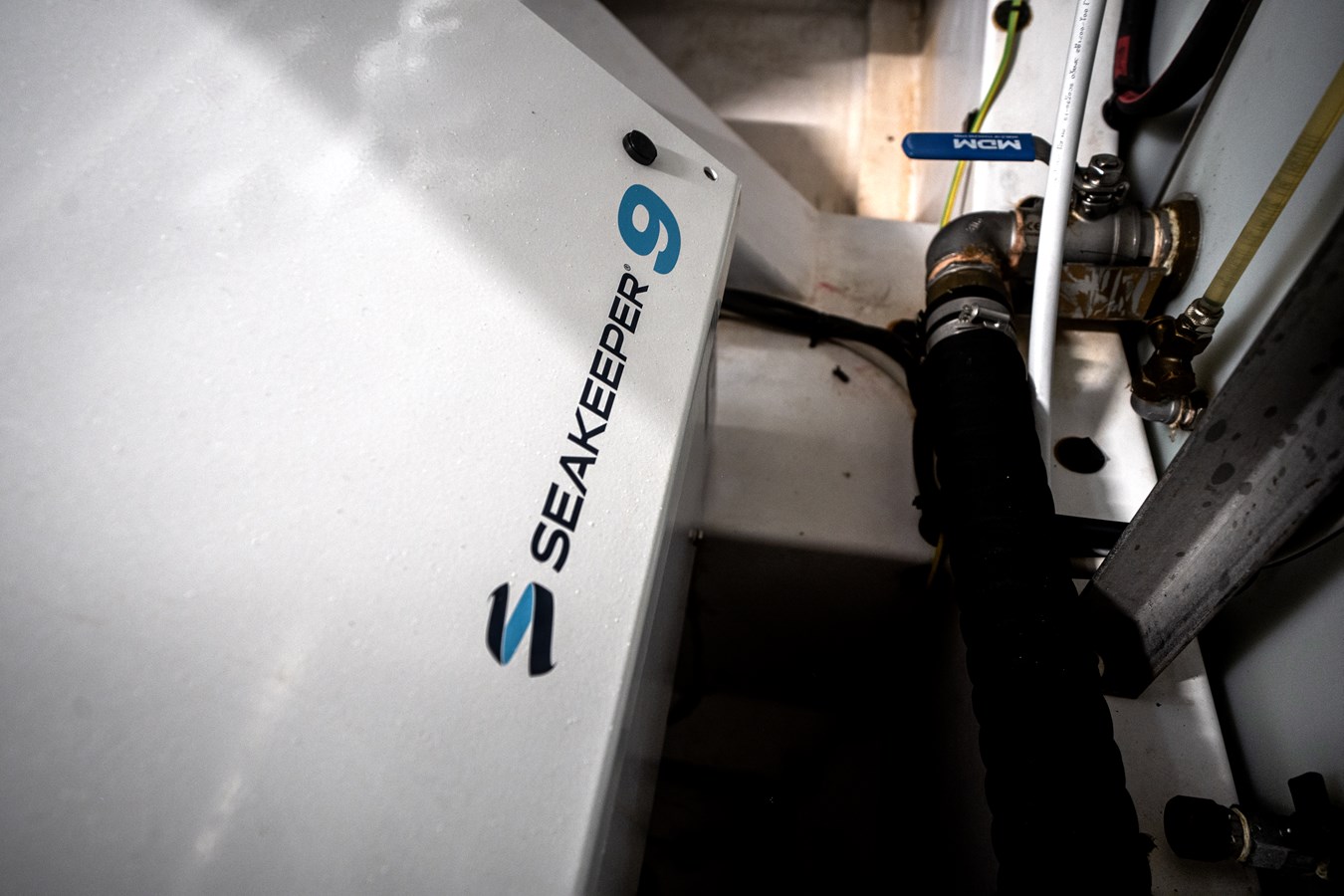

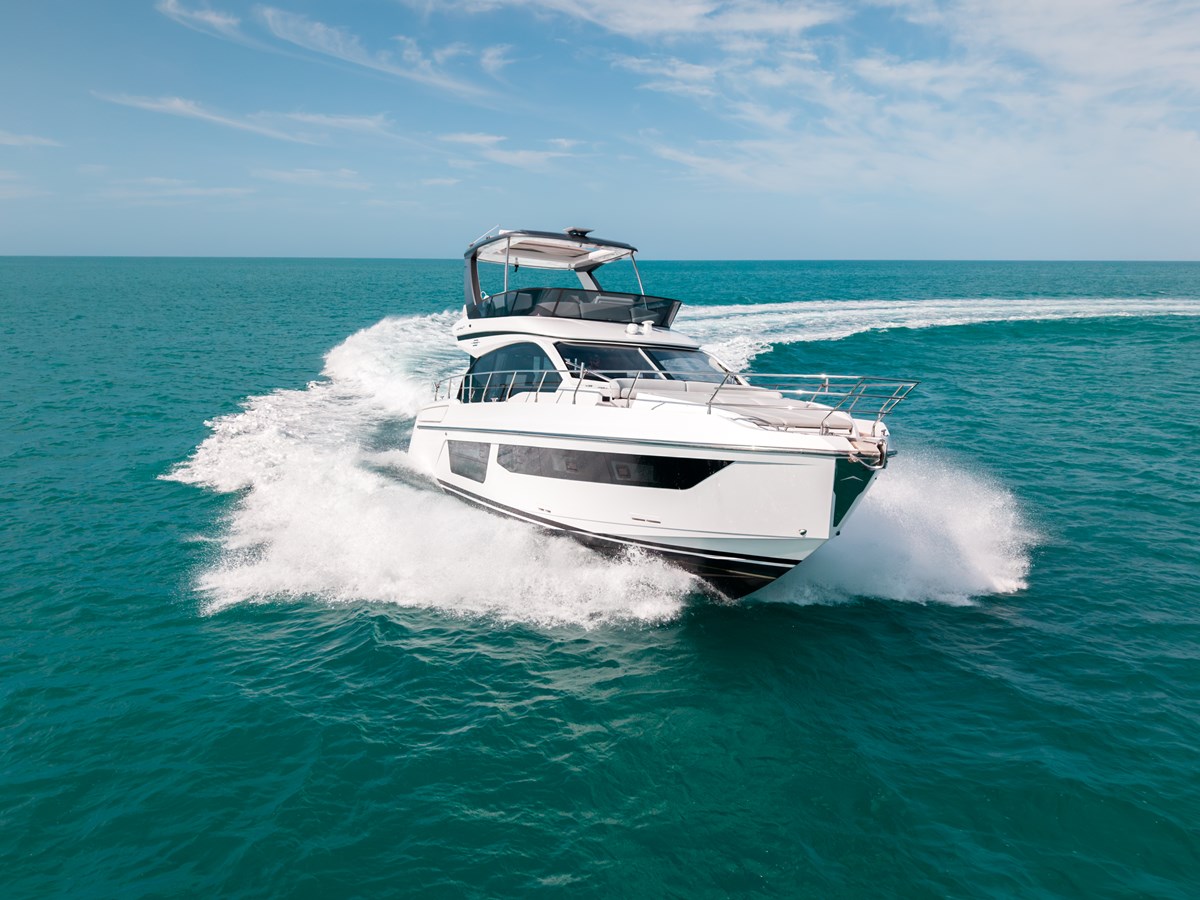

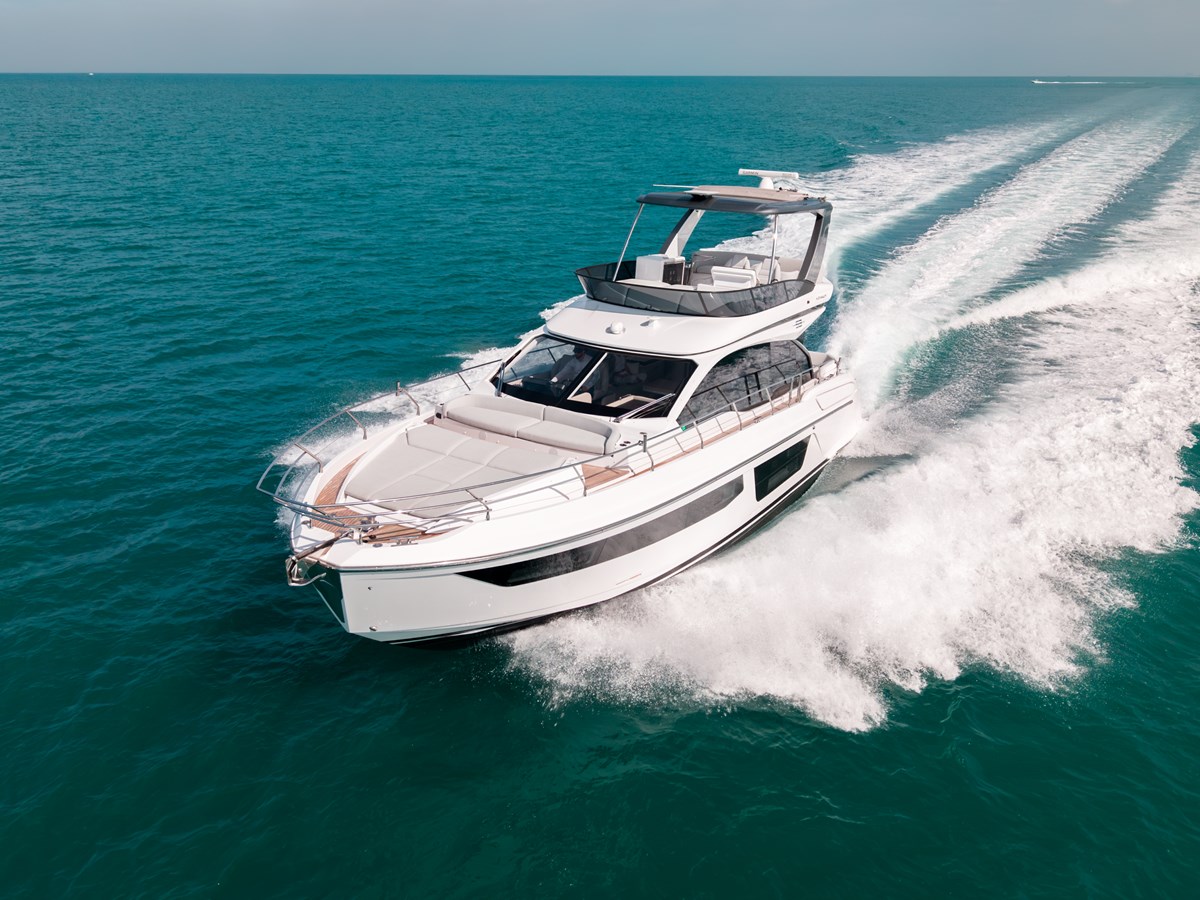

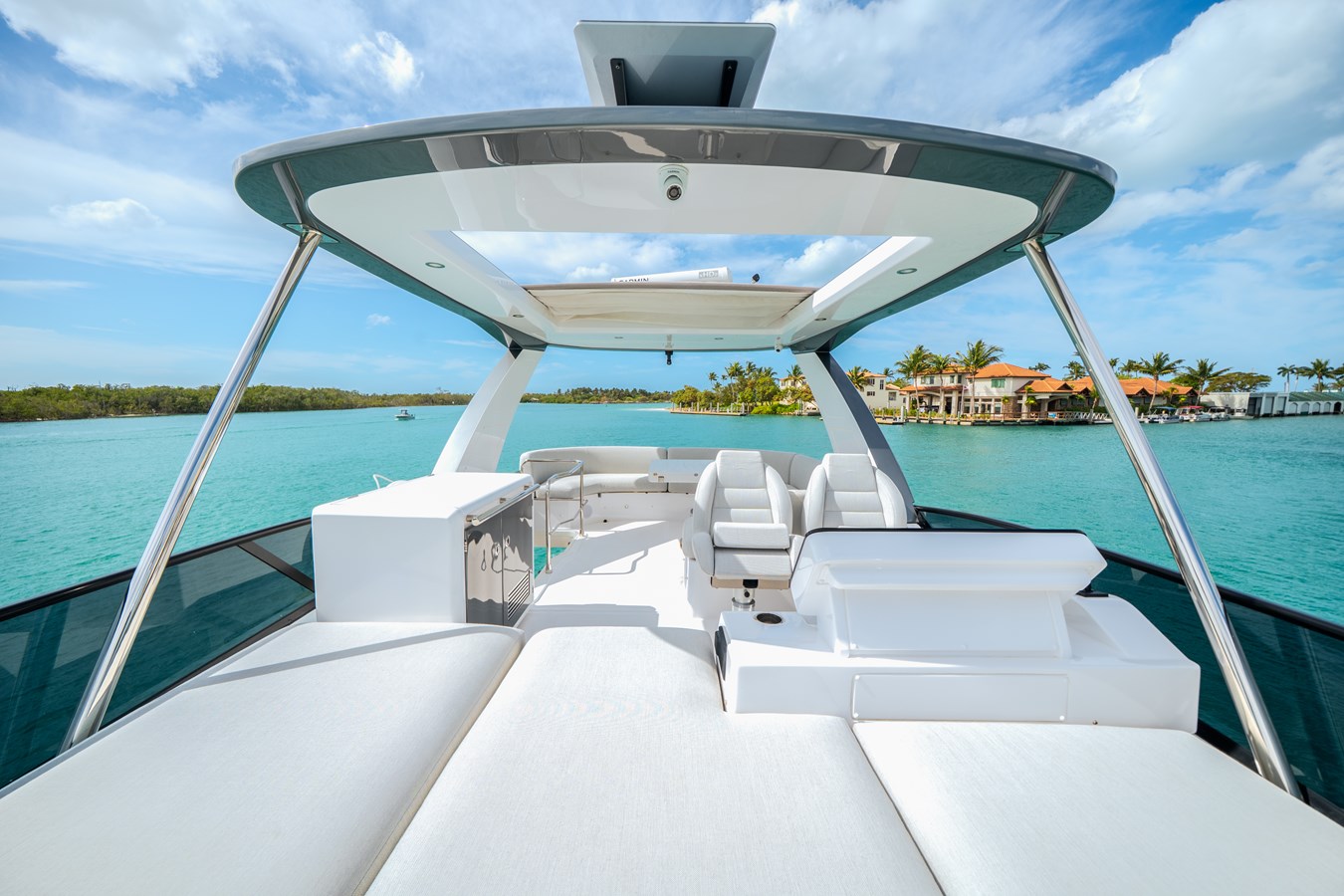

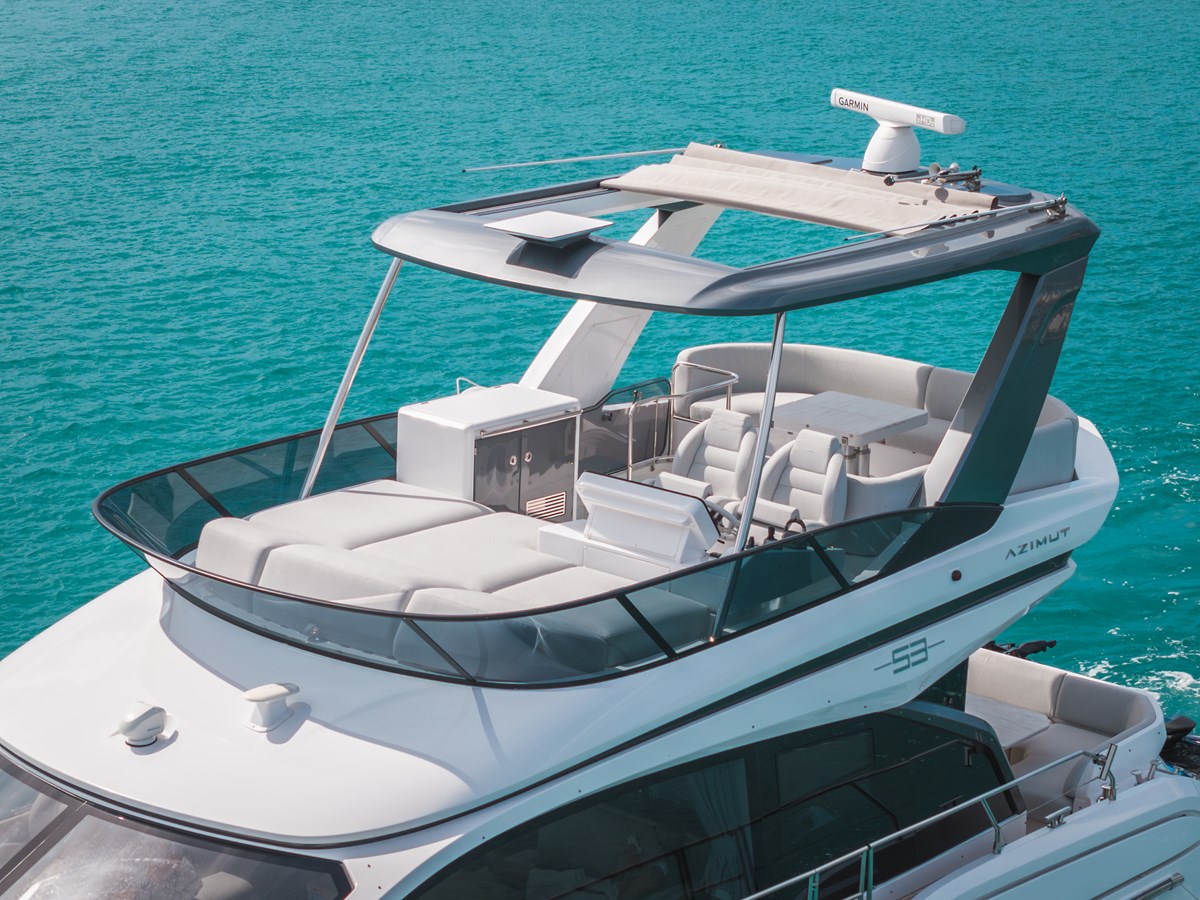

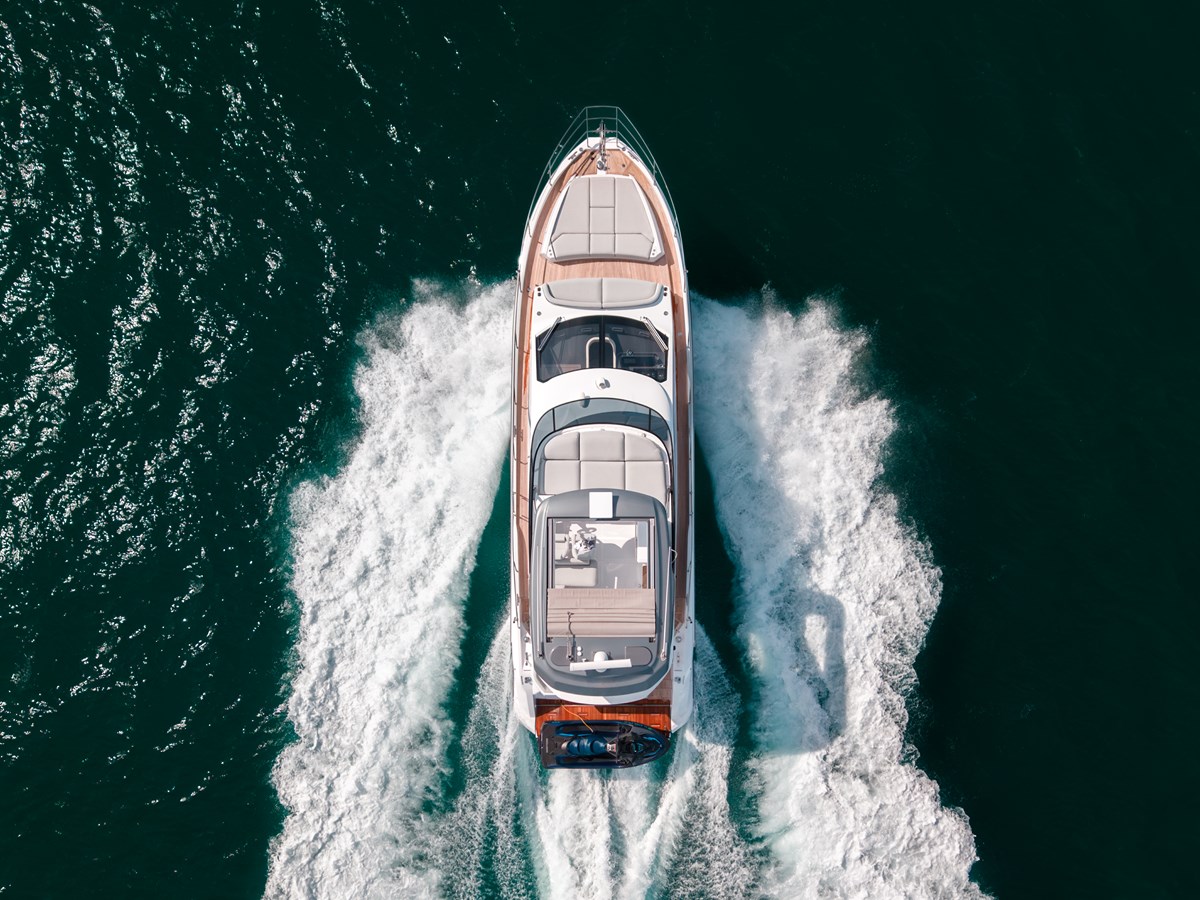

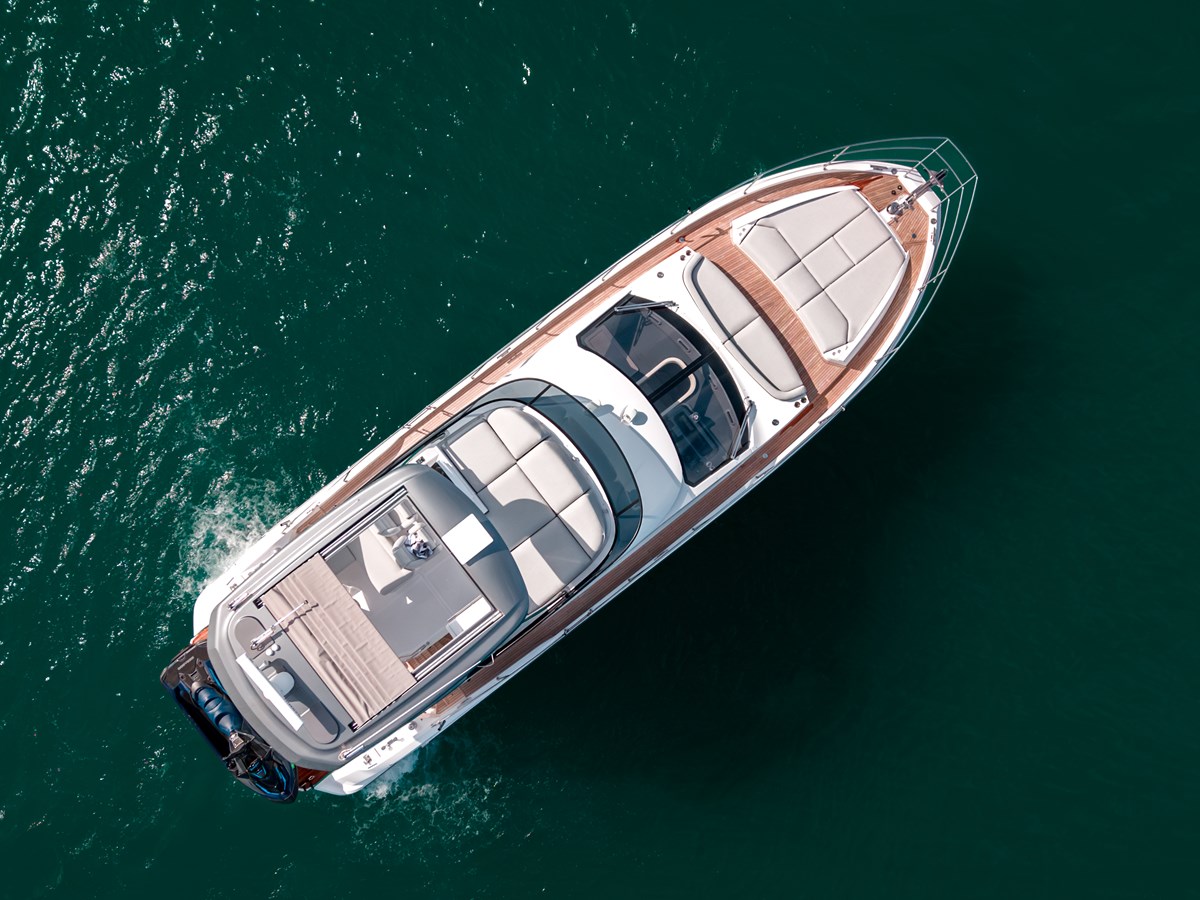

Flybridge
– Access to flybridge via stairway, located on starboard side

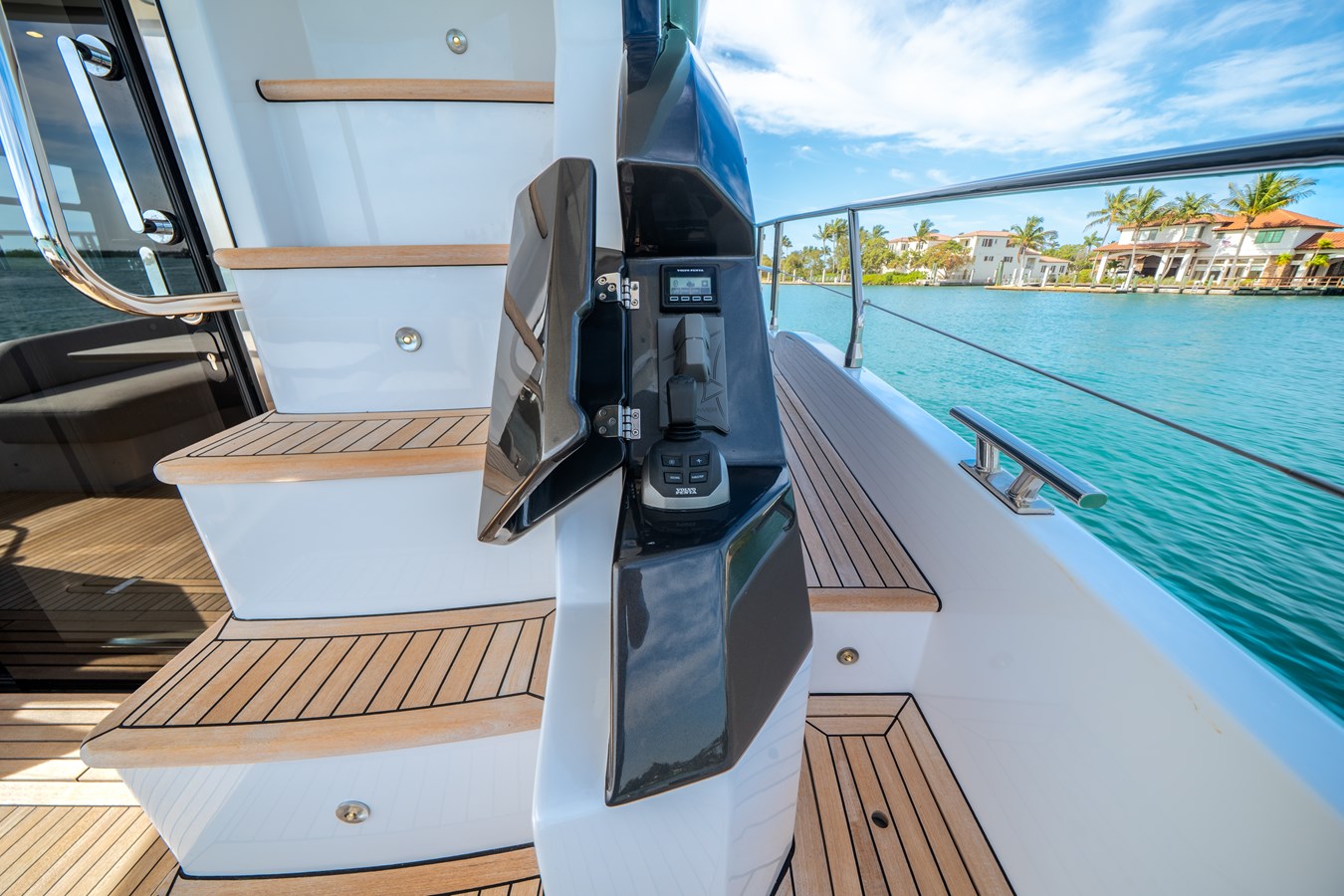

– GRP external stairway with teak steps
– Non-slip floor
– Access door
– Plexiglass and painted steel flybridge screen
– Boat logo on side GRP
– Stainless steel handrails

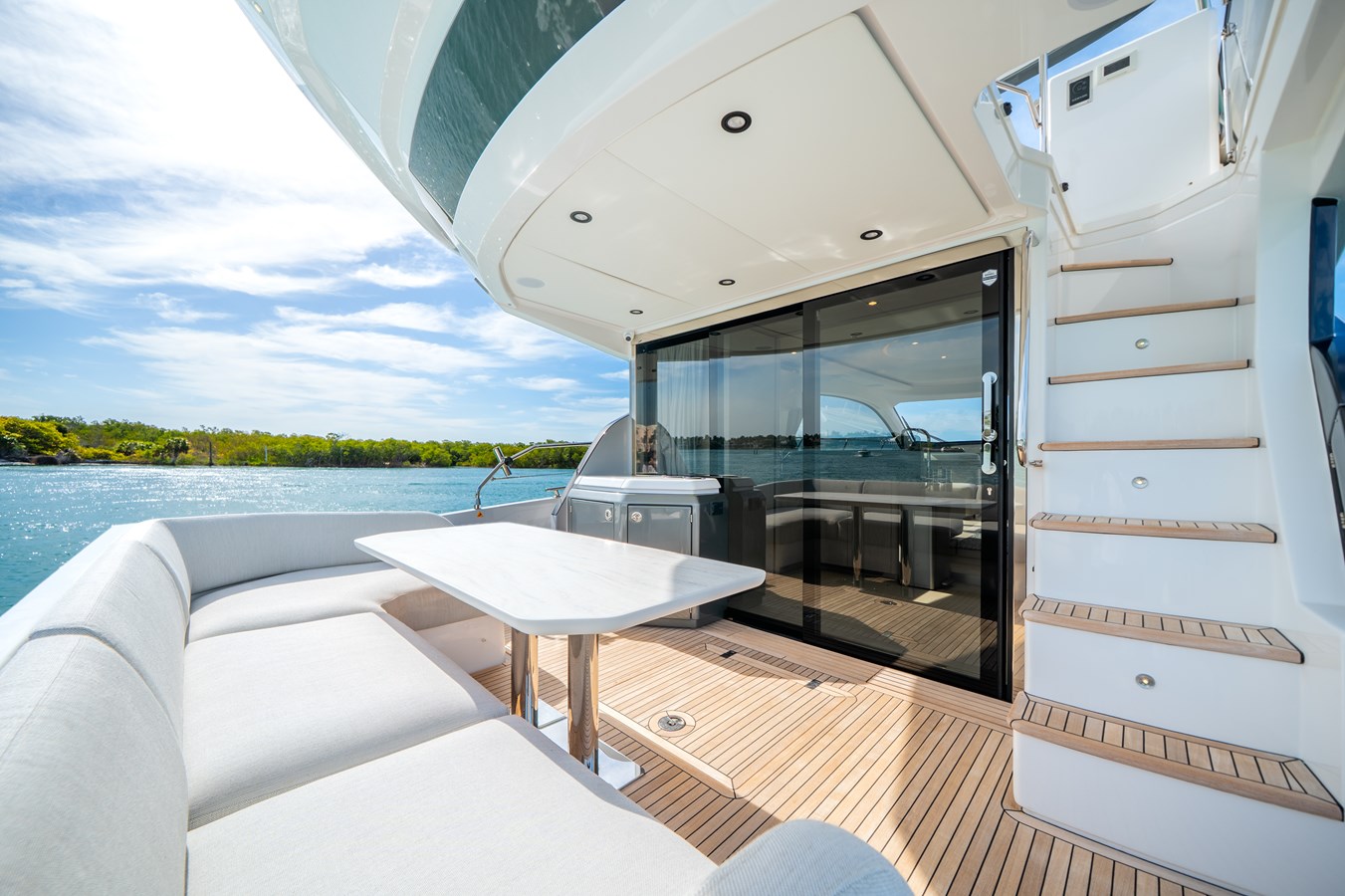

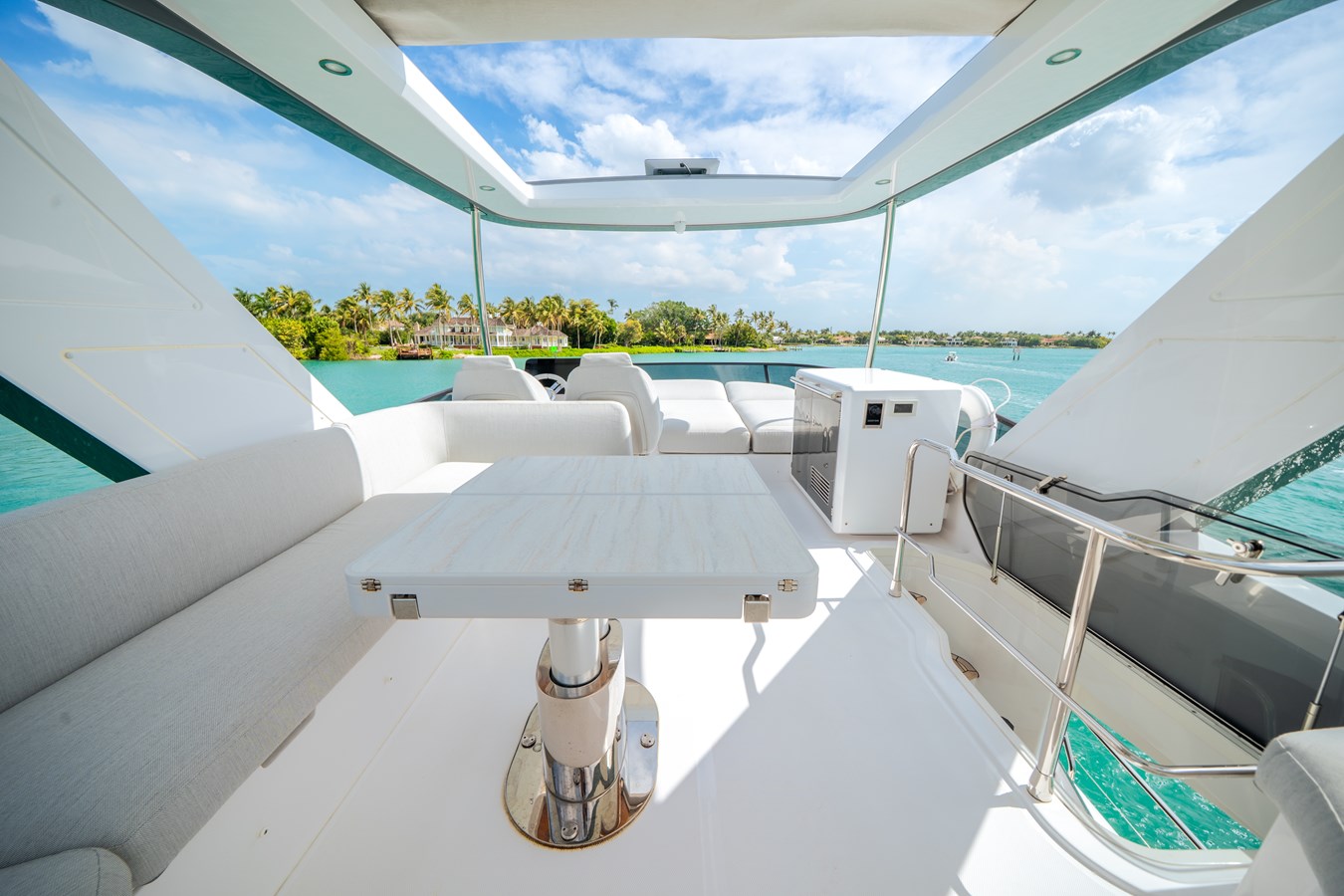

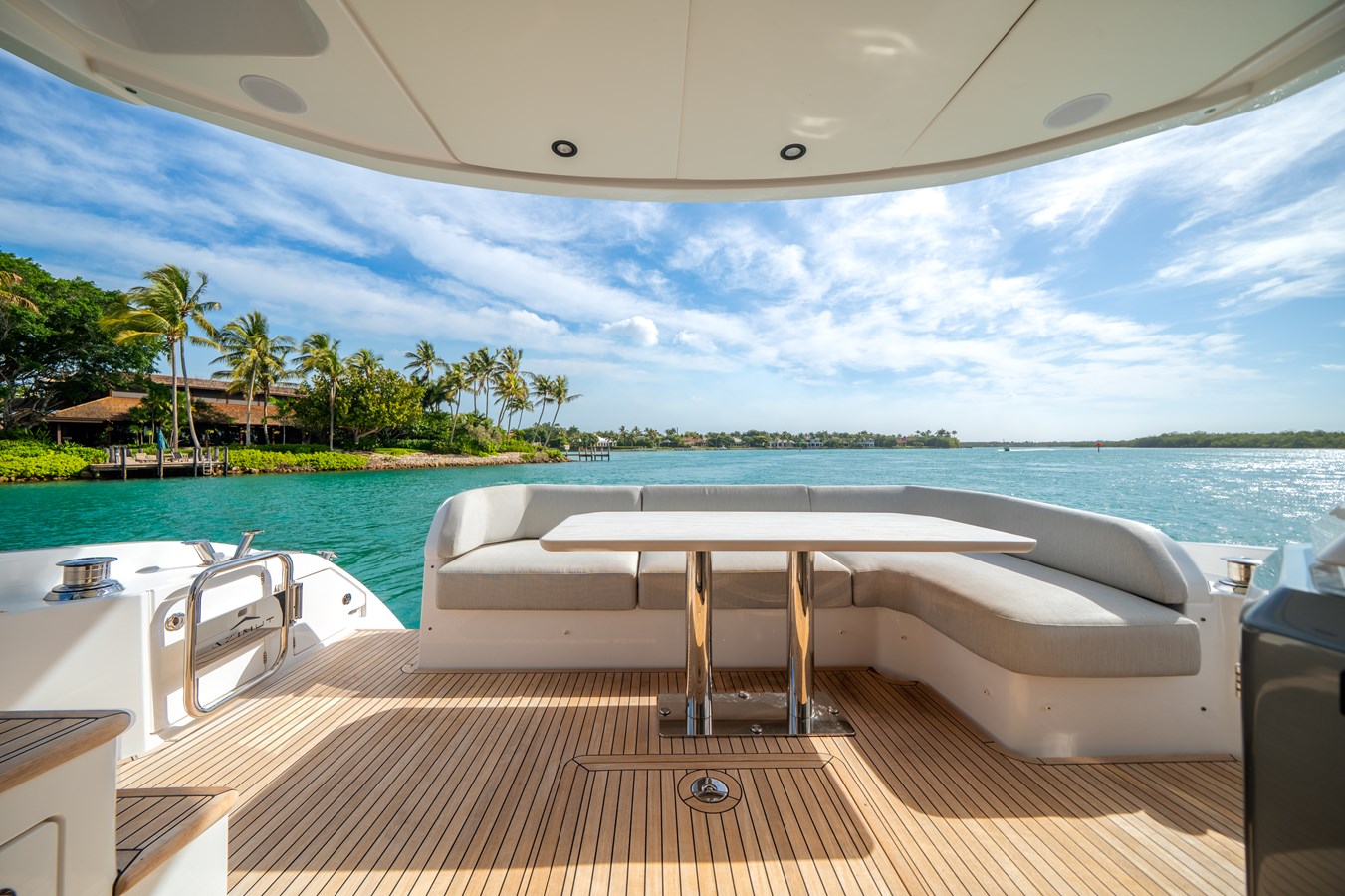

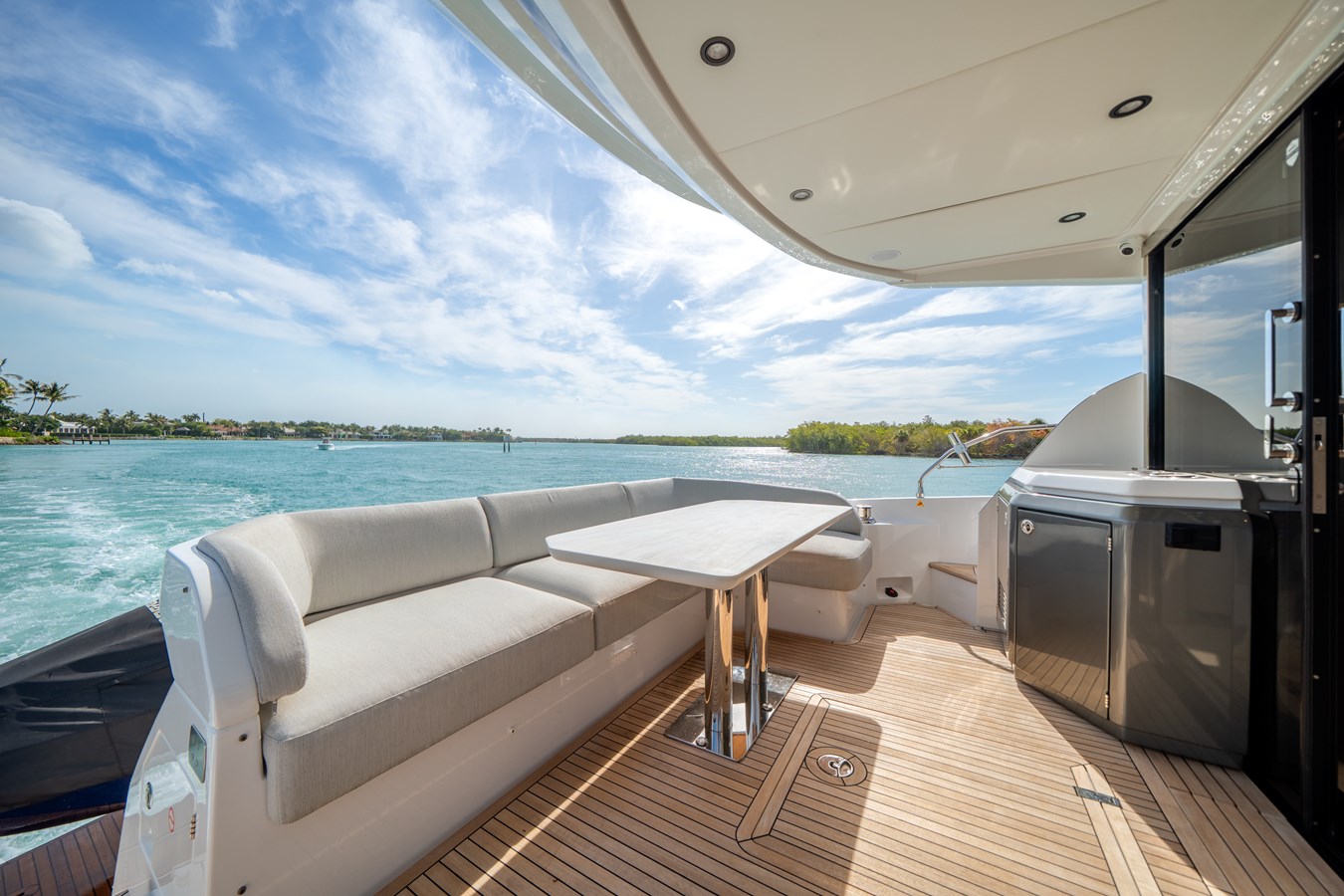

– Dining area with C-shaped sofa with backrest and removable cushions for outdoors
– Table with central stainless steel fixed leg

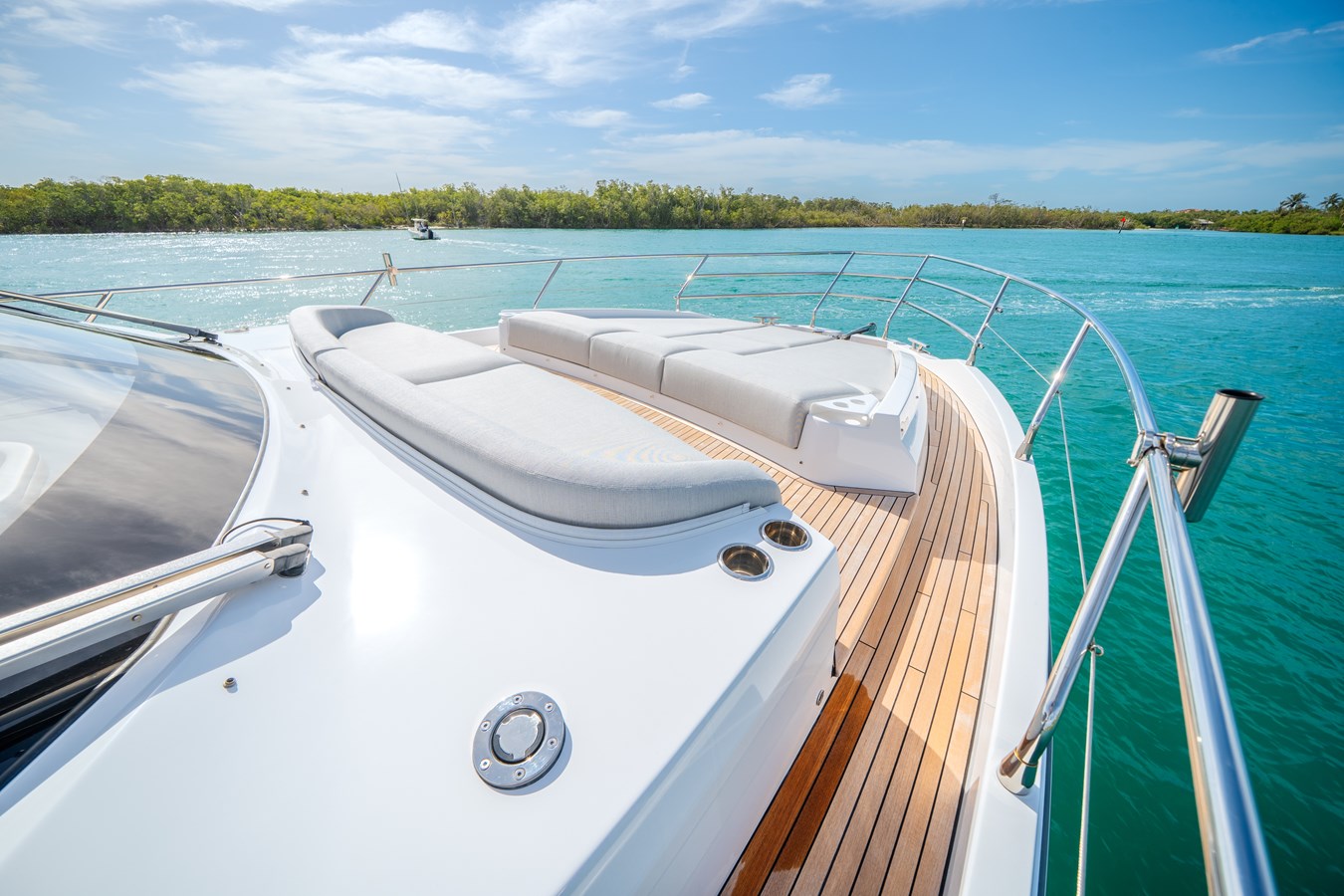

-Fore sunbed area

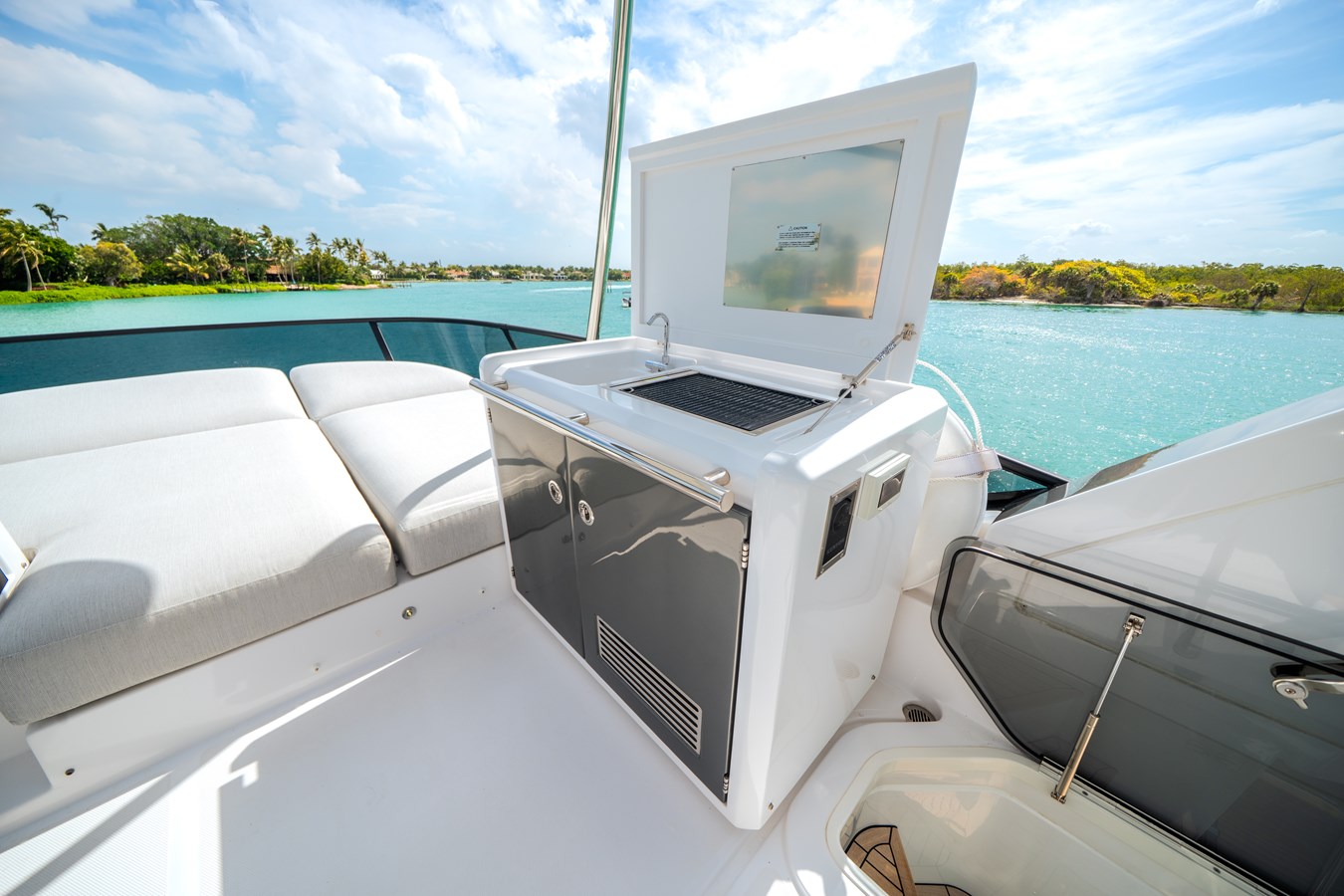

– Flybridge bar cabinet (optional), with:
– Sink built into cabinet with retractable water tap
– Fridge / icemaker

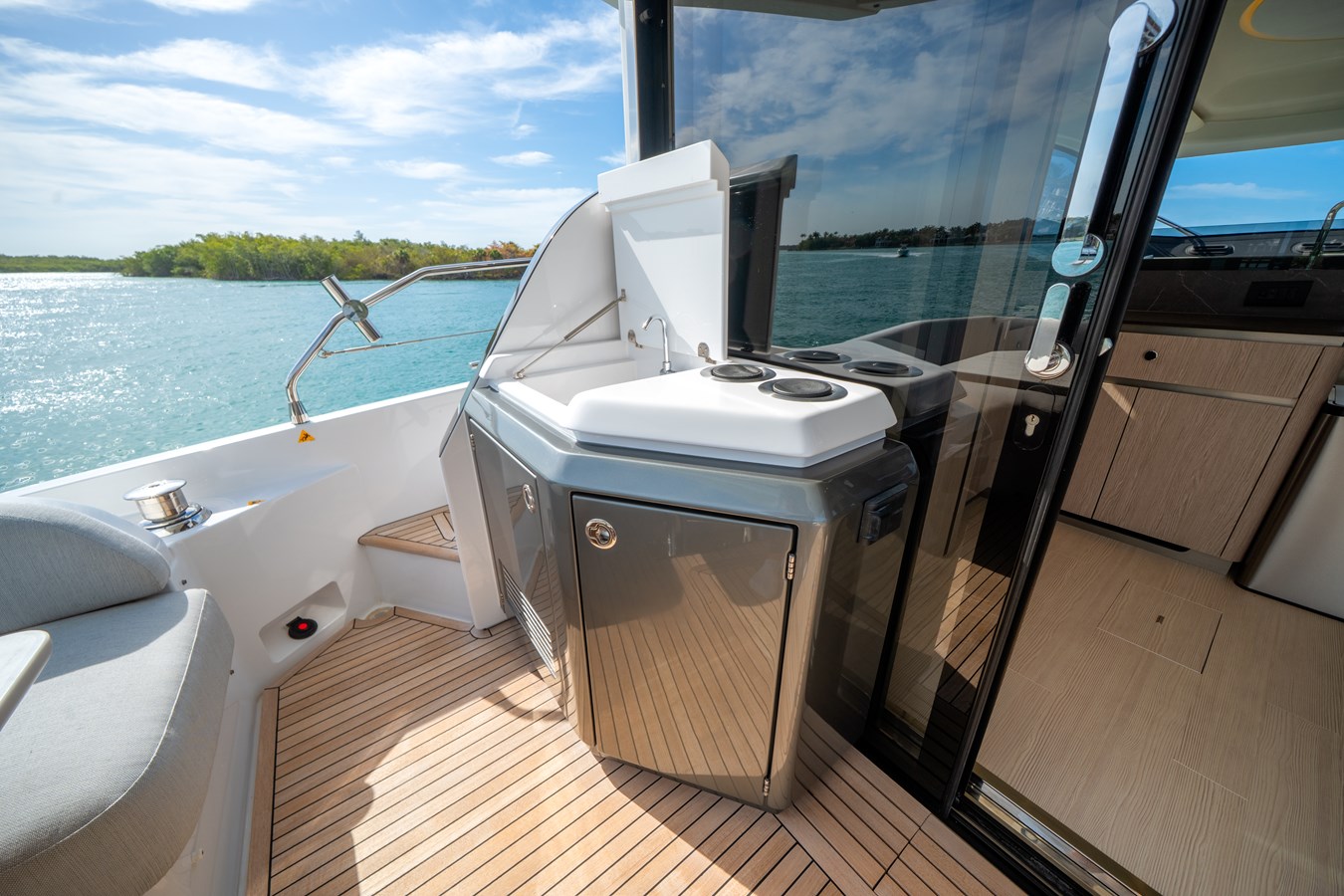

– Barbecue with stainless steel protective cover for cabinet door and safety off switch
– Waste bin
– Helm seat for one person
– Adjustable steering wheel

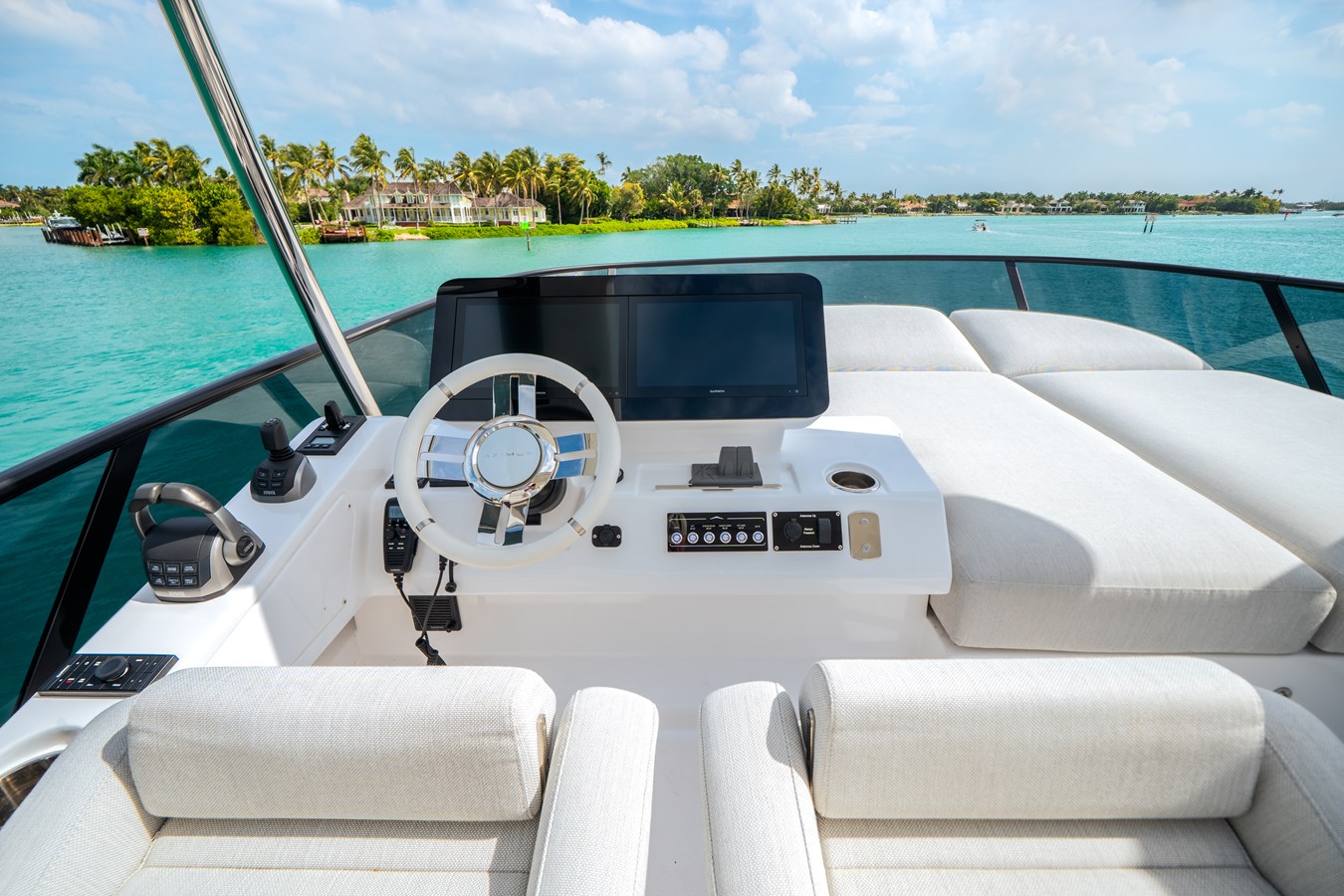

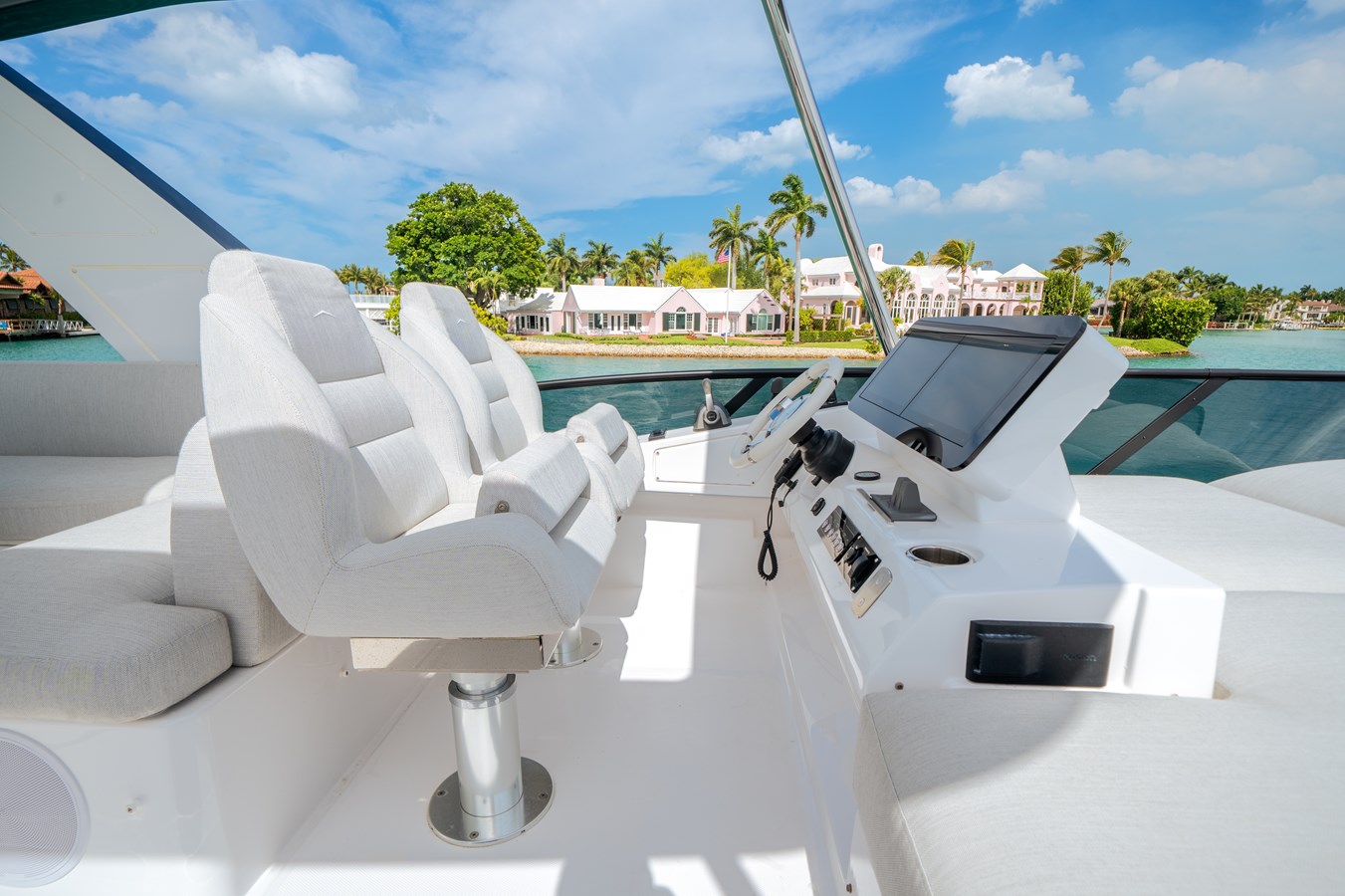

– Flybridge dashboard consisting of:
– Electronic navigation instruments, BRONZE version
– Engine throttles
– ANchor winch control and chain meter counter built in electronic instrumentation
– Audible alarm controls
– Communication systems (VHF)
– Horn, bilge and mute activation keys
– Scuppers
– Light mast
– Compliant navigtion lights
– Manual searchlight
Bow / Walk Arounds

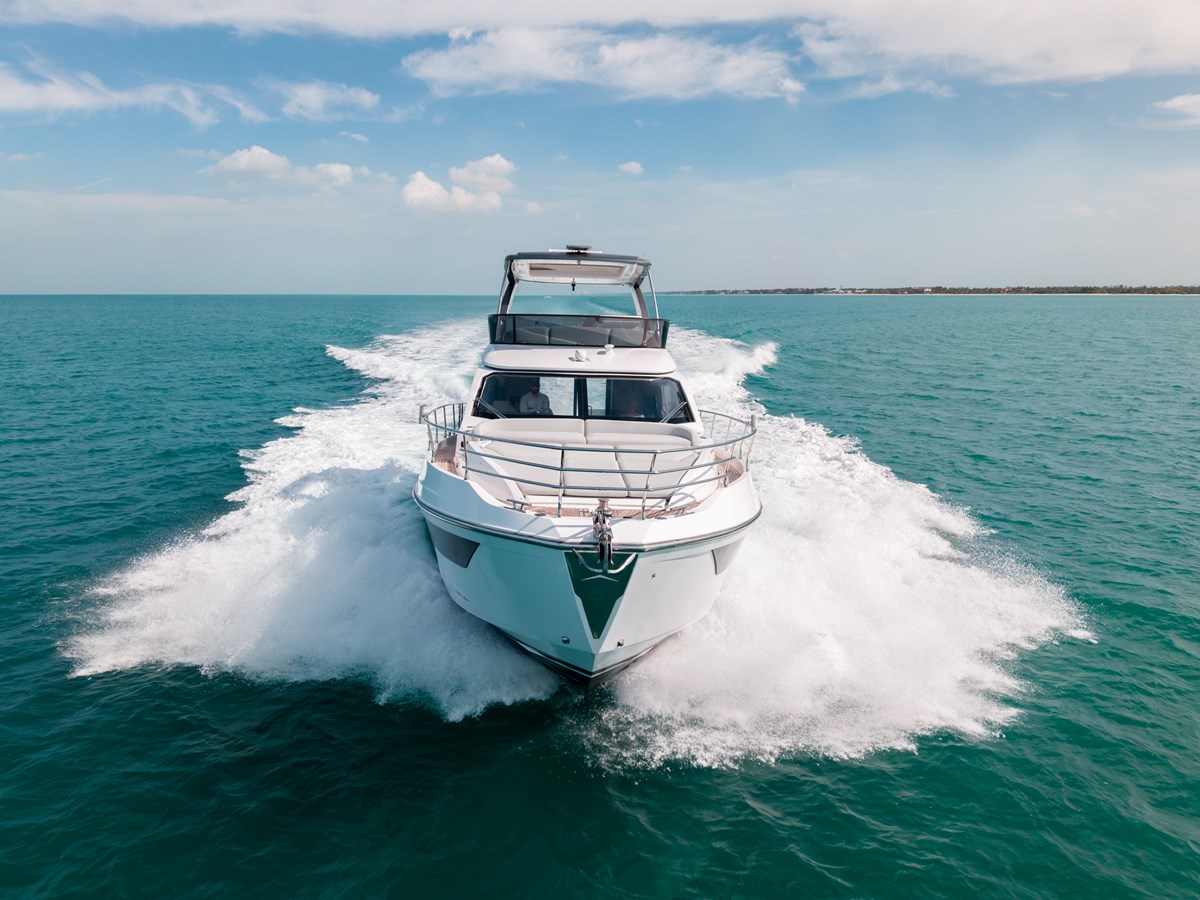

Bow
– Chain locker accessible through hatch provided with drainage
– Fenders storage in fore peak
– Stainless steel anchor line anti-rubbing protection
– Bow hatch (emergency exit from VIP cabin)
– Four-seater sofa, facing the bow, with removable cushions
– Non-slip floor
– Scuppers
Walk Arounds
– Refueling: two “diesel” refueling plugs with cover
– Fresh water filling: one “water” filling plug
– Black water outlet: one “waste” outler water plug
– Rub-rail in stainless steel and high resistance PVC
– Non-slip floor
– Pulpit with handrail
Cockpit / Platform

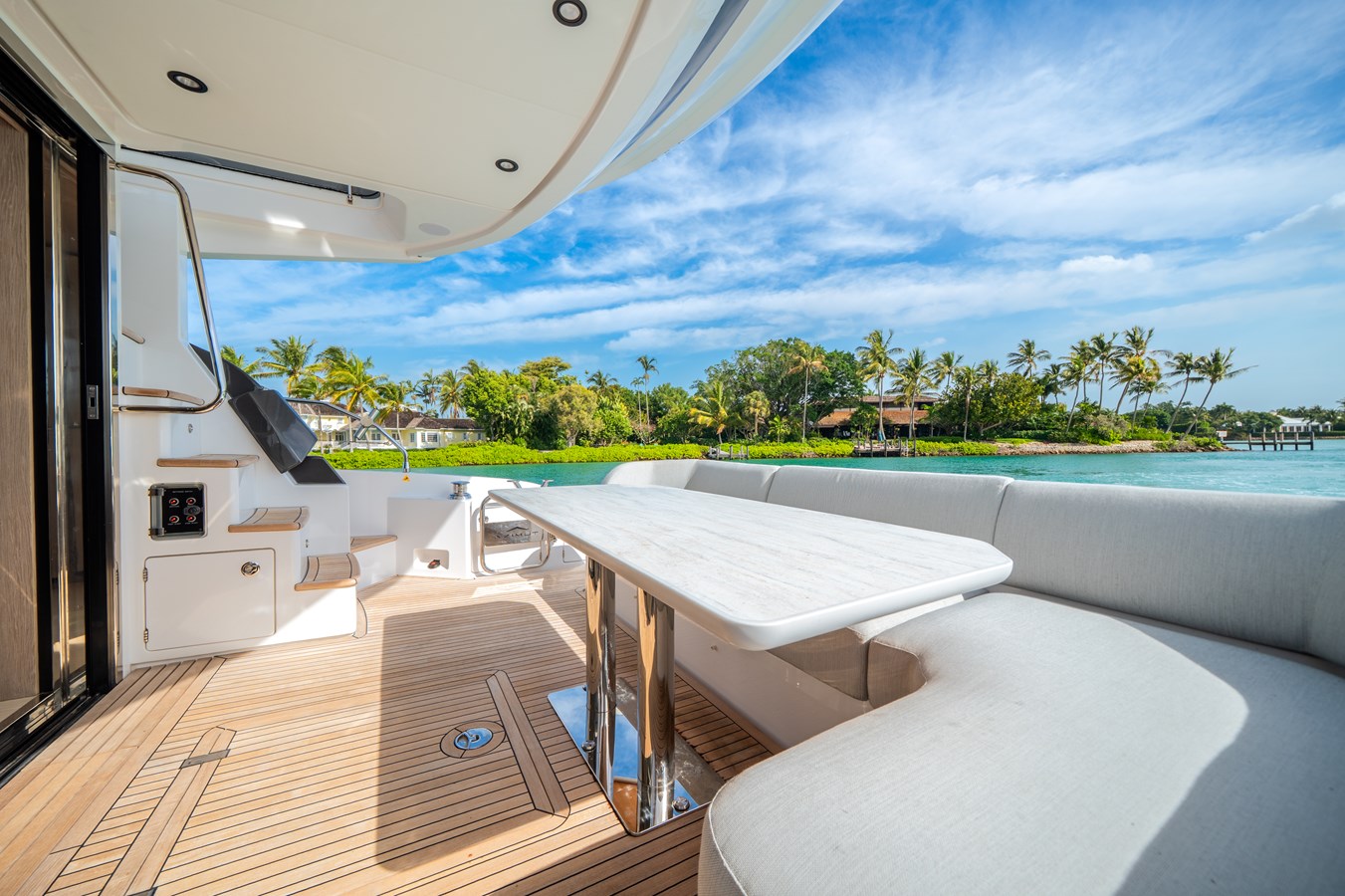

Cockpit
– Access to cockpit, starboard side
– Mooring station on both sides
– 6-seater L-shaped cockpit bench (in GRP integrated in the deck)
– Cockpit bench cushions
– Saloon access door made in aluminum with tempered glass: three flat panels opening towards the port side
– Engine room access via door in cockpit floor
– Non-slip floor
– Flybridge access stairs handrail
– Lighting: spotlights in cockpit ceiling panel
Platform
– Hydraulic platform
– Swimming ladder
– Hot and cold water shower head
– Non-slip floor
– Crew cabin access through door on deck, aft
– Installable tender (opt):
– Lift payload excluding GRP, teak and ladder: 380 kg (837.7 lb)
– Recommended tender – platform: Pirelli J33
Wheelhouse
– Single helm seat
– Leather adjustable steering wheel with stainless steel spokes

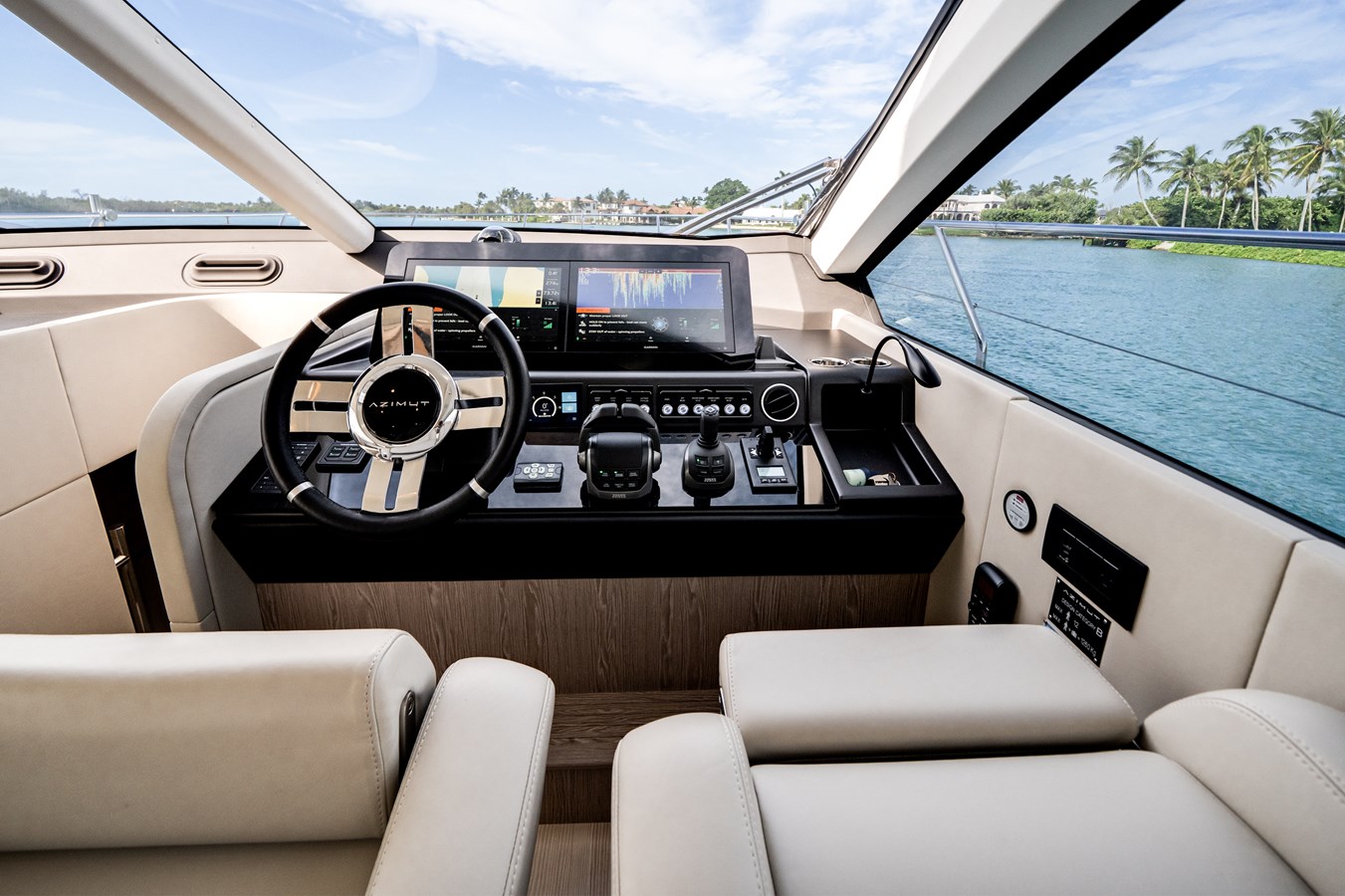

– The dashboard consists of:
– Electronic navigation instruments, BRONZE version
– Anchor winch control and chain meter counter built in the electronic instrumentation
– Engine throttles
– Communication systems (VHF)
– Magnetic compass
– USB socket
– Adjustable air conditioning outlets
– Horn, windscreen wipers, windshield washers, engine battery parallel, bilge and mute activation keys

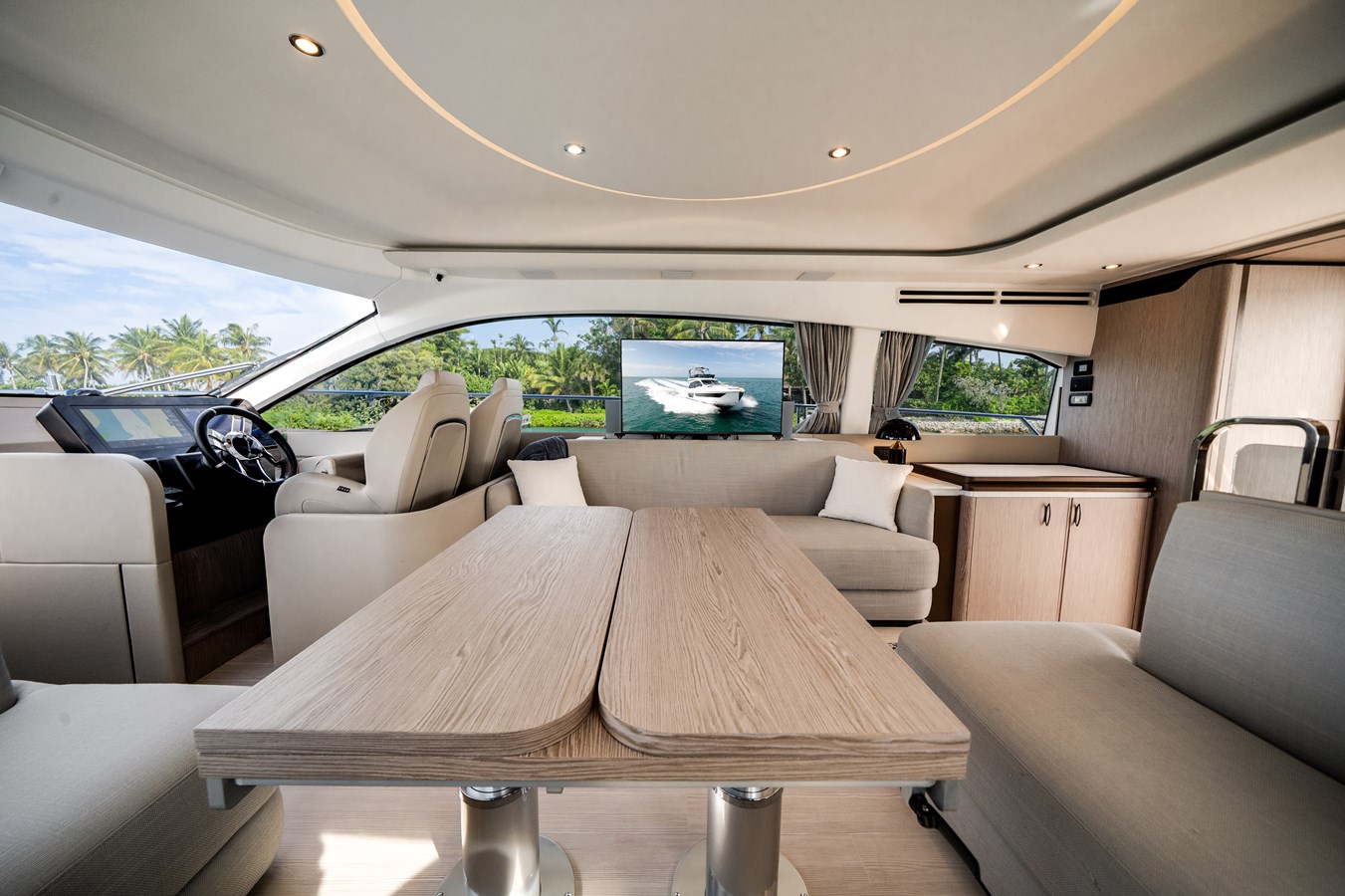

Saloon and Dinette / Galley

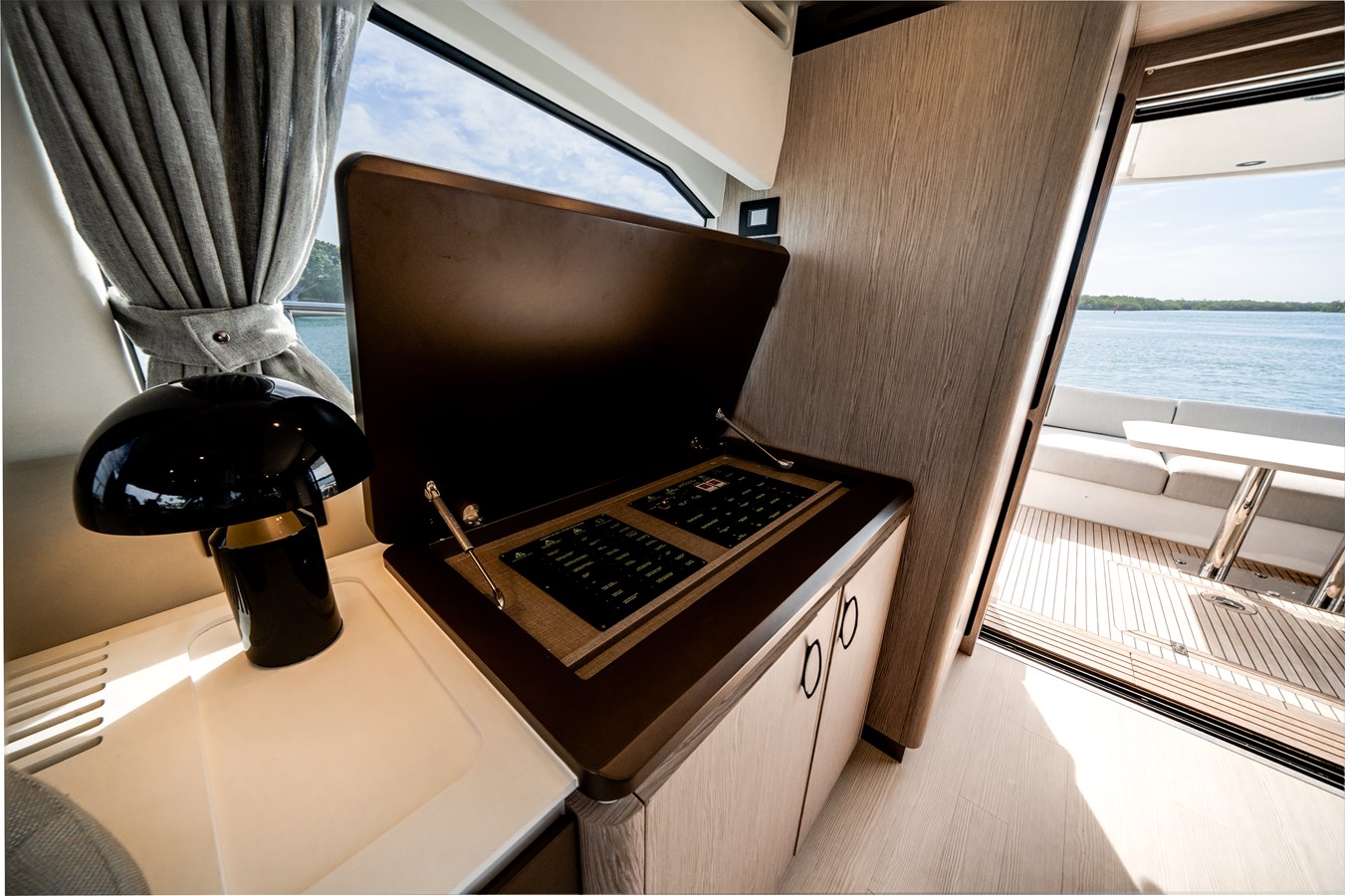

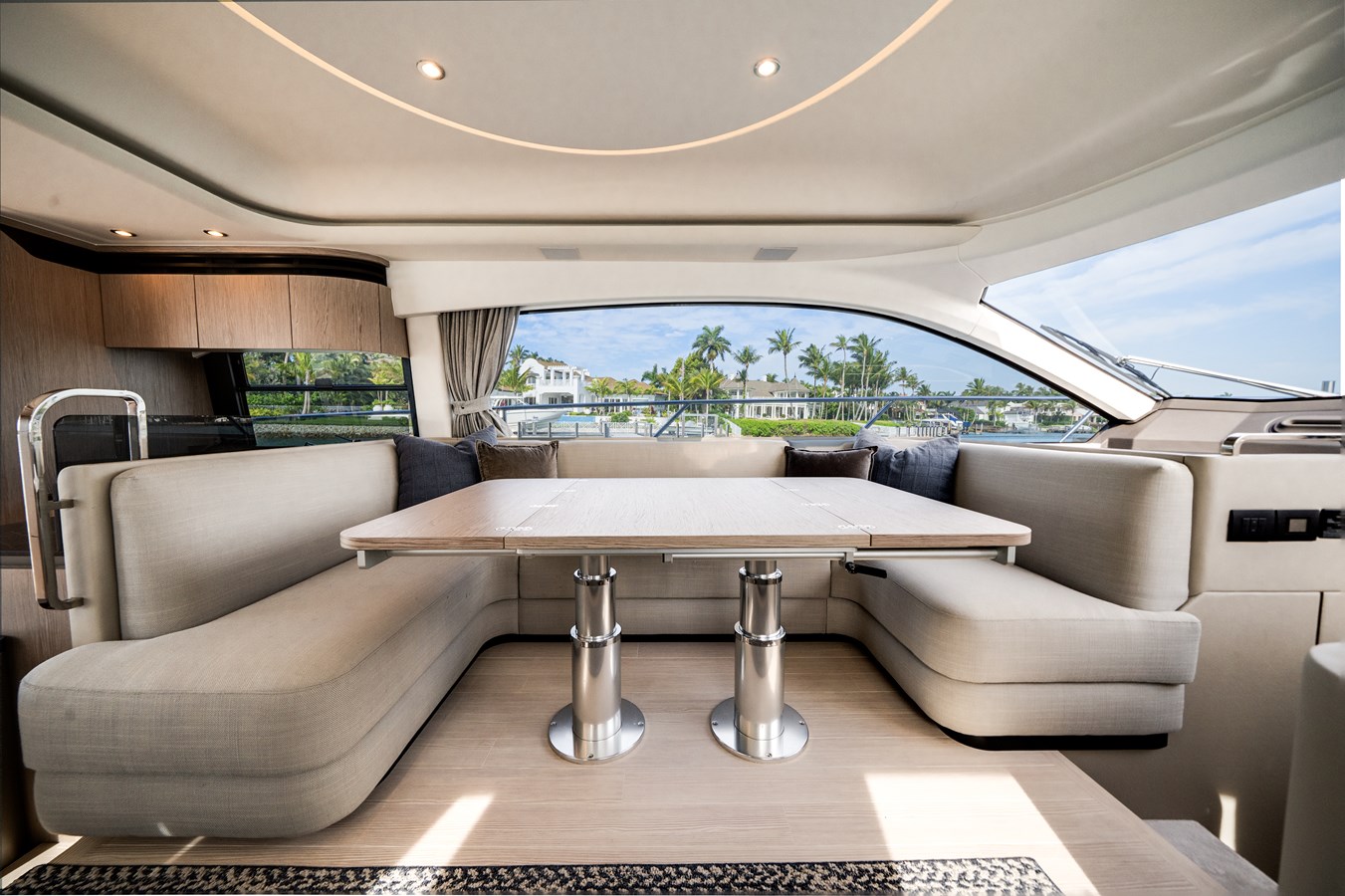

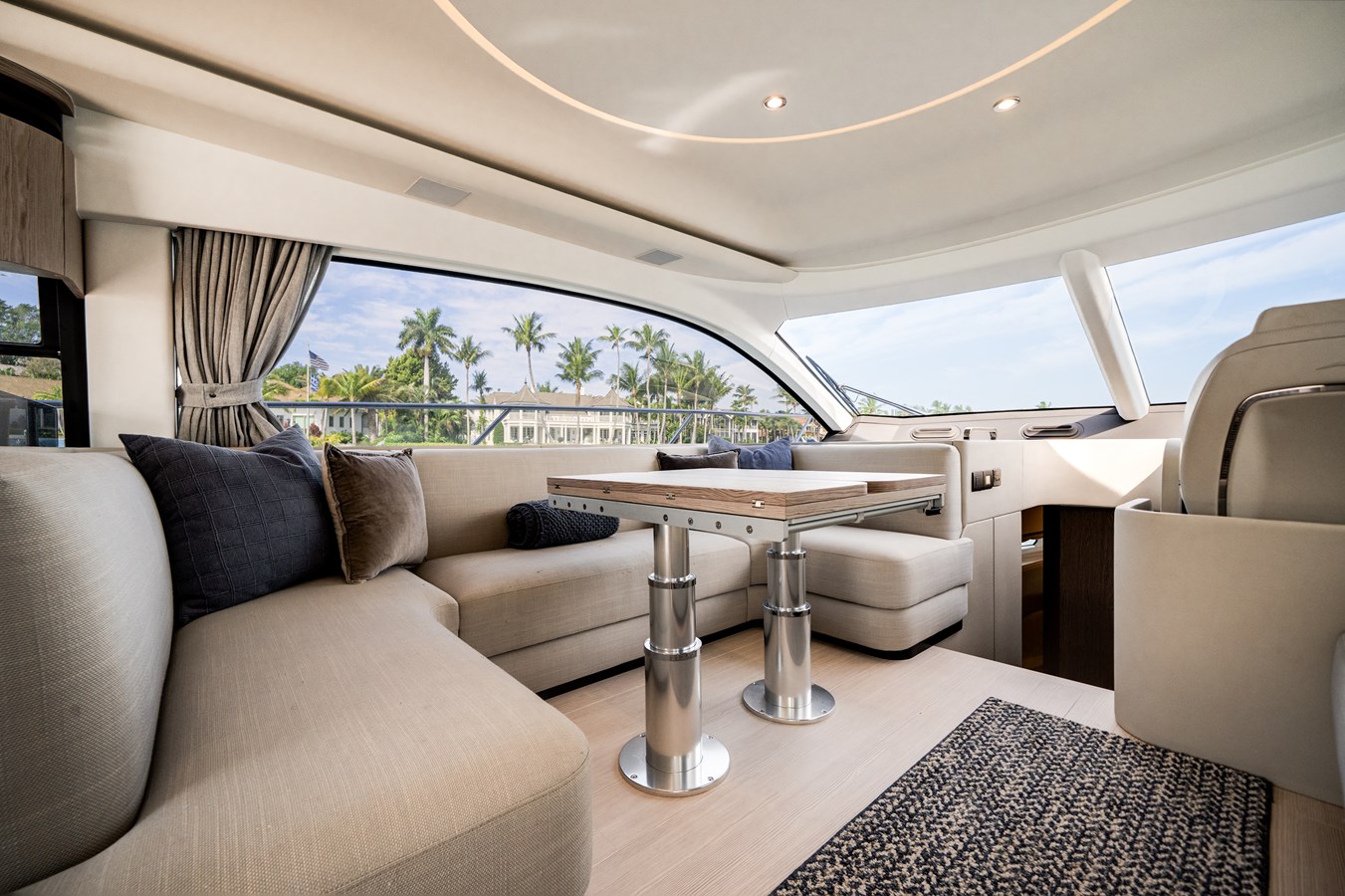

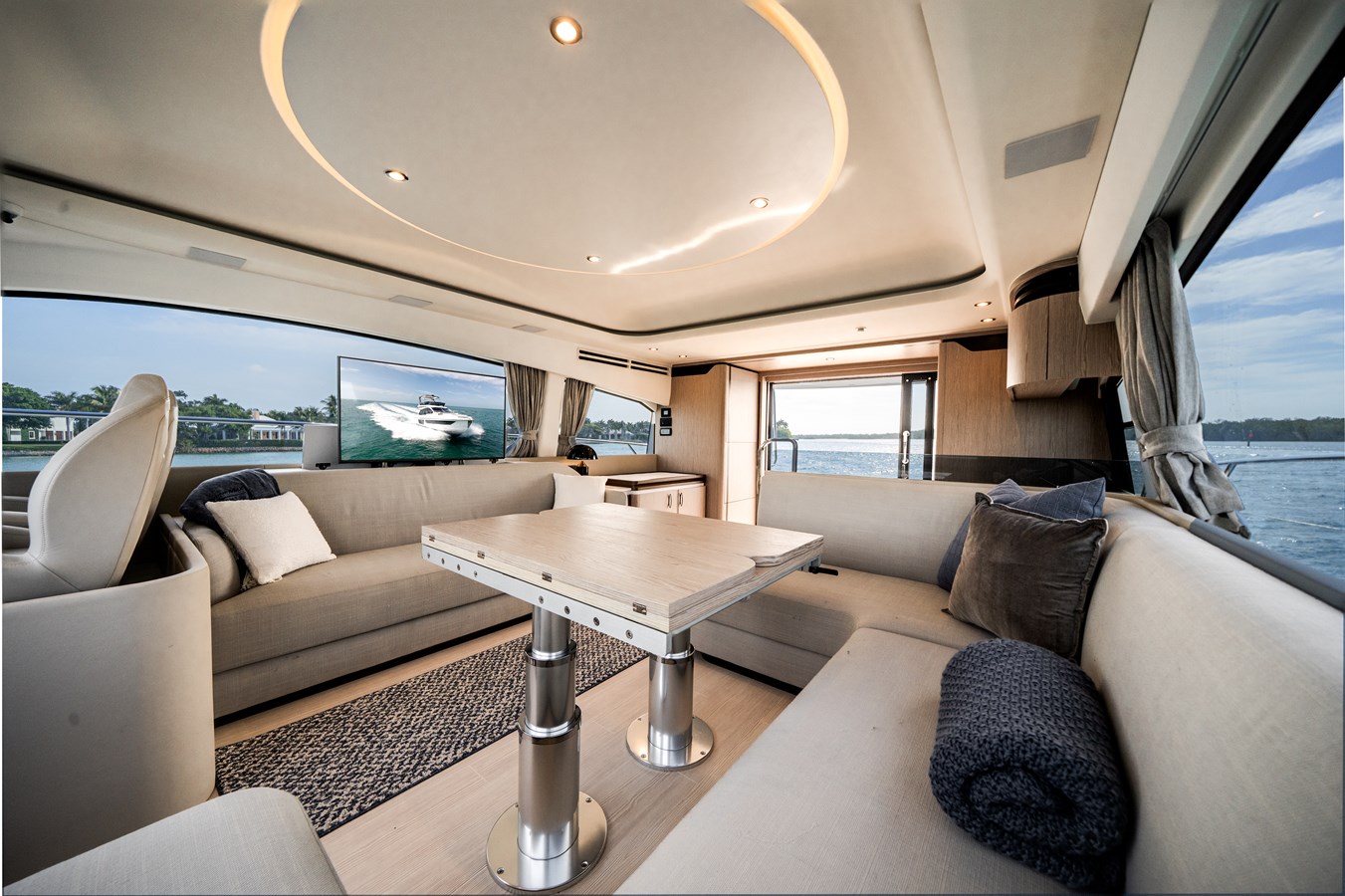

Saloon and Dinette
– Cupboards in oak
– Carpeted floor
– One sofa on starboard side, two seats
– One “C”-shaped sofa on port side, four seats
– Cabinet for crockery
– Provision for TV system with aerial
– GRP and laxquered wood ceiling
– Roman blinds foe fore windows and sliding blind for saloon door
– Two loudspeakers
– Saloon table with stainless steel leg

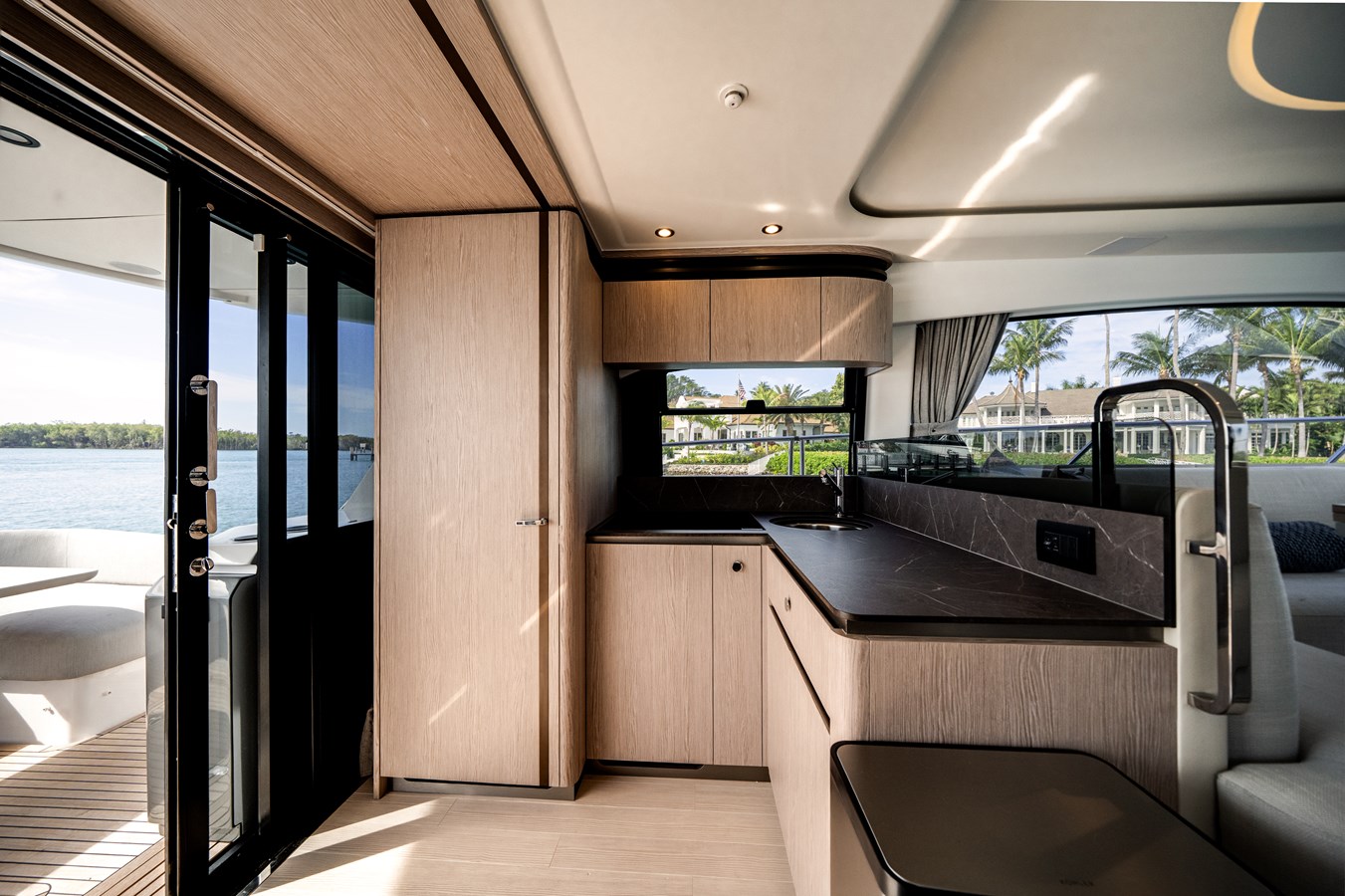

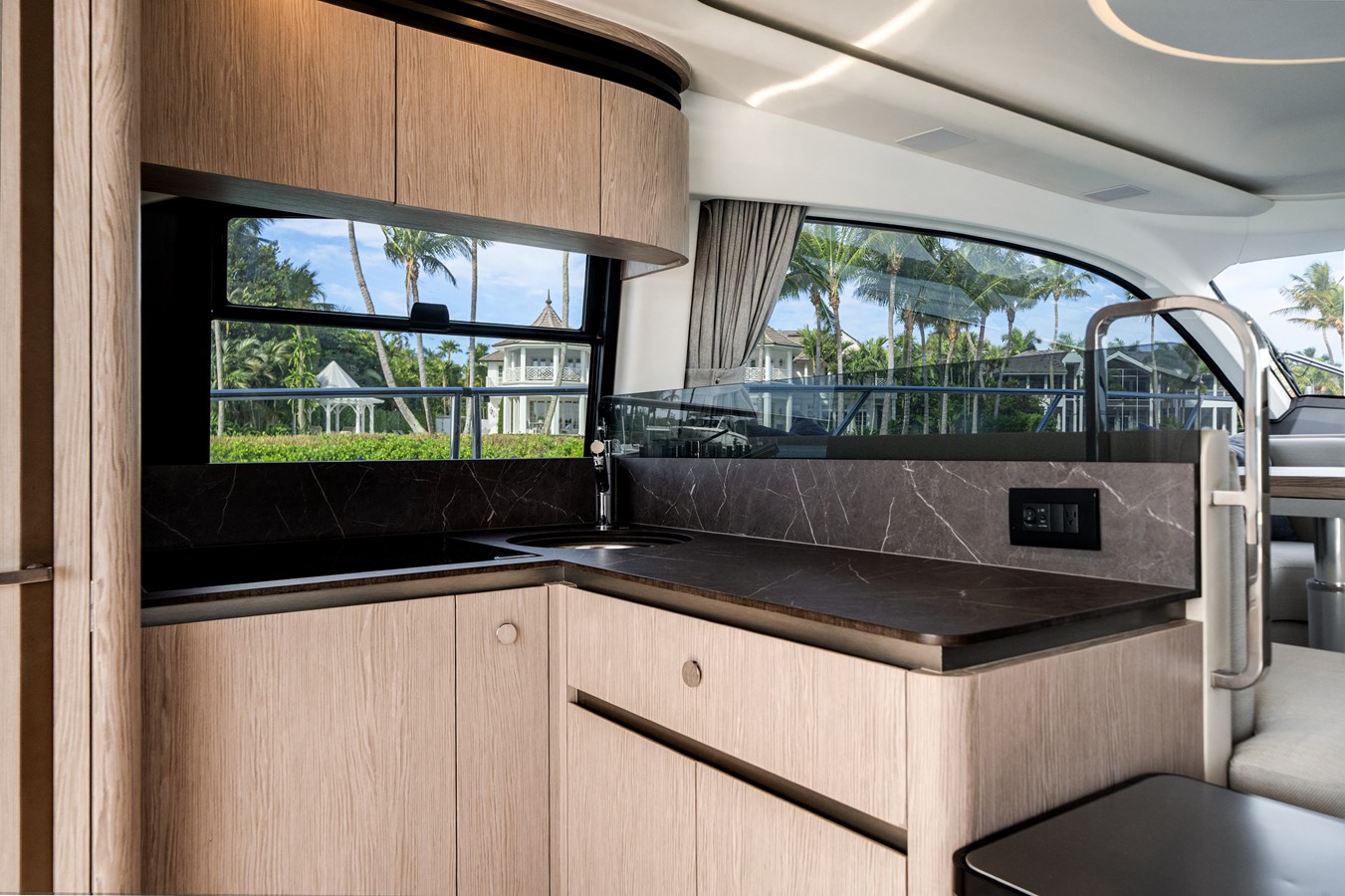

Galley
– Located aft on the main deck on port side
– Laminated floor
– Ceramic glass range with two hobs
– Extractor hood
– Stainless steel sink
– Fridge / freezer (220 l-7.76 cu.ft)
– Microwave oven and grill
– Waste bin

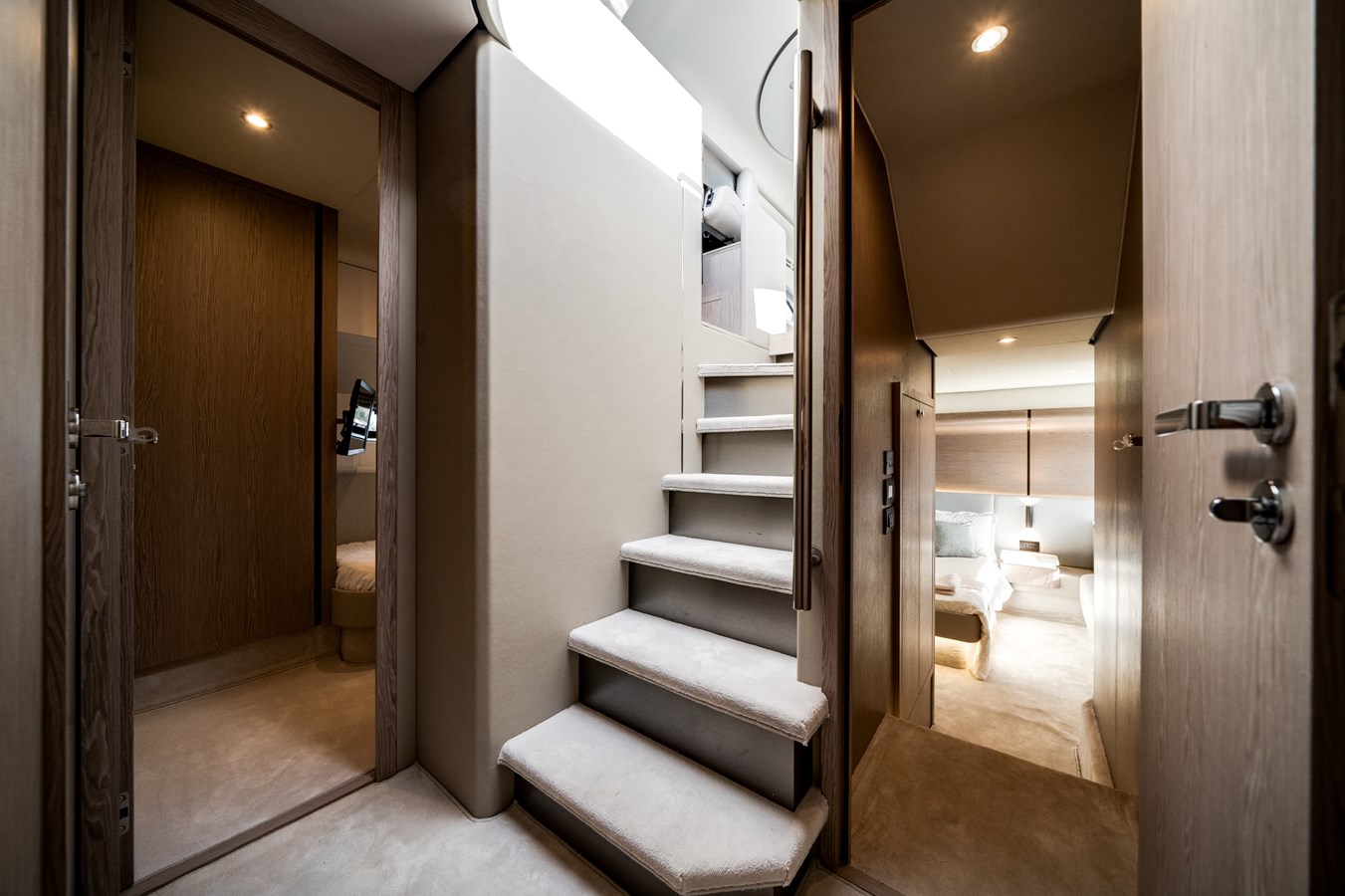

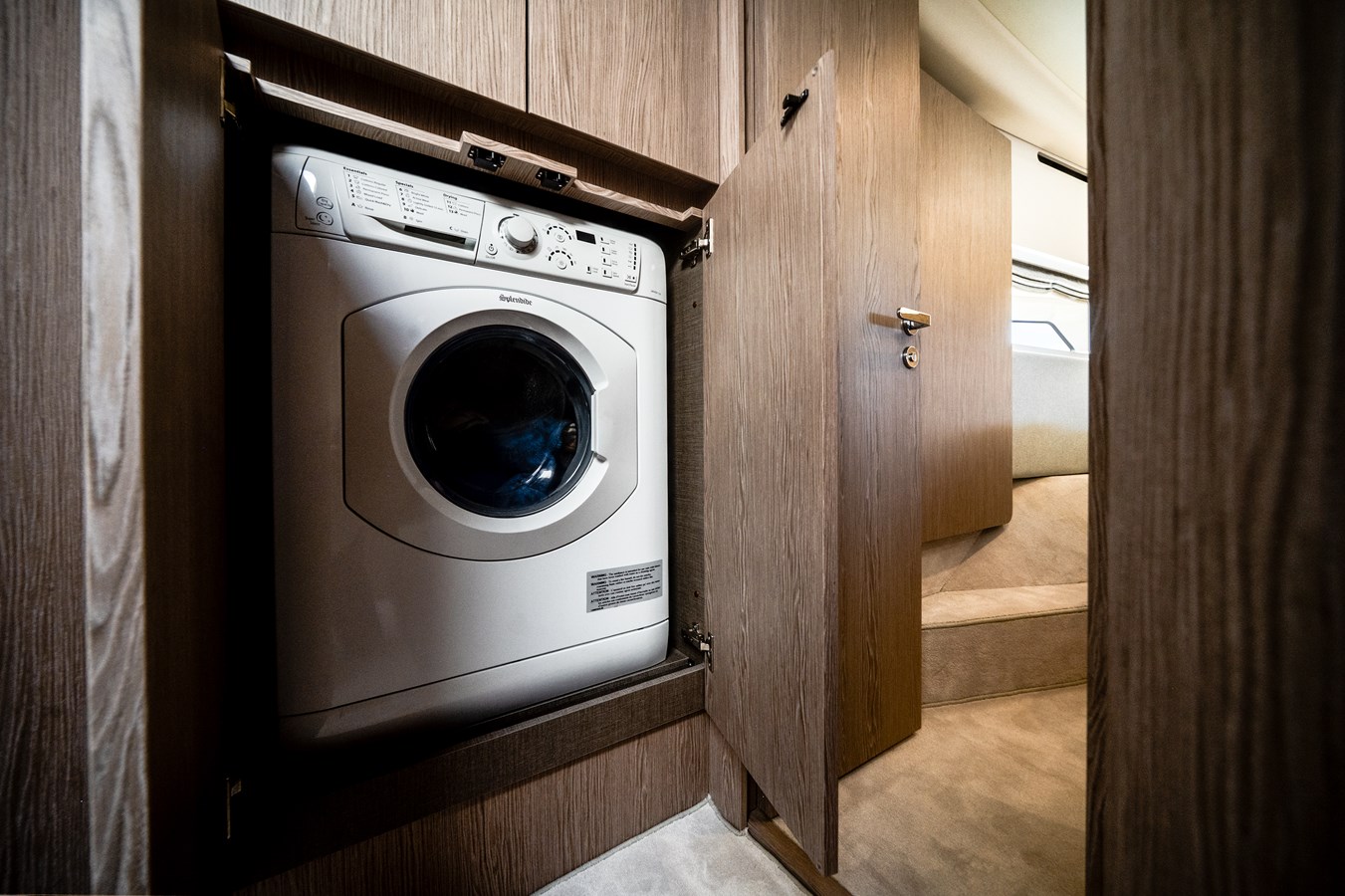

Corridor
– Below deck access corridor with carpeted floor
– Spotlights
– Bulwark coating in wood and leatherette
– Corridor grabrails

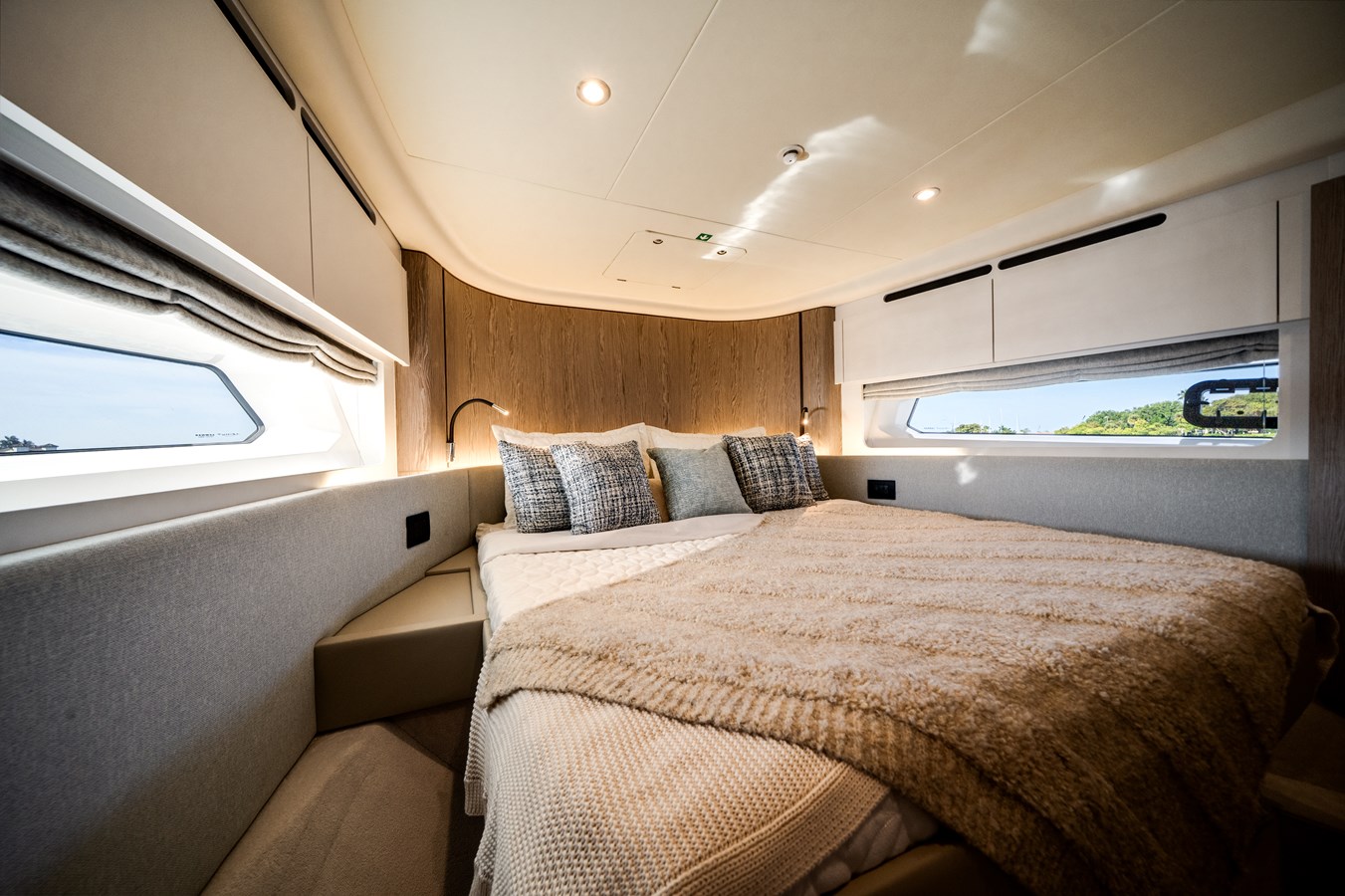

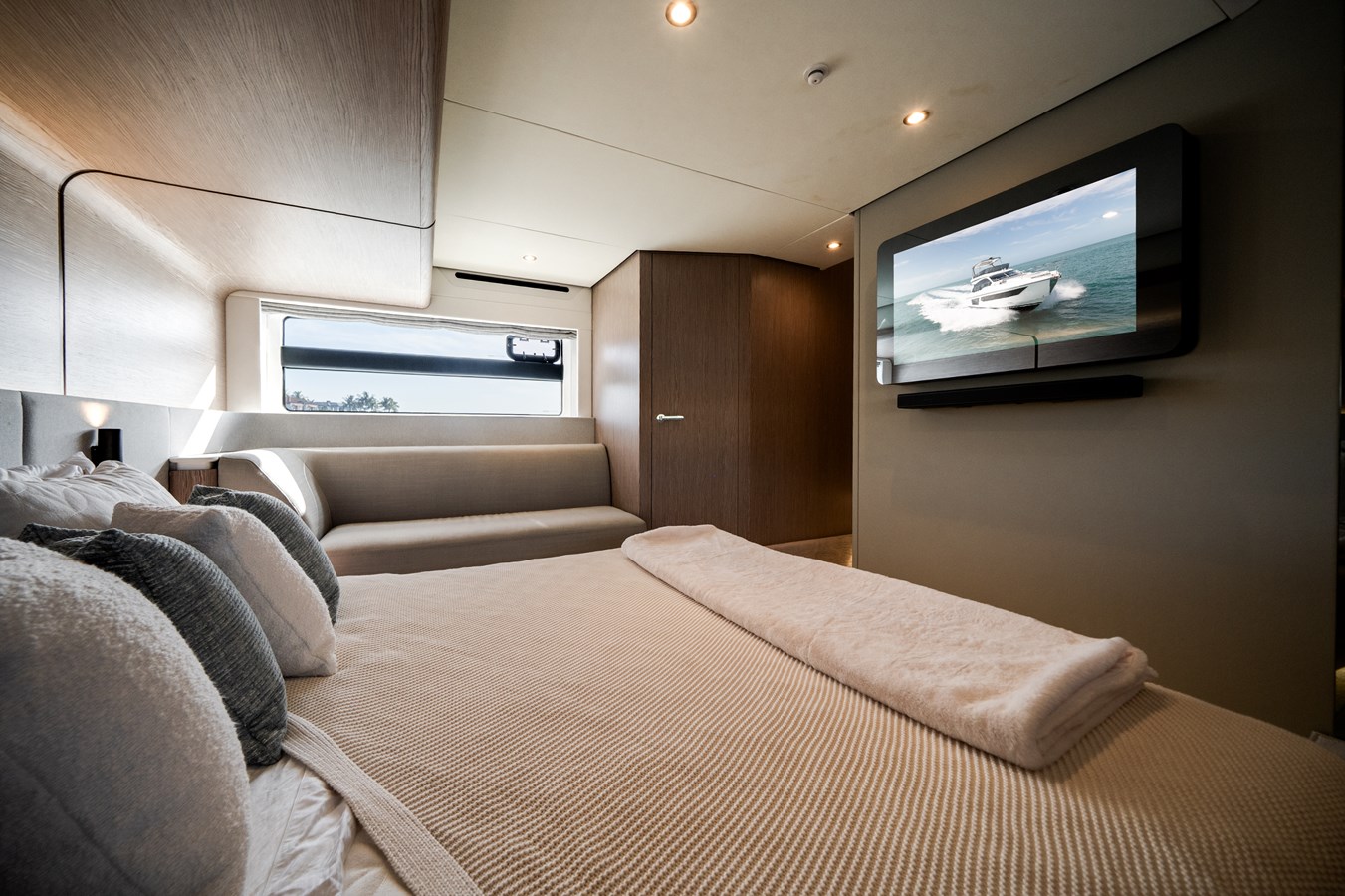

Owner’s Cabin

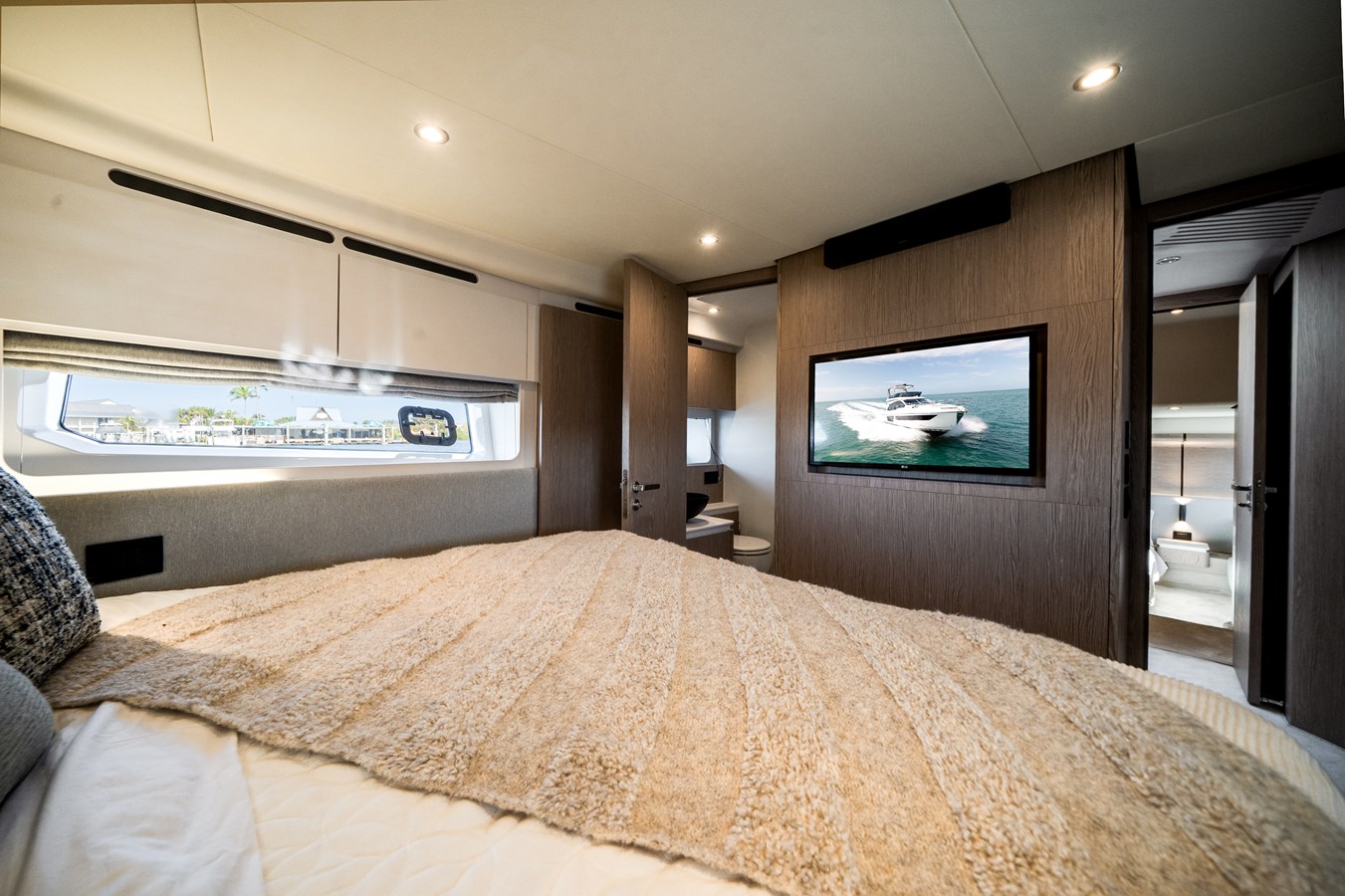

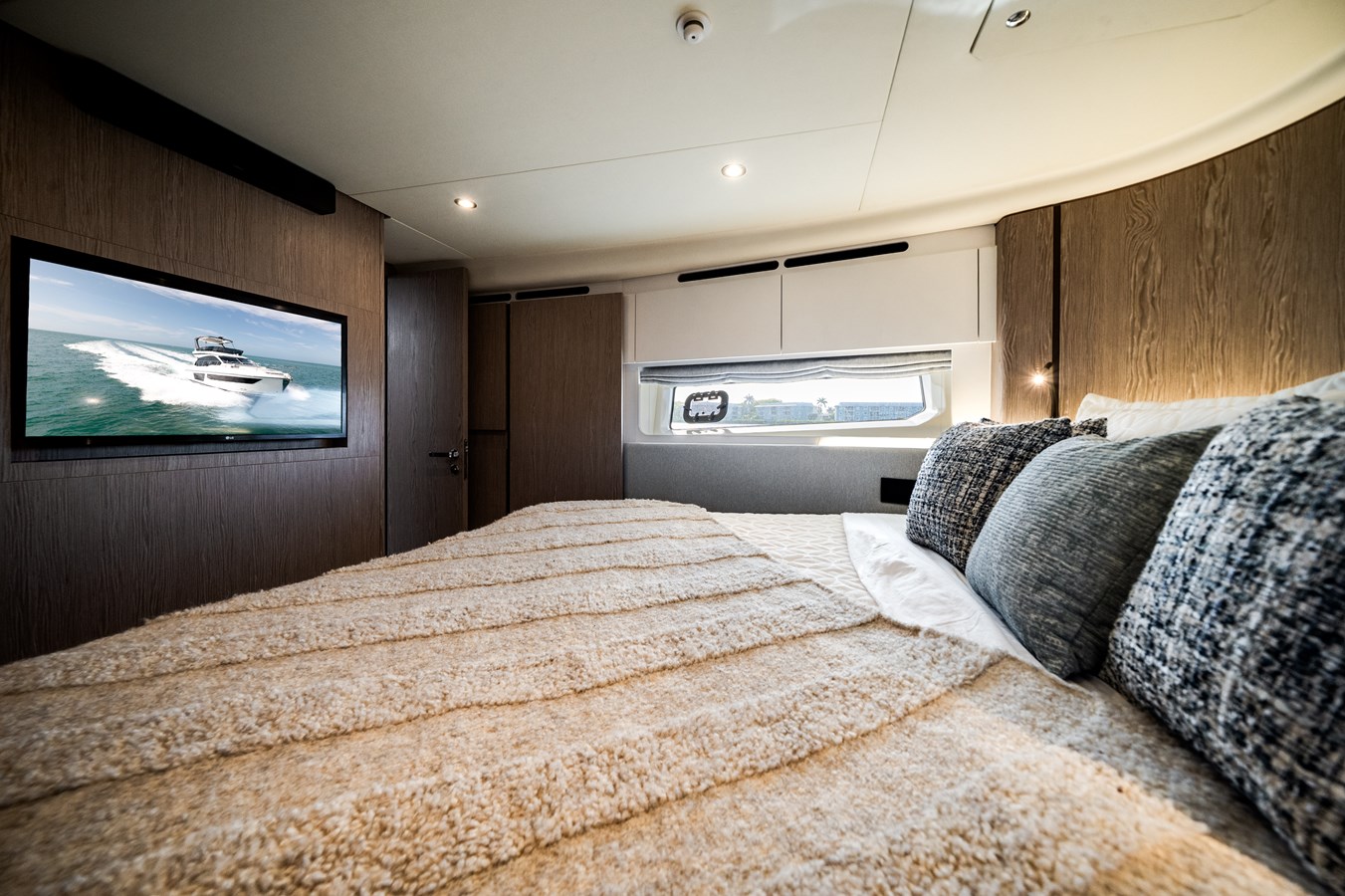

* The full-beam owner’s cabin is composed of:

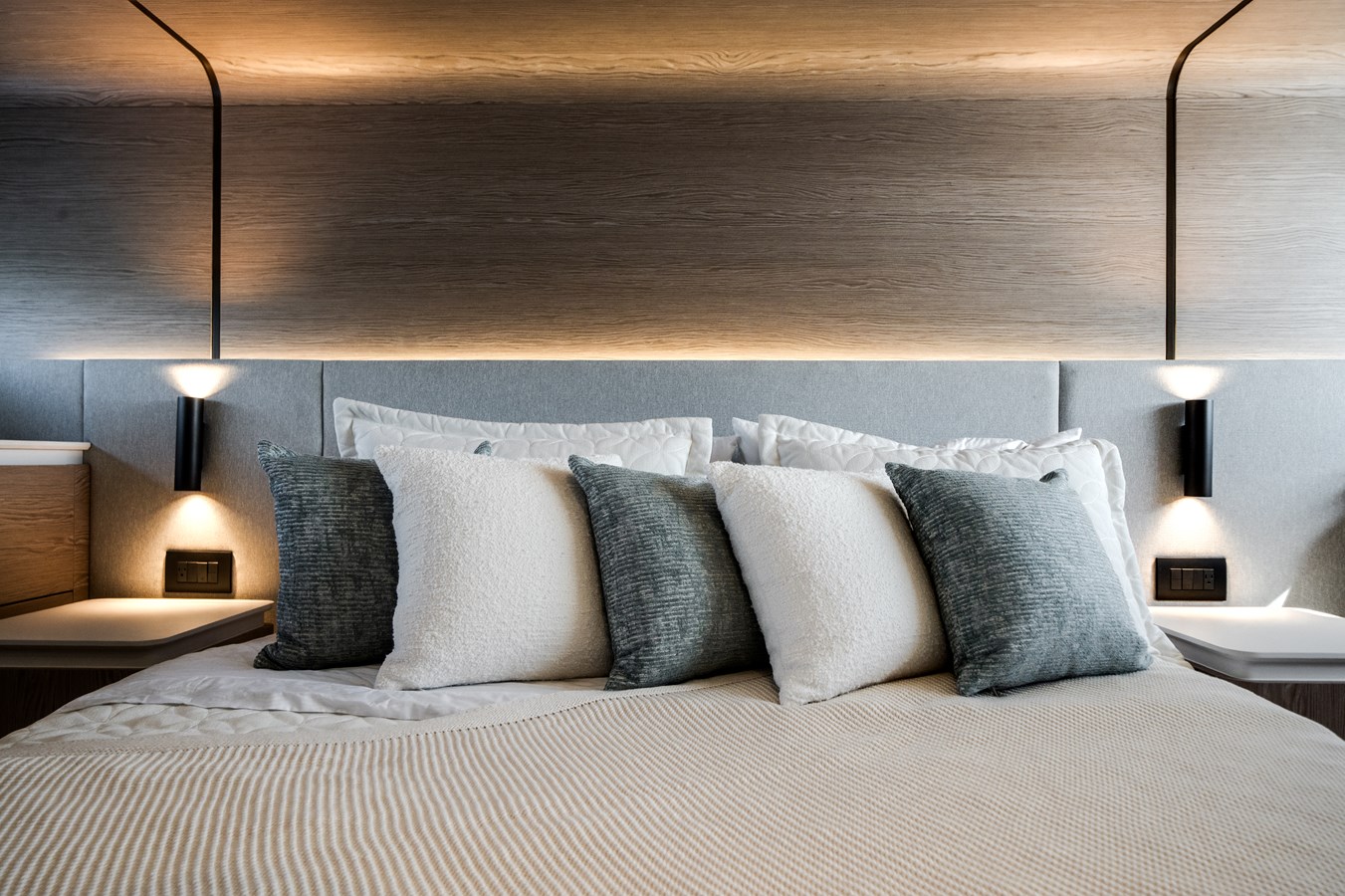

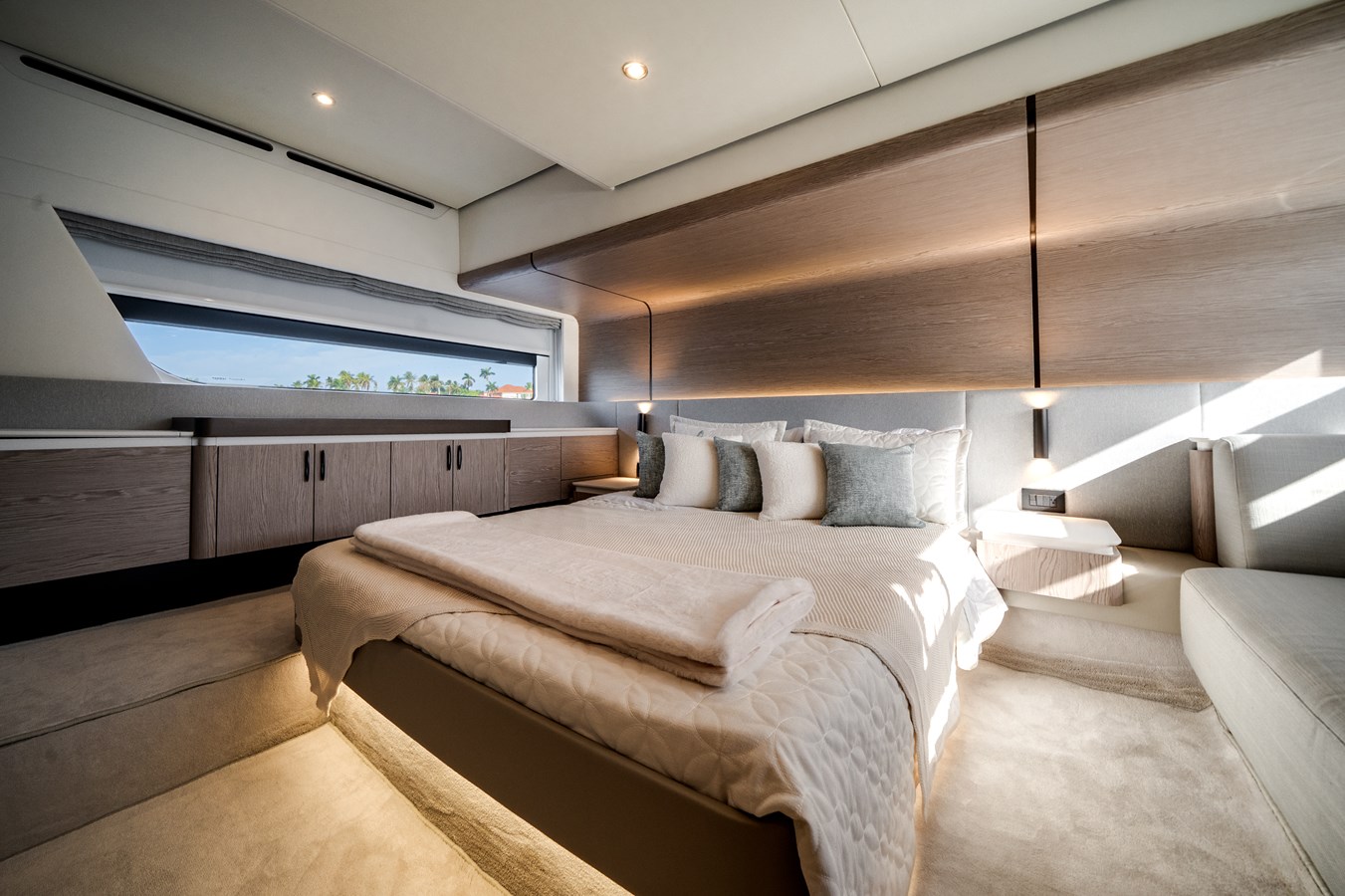

– Double bed at the center of the yacht, with foldaway bed base and locker
– Wooden headboard
– Two fixed bedside tables with openable top

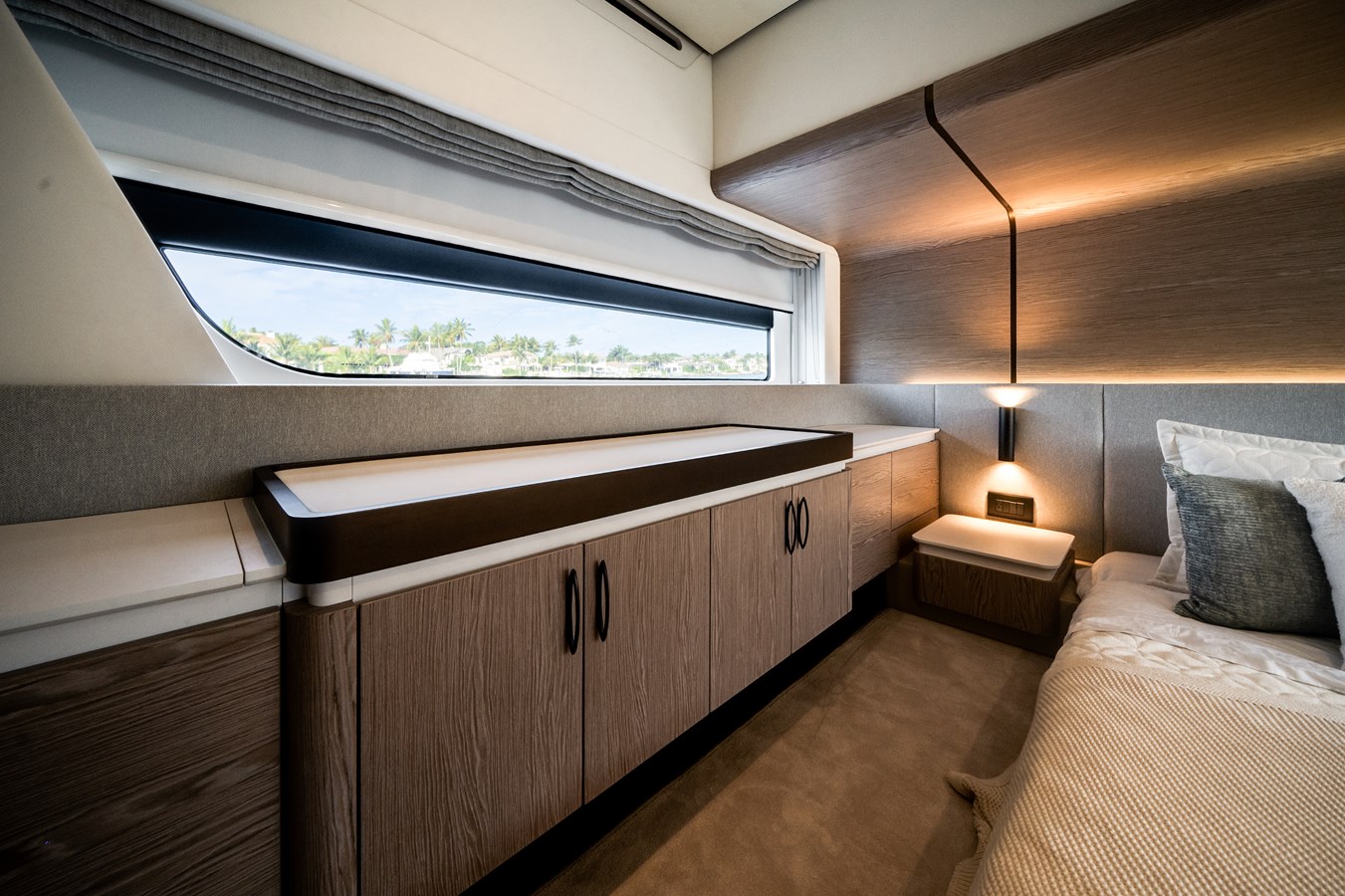

– Cabinet with panels and shelves on starboard side
– Walk-in wardrobe with hanger bar on port side

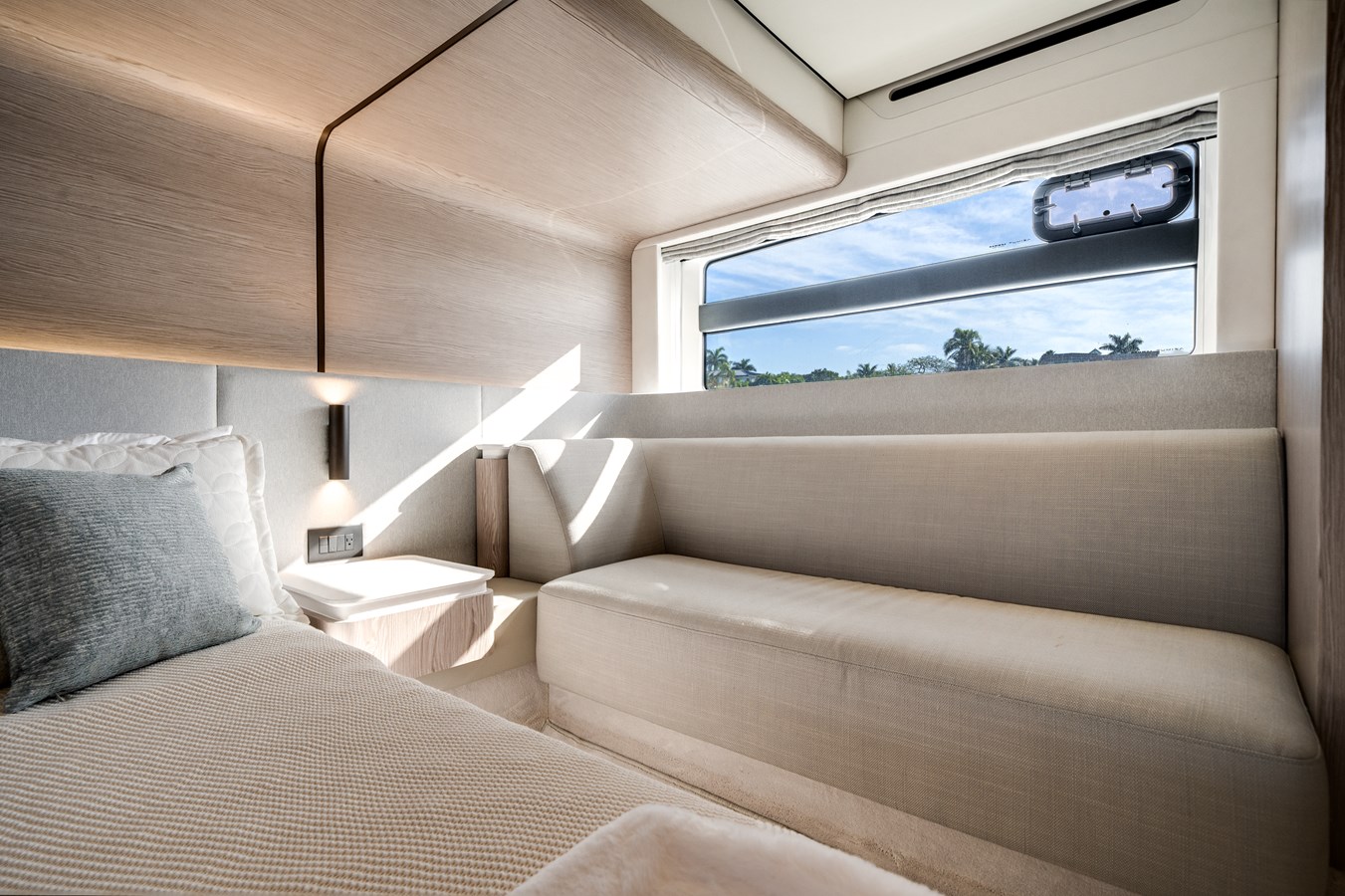

– Sofa on port side
– Spotlights
– Two openable portlights
– Hull windows
– Venetian blinds
– Mirror on cabin’s fore bulkhead, starboard
– Bulwark coating in leatherette
– Fabric wall upholstery
– Leatherette and GRP ceilings
– Provision for TV system
– Sockets
– Fore sunbed area
– Air conditioning system control panel (if A/C installed)

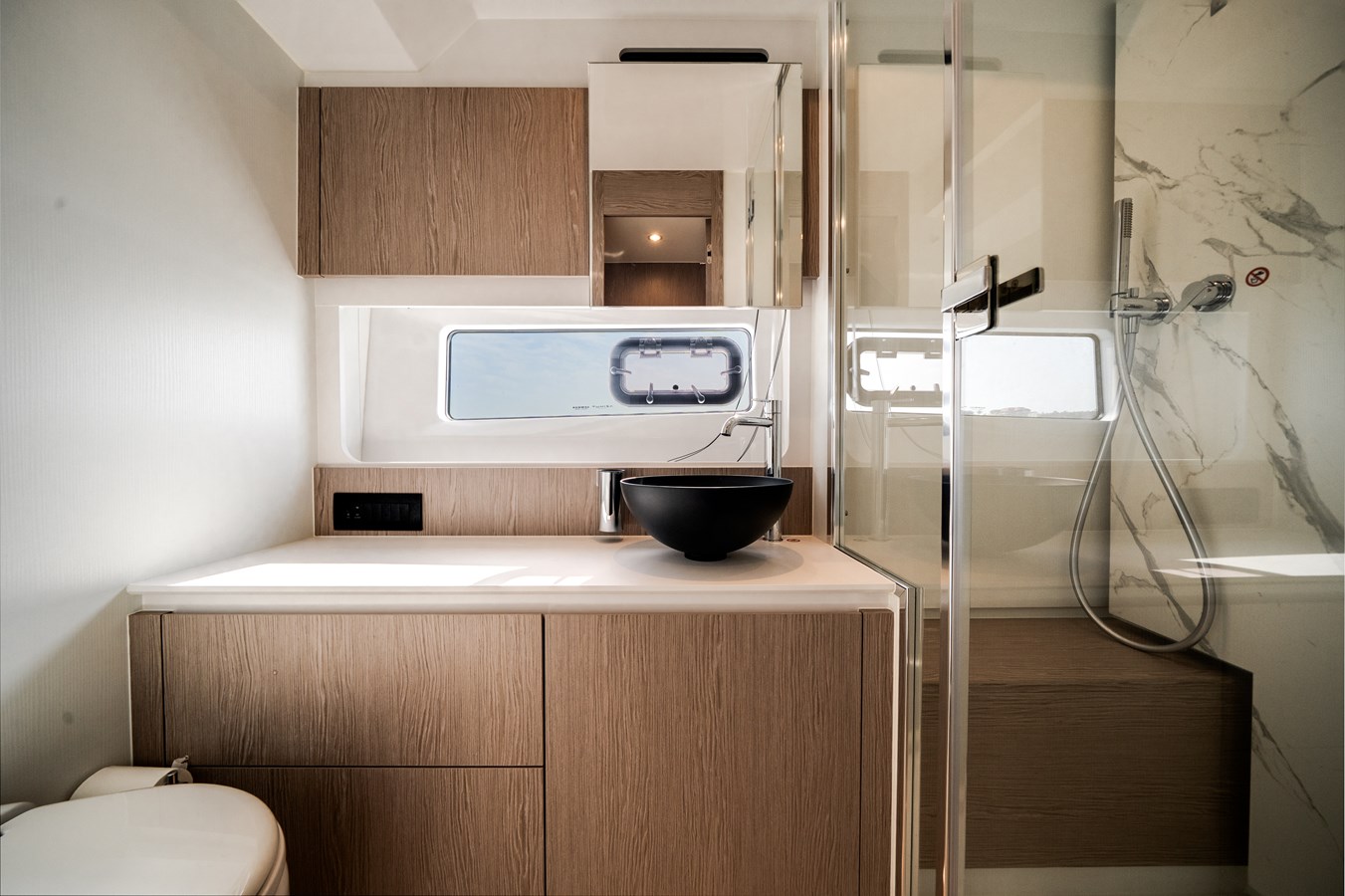

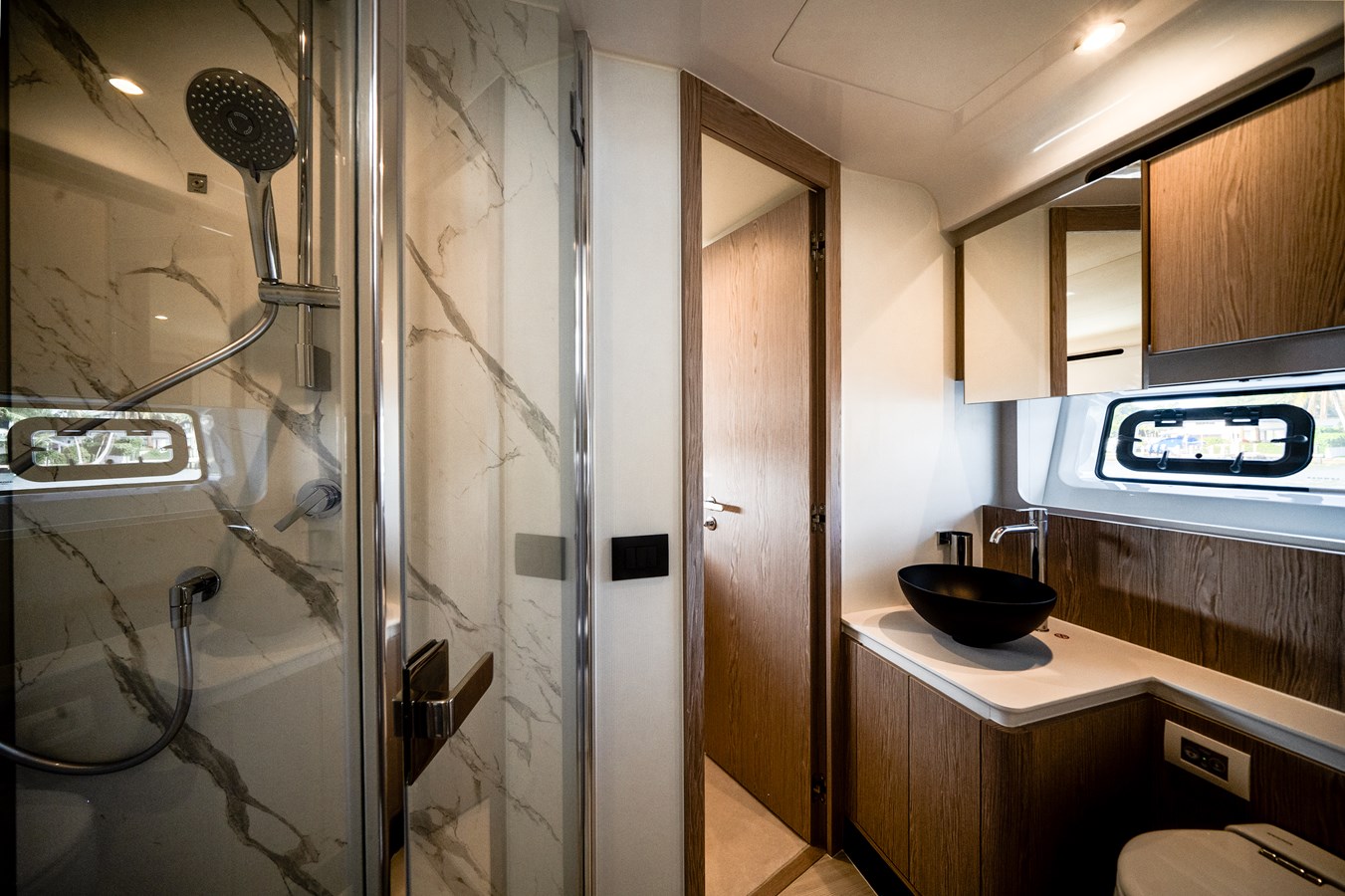

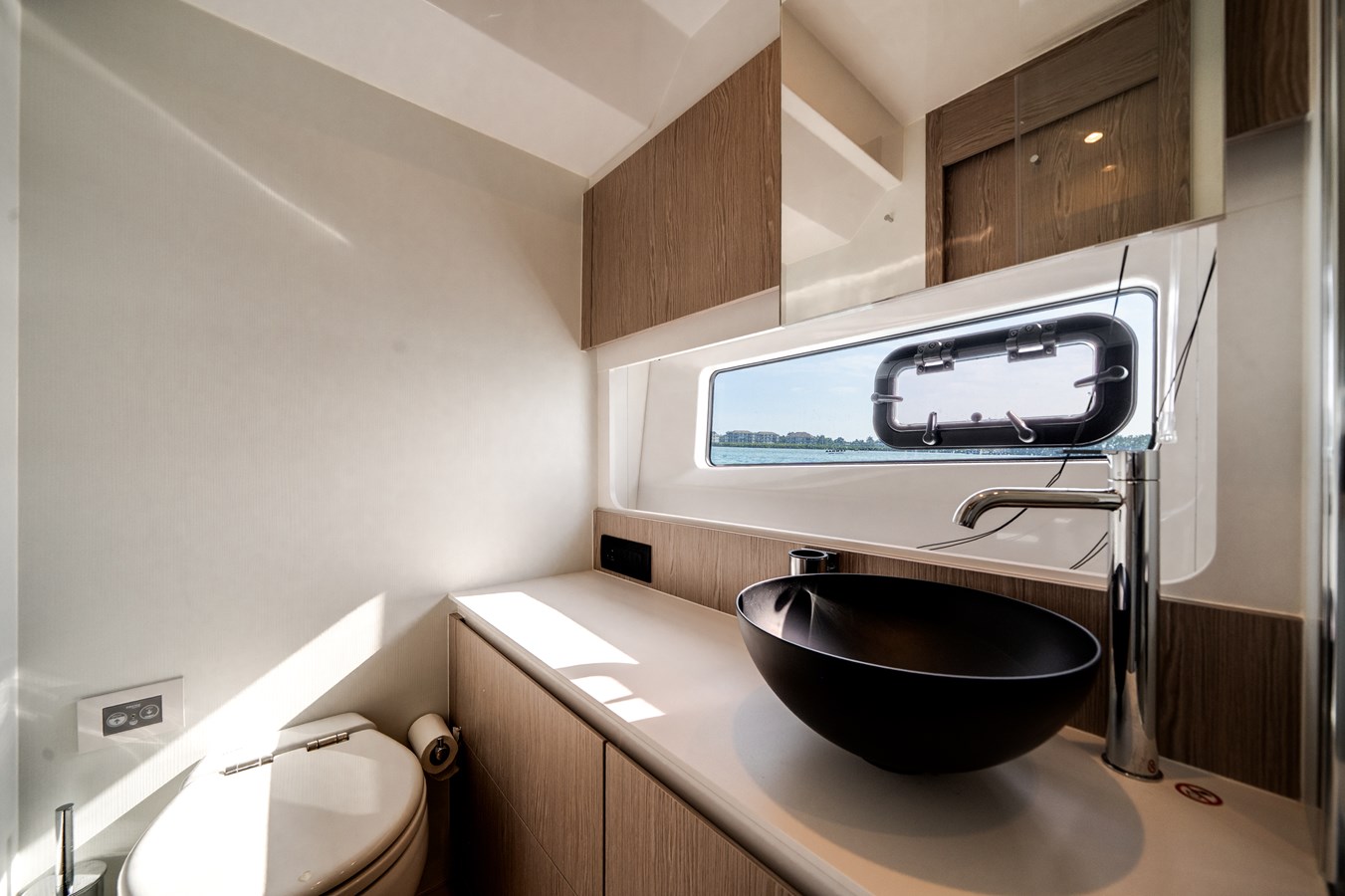

Owner’s Head
* Located forward of the owner’s cabin, on port side. It is composed of:
– Independent access from owner’s cabin
– Lacquered top and round Vetro Freddo washbasin
– TECMA toilet
– Mixer tap
– Separate shower enclosure; flat shower door
– Chromed shower rail
– Wall unit with two-panel mirror above the washbasin top and underbasin cabinet with shelves
– Spotlights
– One openable portlight
– Venetian blinds
– Non-slip GRP flooring in shower
– Sockets
– Head accessories

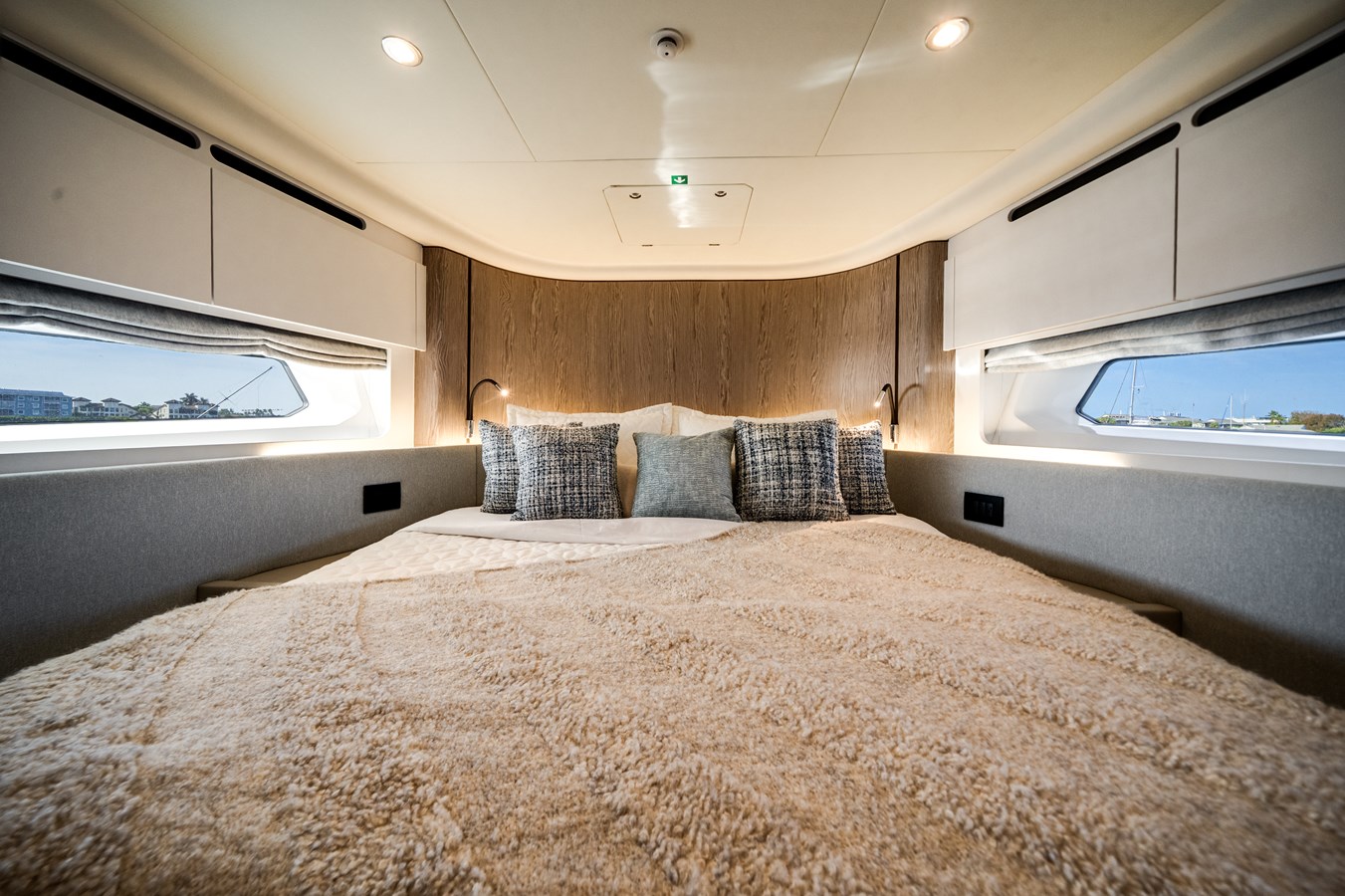

VIP Cabin

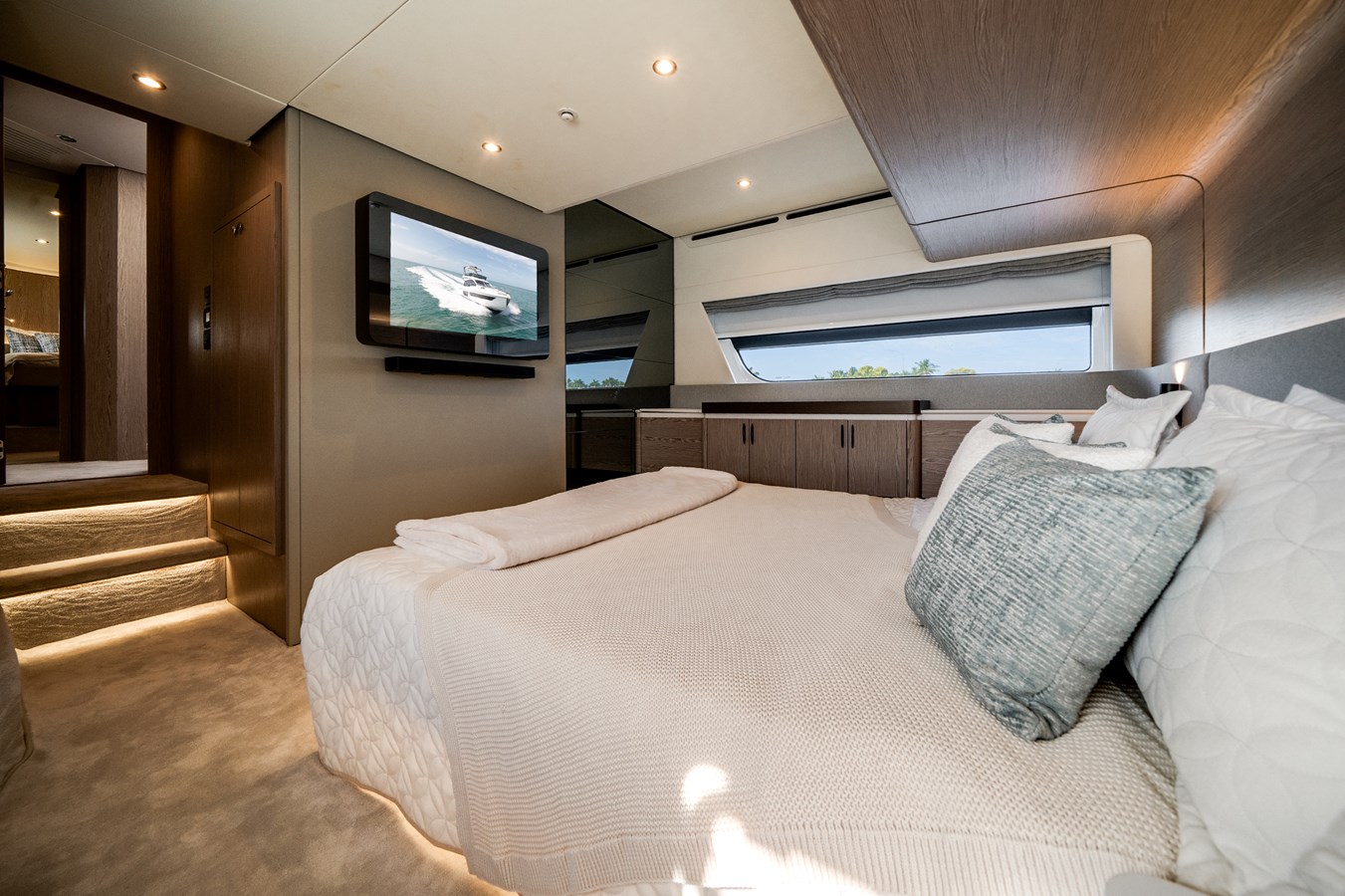

* Located at the bow, it is accessed via the central corridor. It is composed of:
– Double bed at the center of the boat with locker on the plane
– Wooden headboard
– Two openable wall units with storage areas (each side) over the windows
– Two wardrobes with hanger bars and mirror
– Leatherette and gelcoar ceiling
– Spotlights lighting
– Emergency exit in ceiling through concealed rectangular hatchway leading to fore sunbed area
– Direct access to CIP / guest head
– Two openable portlights inserted in windows
– Venetian blinds
– Fabric upholstered bulwarks
– Carpeted floor
– Air conditioning system control panel (if A/C installed)
– Sockets

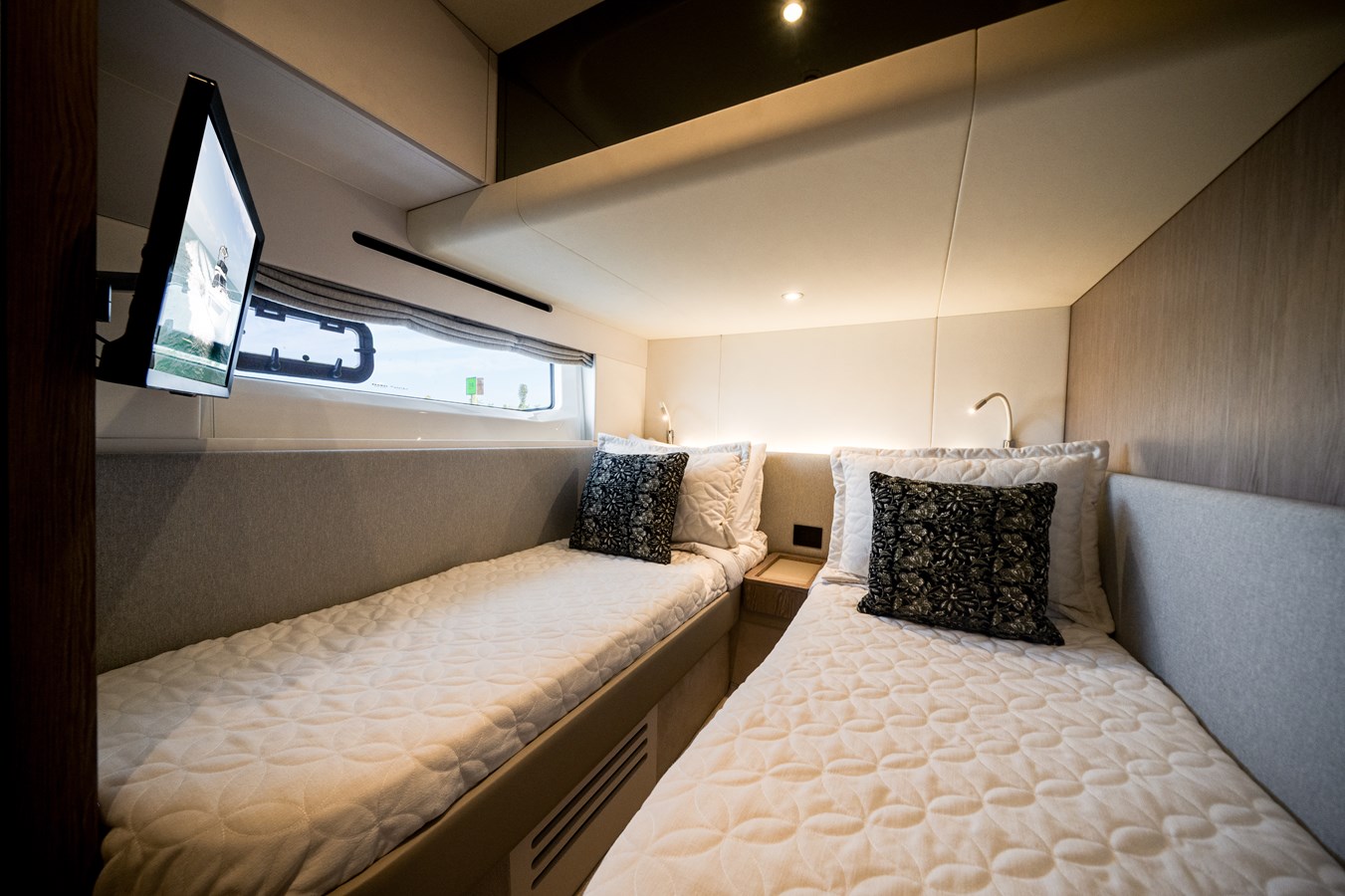

Guest Cabin
* Located on starboard side
– Two single beds with lockers
– One wardrobe with hanger bar and shelves
– One central bedside table between the beds
– One wall unit on starboar side
– Painted ceilings
– Spotlights
– Leatherette headboard
– One openable portlight
– Carpeted floor
– Bulkhead coating in fabric, wood and lacquered
– Venetian blind

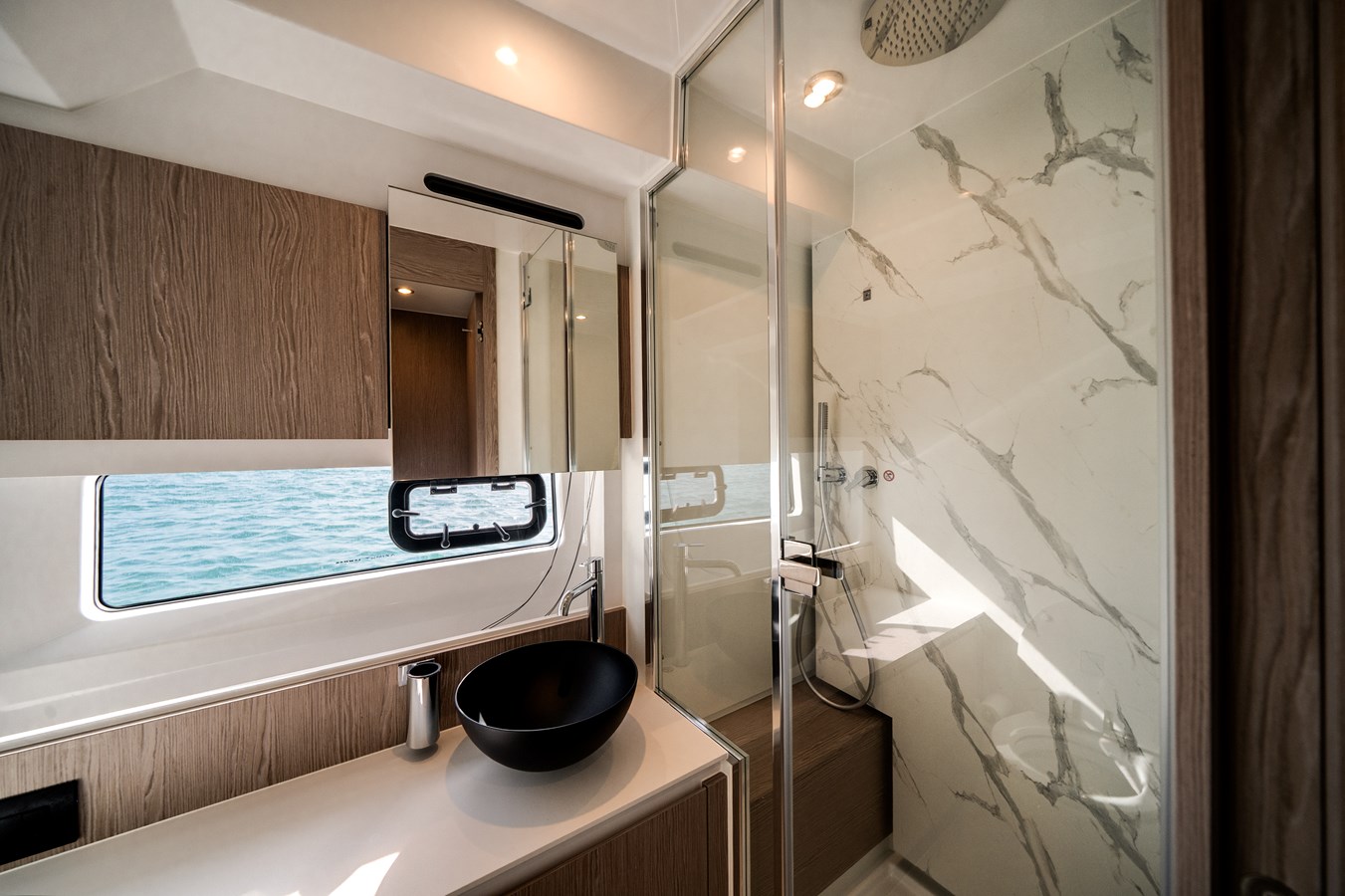

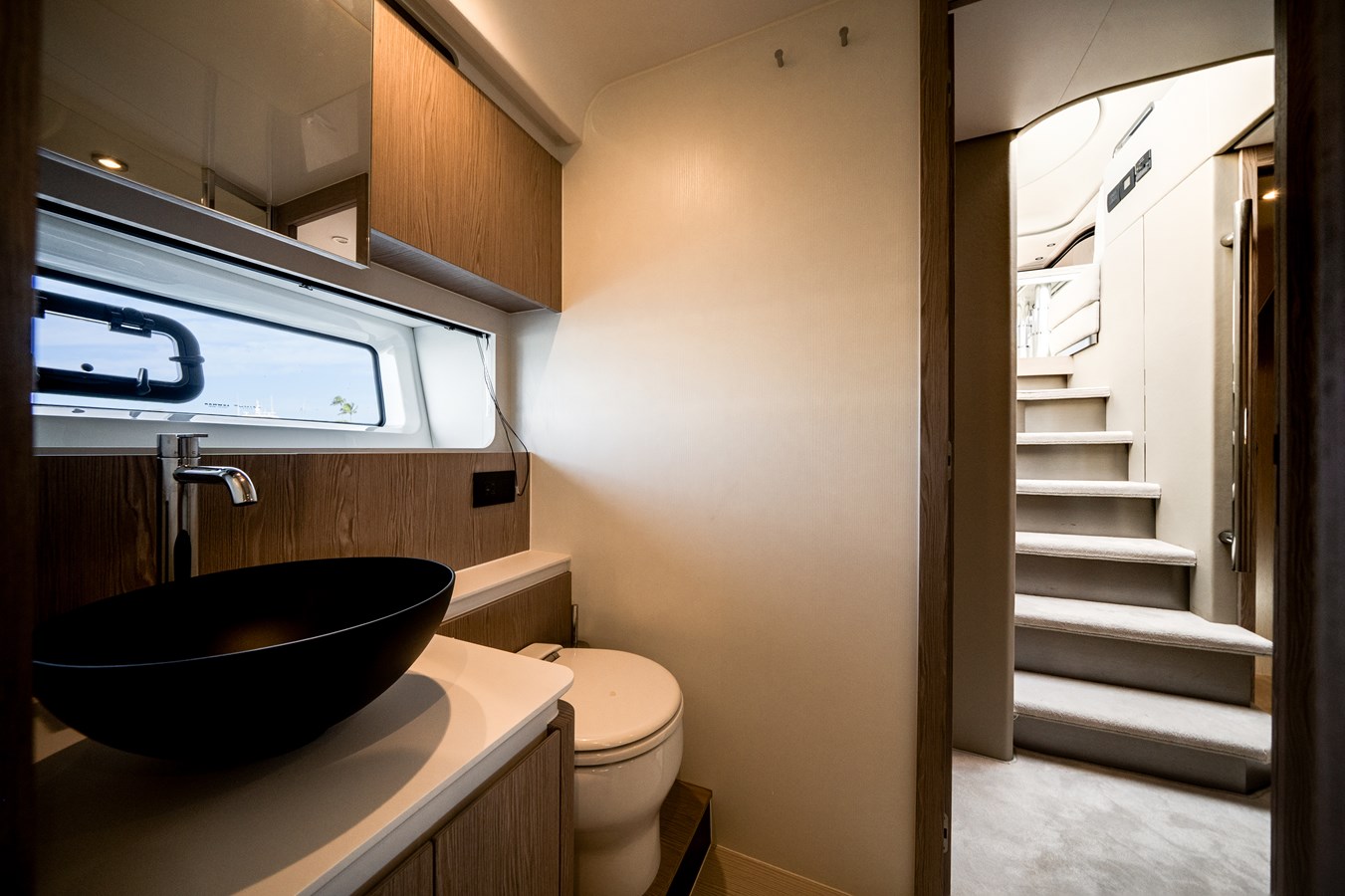

VIP / Guest Head
– Positioned abaft of the VIP cabin, on starboard side
– Direct access from the VIP cabin or from the corridor
– Lacquered top and round Vetro Freddo washbasin
– Mixer tap
– TECMA toilet
– Separate shower enclosure; flat shower door
– Chromed shower rail
– Spotlights lighting
– Underbasin cabinet with shelves
– Wall unit with mirror
– One openable portlight
– Venetian blind
– Non-slip GRP flooring in shower
– Head accessories
– Sockets
Crew Room (OPT)
Crew Cabin
– Located at stern
– Access from platform
– Single bed
– One wardrobe on starboard side
– GRP ceiling panel
– Bulkhead shelves, at the foot of the bed
– Openable portlight
– GRP non-slip floor
– Spotlights
Crew Head
– TECMA toilet
– Washbasin
– Chrome mixer with extractable shower head
– Shower area with waterproof curtain
– Wall unit with mirror
– Cupboard under the sink
– Socket
– Head accessories
Electric System
Main Characteristics
– Shore-powered power supply
– DC electric panel: three installed, one of which on the fore bulkhead of the engine room
– AC electric panel: two installed, one of which on the fore bulkhead of the engine room
– AUX electric panel installed in the saloon entrance cabinet
– Emergency control panel on electric panel
– Battery cut-out control panel installed in the cockpit
– Onboard voltages:
– 230 V – 50 Hz AC
– 24 DC from battery set
– 12 V DC from battery set and AC / DC voltage reducer
Generator
– One single phase generator 5 kW / 230 V AC – 50 Hz for EU system
– Remote start
Shore Power Sockets
– EU one 3P – 50 A socket
– The AC power sources terminate on the main electric panel in the engine room, for the 230 V network. The power sources are protected by suitably sized power circuit breakers, and introduced into the network by means of remote control switches
Batteries
– Six service batteries 95 Ah – 12 V DC
– Four engine batteries 95 Ah – 12 V DC
– One generator battery 70 Ah – 12 V
– One service / engine starter battery chrager 60 Ah – 24 V
– One generator starter battery charger 12 Ah- 12 V
Lights and Sockets
– 230 V AC sockets for main utility power supply, EU type
– USB sockets
– Internal lighting: 24 V LED type
– External lighting: 24 V LED type
Bilge System
– Main system composed of three automatic and independent pumps located in each watertight compartment:
– Two in engine room (fore and aft)
– One (central) under owner’s cabin floor
– Secondary or auxiliary system, composed of two manual pumps with three suction points located as follows:
– Two in the engine room (fore and aft)
– One (central) under owner’s cabin floor
Fire Extinguishing System

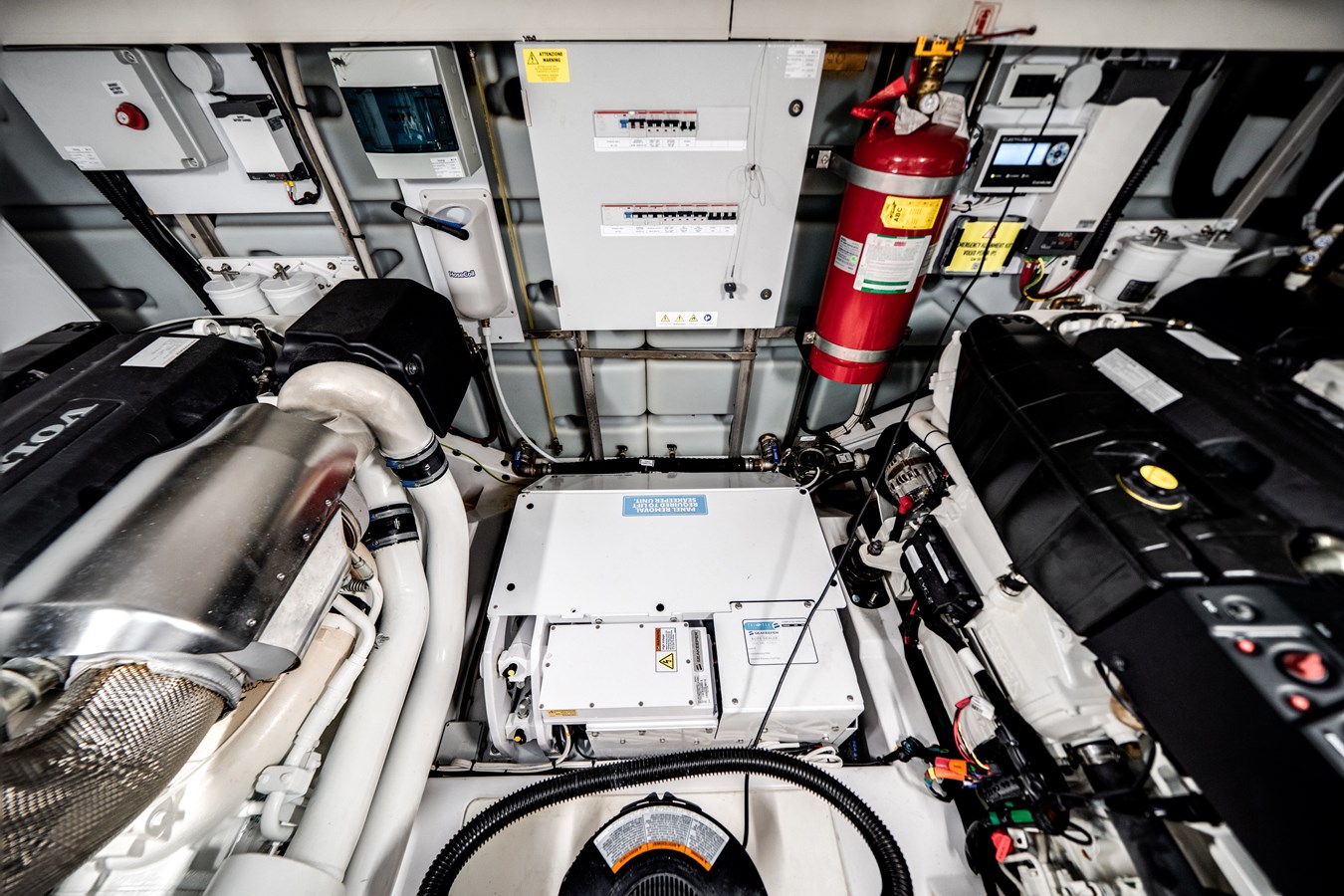

– One gas fire extinguisher in the engine room
– One system manual activation control in the cockpit
– System indicator/reset on instrument board
Fuel System
– Two plastic fuel tanks located crossways on fore part of the engine room, total 2400 l (634 US liq. gal.)
– Two electronic fuel level sensors monitored through indication on the wheelhouse
– One fuel level optical gage on port tank
– Two engine single RACOR settling filters
– Two tank vents on bulwark, one per side
– Remote engine diesel shut-off via 24 V solenoid valve
– Remote generator diesel shut-off via 12 V solenoid valve
– Two refueling plugs on walk arounds (one per side)
– Possibility of leveling diesel from one tank to the other, using a communicating pipe
– Possibility of refueling both diesel tanks from a single refueling plug, by means of the communicating pipe
Fresh Water System
– One 590 l (155.86 US liq. gal.) plastic tank under accommodation tray, under stairway floor and lobby
– Water filling through cap located in the fore part of the starboard walk around
– Water pressure pump unit located in the engine room, port aft side (24 V – 50/60 Hz) with electronic control
– 60 liter (15.85 US liq. gal.) water heater under the cooridor
– Fresh water toilet flushing
– One level sensor with electronic indicator monitored through indication on the wheelhouse
– System that can be isolated by ACORN manifolds under the corridor floor
Black Water System
– 175 l (46.23 US liq.gal.) polyethylene tank under VIP cabin
– One level sensor with electronic indicator monitored through indication on the wheelhouse
– Two tank vents on bulwark with anti-odor filter
– One macerator pump
– Suction point from port walk around
– TECMA toilet
– Sea outlet from tank
Gray Water System
– 175 l (46.23 US liq.gal.) polyethylene tank, under the cabin area corridor (central tank)
– One level sensor with electronic indicator monitored through indication on the wheelhouse
– Sea outlet from tank
– Two tank vents on bulwarks
– Diaphragm pump

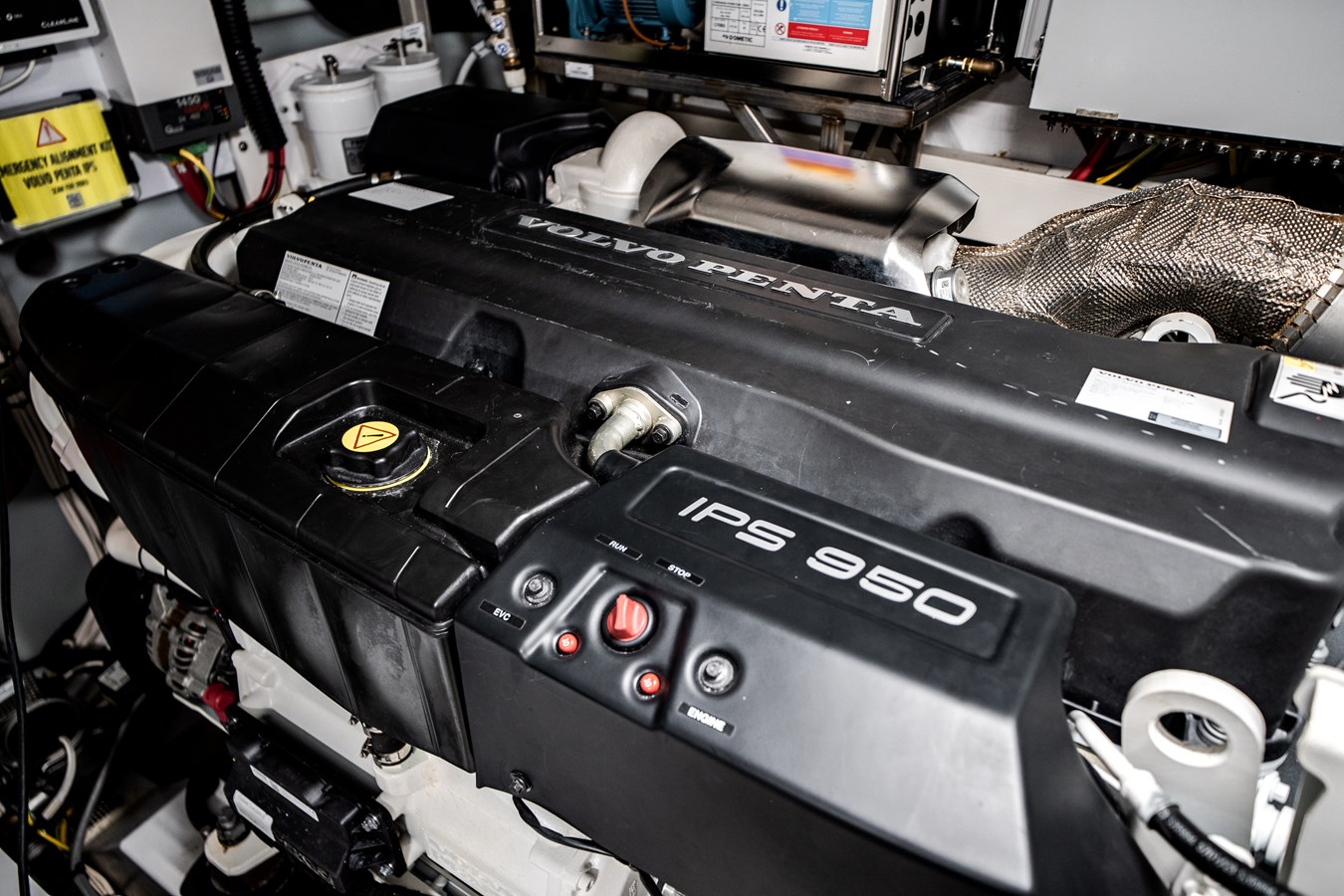

Seawater System
– Engine cooling system: includes two sea water intakes with filter and 2″ 1/2 ball valve
– Generator cooling system: includes one sea water intake with filter 1″ ball valve
Engine Room Ventilation
– Two extractors located abaft the engine room that conveys the air outside throught openings on hull bulwark
– Two natural ventilation ducts on each side
– One natural extraction duct on each side
– Fans panel for internal air recirculation
Equiptment
– One telescopic boat hook
– Two mooring lines
– Fender lines: 18 m (59′)
– One anchor chain stopper
– Six fenders
– Six black fender covers
– One Owner’s manual
– One wooden boat model
– One Azimut warranty service booklet
– Two floating keys
– One large bag with logo for manuals
– One remote control holder with logo
– One shower pipe storage bag
