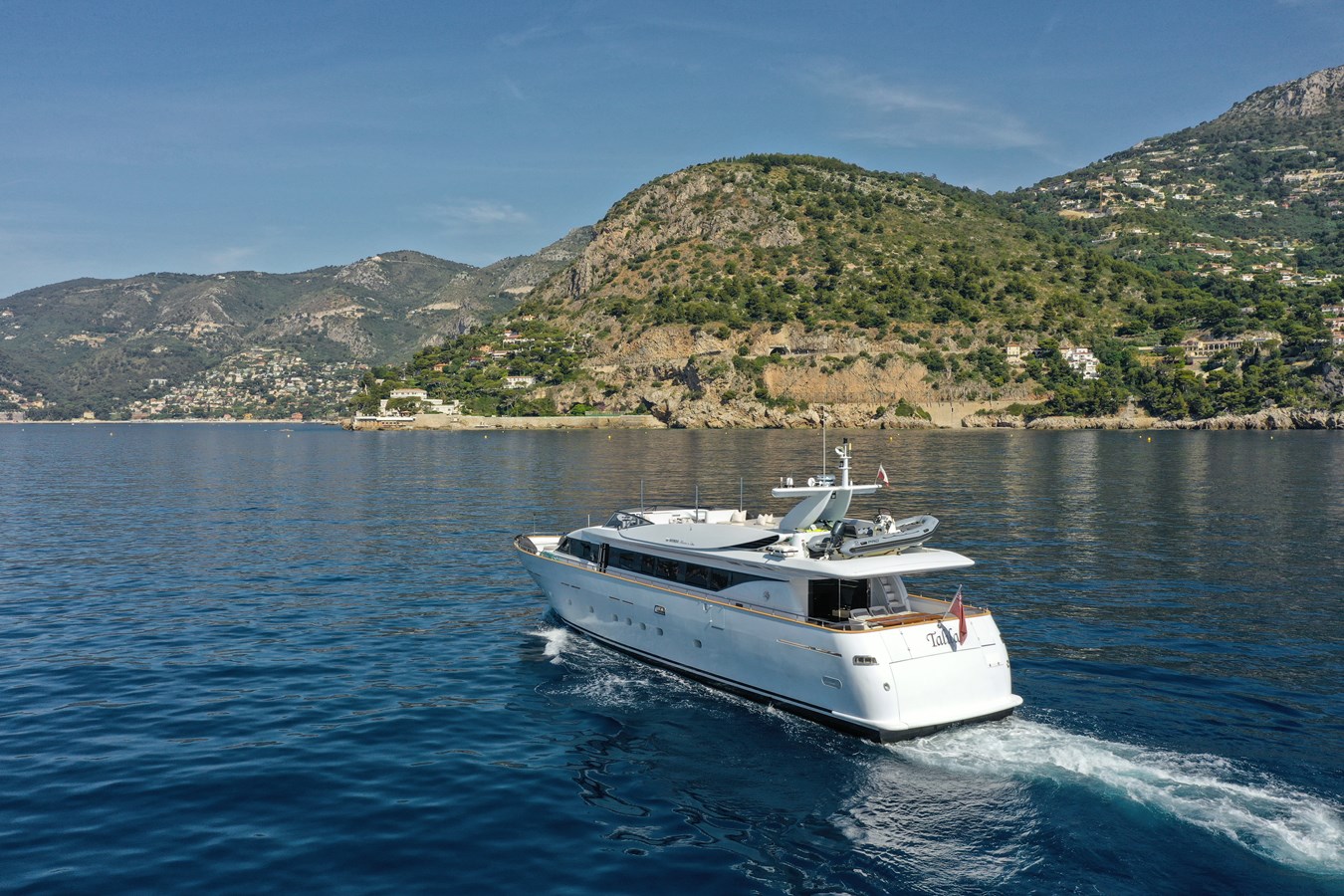

TALILA

TYPE: Motor Yacht

REGISTRATION: Commercial vessel

FLAG: British

DIMENSIONS:

LOA: 28m

LENGTH W.L: 28m

BEAM: 6.7m

DRAFT: 2.7m

TONNAGE: 85

YEAR BUILT/REFIT: 2000/2020

BUILDER: Mondomarine, Italy

MODEL: Mondo 29M

NAVAL ARCHITECT: Mondo Marine

DESIGNER: Aldo Cichero

MACHINERY

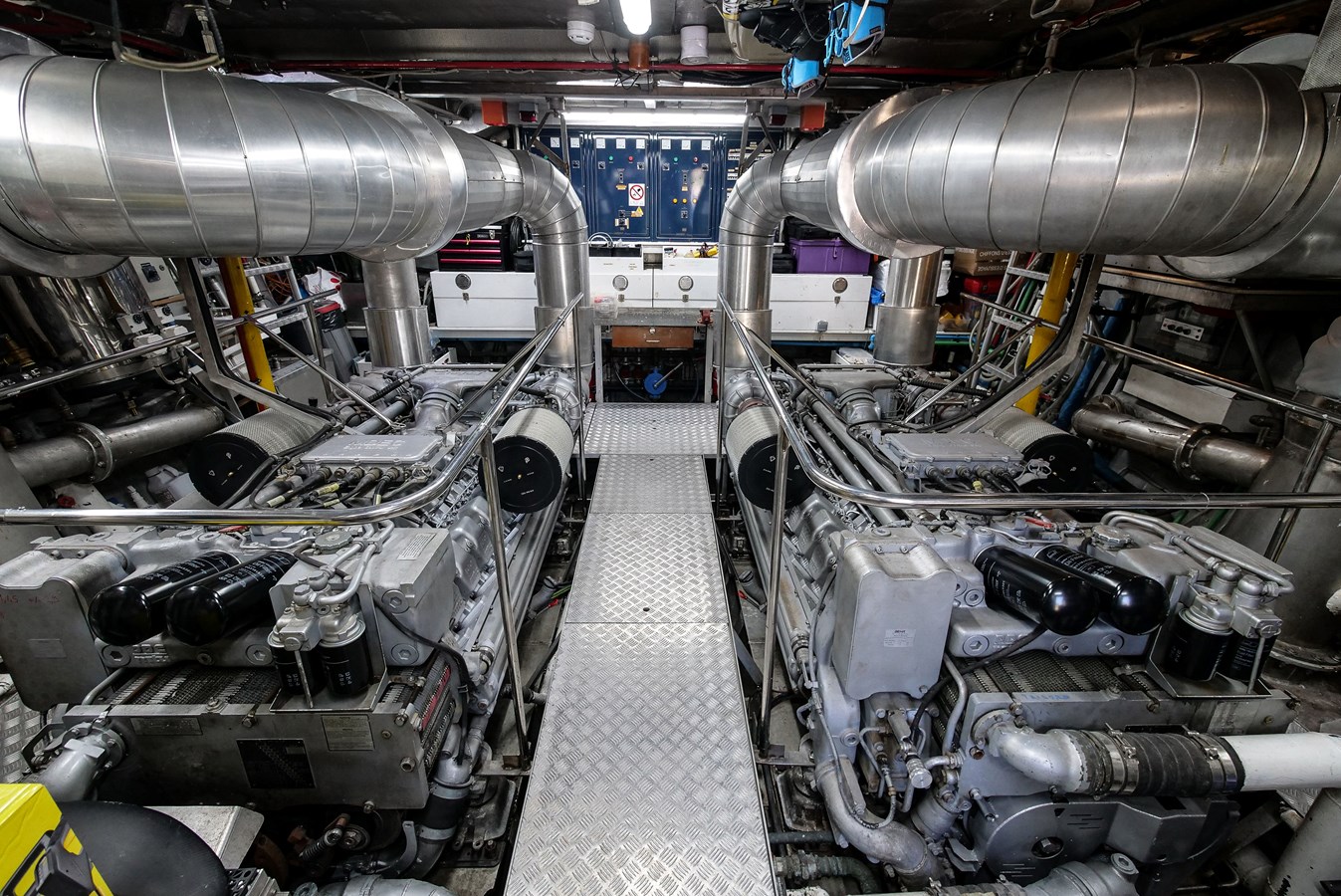

MAIN ENGINES: 2X 2000 HP, Diesel, MTU, MTU 16 V 2000 M90

ENGINE HOURS: 4823HRS

GEARBOX: ZF BW 255 VP

SPEEDS & FUEL: Maximum speed 22 knots

                               Cruising speed 17 knots

CONSUMPTIONS: 400 l/hrs (200 Litres at 12 knots)

RANGE: 430nm at cruising speed

AUXILIARY MACHINERY & ELECTRICAL SYSTEM

MAIN GENERATORS: 2 x ONAN MDKDU27 generators

GENERATOR HOURS: Port Generator 4341, Stb Generator 4027

ELECTRICITY: 32.9 kW each

BATTERIES:

• Service batteries Installed in the machinery room

• Main engines starting batteries Installed in the machinery room

• Gensets starting batteries Installed in the machinery room

• Emergency batteries Installed in the flybridge, at the base of the antennas mast

TANK CAPACITIES (approximate)

FUEL:  12,000L

WATER: 2,000L

WATERMARKS:

GREY WATER: 1,000 litre mixed black/grey water tank

BLACK WATER: 1,000 litre mixed black/grey water tank

ANCILLARY EQUIPMENT

STEERING SYSTEM: : Hydraulic steering system with a dedicated 380 V AC hydraulic pump

RUDDER ANGLE INDICATORS: Twin square hung rudders, linked by a connecting rod

BOW THRUSTER: Yes – Hydraulic bow thruster.

FUEL FILTERS: x 4 Racor fuel filters

FUEL FILLING PUMP: x N/A

BILGE & FIREFIGHTING PUMP: x

• Central Bilge Pump: 380 V AC electric central bilge pump with a centralized bilge suction system and manually operated valves (allows selection of which bilge compartment to pump from).

• Fire / Bilge Pump (dual-purpose): 380 V AC fire pump that can also be operated as a bilge pump via a bypass valve. This provides redundancy — the fire pump can serve as a backup or additional high-capacity bilge pump when needed.

BOILERS: x Two stainless steel water boilers (calorifiers / hot water tanks).

• One installed in the machinery room (main unit)

• One installed below the fore VIP cabin (secondary / distributed unit).

WC’s: x 4 Guest area & 2 Crew area

AIRCONDITIONING:

• Chilled water central HVAC system

• Two compressor units installed in the machinery room.

• Various fan coils distributed throughout the guest and crew areas (main deck, lower deck cabins, saloon, wheelhouse, etc.)

VENTILATION: Machinery Room Ventilation: Equipped with two Gianneschi air extractors (high-capacity exhaust fans).

These are controlled via a dedicated panel located in the machinery room.

SAFETY & SECURITY

SAFETY:

MEDICAL:

• Category C medical kit

• Medical oxygen

• Defibrillator (AED)

FIREFIGHTING:

• Salt water firefighting system with Gianneschi 380 V AC fire pump

• Fixed CO₂ firefighting installation in the machinery room

• Portable extinguishers

ALARMS & MONITORING: Alarms connected to Mareton DSM 250 control panel.

COMMUNICATION EQUIPMENT

VHF RADIO TELEPHONES: ICOM IC-M330 VHF with DSC

PORTABLE GMDSS VHF: x1 GMDSS-compliant portable VHF for life rafts / survival craft

PORTABLE VHF: x1 portable GMDSS VHF

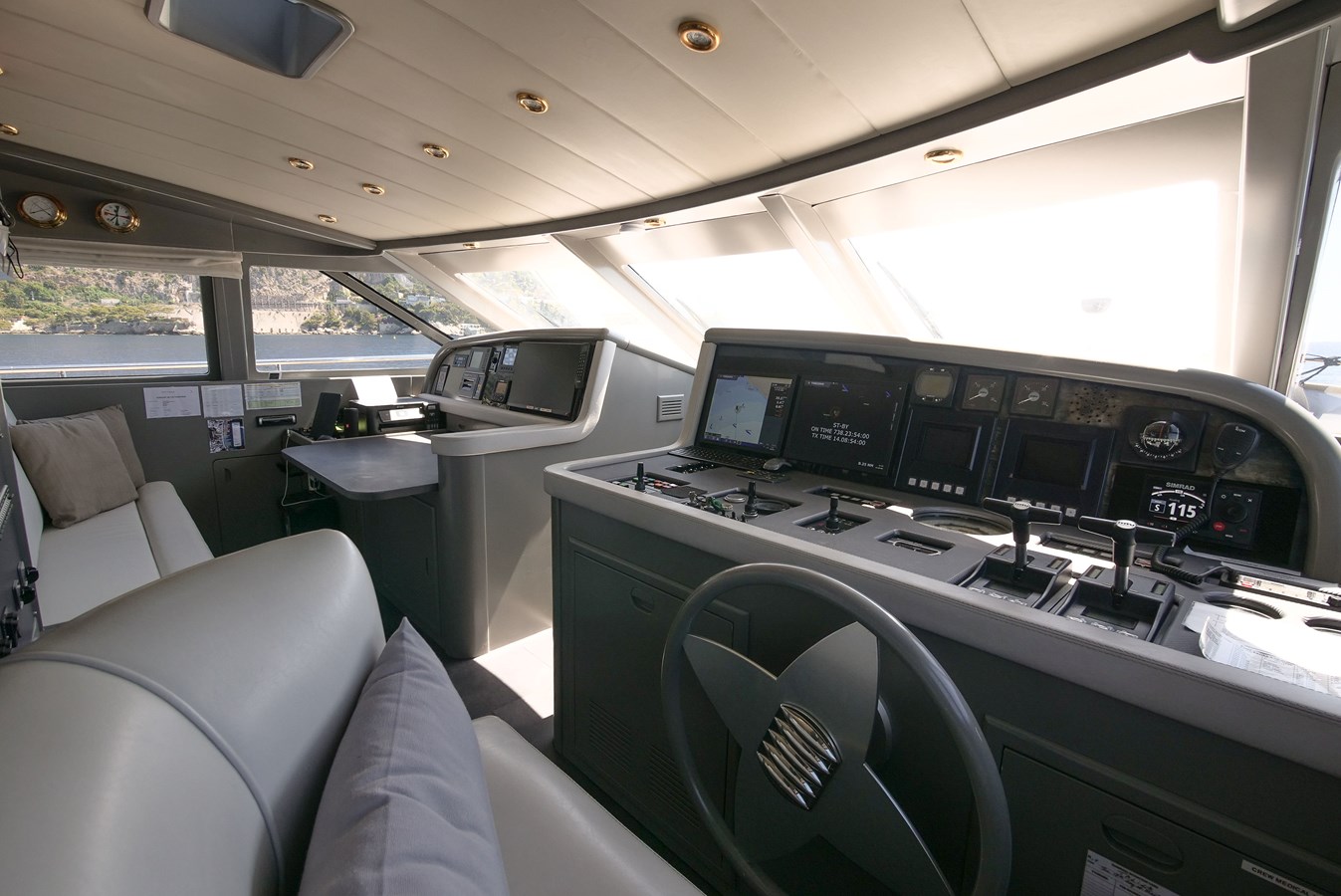

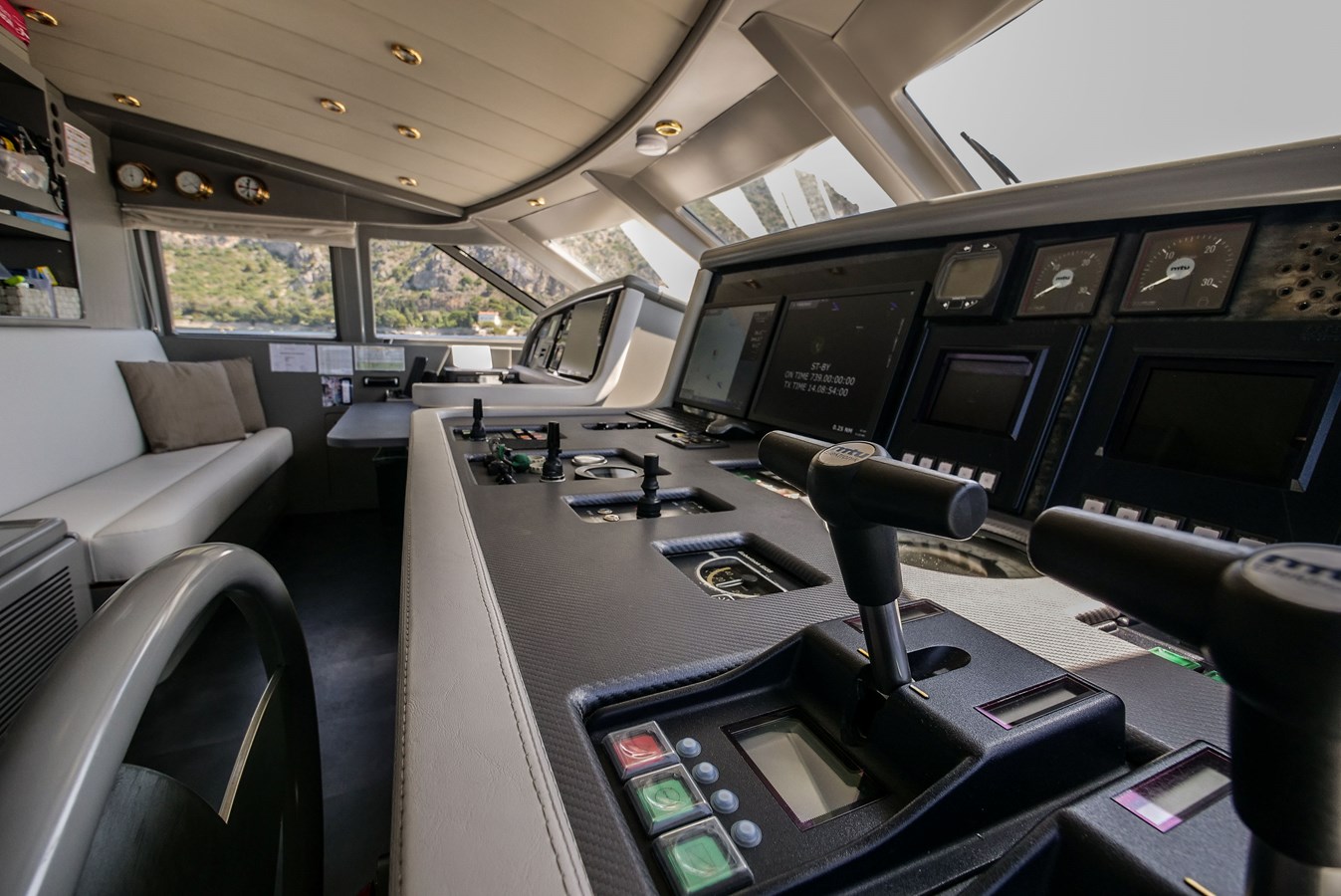

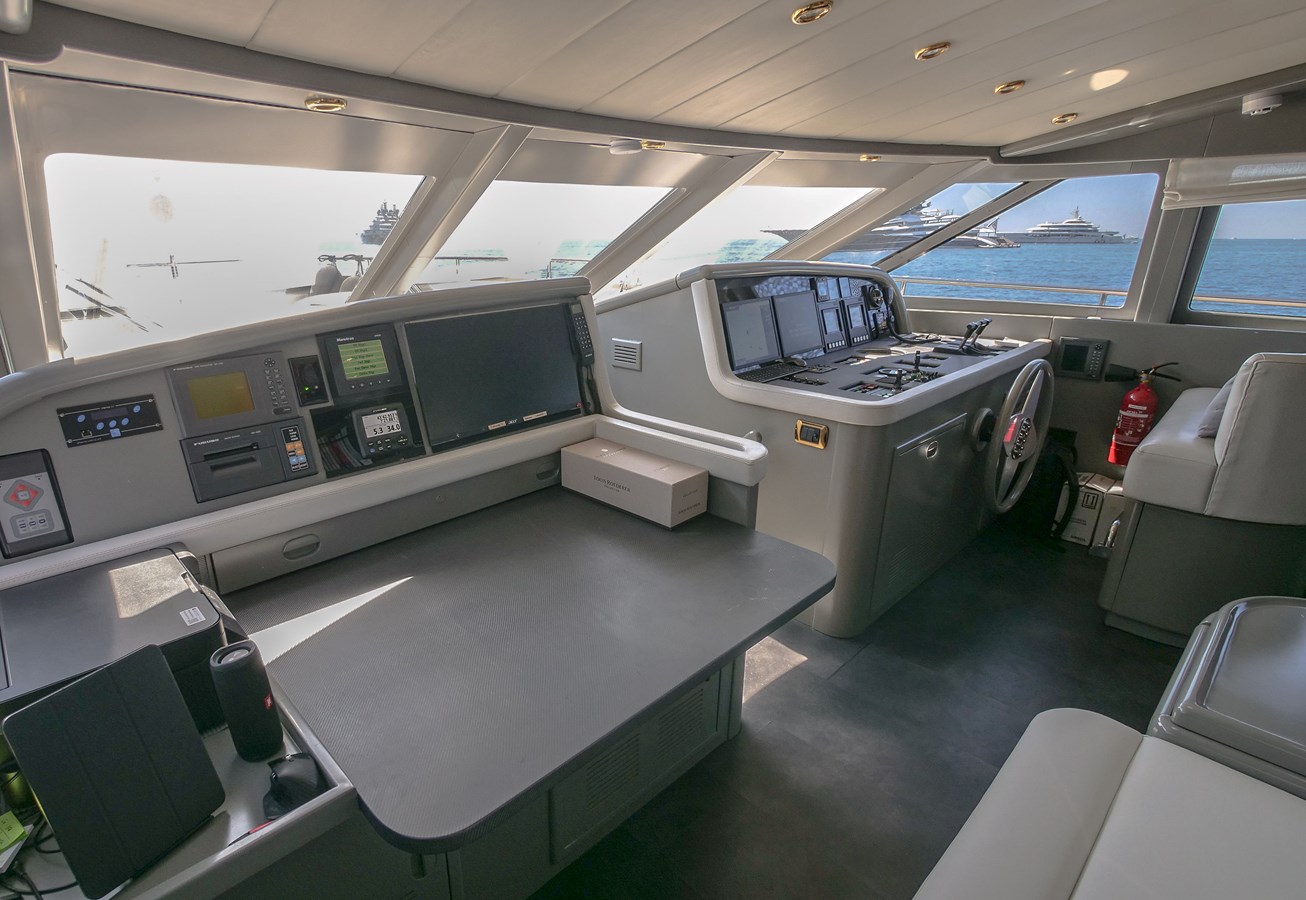

NAVIGATION EQUIPMENT

MAGNETIC COMPASS: x Yes (wheelhouse)

AUTOMATIC PILOT: Simrad Autopilot

LOG: Digital (FURUNO display).

ECHO SOUNDER: Integrated in FURUNO navigation display

RADAR: FURUNO

CHART PLOTTER: x TIME ZERO navigation software

GPS: FURUNO GP 80

NAVTEX: N/A

WIND INSTRUMENTS: FURUNO RD-33

AIS: Yes – Integrated in TIME ZERO system

HORN: Air horn fitted

DECK EQUIPMENT

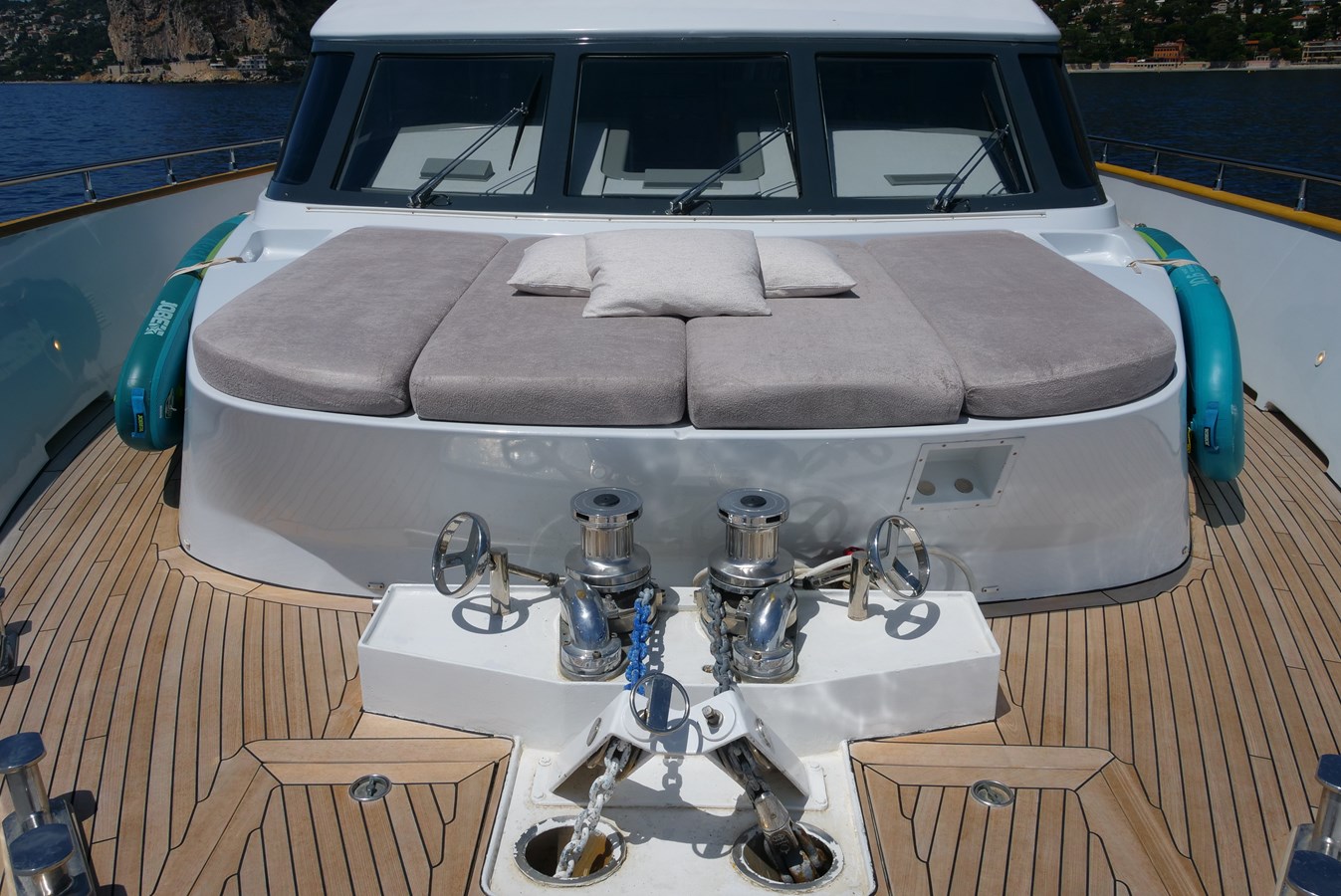

ANCHOR: 2 × CQR 200 kg galvanised steel anchors

AFT WARPING CAPSTANS: 2 × electric aft warping capstans

PASSERELLE: Hydraulic retractable passerelle

SWIMMING PLATFORM: Yes

AUDIO/VISUAL ENTERTAINMENT SYSTEMS

VIDEO EQUIPMENT: Sonos entertainment system

TV SAT: 3x Smart Tv’s

WIFI: Starlink

DOMESTIC EQUIPMENT

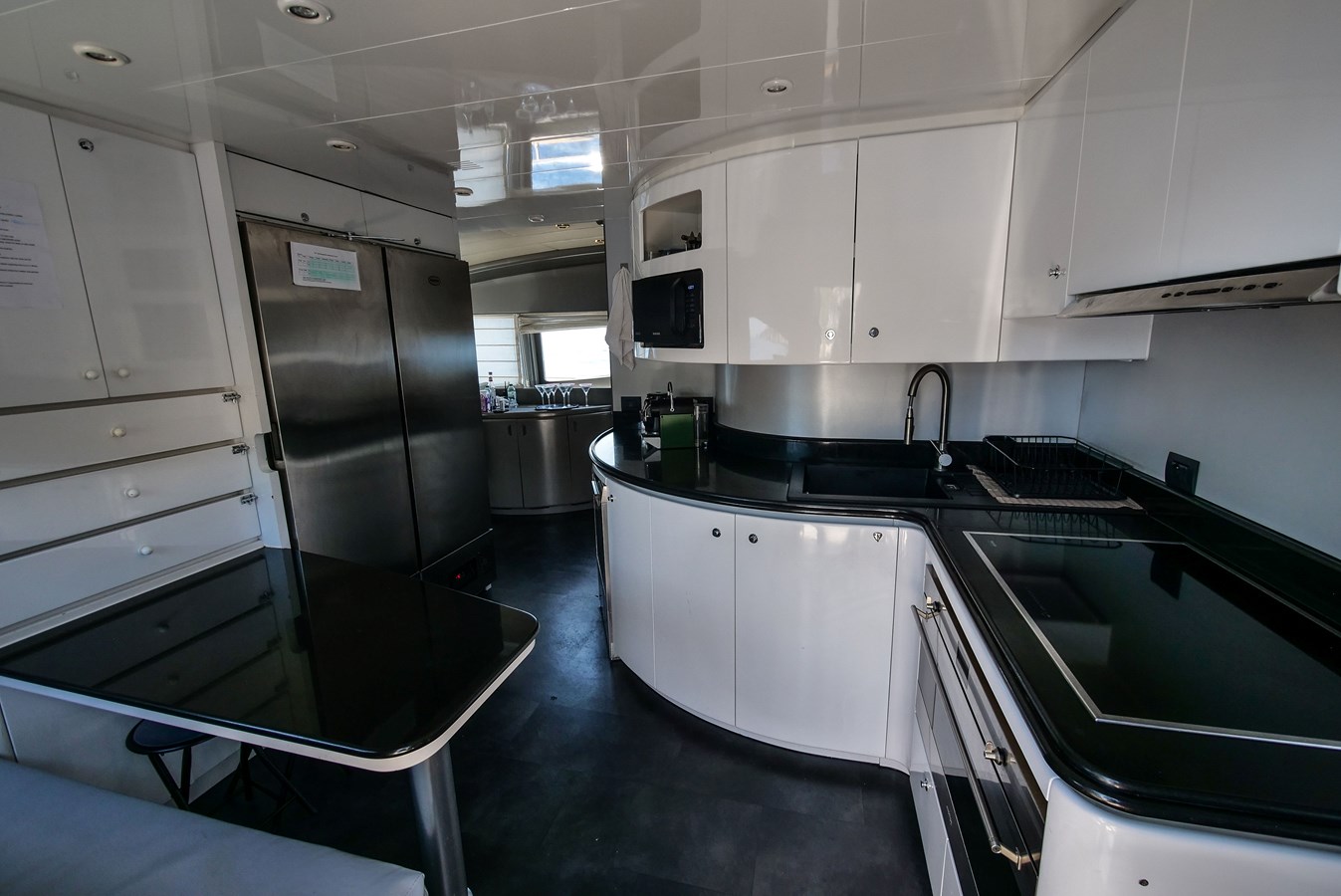

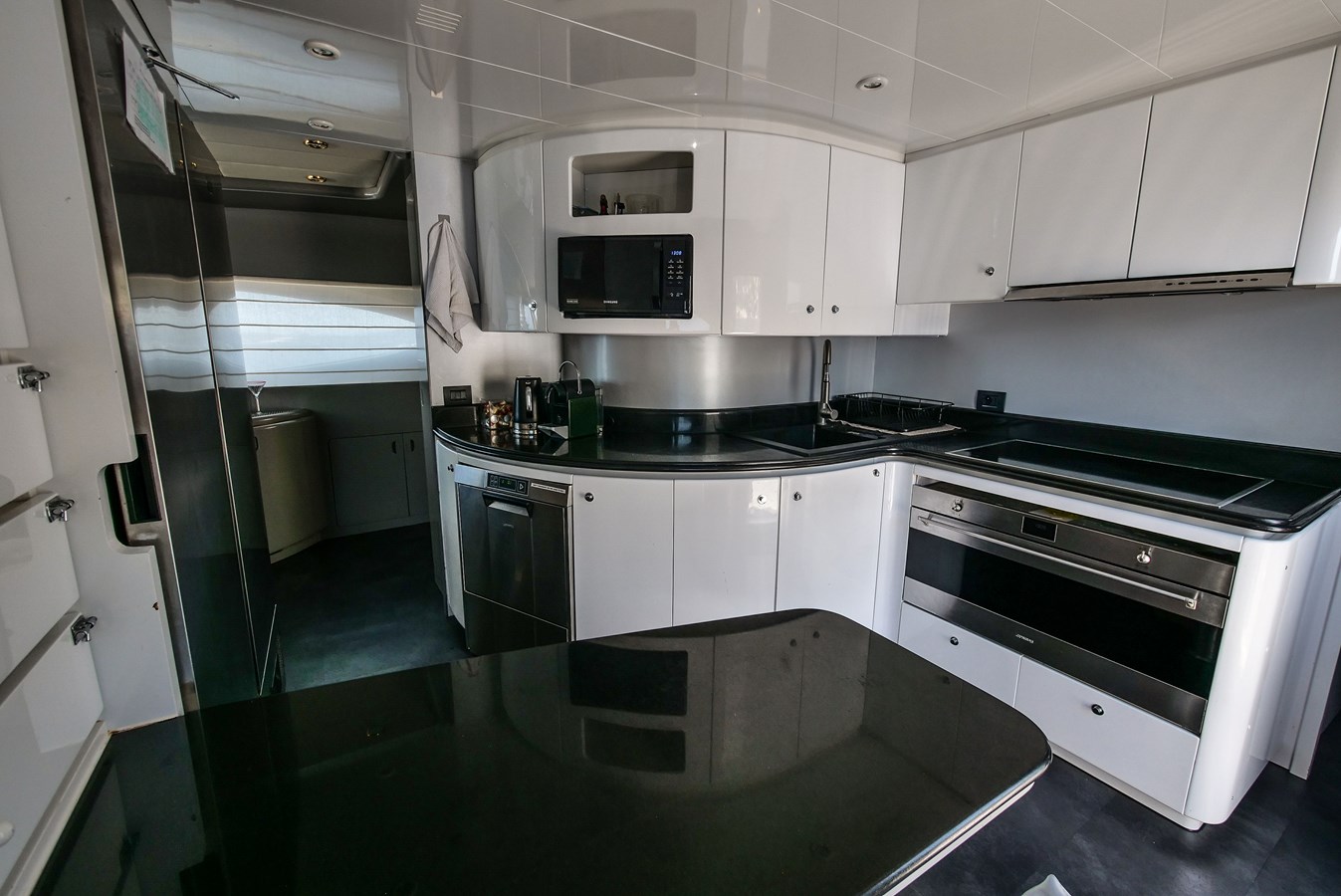

MAIN GALLEY:

Washing Machine: Siemens iQ300

Dryer: Miele T1 Excellence

CREW MASS:

Induction and hood: Smeg SR9390X1

Dishwasher: Smeg UD515DS-1

Fridge & Freezer: Foster FSL400H Slimline

TENDERS & WATERSPORTS EQUIPMENT

TENDERS: Zodiac Pro 4.M RIB tender, 70hp Yamaha outboard (2022 Model)

WATERSPORTS:

                              2 × Seabob F5 (2022 models)

                              Sea-Doo Spark (3-person jet ski, 2022)

                              2 × Paddleboards (2024 models)

                              Wakeboard

                              Inflatable towable (“donut”)

                              Snorkelling gear

OTHER EQUIPMENT:

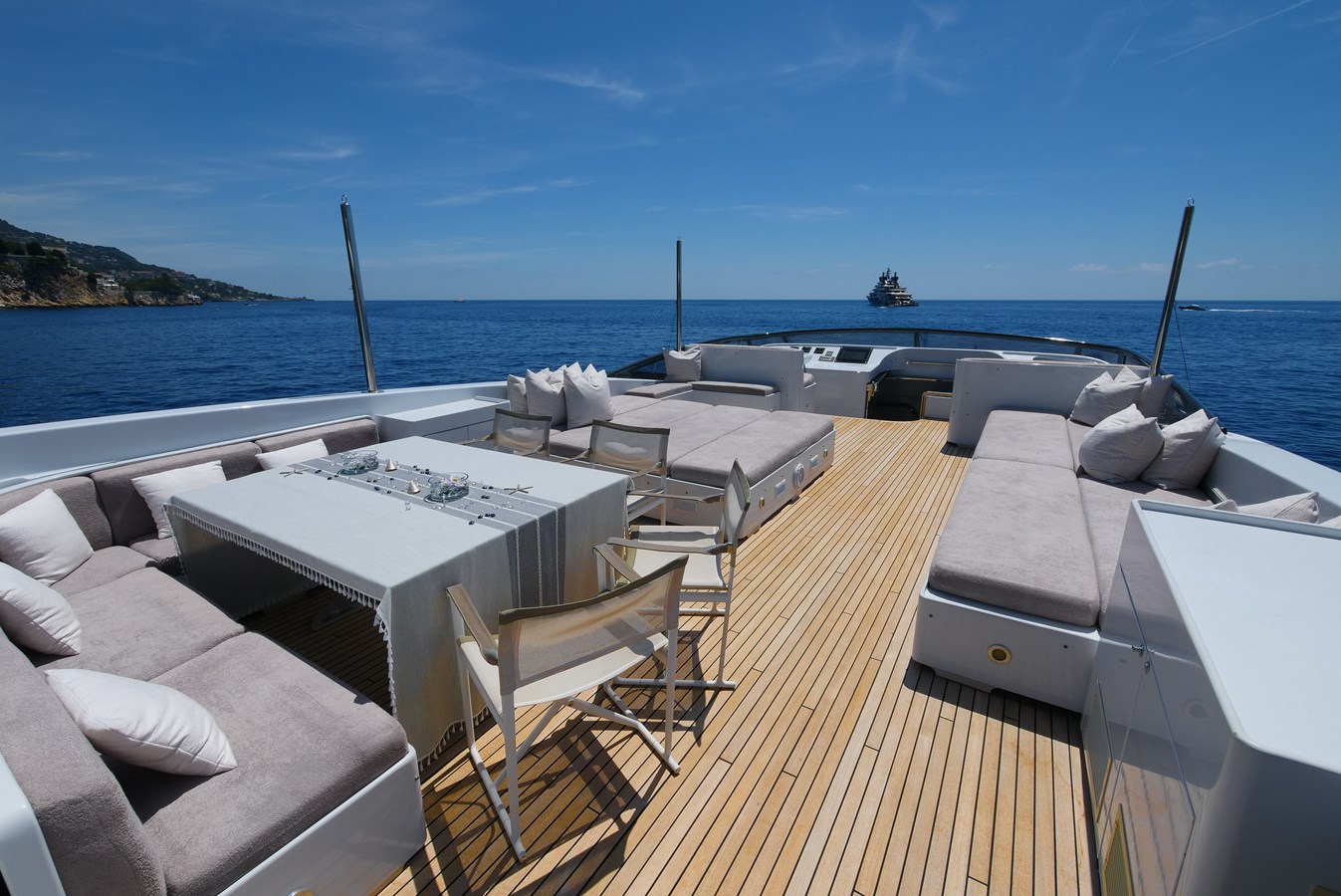

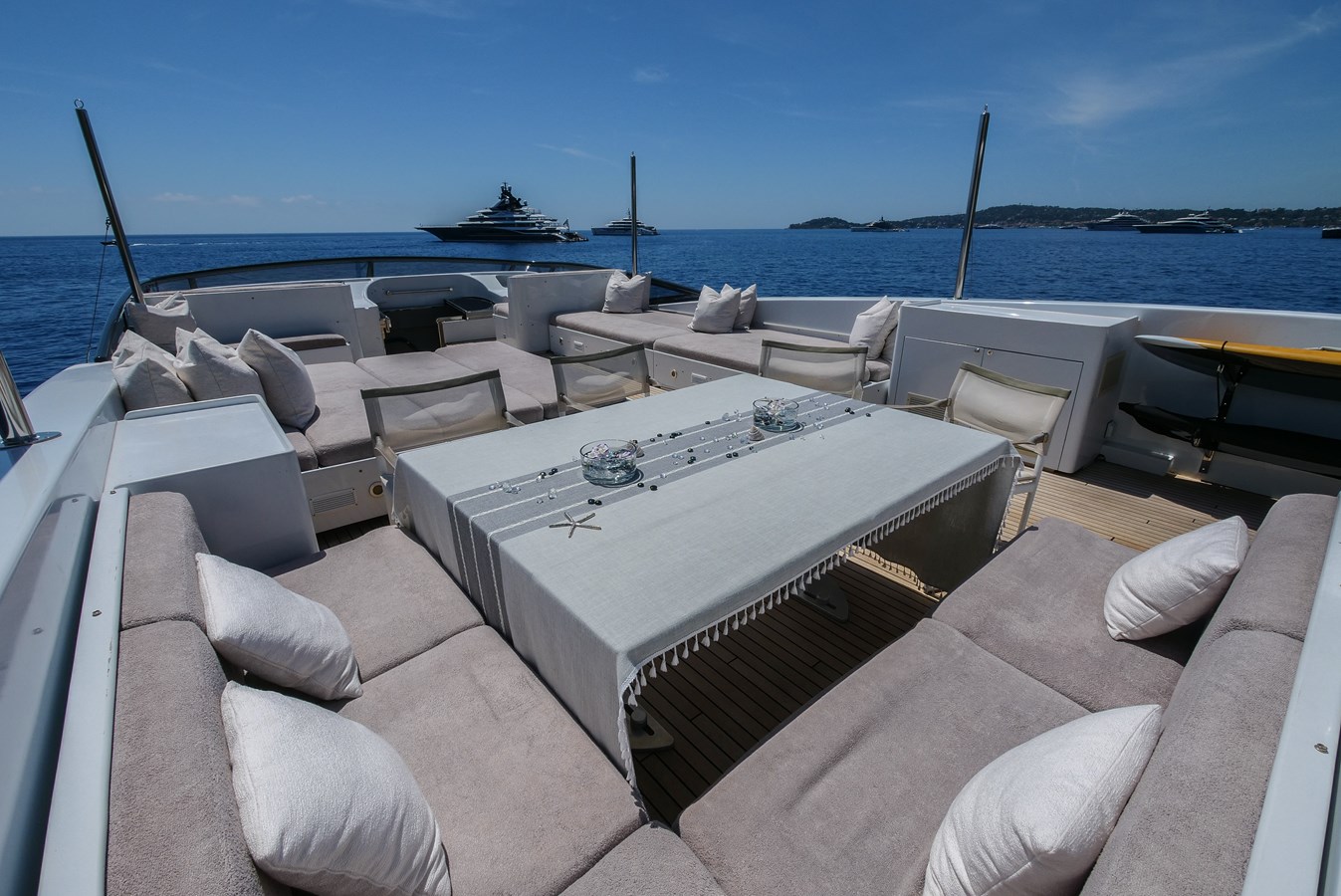

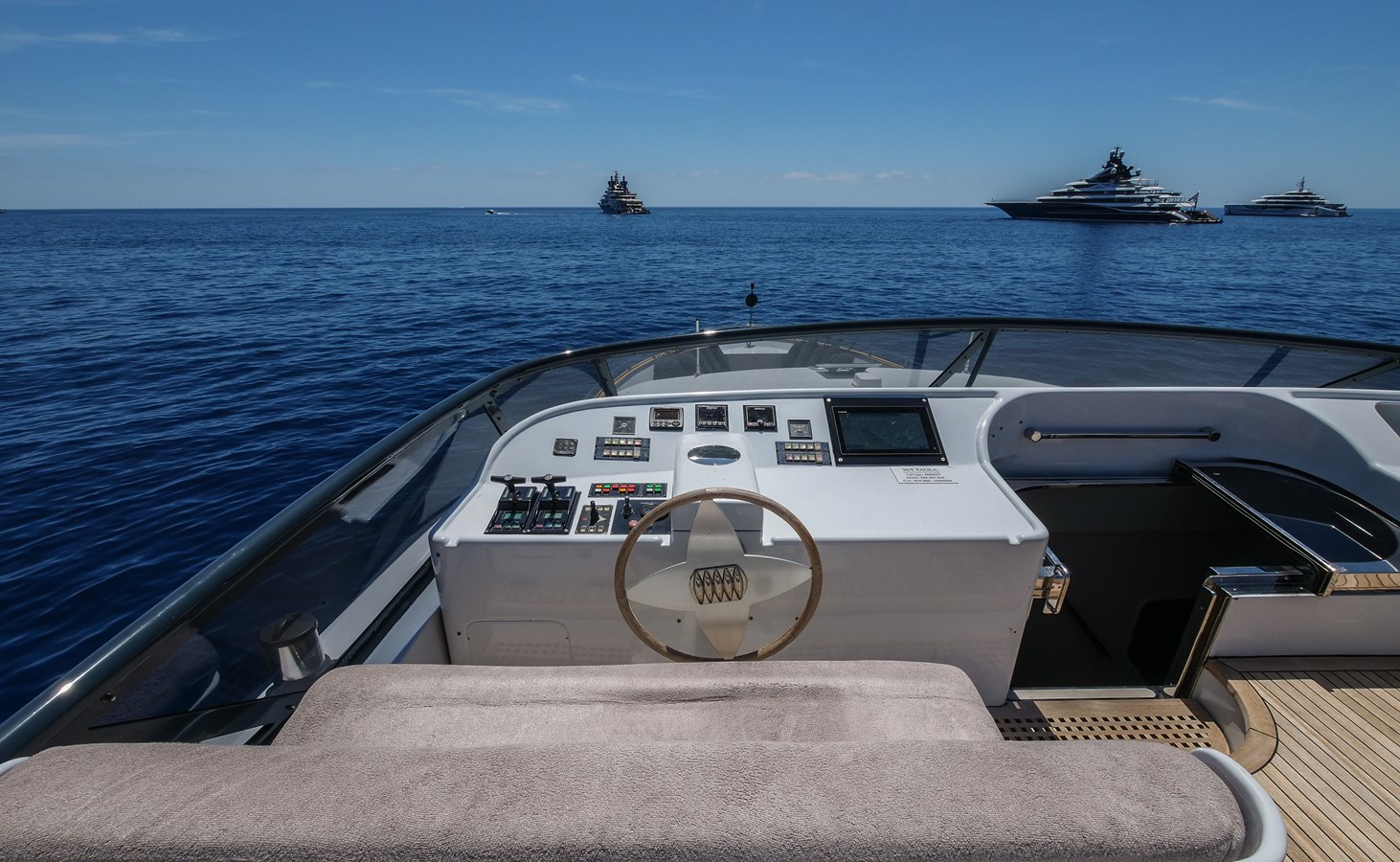

Flybridge bimini

ACCOMMODATION

                                 Accommodation for up to 10  guests in 4 cabins

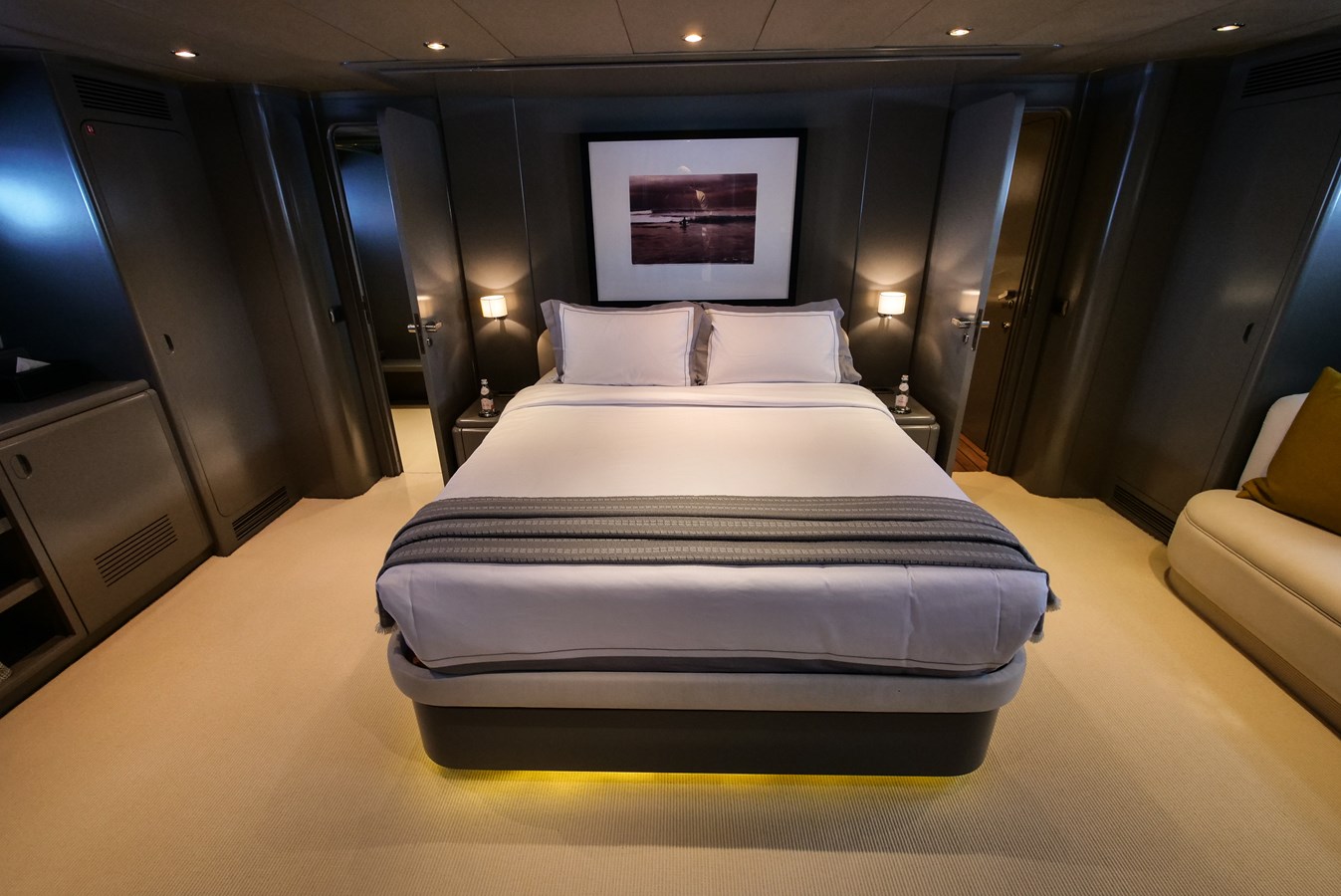

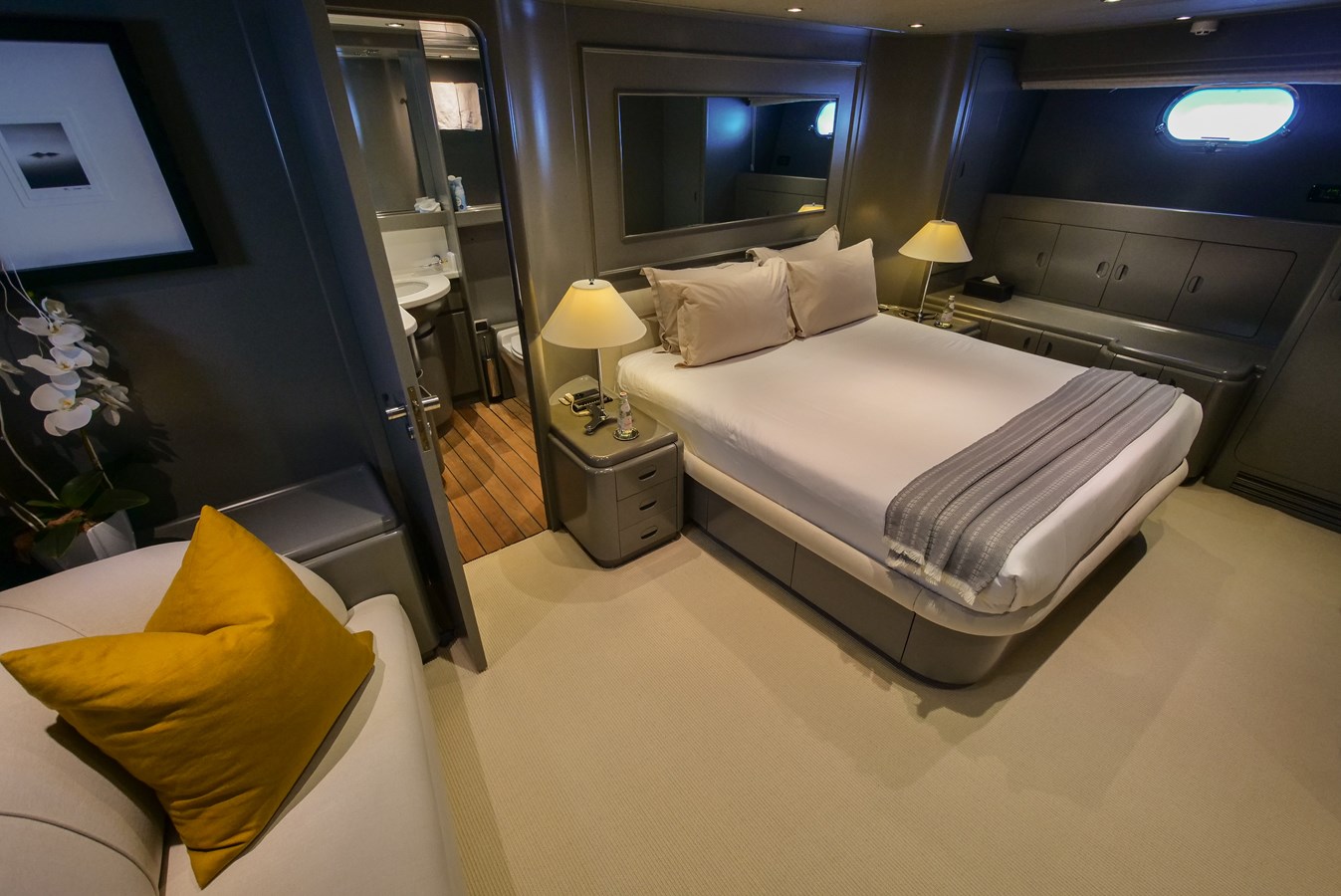

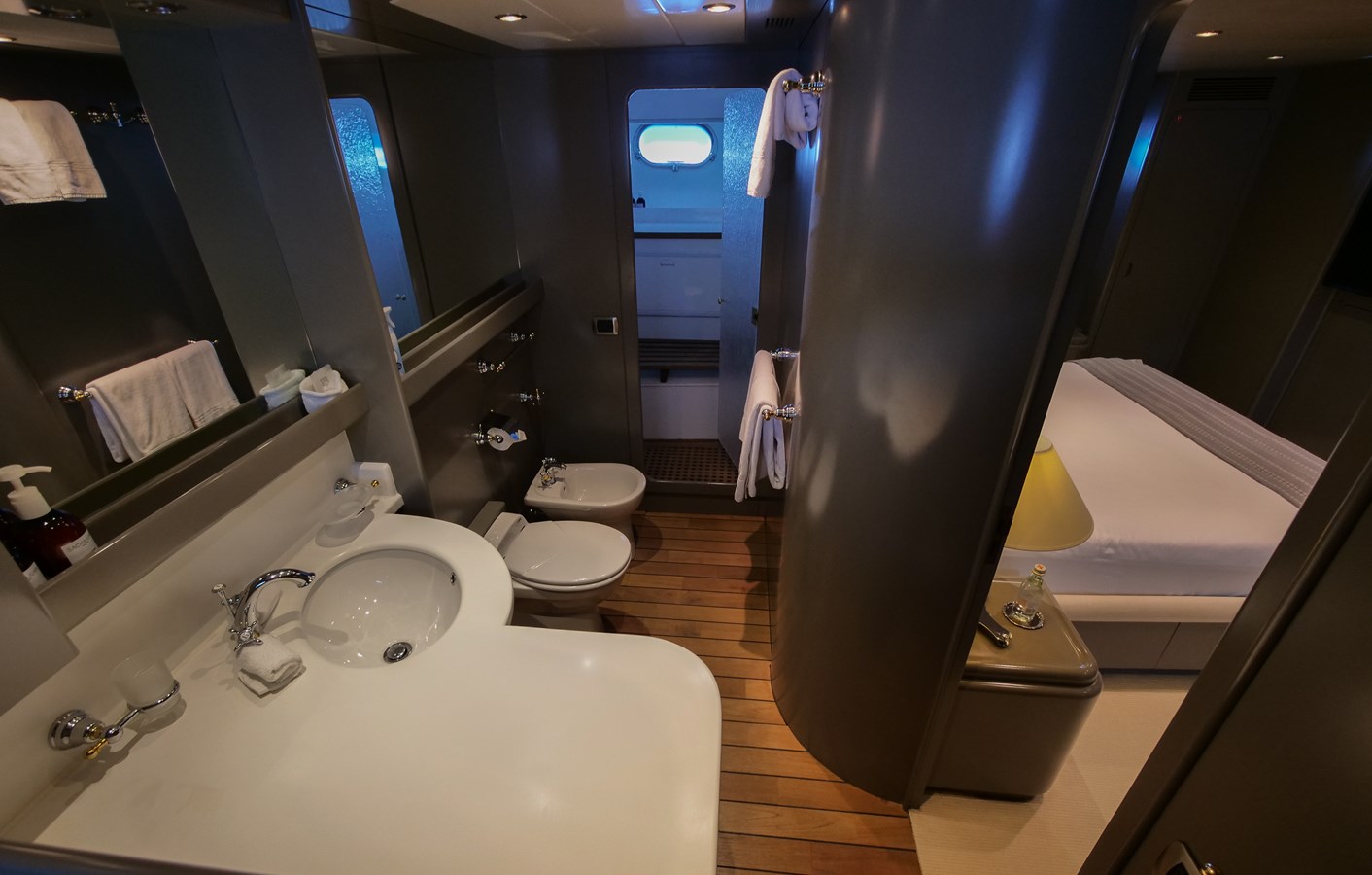

OWNER: Full-beam Master suite with double bed, en-suite bathroom, and additional seating area.

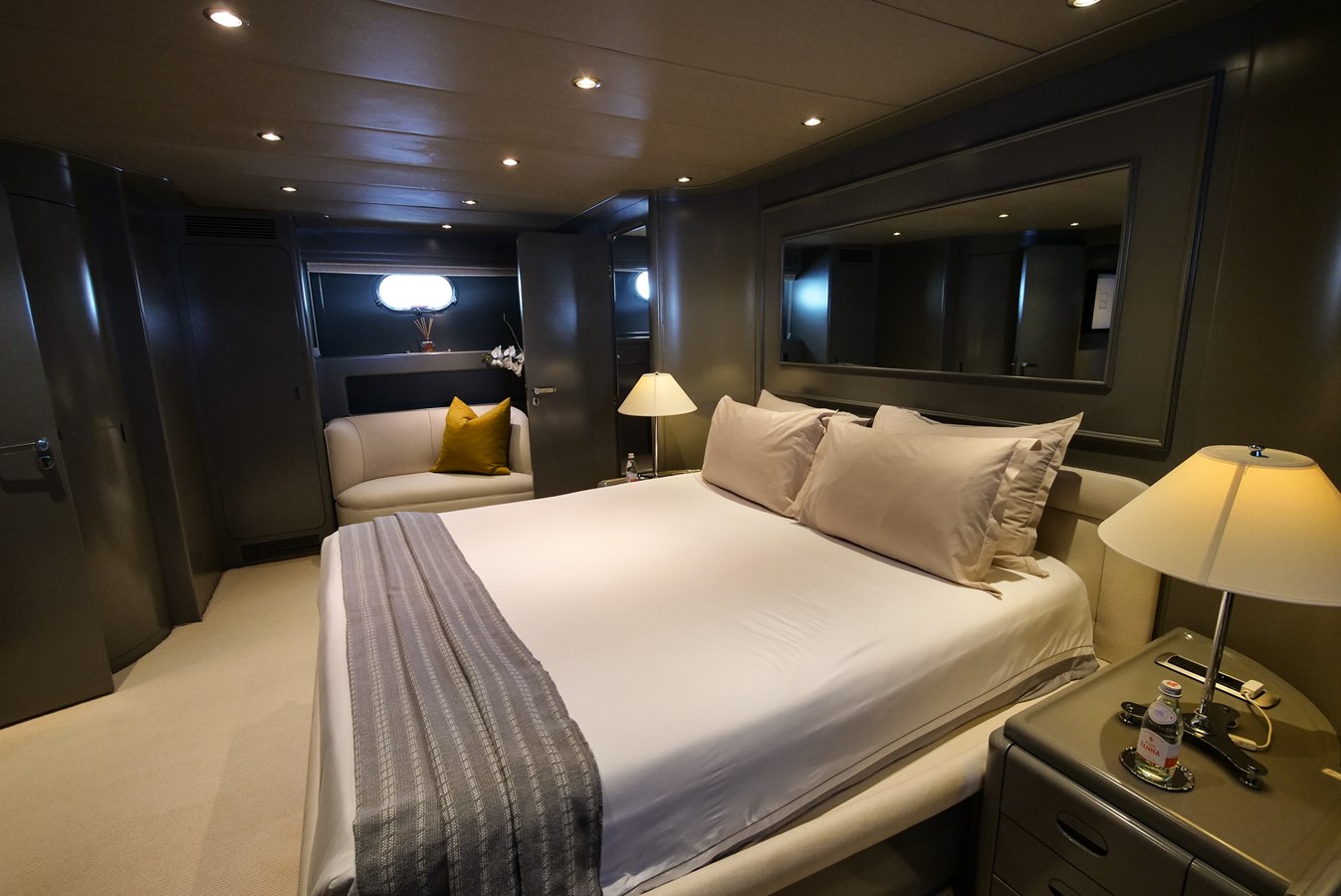

GUESTS: 1 × Master cabin with king-size bed

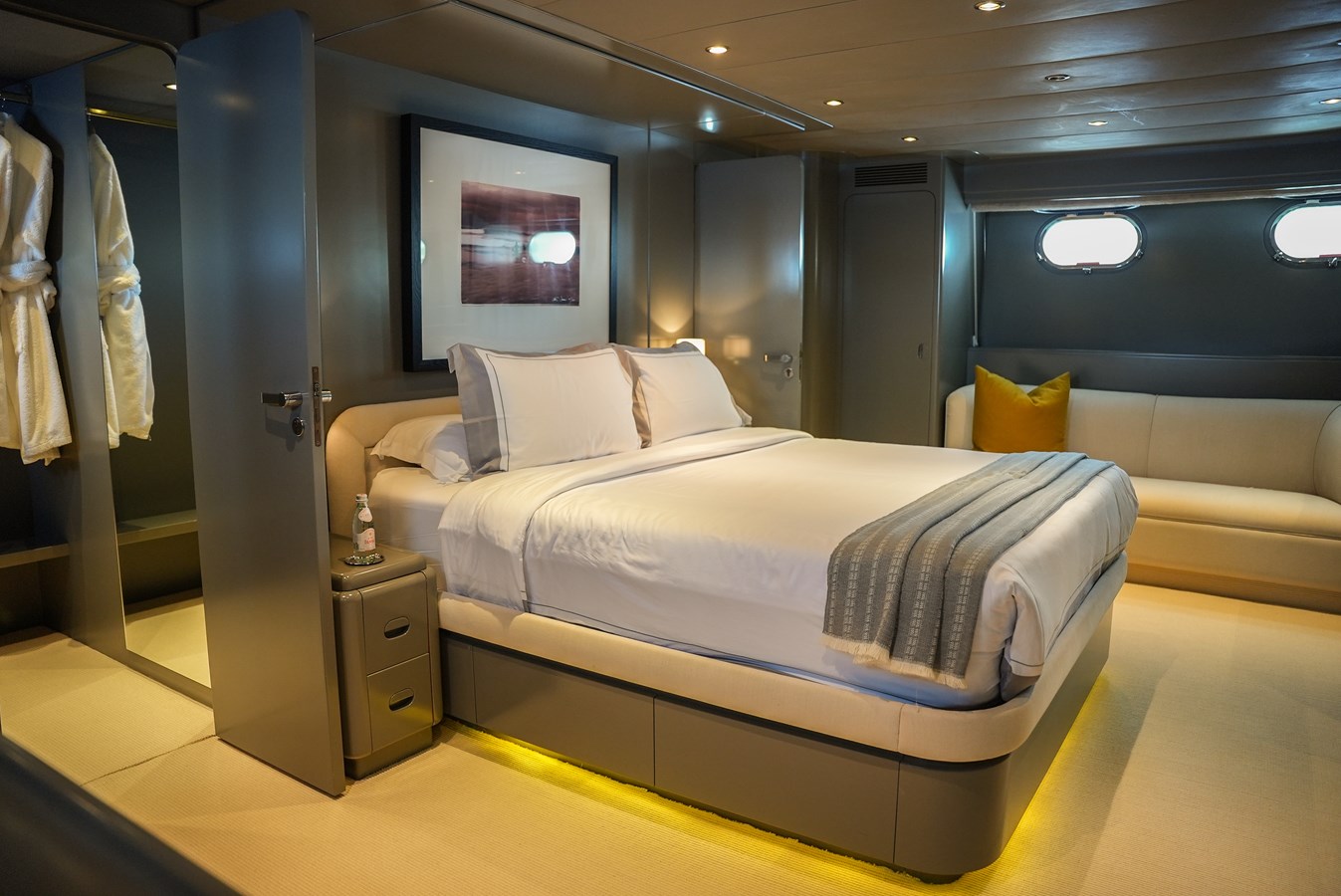

                 1 × VIP cabin with queen-size bed

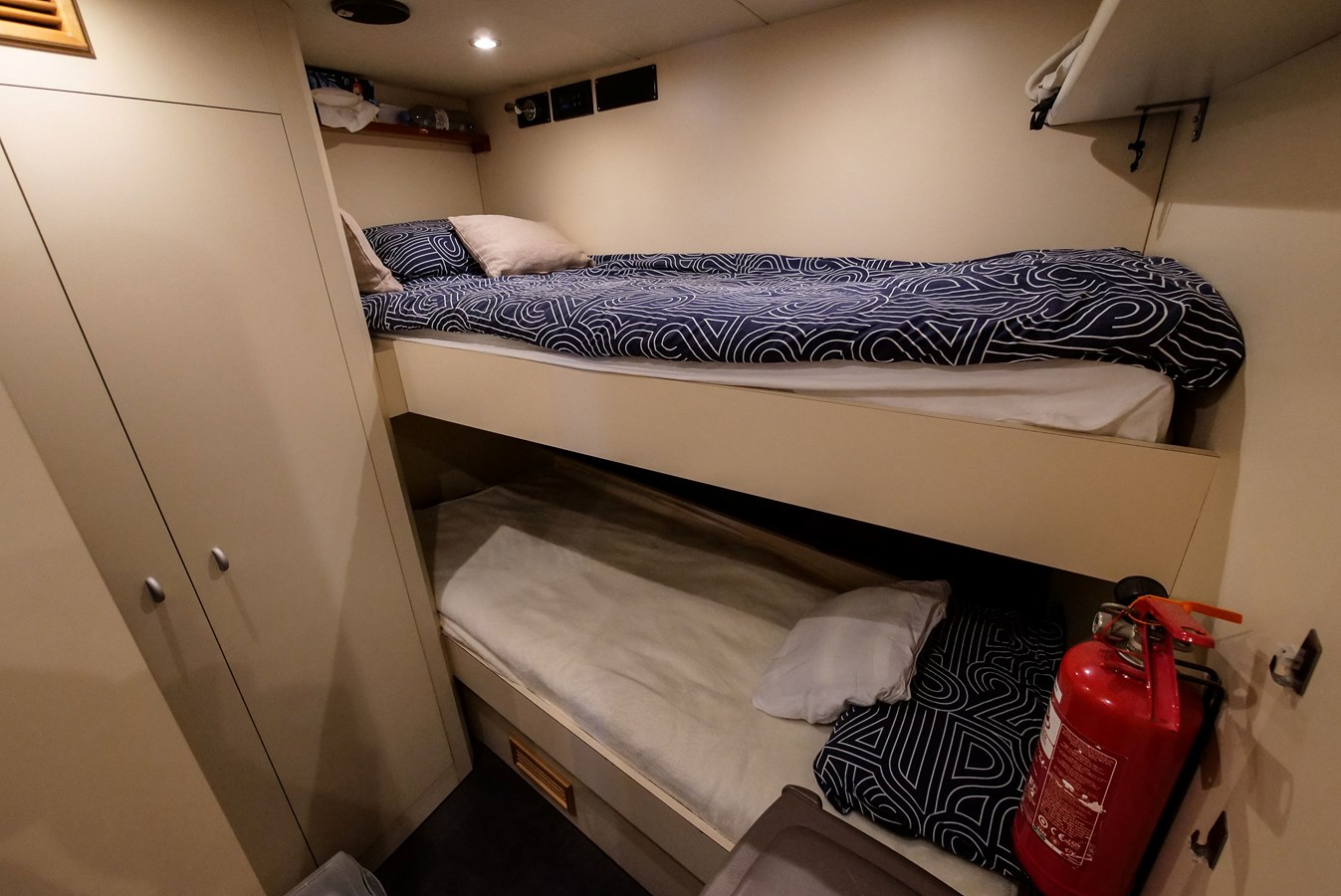

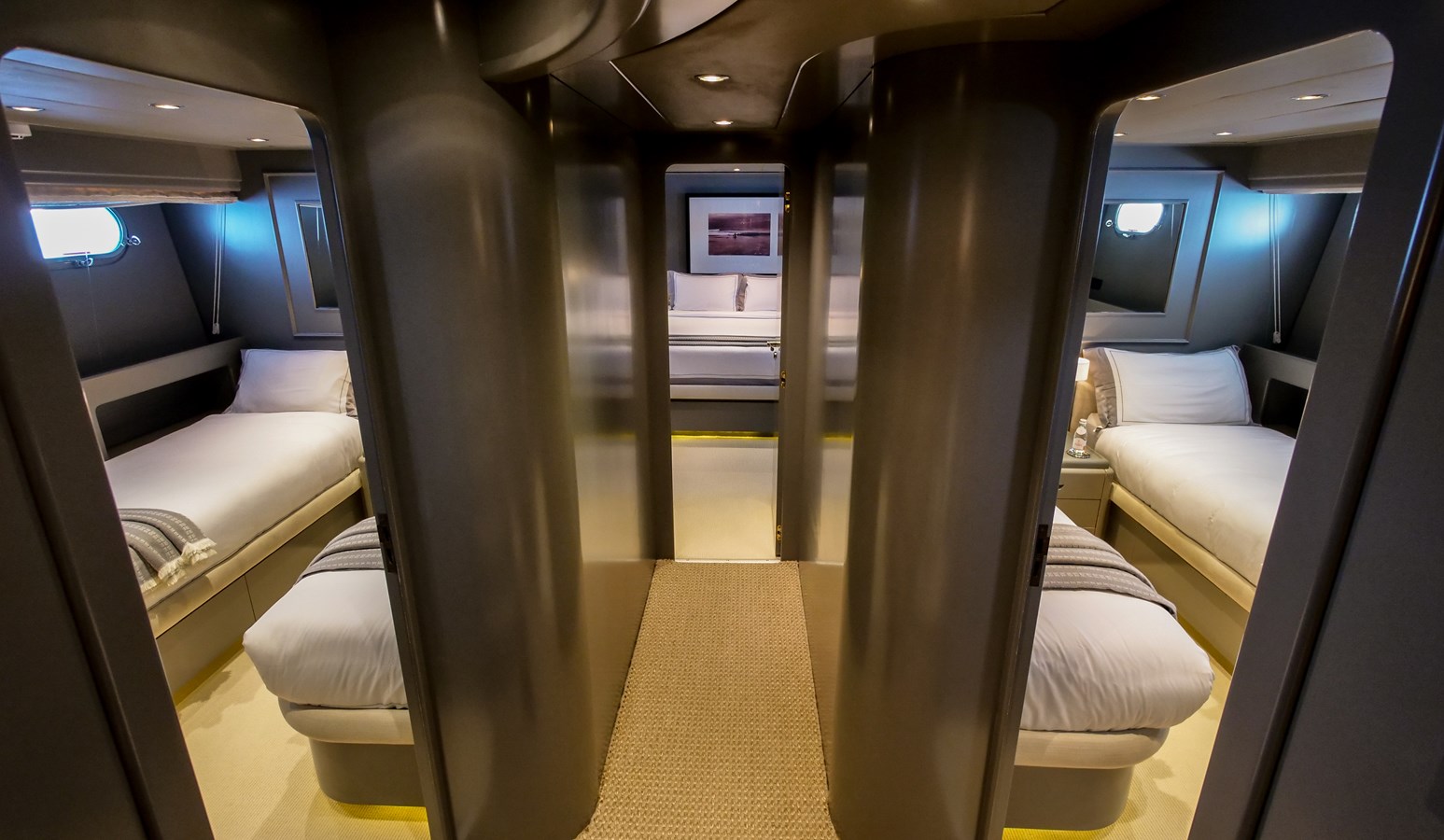

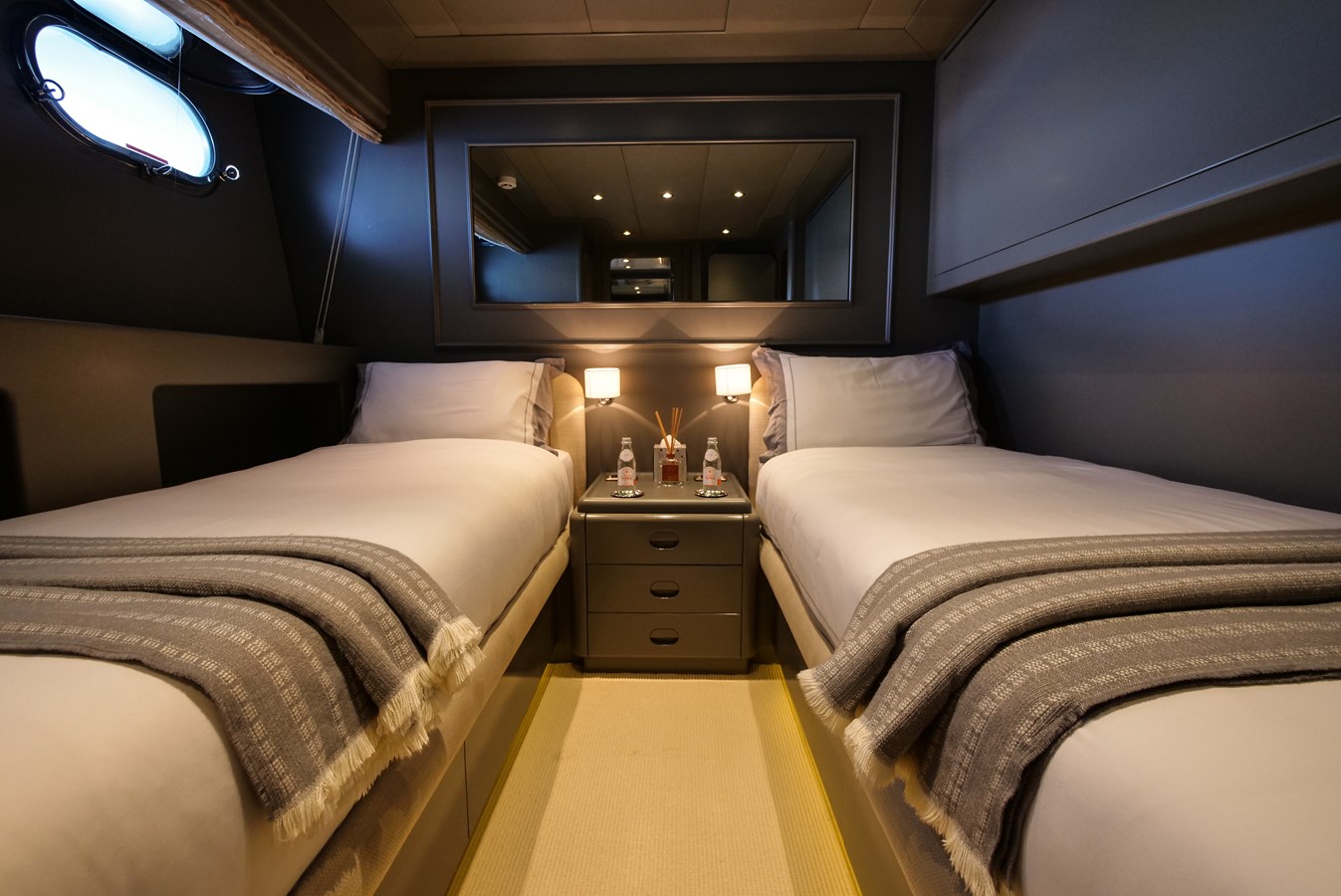

                 2 × Twin cabins with single beds

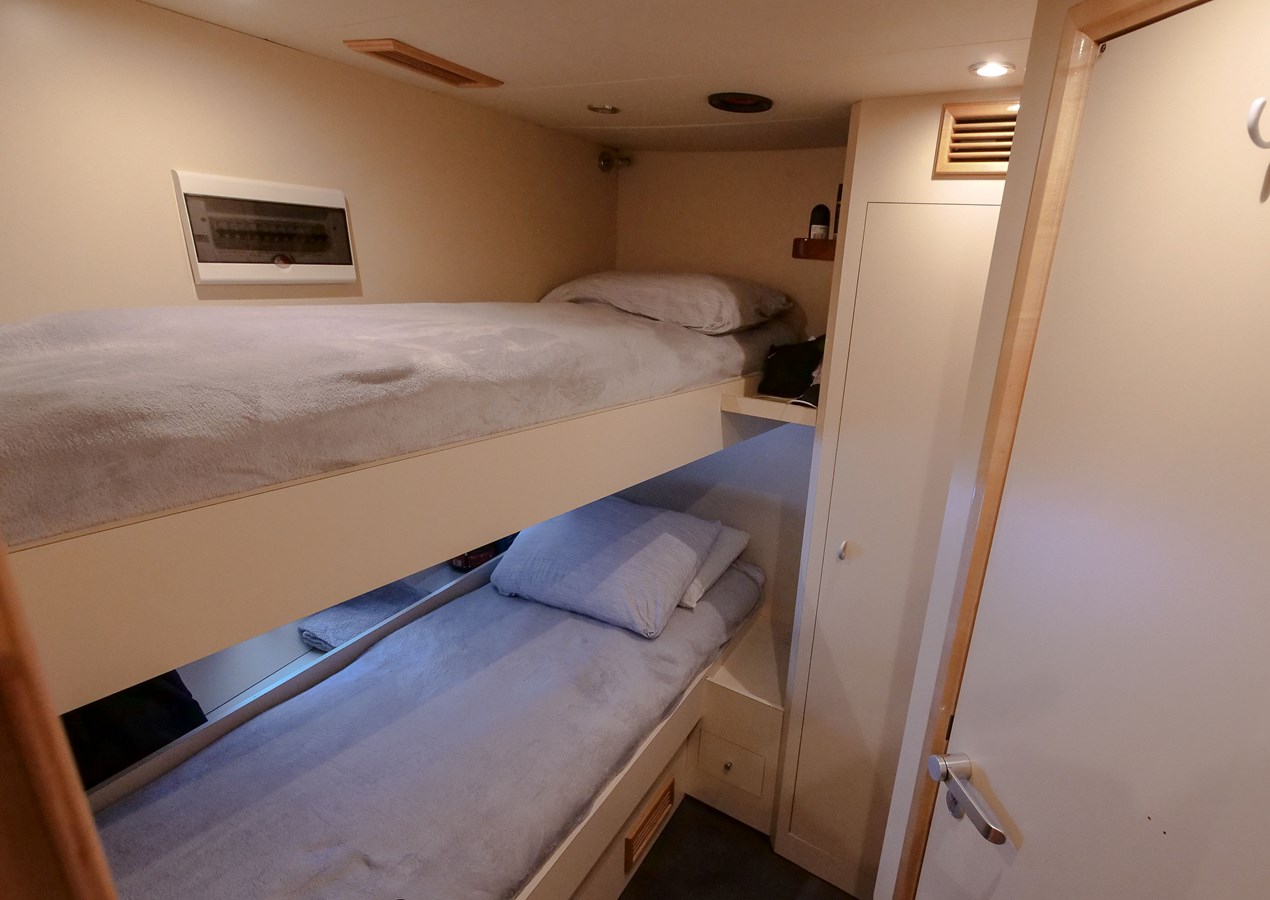

                 2 × Pullman

CREW: Professional crew of 4 in a separate crew quarters

OPTIONS & REFIT WORKS

2023/2024:

Replacement of machinery and major engines servicing (MTU Service level4), including main engines cylinder heads replacement.

2022 / 2023

–       2023 – brand new mattresses in all cabins

Redesign and replacement of flybridge sun awnings.

– Transom repainted.

– Bow area cleaned to bare metal, filler and repainted.

– Boot stripe (at waterline) repainted.

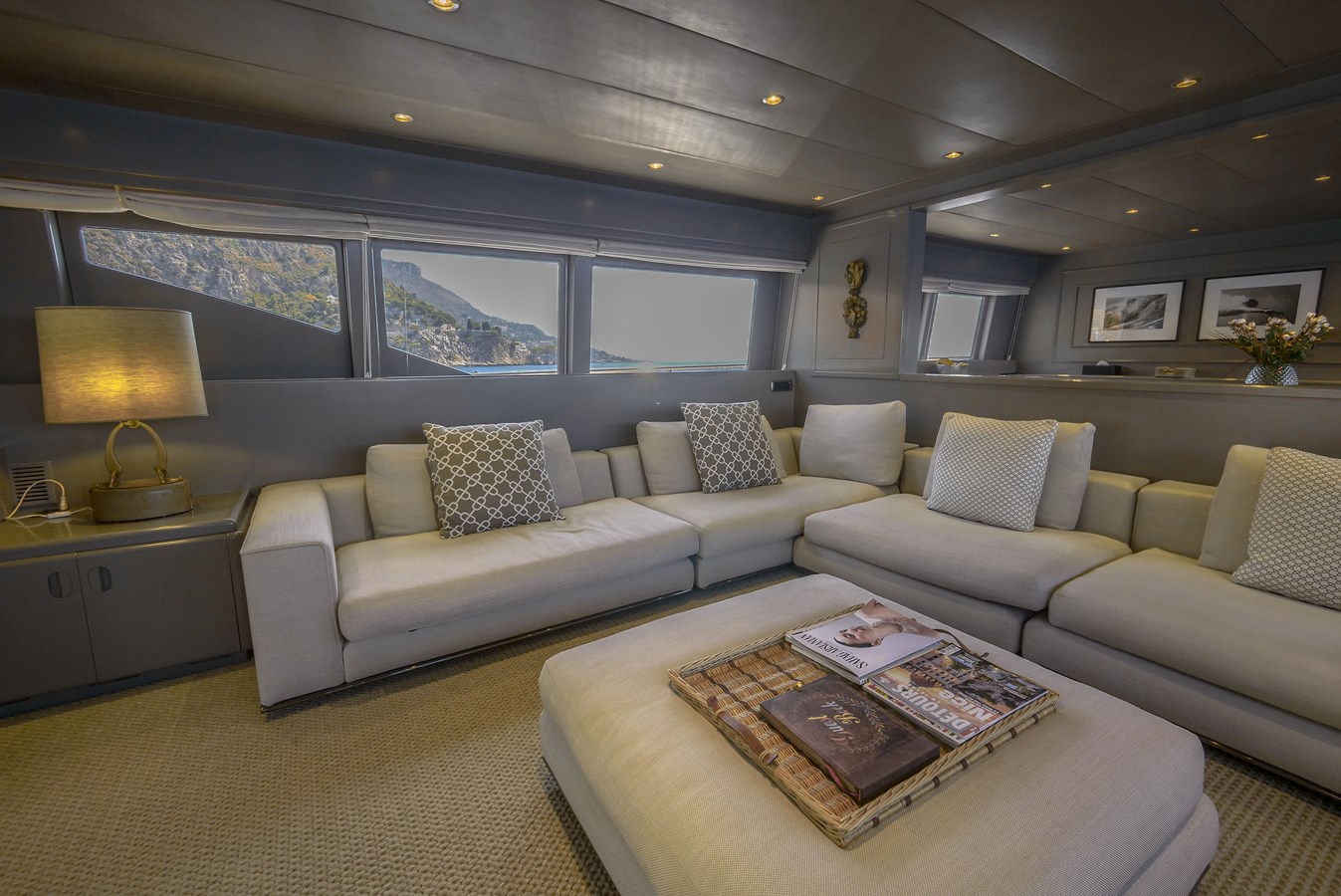

– Salon and guest stairwell carpets replaced.

– Flybridge Ice Maker replaced with new Hoshizaki 230V unit.

– Main engines, major overhaul, cylinder heads replaced on both main engines.

– Main engines exhausts removed, flanges replaced, heat shielding and shells replaced.

– Passerelle and crane hydraulic motor removed and reconditioned.

– Watermaker replaced with new 200LPH Idromare unit.

– Sanitation Certificates revalidated.

– 5 Year Commercial Surveys completed and approved by MCA.

– Steering rudders removed and seals replaced by custom manufactured units, both rudders.

– Mainengines shaft seals overhauled and cooling valves replaced on PSS.
