SLEEK 52

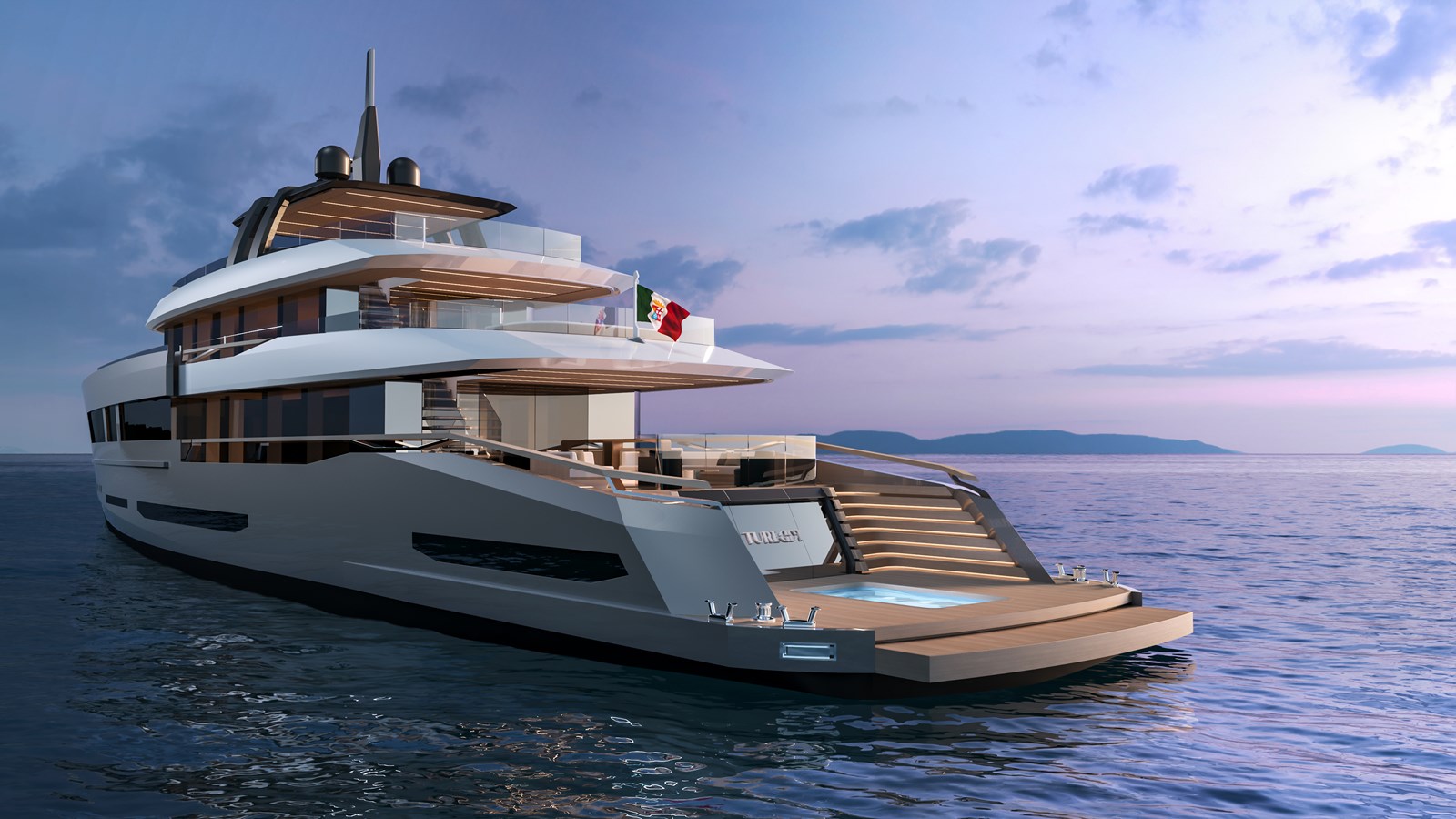

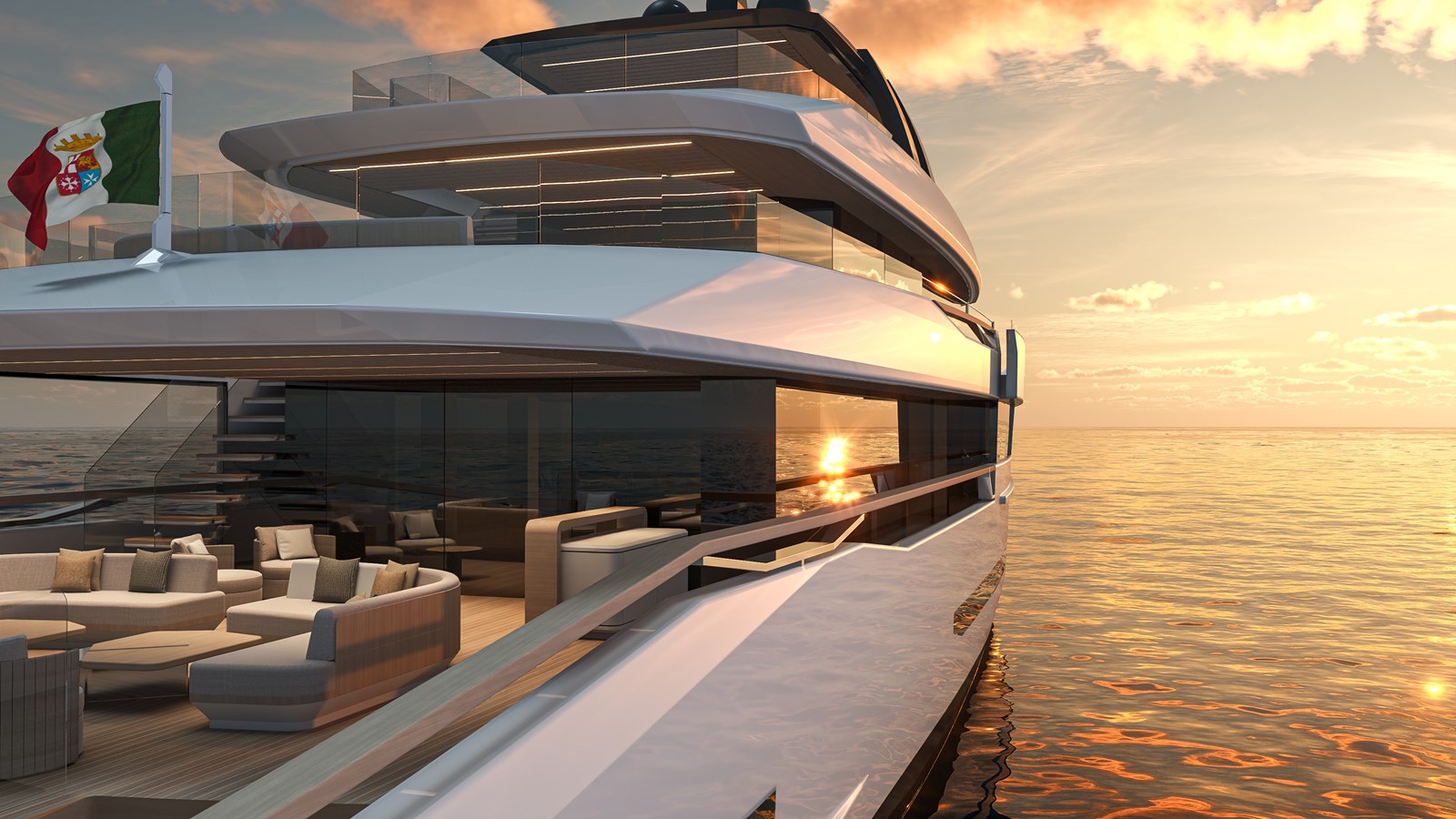

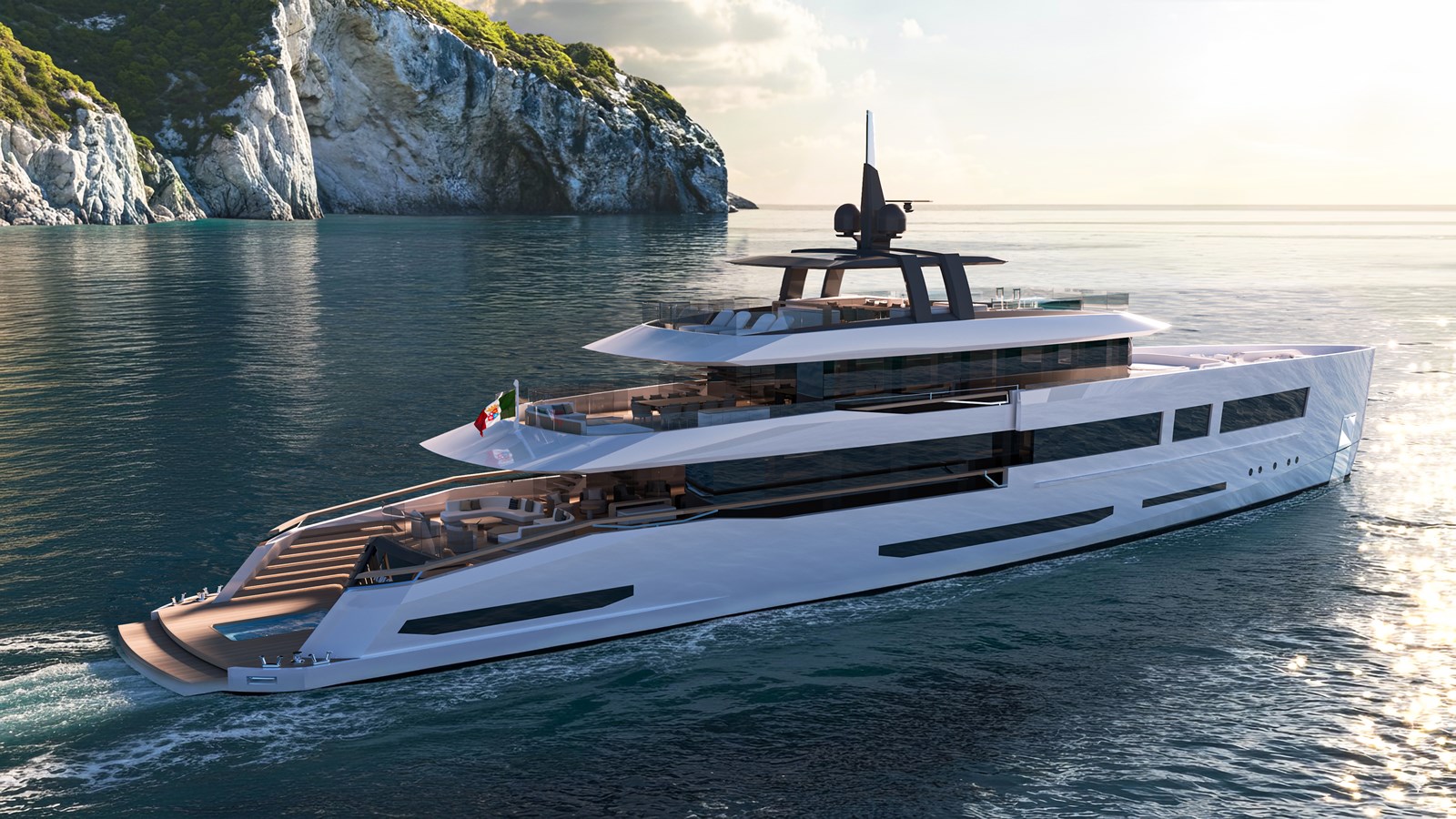

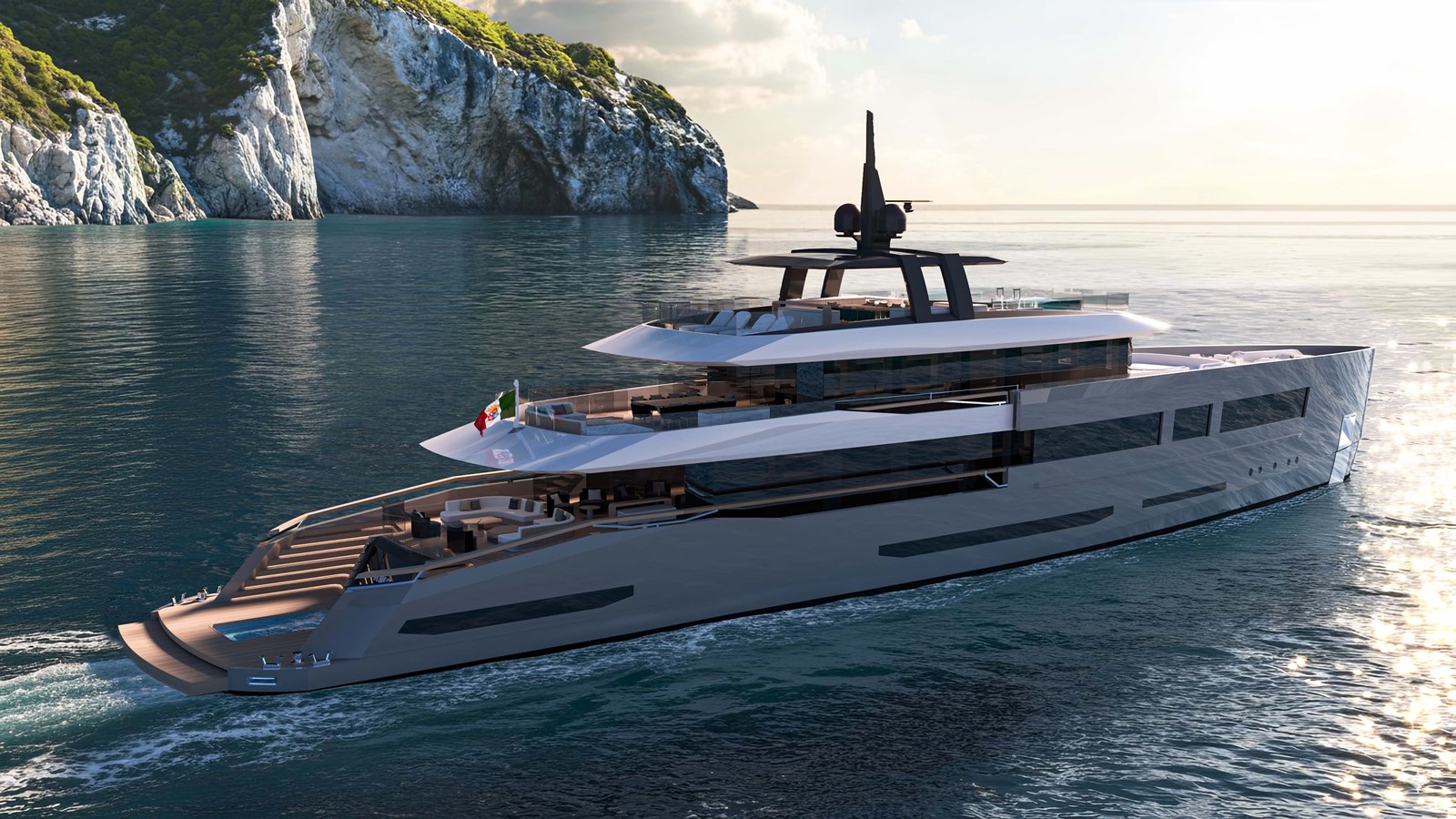

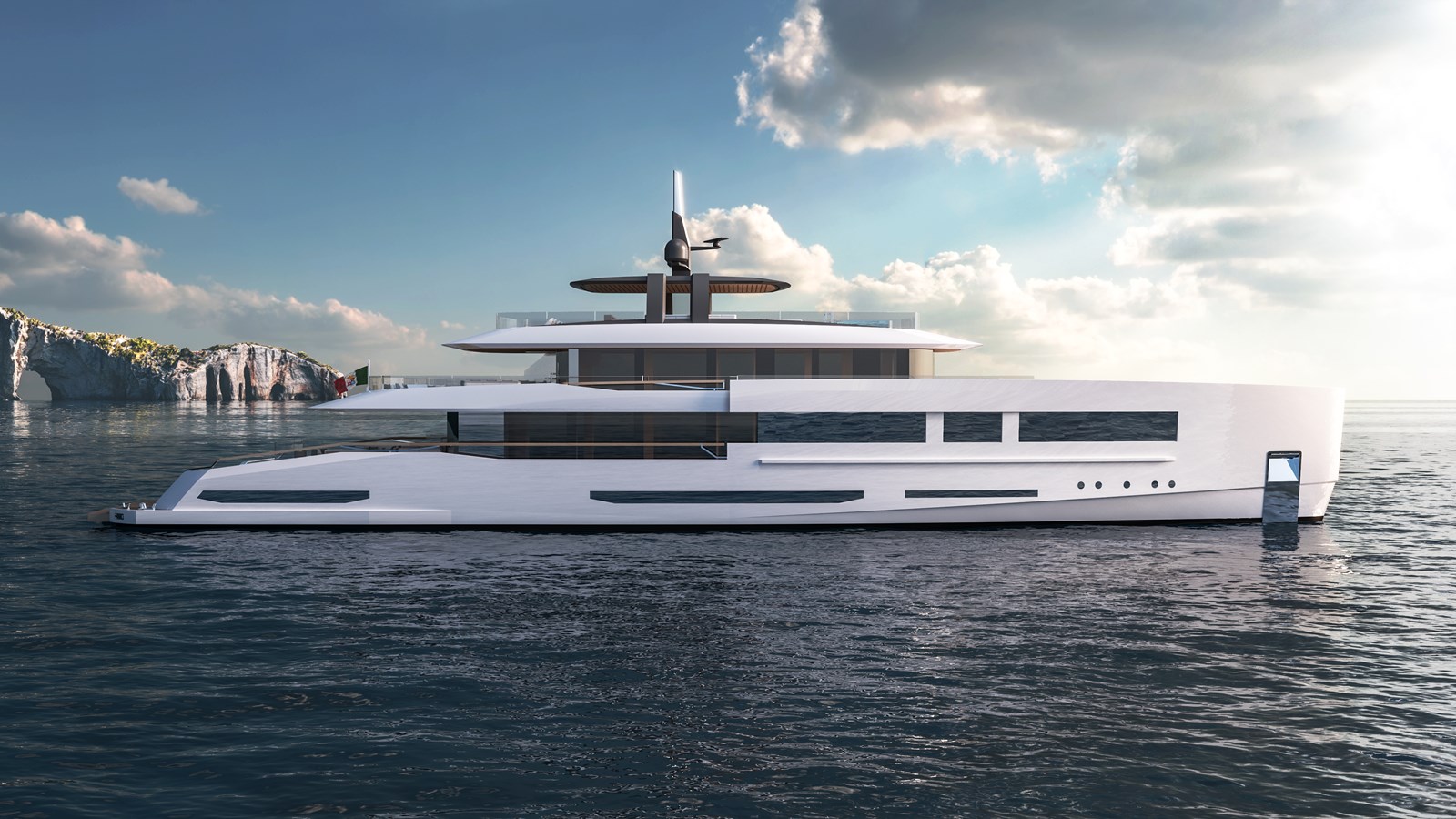

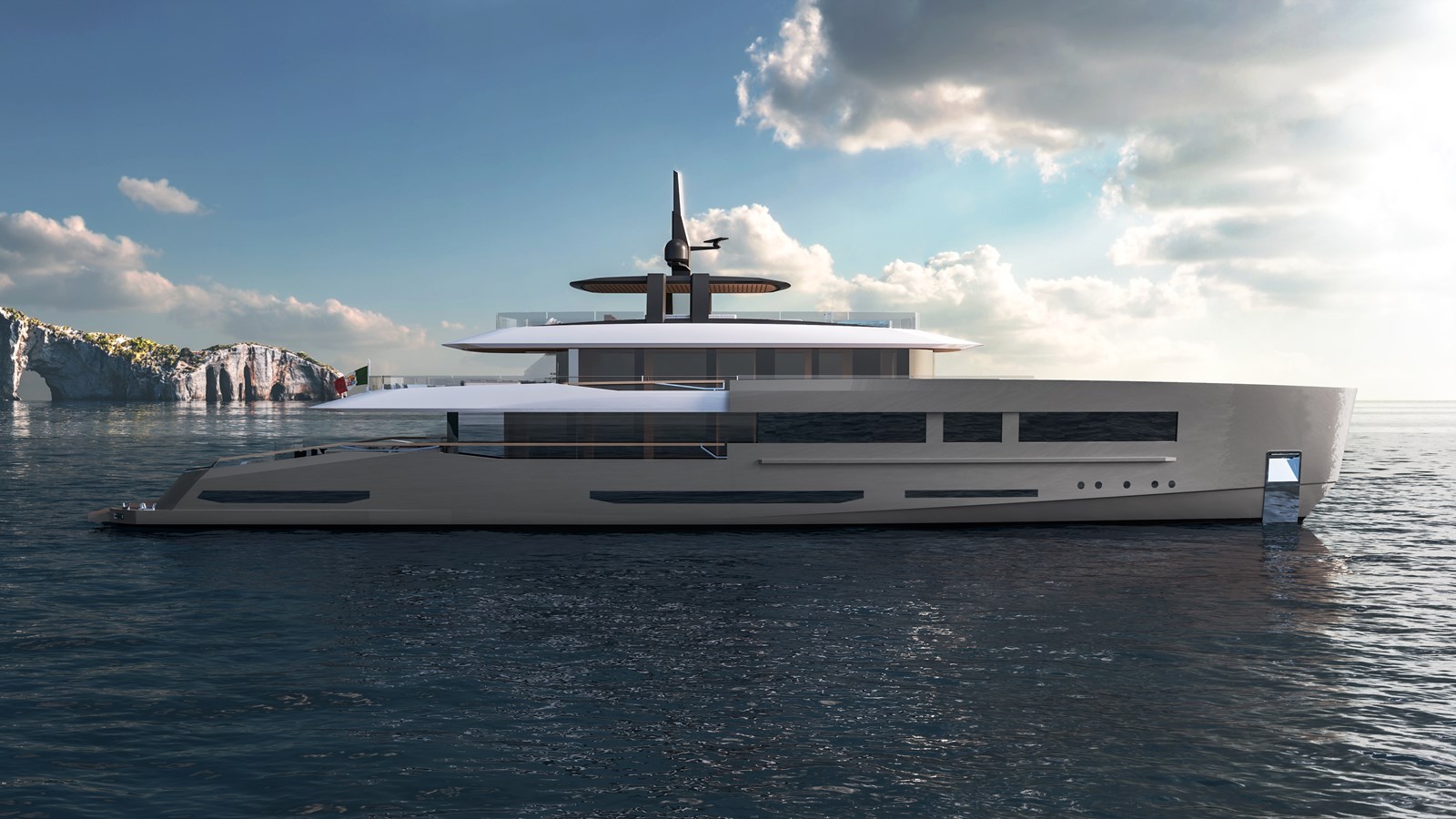

The Sleek 52 by Tureddi Yachts represents a new generation of long-range displacement motor yachts. With a length of 52 meters and a gross tonnage of 499 GT, this vessel combines contemporary exterior styling, excellent hydrodynamic efficiency, and ocean-grade engineering.

Constructed with a steel hull and aluminium superstructure, the Sleek 52 offers superior stability, generous internal volumes, and an autonomy of 4,500 nautical miles at 10 knots, making it ideal for transoceanic passages. Designed by 3-Studio (exterior and interior), the yacht blends luxury, practicality, and high-end technology in all departments.

Built to the latest RINA Class requirements and compliant with IMO/SOLAS safety standards where applicable, the Sleek 52 ensures safe, unrestricted navigation worldwide.

Key Features:
– Full customizable layout & specifications
– Attractive price while benefiting from decades of experience of the yard
– Full-beam beach club with wellness center and balconies

Main Engines:
2 × MTU 8V 4000 M63
Configuration: V8, turbocharged, liquid-cooled
Emissions: IMO Tier II compliant
Cooling: Seawater cooling with heat exchangers
Exhaust: Wet exhaust system with separators

Performance:
Maximum Speed: 15 knots
Cruising Speed: 13 knots
Range: 4,500 nautical miles at 10 knots
The propulsion system delivers optimal efficiency for extended ocean cruising with reduced vibration and noise levels.

Propellers: Twin bronze 4-blade propellers, class-approved
Rudders: Dual NACA-profile rudders for enhanced manoeuvrability
Shaft Lines: Marinox shaft system with anti-vibration mounts
Bow Thruster: 1 × 75 kW electric (400V)
Stern Thrusters: Twin stern thrusters 30 kW each (optional)

Generators:
2 × Kohler 80 kW, 400V – 50Hz
Soundshield enclosures and vibration-dampened mounting

Electrical Distribution:
400V AC – 3 phase
230V AC – single phase
24V DC emergency and services

Shore Power:
125 A shore inlet with isolation transformer
Automatic paralleling to prevent blackout during switching

Battery Systems:
Mastervolt service, emergency and starting battery banks
Smart monitoring via Masterbus & Mastershunt

Lower Deck: 55 dB max
Main Deck: 50 dB max
Upper Deck: 48 dB max
Sun Deck: 45 dB max

Noise and vibration are minimised through multilayer insulation, anti-vibration mounts, and floating floor systems where applicable.

Fuel System:
Dual fueling stations (STBD & PTB) with overflow retention
High-capacity transfer pump (Gianneschi 400V)
Alfa-Laval centrifugal purifier (400 L/h)
Dual Racor filter/water separators for main engines
Racor filtration for generators
Carbon-steel welded fuel lines
Sight gauges + digital VEGA sensors on day tanks

Cooling & Exhaust:
Seawater open-circuit cooling with heat exchangers
Dual sea-chests with professional galvanized manifolds
Stainless steel seawater filters
Piping in AISI 304 & galvanised steel

Bilge System:
2 × 4 kW professional bilge pumps (20 m³/h each)
Check valves, automatic alarms, high-water sensors
Bilge tank with shore discharge MARPOL-compliant
Electric Wafer valves controlled by automation plant

Fresh Water System:
Pressurized water system
Twin Gianneschi pumps, 400V
Stainless steel AISI 316 piping (press-fit)
2 × water heaters (100 L each)
Watermaker: 500 L/h (Idromar or Tecnicomar)
Sand filter + UV sterilization unit

Black Water System:
8,000 L black water tank with shore pump-out
Treatment system (Tecnicomar) sized for 12+ persons
Stainless steel AISI 316 piping in engine room

Grey Water System:
9,000 L grey water tank with gravity system
Stainless drain lines in 316
Treatment/overboard discharge as per MARPOL

Windlass & Winches:
2 × horizontal anchor windlasses (7.5 kW, 400V)
2 × stern professional mooring winches (5.5 kW)
Stainless steel finishing and chain gypsy for 22 mm chain

Cranes & Shell Doors:
Tender crane: Besenzoni, 1.7 t lifting capacity
2 × Shell doors integrated into the Wellness Area: Electro-hydraulic operation, Reinforced frames and locking systems

Hydraulic Systems:
Telescopic gangway
Bathing ladder (Besenzoni type)

Centralised chilled-water HVAC system with heat pump
Fan-coils installed in insulated compartments
Air distribution designed for optimal flow and minimal noise
Engineered for Mediterranean climate (Tropical/Arctic versions on request)
Independent temperature control for all staterooms and salons

Integrated Bridge:
3 × 21” LCD monitors for navigation & automation
Touch-panels for radar, echo-sounder, GPS, log, charts
Joystick & trackball multifunction control
Radar ARPA (Furuno) + UHD radar
GPS GP-33
Navtex receiver
Autopilot system
Dual VHF DSC
EPIRB & Radar SART
Searchlight integrated in automation
Magnetic compass

Communication:
High-speed Satellite Internet
Internal intercom system
Full integration with AV systems onboard

Lower Deck (LD):
Wellness Area:
Full professional wellness suite: Sauna, Hammam, Relaxation area, Gym
2 Shell Doors converting to private sea terraces
Direct access to the beach platform

Guest Staterooms:
2 VIP staterooms with king-size beds, full-height wardrobes, en-suite bathrooms
2 Twin staterooms, each with private en-suite + optional Pullman bed
Finishes: natural oak, premium leather, acoustic wall panels

Crew Area:
4 single crew cabins + 2 twin crew cabin
Crew mess with table for 8
Independent galley section for crew
Cold room
Laundry/ironing

Main Deck (MD)

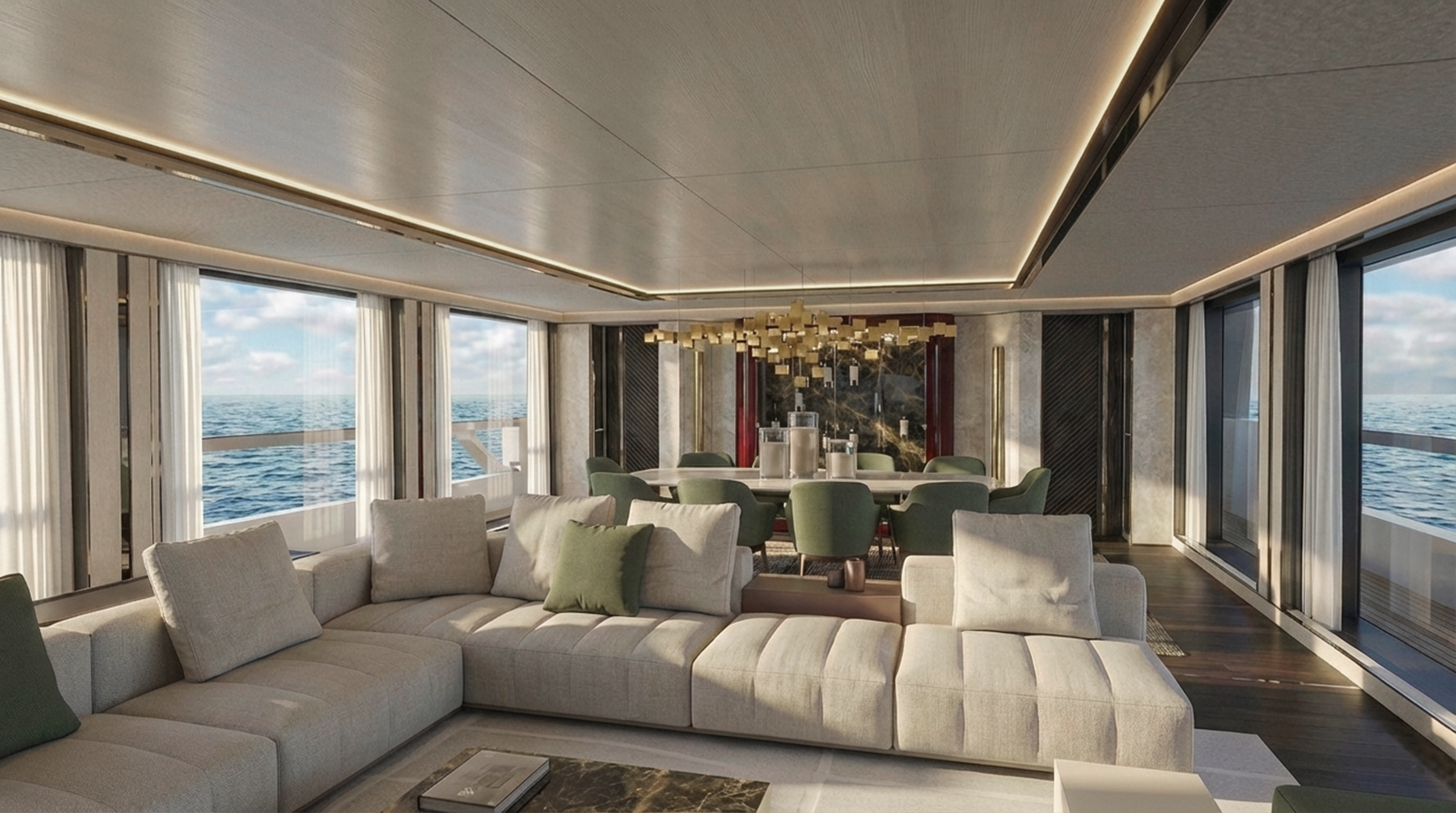

Main Salon:
Floor-to-ceiling windows
Leather sofas in modular layout
Central marble table
75” OLED entertainment system
Discrete ambient LED lighting
One L-shape sofa 6 places
One sofa 3 places
Dining area x 12
Expositive Wine Cellar

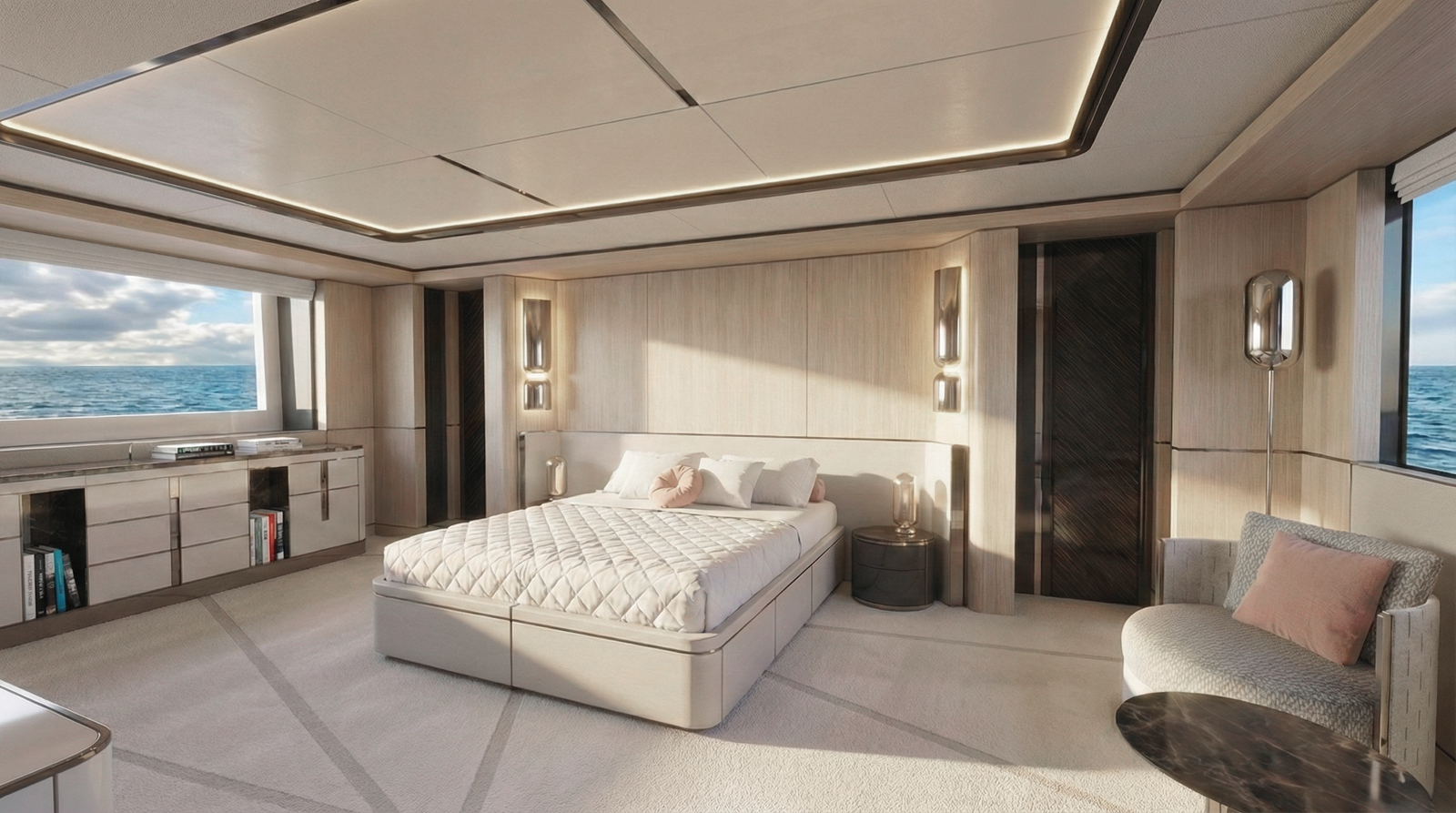

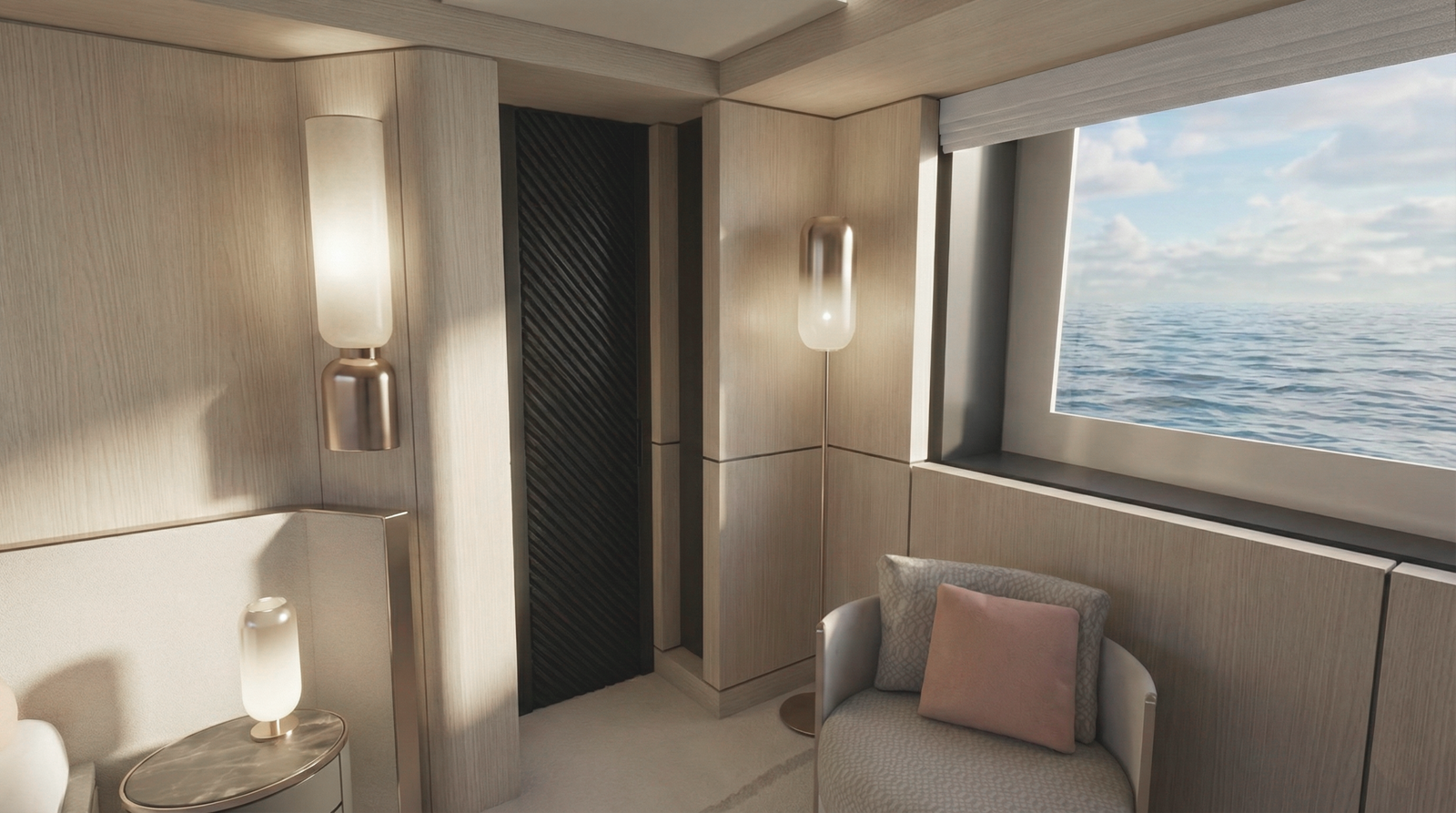

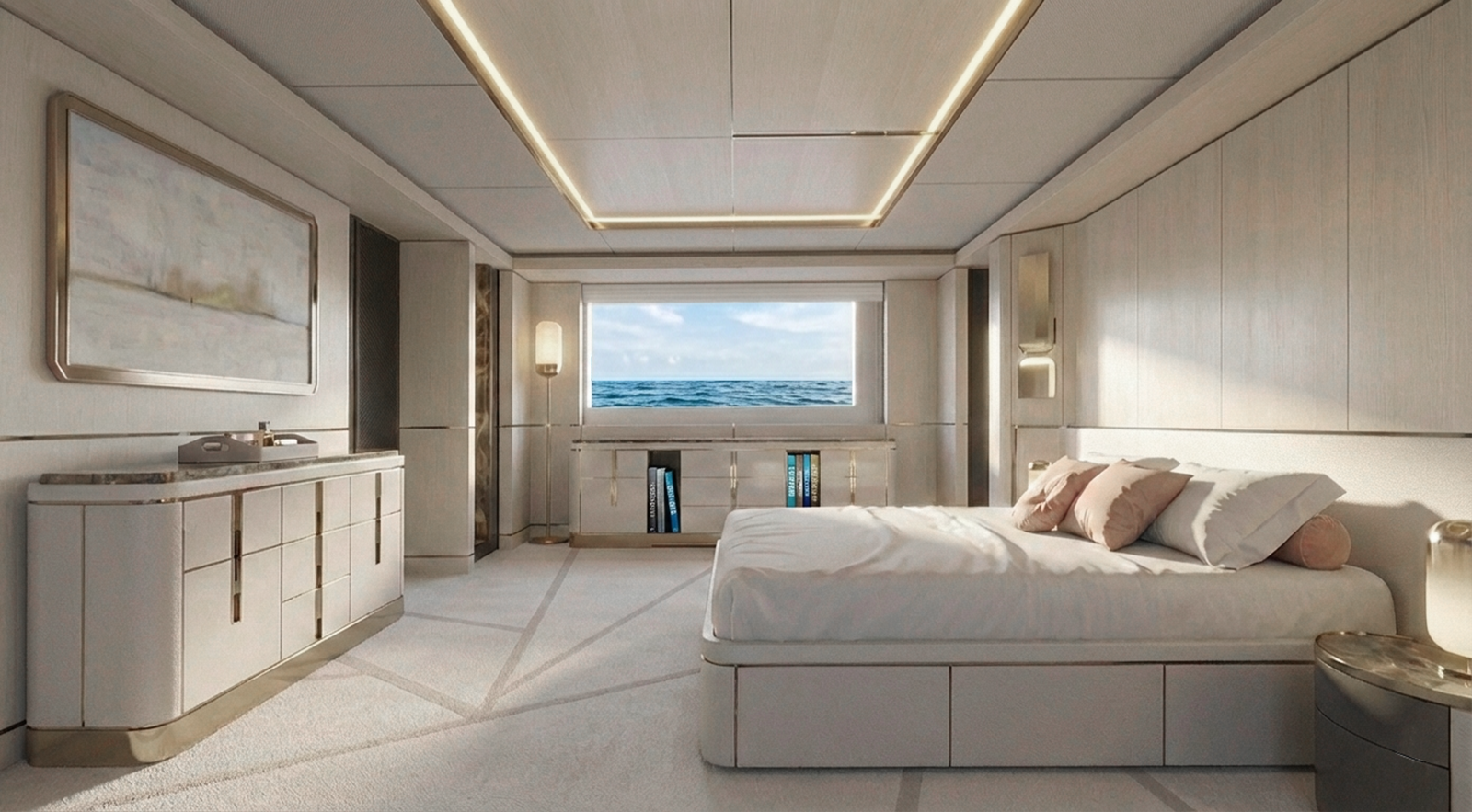

Owner’s Suite:
Full-beam master suite on forward MD
King-size bed
Private lounge with panoramic views
Walk-in wardrobe
En-suite bathroom with double sinks, walk-in shower and premium stone finishes
Private studio Area

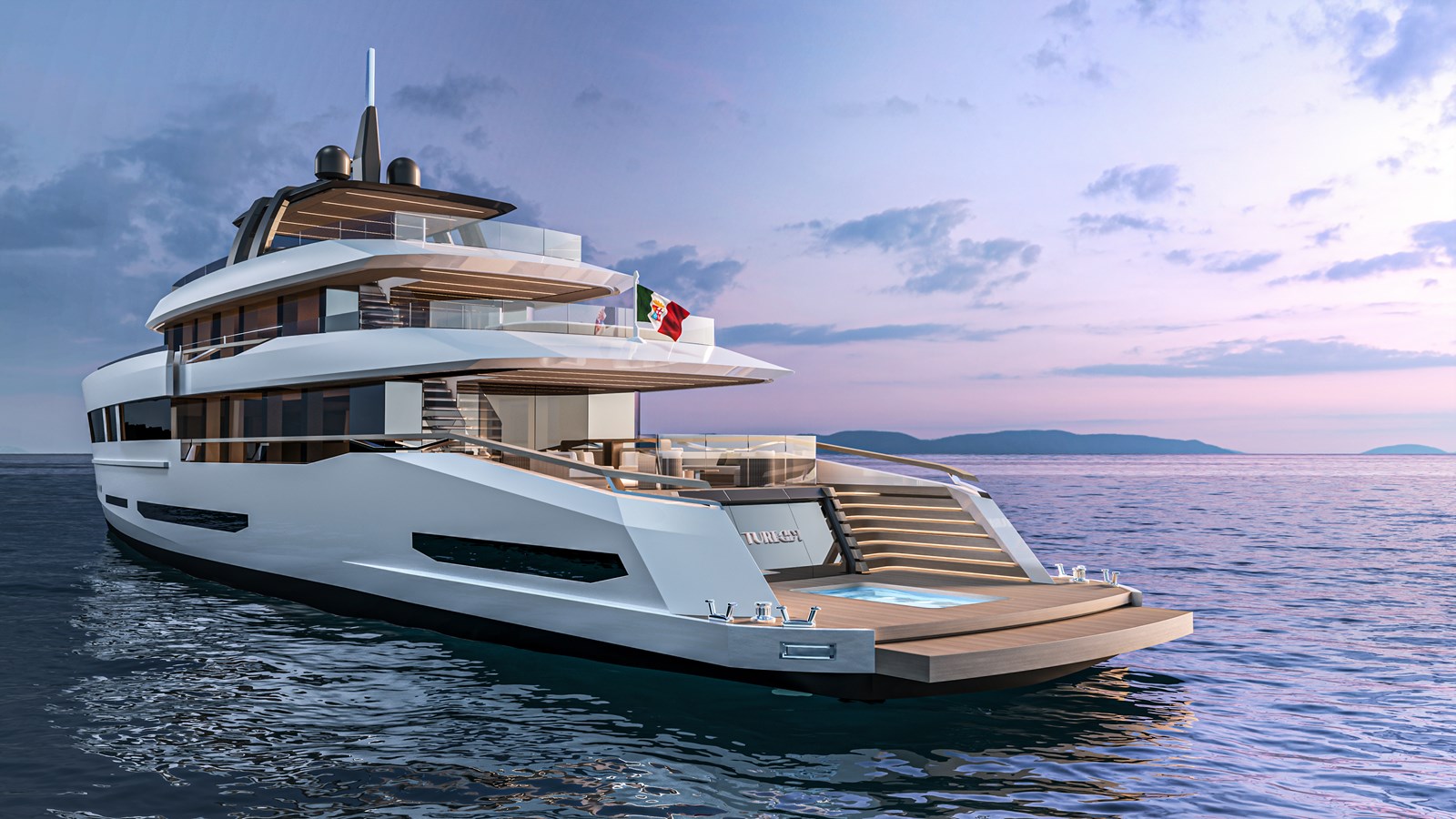

Aft Pool:
Integrated aft pool on terrace
Hydromassage features
LED lighting throughout
Beach club wet deck area
External lounge area with sofas and coffe table
External bar with armchair and coffe table

Lobbie:
Fully equipped Galley with annex Pantry

Upper Deck (UD):
Sky lounge with round sofas
Exterior dining area for up to 12 guests
Connection to sundeck via central staircase
External relax Area with sofas and coffe table
Additional Pantry
Fully equipped Capt. Cabin with ensuite bathroom
Fully equipped Weelhouse
Sunbad area with U-shape sofa and coffe table

Sun Deck (SD):
Jacuzzi with panoramic views
Fully equipped BBQ area and Teppanyaki
Fully equipped bar station
Dining table for 10–12
Sunbad area
Electrically retractable awnings
UV-resistant modular loungers

Interior Lighting:
Full LED system (BCM or equivalent)
Dimmable lighting in all premium areas
Recessed LEDs in wardrobes and under beds
Courtesy lighting on floors and steps

Exterior Lighting:
LED spots in ceiling
Courtesy LEDs on walkways
Accent lights integrated into furniture and hull lines

Underwater Lights:
6 × Cantalupi LED SY9 (or equivalent)

Hull:
Epoxy primer layers
Polyurethane topcoat high-gloss
Long-range antifouling coating system

Superstructure:
High-performance “Perfection Coating Cycle”
Epoxy primers + polyurethane finishing

Cathodic Protection:
Zinc anodes on hull, rudders, shafts
Electronic monitoring
